Mastering AutoCAD 2D: A Comprehensive Guide for Engineers

logo

Skill-Lync

Welcome to this blog series on Computer-Aided Drafting using AutoCAD, the globally renowned tool for 2D drafting and design. Whether you're just starting out or looking to sharpen your skills, this blog series is designed to equip you with essential drafting techniques that will become invaluable in your engineering career. Let's dive into what you can expect to learn and how it will benefit you.


Why AutoCAD 2D Is a Must-Have Skill for Engineers

The core focuses on AutoCAD 2D, an essential drafting skill that serves as the foundation for nearly all design work across engineering domains. Whether you are a mechanical engineer, civil engineer, or even in the electrical field, AutoCAD 2D drafting is the backbone of all your design tasks. Mastering this tool not only allows you to create precise 2D layouts but also provides a pathway to advancing your knowledge into AutoCAD 3D, which is becoming increasingly relevant in today's industry.

AutoCAD is widely used across industries for its ability to produce accurate technical drawings, and it's a critical tool in sectors like mechanical, automotive, and civil engineering. In the civil domain, it’s used for creating site layouts, quantitative drawings, and measuring site plans. Mechanical engineers use AutoCAD for detailed component designs, and it even extends to electrical engineers, who rely on it for creating wiring harnesses and PCB diagrams.


Geometric Dimensioning and Tolerancing (GD&T)

One of the key areas we will dive into is Geometric Dimensioning and Tolerancing (GD&T). This is a crucial skill for engineers working in any production or design environment. Often, issues in the production line arise from improper tolerancing or dimensioning. We will cover how to define tolerances for different manufacturing processes, whether it’s for casting or precision 3D machining. Understanding tolerances ensures that the components you design can be manufactured within the required specifications, minimizing errors during production.


Importance of Technical Drawings in Multibody Dynamics Using SolidWorks

In the world of engineering, particularly in fields such as mechanical engineering, multibody dynamics, and CAD design, technical drawings serve as a universal language. These drawings are the foundation upon which designs are communicated, reviewed, and ultimately brought to life. But what exactly is the role of a technical drawing, and what does it aim to convey? Let’s dive into the essentials of technical drawings and why they are vital for engineers.


The 5 W’s and 1 H of Technical Drawings

A technical drawing typically addresses six critical questions—commonly referred to as the 5 W’s and 1 H. These are:


  1. What: What is the purpose of the drawing? What information does it need to communicate to the manufacturer or the designer? In essence, the drawing conveys the purpose of the design and what it is intended to achieve.
  2. Why: Why is this drawing necessary? Why does the design need to exist? The technical drawing provides clarity on the function and necessity of the component.
  3. Who: Who created the drawing? This is often an overlooked yet vital detail. In many industries, multiple designers may work on a project over time. Tracking who designed and modified the drawing, and at what stages, is crucial for understanding its evolution.
  4. When: When was the drawing first published? What revisions has it undergone? Is this the final version, or is it still in a draft stage? These details are essential for keeping track of progress and ensuring everyone is working with the most up-to-date version.
  5. Where: Where did the drawing originate? In industries that operate across multiple locations, it's important to know where a drawing was created. This helps streamline collaboration and ensures consistency across teams.
  6. How: How should the component be manufactured? A technical drawing includes detailed instructions on how the part is to be fabricated, assembled, or tested, making sure all necessary guidelines are in place.

By answering these questions, a technical drawing becomes a comprehensive document that encapsulates all necessary data to manufacture and assemble a component effectively.

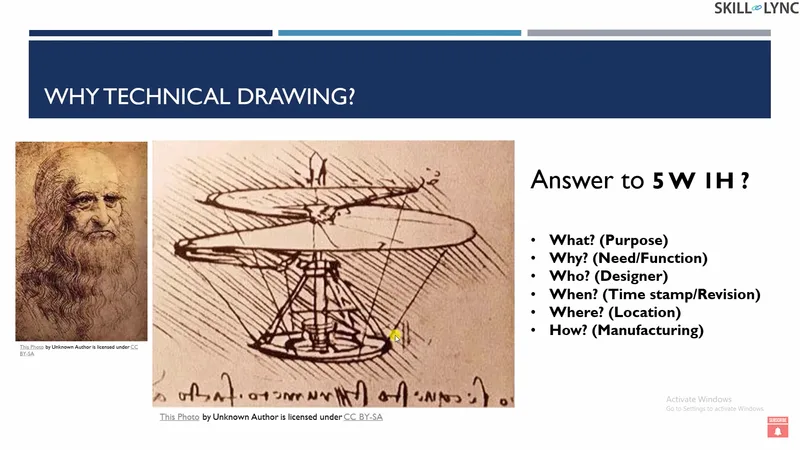

A Historical Example: Leonardo da Vinci’s Helicopter

To understand the importance of technical drawings, let’s look at a famous example—Leonardo da Vinci’s helicopter design. While it was a brilliant concept, the drawing lacked the critical details needed for actual production. Questions such as “What material should be used?” and “What are the exact dimensions and tolerances?” were left unanswered, making it impossible to bring the design to life at that time. In contrast, modern technical drawings, especially in AutoCAD and SolidWorks, fill in these gaps, providing all the necessary details to manufacture complex parts.


The Role of Technical Drawings in Modern Manufacturing

Technical drawings are indispensable in modern manufacturing processes. For instance, in the assembly of a World War II German fighter aircraft (M 109 G2), the technical drawing detailed the placement of various components, such as the gunner area and the propeller. It also showed how the profile sections varied at different points. These drawings enabled engineers to understand precisely how to assemble the aircraft and ensured consistency in production.


Today, technical drawings in AutoCAD for engineers and SolidWorks offer similar levels of detail. They include geometric dimensions, tolerances, and material specifications, all of which are essential for producing high-quality components. For example, a detailed AutoCAD mechanical drawing can show exactly how two parts will fit together, ensuring that the final product meets all functional requirements.


What Exactly Is a Technical Drawing?

As defined by Wikipedia, a technical drawing (or drafting) is the act and discipline of composing drawings that visually communicate how something functions or is constructed. This is the crux of AutoCAD 2D drafting: communicating the designer's ideas through visuals.

These drawings are meant to be language-independent, which makes them a universal tool. Whether you're working in AutoCAD for mechanical engineers or civil engineers, the technical drawing conveys the same information—geometry, dimensions, tolerances, materials, and finishes—regardless of geographic or linguistic barriers.


The Rules and Standards of Technical Drawings

Technical drawings are bound by a set of rules and standards to ensure consistency and clarity. For example, in AutoCAD mechanical engineering, the thickness of lines for regular components differs from those for construction lines. Similarly, the paper sizes—A4, A3, A2—are standardized globally. These rules ensure that anyone, anywhere, can interpret the drawing in the same way.

The drawing must include all relevant information such as geometry, tolerances, material specifications, and the expected finish of the final product. In AutoCAD 2024 or SolidWorks, these standards are built into the software, helping engineers create precise and consistent designs.


Understanding Viewpoints in Technical Drawings

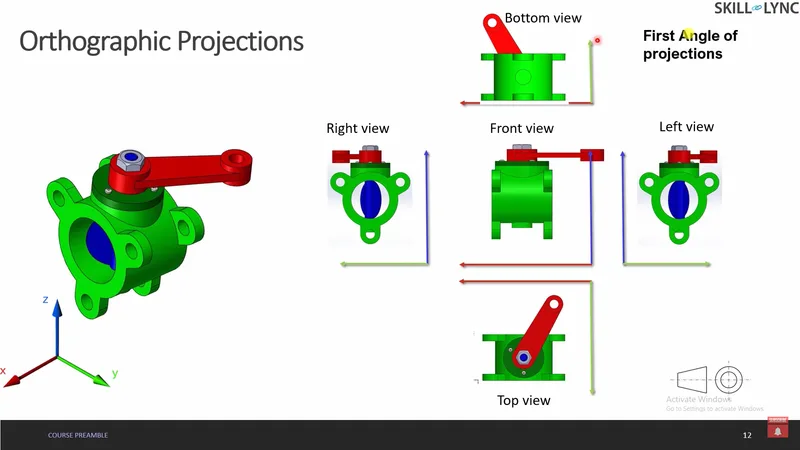

One of the challenges of technical drawing is conveying 3D objects in 2D space. This is where orthographic projections come in. Orthographic projections allow you to break down a 3D model into multiple 2D views—top, front, bottom, and side. These views provide all the necessary information about the object from different angles.

For example, consider a butterfly valve. When viewed from the front, the drawing shows the face of the valve and how its components are arranged. A top view reveals the handle and bolting structure, while side views give insight into the angle of the flap. By combining these views, a comprehensive understanding of the 3D object is achieved.


The First-Angle and Third-Angle Projections

Different countries use different systems of projection. In India, the first-angle projection is most common, while in the UK and US, the third-angle projection is preferred. In first-angle projection, the left view appears on the right, and the bottom view is on the top. In third-angle projection, these views stay consistent—left is left, and right is right.

Understanding these conventions is crucial when working on international projects. AutoCAD for beginners and advanced users alike must adhere to these standards to ensure that their drawings are interpreted correctly across different regions.



Conclusion

Technical drawings are the backbone of engineering design and production. Whether you're working with AutoCAD 2D or SolidWorks, these drawings communicate the essential details of your design—geometry, dimensions, tolerances, materials, and finish. They are a universal language, understood by engineers and manufacturers across the globe.

By mastering AutoCAD mechanical and AutoCAD 3D tools, you can create detailed, precise drawings that ensure your designs are manufactured exactly as intended. Whether you're just starting out with AutoCAD training and certification or looking to refine your skills, understanding the fundamentals of technical drawing is a must for any engineer.


This blog is part of our ongoing AutoCAD Design Series.

Would you like to have a more interactive experience going through the AutoCAD essentials?

Skill-Lync has released a FREE comprehensive course covering AutoCAD Essentials for Mechanical Engineers in detail! Check it out here.

If you’re looking to go deeper into AutoCAD training, check out Skill-Lync’s AutoCAD certification course.

Check out our hands-on course today and add AutoCAD to your list of skills!

Let’s get #IndustryReady together, one skill at a time!
