Implementing and Modifying Macros in AutoCAD

Welcome back to the AutoCAD Essentials for Mechanical Engineers blog series! Today, we’re diving into advanced macro usage in AutoCAD, focusing on embedding these commands within the interface and customizing their behavior for efficient workflows. Macros are a powerful feature in AutoCAD mechanical engineering that streamline repetitive tasks, saving time and improving accuracy in your CAD designs.

Executing Macros in AutoCAD: Why Command Line Doesn’t Work Directly

It’s essential to note that you can’t execute a macro directly from the command line in AutoCAD. Attempting to do so results in an error, as AutoCAD doesn’t recognize macros as native commands. To work around this, macros must be embedded within the Customized User Interface (CUI), which allows integration into toolbars, menus, and ribbon panels. This approach optimizes the workspace and makes essential commands readily accessible, especially for AutoCAD for engineers.

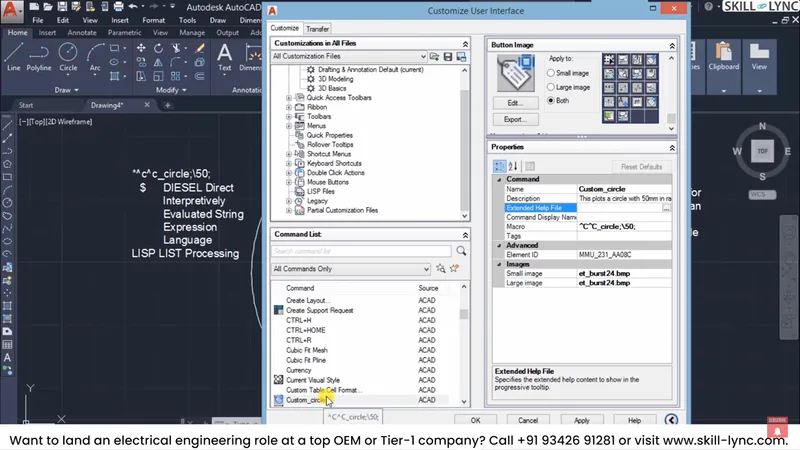

Adding a Macro Using the Customized User Interface (CUI)

The CUI editor in AutoCAD provides a way to add, manage, and modify macros, making it easy to tailor your CAD software environment to your needs. Here’s a step-by-step guide to creating a new command in the CUI:

• Open the CUI Editor: Navigate to the CUI editor to access all commands and interface components.
• Create a New Command: Select “New Command” to create your macro command. Give it a recognizable name, such as “Custom Circle.”
• Define the Macro: Enter your macro script. For example, if you’re automating a circle drawing with a radius of 50 mm, the script might read: circle; _pause; 50;. This command creates a 50 mm circle at a user-defined point.
• Add an Image (Optional): If desired, assign an icon to make it visually identifiable.
• Embed the Macro in the Toolbar: Drag your macro command into the desired toolbar, ribbon panel, or menu. This step is vital for quick access and is especially helpful in AutoCAD for mechanical engineers workflows.

After saving, your macro is integrated into the interface, ready for use whenever needed. This setup ensures that you can execute commands quickly and efficiently without navigating through multiple menus.

Using Macros in Tool Palettes and Ribbon Panels

Embedding macros in tool palettes offers flexibility, especially for AutoCAD 2D and AutoCAD 3D drawing needs. For example, if you frequently use certain commands in AutoCAD 2D drawing for beginners or complex 3D assemblies, a macro can be stored in the tool palette for easy access.

Tool palettes are excellent for custom AutoCAD training setups, where users may need fast access to specific commands. Dragging and dropping the macro into a tool palette or ribbon panel lets you personalize your AutoCAD mechanical engineering course workspace, creating a smoother, more efficient user experience.

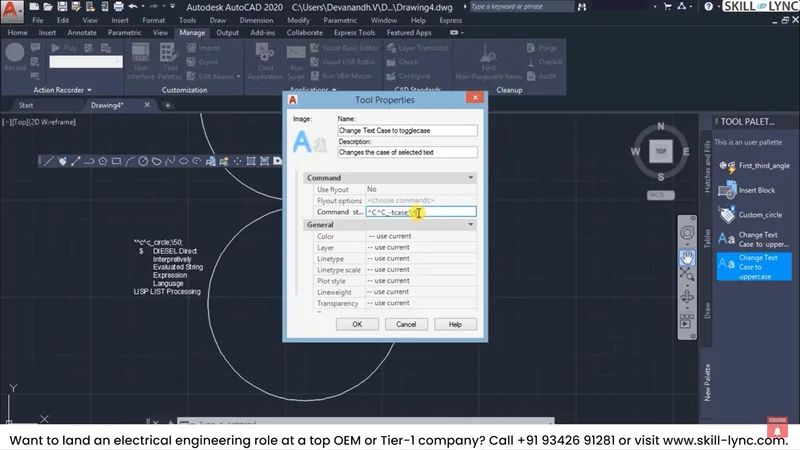

Customizing Text Case Using Macros: A Practical Example

One of the most common applications of macros is modifying existing commands to suit specific needs. Let’s take a look at modifying a command to automatically change text to uppercase, a handy feature for annotating AutoCAD drawings.

• Locate the Existing Command: Open the CUI and locate the “Change Text Case” command.
• Modify the Command: By altering the command syntax, you can ensure that the text case switches directly to uppercase without additional prompts. Use syntax like TC; -C; T; where necessary, and suppress dialogues for seamless execution.
• Save and Apply: Save the changes, and test your updated macro. The modified command now converts selected text to uppercase with minimal steps.

This customization shows how AutoCAD for civil engineers and mechanical engineers can save time on repetitive tasks like adjusting text properties.

Extending Macro Capabilities with VBA in AutoCAD

AutoCAD also supports Visual Basic for Applications (VBA), a programming environment that allows macros to interact with other applications like Microsoft Excel. Although the Action Recorder is powerful for creating simple macros, VBA macros provide more advanced functionality and integration possibilities across multiple platforms.

Creating a Circle with VBA in AutoCAD

Using VBA, we can create macros that perform more complex operations. Here’s a quick example to create a circle with VBA:

• Open VBA Editor: Go to the “Run VBA Macro” option and start a new macro project.
• Declare Variables: Define variables for the circle’s center and radius.
• Draw the Circle: Use the VBA code Add Circle in the model space, specifying the center and radius.
• Run and Test: Run the macro to see a 200 mm diameter circle drawn in your AutoCAD 2024 workspace.

VBA’s compatibility with Excel or Word allows data import and export, giving engineers the tools to manage designs and dimensions across applications—perfect for AutoCAD online course learners looking to deepen their skills.

Best Practices for Macro Integration in AutoCAD

By embedding macros within AutoCAD, engineers can streamline workflows, customize their workspace, and minimize time spent on repetitive tasks. Here are some best practices for making the most of macros in AutoCAD:

• Use Descriptive Names and Icons: Clear labels make macros easily identifiable, especially in shared environments.
• Group Related Macros: Organize macros by function in tool palettes or ribbon panels for easy access.
• Test Macros Regularly: Ensure macros work as expected across different files, especially for dynamic operations like AutoCAD 3D or CAD programs for mechanical engineering.

Conclusion

Macros are an invaluable tool in AutoCAD for students and professionals alike, offering time-saving solutions for repetitive tasks in CAD software. Integrating macros with VBA and the CUI provides flexibility and power, making AutoCAD an even more effective tool for mechanical autocad 2d drawing and beyond. By mastering macros, you’re not just speeding up individual tasks—you’re creating a more streamlined and efficient design process, setting yourself apart in a competitive engineering landscape.

Explore the potential of macros in AutoCAD essentials and take your skills to the next level, whether you’re studying AutoCAD for beginners or pursuing advanced customization with CAD training online.
