Align, Fit, and Style Commands for Mechanical Engineers in AutoCAD

logo

Skill-Lync

Welcome back to the AutoCAD Essentials for Mechanical Engineers series! This blog, we’ll be focusing on text editing techniques, specifically how to use different text justifications in AutoCAD. These text commands are crucial for labeling and annotating your drawings accurately, which is a key skill for mechanical engineers and other professionals using AutoCAD.

Let’s dive into the details of text justification, alignment, and style options, and explore how these commands can be applied to enhance your AutoCAD 2D and 3D drawings.


The Align Command in Text Justification

The Align option is a powerful feature in AutoCAD text justification. Unlike other text commands where you start from a specific point (left, center, or right), Align allows you to define the start and end points of the text's baseline. The height of the text remains constant, but the width of the characters adjusts according to the length of the baseline.


How Align Works:

  • Specify the first point (start of the baseline).
  • Specify the second point (end of the baseline).
  • Type your text: For example, "Sample Text."

As the baseline changes in length, the width of the characters automatically adjusts. This ensures that your text fits perfectly within the defined space. For example, if you set the points further apart, the characters will stretch to fill the space.


Practical Example:

If you're working on an AutoCAD mechanical drawing and need to label a part with text confined to a specific area, the Align command can ensure the text stays within that boundary.

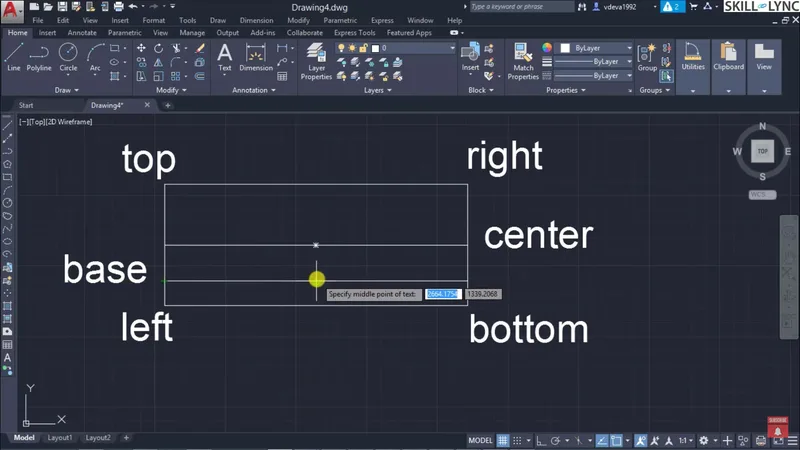

The Middle Justification

The Middle option in text justification centers the text both horizontally and vertically on the specified baseline. This is particularly useful when you want the text to be positioned precisely at the center of a feature in your AutoCAD drawing.

  • Select the middle point.
  • Define the text height and rotation (default is 0 for horizontal text).
  • Type your text: For example, "Centered Text.

This method aligns the text so that its middle point coincides with the selected center point. It ensures that the text looks balanced within the drawing, making it a good choice for labeling parts that require accurate placement.


The Fit Command

The Fit command is similar to Align, but it behaves slightly differently. With Fit, the height of the text remains constant, but the character width is adjusted to fit within a defined area. This command is particularly useful when you need to restrict text to a specific width while maintaining the same height.

Key Difference from Align:

  • Align adjusts both the height and width of the text.
  • Fit keeps the height constant but alters the width of the characters.


Example

  • Define the first and second points for the text baseline.
  • Set the text height (e.g., 25 mm).
  • Type your text: For example, "Fitted Text."

In Fit, the text will be squeezed or stretched to fit between the two defined points, but the height remains fixed.


When to Use Fit:

Use the Fit command when you need to fit text into a narrow space without changing its height. This is often useful in AutoCAD 2D drawings for engineers who need to fit annotations into specific areas, such as labels on parts or inside small drawing views


Justifying with Top, Middle, and Bottom Alignments

AutoCAD provides further flexibility by allowing you to align text relative to the top, middle, or bottom of the baseline. This combination of horizontal and vertical alignment options gives you precise control over text placement.

  1. Top Left (TL): Aligns the text to the top left corner.
  2. Top Center (TC): Aligns the text to the top center of the baseline.
  3. Top Right (TR): Aligns the text to the top right corner.

Similarly, you can align text to the middle or bottom of the baseline, using commands like Middle Left (ML), Middle Center (MC), and Bottom Right (BR).


Practical Application:

In a mechanical AutoCAD drawing, these options allow you to accurately position text based on your needs. Whether labeling parts, placing notes, or annotating dimensions, these alignment options ensure your drawing is professional and easy to read.

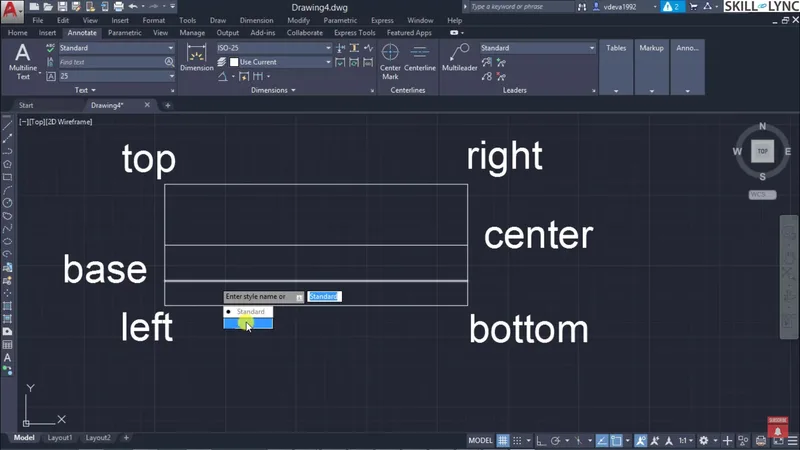

Managing Text Styles in AutoCAD

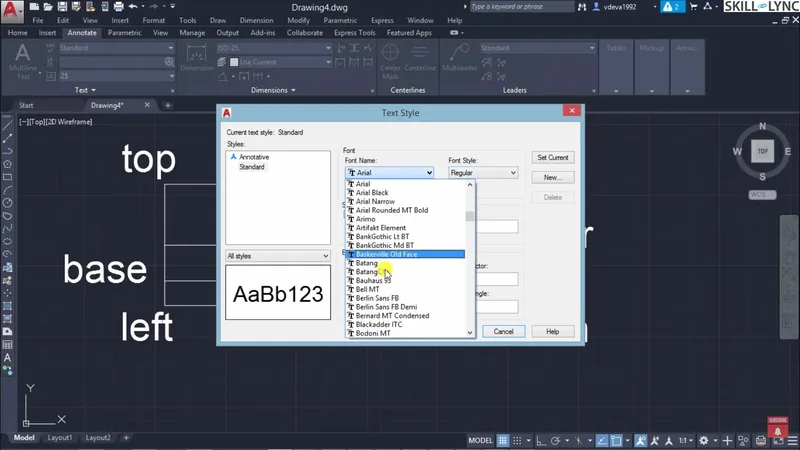

Text styles in AutoCAD allow you to standardize the appearance of text across multiple drawings. You can create and manage text styles to define font type, size, orientation, and more.

  • Accessing Text Style Manager: Type STY in the command line or go to the Format menu.
  • Modifying Text Styles: You can change the font (e.g., from Arial to Calibri), adjust the width factor, apply bold or italic formatting, and even define text height and orientation.


Example of Creating a New Style:

Let’s say you want to create a bold, italicized style for labeling parts in a mechanical drawing:

  • In the Text Style Manager, select New.
  • Choose your desired font, set the width factor to 1.25, and apply bold and italic.
  • Click Apply to save the style.


Now, you can use this new style across all your AutoCAD 2D or AutoCAD 3D drawings.

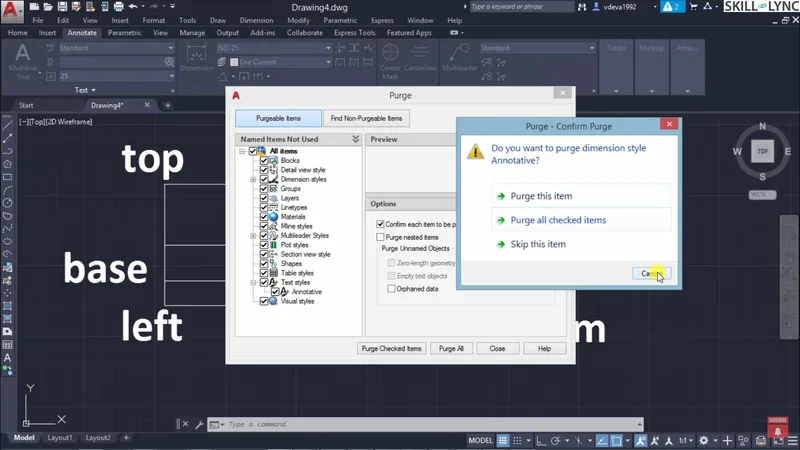

The Purge Command: Cleaning Up Unused Styles

Over time, you may accumulate unused text styles in your AutoCAD drawing. The Purge command helps you remove these unreferenced styles, keeping your drawing file clean and manageable.

To purge unused text styles:

  • Type PURGE in the command line.
  • Select the objects or styles you want to remove.
  • Click Purge to eliminate them from your drawing.

This is especially helpful when collaborating with others on complex projects, ensuring that your CAD programs remain clutter-free and optimized.


Conclusion

In this session, we explored various text editing techniques in AutoCAD, focusing on commands like Align, Fit, and Middle justification. These commands are crucial for precise text placement in both 2D and 3D drawings, making them invaluable for mechanical engineers. We also covered the Text Style Manager, which allows you to standardize text formatting, and the Purge command to clean up unused styles.

Mastering these AutoCAD essentials will significantly enhance your efficiency in creating professional, readable, and accurate mechanical drawings. Whether you're working on an AutoCAD 2D drawing for beginners or an advanced AutoCAD mechanical project, these tools will help you streamline your workflow.

Stay tuned for next blog, where we’ll continue exploring advanced editing techniques in AutoCAD.


This blog is part of our ongoing AutoCAD Design Series. If you missed the previous posts, check them out here.

Would you like to have a more interactive experience going through the AutoCAD essentials?

Skill-Lync has released a FREE comprehensive course covering AutoCAD Essentials for Mechanical Engineers in detail! Check it out here.

If you’re looking to go deeper into AutoCAD Essentials check out Skill-Lync’s AutoCAD certification course.

Check out our hands-on course today and add AutoCAD to your list of skills!

Let’s get #IndustryReady together, one skill at a time!
