A Guide to Plotting and Smart Workflow in AutoCAD

Welcome back to AutoCAD Essentials for Mechanical Engineers blog series! This blog, we're diving into the essentials of presenting and finalizing our work through plotting and printing techniques. We will explore layout management, using macros for efficient workflows, and understanding model space versus paper space. Here, you will learn to showcase your technical drawings with precision, and we’ll also touch on macros to eliminate redundant tasks, enabling you to focus more on the design itself.

Why Plotting Matters in AutoCAD

Plotting allows us to create physical copies of our AutoCAD drawings—whether AutoCAD 2D or AutoCAD 3D. In technical fields like mechanical engineering, plotted drawings can present a single view or a complex arrangement of multiple views on one page. In AutoCAD mechanical drawing, understanding how to plot correctly is essential, especially if you want your output to align with A2, A3, or even larger format specifications in mechanical AutoCAD 2D drawing for presentations or formal documentation.

Step 1: Selecting a Plotter and Configuring Plot Settings

In AutoCAD for beginners, configuring your plot settings is the first step. AutoCAD provides a range of plotter drivers designed to ensure high-quality outputs, essential when working with CAD for mechanical engineers who need detailed, clear prints. Here’s a breakdown of the plotter options:

• Plot Option: Found under ‘File’ or by pressing Ctrl+P, this brings up the main plotting options.
• Plot Style Manager: Customize different plot styles, whether grayscale or color.
• Plotter Configuration: Configure various plotters like PDF generators, DWG plotters, or PNG output for digital presentations.

AutoCAD offers built-in AutoCAD PDF plotters that allow you to adjust vector quality (measured in DPI) and raster image quality for clarity. This ensures high-resolution output, with vector quality reaching up to 2400 DPI and raster image quality at 600 DPI for high-quality prints, or web/mobile-optimized output as needed. For AutoCAD for civil engineers and mechanical engineers, configuring these plotter settings lets you balance output quality and file size.

Step 2: Understanding Paper Sizes and Plot Orientation

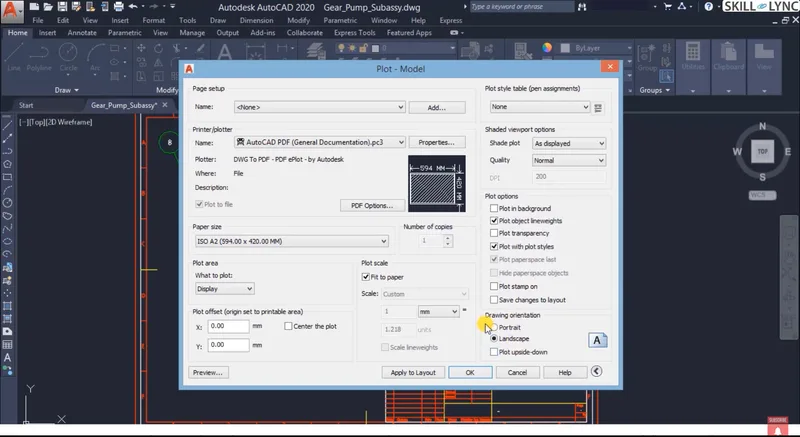

When plotting a drawing, AutoCAD 2024 allows you to select from multiple paper sizes and orientations. AutoCAD provides standard paper sizes, such as ISO A2 for mechanical CAD drawings. Adjusting orientation—portrait or landscape—is vital for fitting your drawing correctly within the paper’s dimensions.

You can even modify the plot offset to control where the plot starts on the page, making it possible to center your drawing or add margins if needed. This feature is particularly useful in AutoCAD mechanical engineering courses, where precision in drawing layout is critical.

Step 3: Plot Style Tables and Layer Control

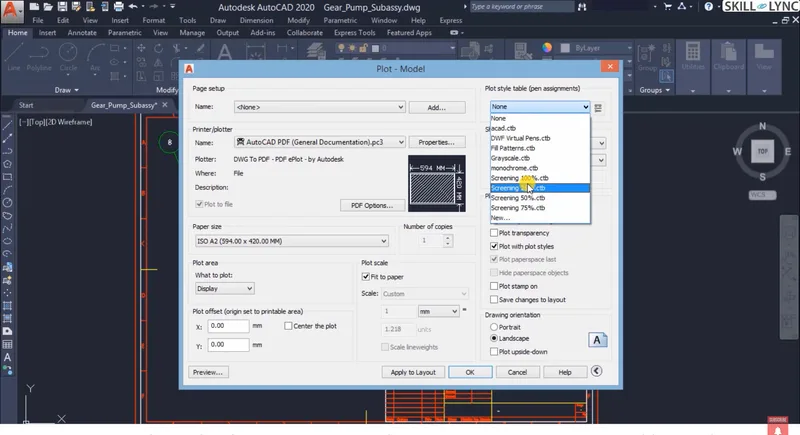

Using plot style tables in AutoCAD essentials is beneficial for selectively emphasizing elements in your drawing. A plot style table lets you control attributes such as color, grayscale, and line thickness across various CAD programs. You can assign specific plot styles to individual objects or entire layers, making it easy to differentiate between construction elements within the same drawing.

For those familiar with AutoCAD mechanical crash course content, the idea is to set up styles for frequently used CAD software objects so that each print or digital output aligns with project requirements.

Step 4: Defining Plot Area and Scale

An essential part of AutoCAD essential training is knowing what area to plot. AutoCAD provides multiple ways to select a plot area:

• Display: Plots the entire visible model space.
• Extents: Plots the outermost elements of your drawing.
• Limits: Plots within defined drawing limits.
• Current View: Plots only what’s in the current view window.

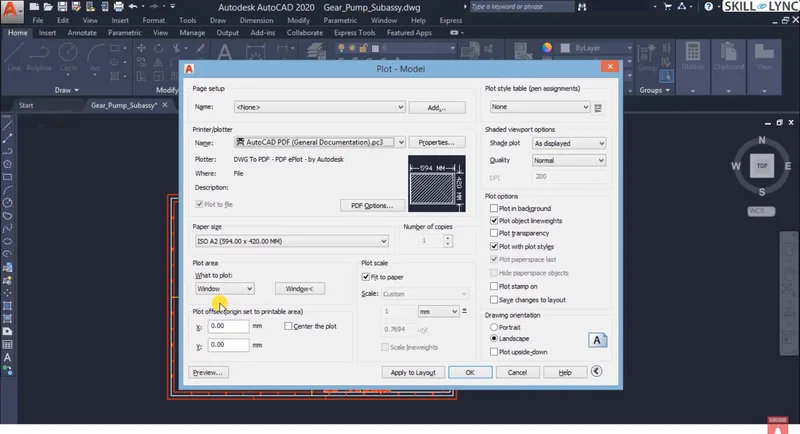

• Window: Allows you to manually select a specific area.

Once the plot area is defined, you can choose a plot scale to fit the drawing to the paper. Use the “Fit to Paper” option to automatically adjust your drawing to the paper size, or set a custom scale, such as 1:8, if specific measurements are required.

Step 5: Smart Working with Macros in AutoCAD

For repetitive tasks in design software for mechanical engineers, AutoCAD 3D crash courses and tutorials often recommend macros to automate sequences. Macros in AutoCAD online can streamline repetitive steps, saving time and reducing errors.

Creating and Using Macros

• Action Recorder: Available in the Manage tab, the Action Recorder allows you to record a sequence of commands.
• Recording a Macro: Begin recording, complete your task (such as drawing a circle or setting up a view), and stop the recording. Save the macro with a descriptive name for easy access.
• Executing Macros: Macros can be customized to include pauses for user input, making them adaptable across various tasks.

An example macro might automate creating a circle at a specific coordinate with a set diameter, followed by zooming to fit the extent. This reduces redundant actions and lets you focus on more complex design tasks.

Efficient and Professional Output with AutoCAD

From plotting techniques to incorporating smart workflow tools like macros, mastering these AutoCAD essentials significantly boosts productivity and output quality. Whether you’re a student using AutoCAD for beginners or a professional working in CAD design and mechanical AutoCAD, these skills will streamline your work and enhance your presentation capabilities.

With these tools, you can confidently produce clear, professional technical drawings ready for presentation, review, or archiving.

Happy plotting and efficient drawing!
