Mastering Dimensioning in AutoCAD: Continue, Baseline, and Ordinate Dimensions

Welcome back to the AutoCAD Essentials for Mechanical Engineers series! In this part of the blog series, we will explore key dimensioning techniques such as Dimension Continue, Baseline Dimension, and Ordinate Dimensions. Understanding these tools is essential for maintaining accuracy in your AutoCAD drawings, whether you’re working on AutoCAD 2D or AutoCAD 3D projects. Each of these commands serves a distinct purpose in specifying and controlling key dimensions, ensuring both the design and manufacturing processes run smoothly.

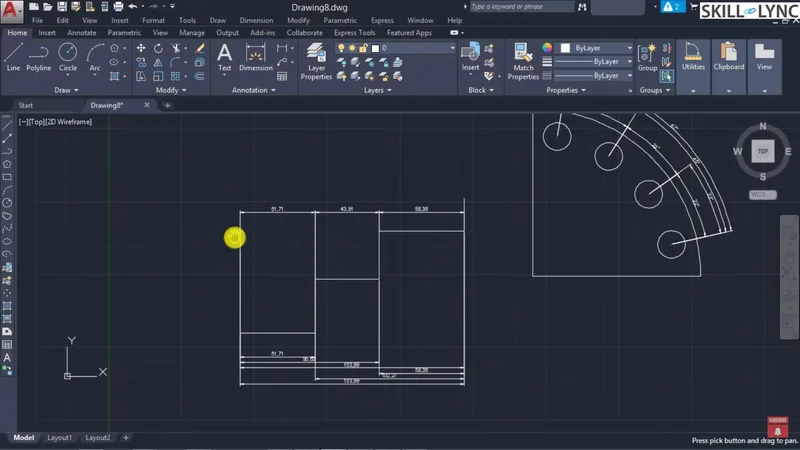

Dimension Continue vs. Baseline Dimension: What's the Difference?

Dimension Continue:

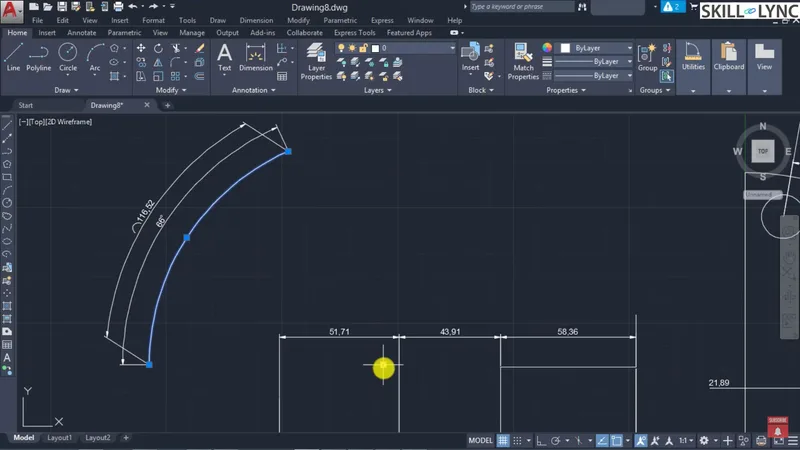

The Dimension Continue command allows you to create a series of connected dimensions that start from the endpoint of the previous dimension. For example, if you have a linear dimension along an edge, using Dimension Continue will take the endpoint of that dimension and use it as the starting point for the next dimension. This feature is particularly useful when dimensioning multiple features in a sequence, such as steps or incremental parts on a surface.

To apply Dimension Continue, start by placing a linear dimension, and then use the command to continue dimensioning from the previous endpoint. It ensures that all features are equally dimensioned without needing to reselect starting points. This method is especially beneficial when precision is necessary across all facets of your design, a crucial aspect for mechanical engineers.

Baseline Dimension:

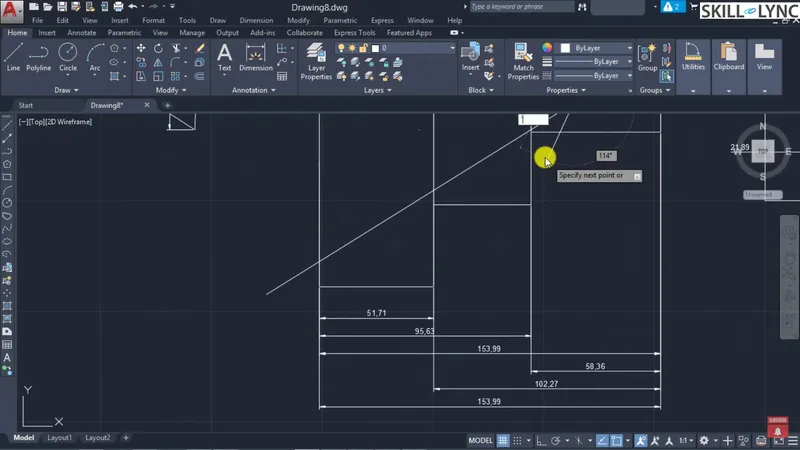

In contrast, the Baseline Dimension command refers all dimensions back to a common baseline or reference point. This baseline is the key feature from which all other measurements are made. The Baseline Dimension technique ensures that each measurement is directly related to one fixed point, emphasizing the importance of that feature.

For instance, if you’re dimensioning a mechanical part, the baseline might be a critical edge, and all other dimensions reference that edge. This provides consistency and ensures accuracy across the drawing. Designers and inspectors use baseline dimensions to prioritize specific features in a part. By selecting Baseline Dimension, you are indicating that the dimensioned feature is the most crucial in the design and manufacturing process.

Ordinate Dimensions: Pinpointing Coordinates in AutoCAD

Ordinate Dimensions measure the horizontal (X) and vertical (Y) distances from a specific origin or datum. This is particularly important when locating critical features like holes, slots, or other components that need precise positioning.

To use Ordinate Dimensions, invoke the command and select the feature you wish to dimension. For example, if you need to locate the center of a hole, select that point, and AutoCAD will display the X and Y coordinates relative to the specified datum plane. The key here is that Ordinate Dimensions eliminate errors caused by measuring offsets, thus ensuring that features are consistently located.

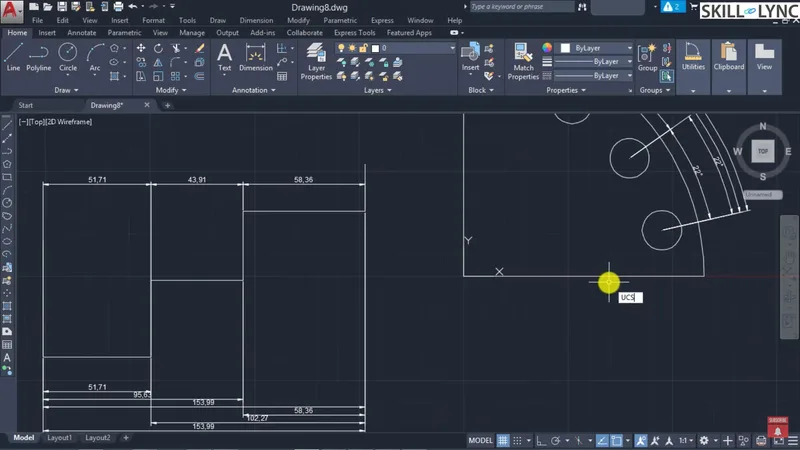

In many AutoCAD mechanical drawings, especially those designed for machining processes, maintaining accurate offsets and positioning of features is vital. The ability to lock the origin point (datum) with the UCS command allows you to change the coordinate system’s reference point to align with specific surfaces.

Jog Dimensions: Handling Large Features in Limited Space

When working on large components in AutoCAD mechanical engineering designs, the Jog Dimension command becomes invaluable. It allows you to display dimensions for parts that may not fit neatly within your current drawing space. Jogging creates a visual break in the dimension line, indicating that the feature continues beyond what is shown on the layout.

For instance, if you are dimensioning a large radius or a long linear feature that extends beyond the drawing area, you can use Jog Radius or Jog Linear to adjust the dimension’s starting point. This method is extremely useful in situations where the physical dimensions of the object exceed the paper space or viewport available in AutoCAD.

To use Jog Dimensions, simply select the dimension and choose where to place the jog. AutoCAD will automatically adjust the dimension line to accommodate the large scale of the object while still providing an accurate measurement.

Spacing and Breaking Dimensions for Readability

As a designer, it's important to ensure that your dimensions are clear and easily readable. Dimension Space and Dimension Break commands help you maintain readability by managing how dimensions are positioned.

• Dimension Space: This command allows you to evenly space out multiple dimensions, preventing overlap or clutter. Simply select the base dimension and the subsequent dimensions to space out. AutoCAD will automatically adjust the positioning based on your set spacing value.
• Dimension Break: This tool helps when dimension lines cross over objects or other dimensions. By introducing a break in the extension line, you can avoid any interference that may occur when dimension lines cross through objects. This ensures the drawing remains professional and easy to interpret.

Inspection Dimensions: Quality Assurance Built into Your Drawing

Inspection Dimensions are useful for indicating how often a specific dimension should be checked during the manufacturing process. This is particularly important when producing high-precision parts in mass quantities. Instead of adding a separate note, you can use the Dimension Inspect command to directly label the dimension with inspection details.

For example, if you’re manufacturing 100 parts and need to check the dimension on 50% of them, you can specify this within the dimension itself. AutoCAD will then display the frequency of inspection alongside the dimension. This is especially useful for AutoCAD mechanical engineers who work in industries where quality control is paramount.

Conclusion: Elevating Your AutoCAD Skills

Understanding the various dimensioning techniques in AutoCAD, from Baseline Dimensions to Jog Dimensions, is essential for creating precise and professional mechanical drawings. Whether you are working on AutoCAD 2D drawings for beginners or advancing into AutoCAD 3D designs, these tools will help you communicate your designs clearly and ensure your work is easily interpreted by manufacturers and inspectors.

For further learning, consider enrolling in an AutoCAD crash course, such as an AutoCAD mechanical crash course or an AutoCAD free certification course. Mastering these tools will not only improve your drawings but also make you a more proficient and confident AutoCAD user.

This blog is part of our ongoing AutoCAD Design Series. If you missed the previous posts, check them out here.
