Mastering Dynamic Blocks in AutoCAD

Welcome back to AutoCAD Essentials for Mechanical Engineers blog series. In this blog, we’re diving into the world of dynamic blocks. Dynamic blocks allow engineers to make powerful adjustments to commonly used elements without having to recreate or re-edit objects repeatedly. This is especially valuable in AutoCAD 2D and 3D CAD environments, where efficiency and adaptability are critical.

Setting Up a Dynamic Block: Step-by-Step

Dynamic blocks come alive with parameters. While you may have previously worked with dimension constraints for viewing, creating constraints within a block is slightly different. Block Editor doesn’t display constraints from the main drawing view, so you’ll need to apply geometric and dimension constraints directly within the block definition. Let’s look at how to set up a dynamic block from scratch.

• Apply Equal Constraints: Start by setting equal constraints for all sides of the shape. For example, if you’re working with a hexagonal nut, this ensures every side remains of equal length.
• Parallel Constraints for Opposite Sides: Make sure that opposite sides of the hexagon stay parallel to maintain the structure’s overall integrity.
• Handle Over-Constraints: Sometimes, constraints can conflict. If AutoCAD shows an “over-constrained” error, it means the block’s constraints are redundant or in conflict. In such cases, proceed with other constraints that fulfill the block’s functional needs.
• Apply Concentric Constraints: Set up concentric constraints for any inner and outer circles, such as in bolts or washers, so they stay aligned.
• Assign Tangent Constraints: For circular parts that interact with polygonal sides, ensure that each circle is tangent to the polygon’s edges. This prevents misalignment and preserves the desired shape.
• Use Dynamic Dimensions: Add linear and diameter constraints, which allow you to control block proportions dynamically.

Testing and Adjusting Constraints

Once all constraints are applied, it’s essential to test your block to ensure it behaves as expected. Block testing can help verify that your constraints are sufficient. If you notice elements not responding correctly, it may mean additional constraints are needed. Return to the Parameters Manager to double-check and fine-tune each constraint.

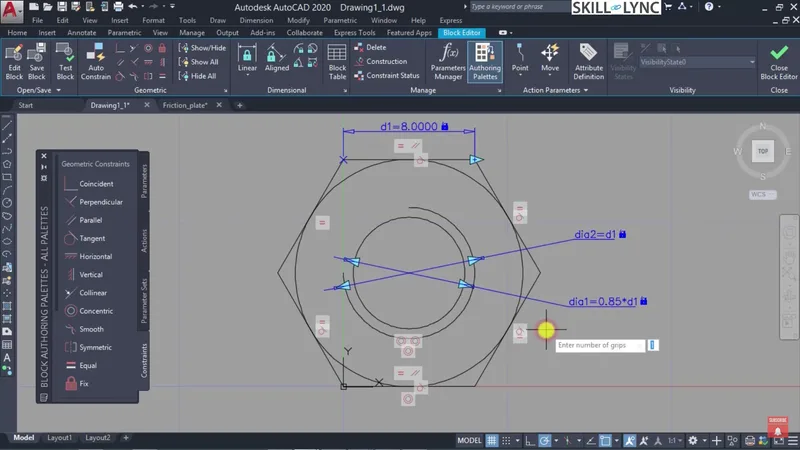

Setting Up Block Table and Grips

A unique feature in AutoCAD 2024 for dynamic blocks is the Block Table, which lets you define preset options for parameters such as diameter. Here’s how to configure it:

• Select the Block Table: In Block Editor, access the Block Table to define key parameters for your block.
• Set Parameter Grips: The grips let you adjust block properties dynamically when the block is inserted. For instance, set a grip for the diameter, allowing you to switch between common diameters (e.g., 5mm, 8mm, 10mm, etc.).
• Create Parameter Options: In the Block Table, input your nominal diameter values and click “OK” to generate a table with these preset options. Now, when inserting the block, you can choose any of these predefined sizes without manually editing the object.

Testing the Block with Dynamic Editing Grips

With the Block Table and grips set up, it’s time to test the dynamic block. When you select the block in the drawing, you’ll see an editing grip (represented by a down arrow). Clicking this grip shows the preset options from the Block Table. Changing the diameter should automatically update all relevant constraints, keeping your block’s structure intact.

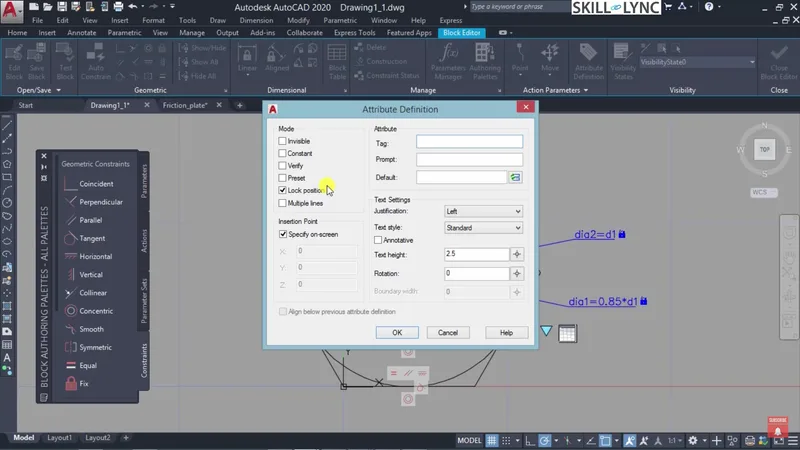

Adding Attribute Definitions

Attributes are a powerful feature that allows you to embed information within a block. These are invaluable for AutoCAD mechanical drawing and CAD for mechanical engineers because they help track data like part numbers, materials, and dimensions.

• Invisible Setting: This hides attribute values from the drawing but keeps them stored for reference.
• Constant: Sets a fixed value for each instance of the block.
• Preset Condition: Automatically applies a default value whenever the block is inserted, ideal for common values like material types or standard dimensions.
• Lock Position: Locks an attribute’s position within the block, while unlocking allows movement relative to the block.
• Multiple Lines: Allows multiline text attributes, which is useful for detailed descriptions or specifications.

Inserting Attribute Tags

Let’s apply these attributes to a hexagonal nut:

• Material Tag: Set a material tag with a default value (e.g., stainless steel or graded steel).
• Nominal Dimension Tag: Add a prompt for the nominal diameter, with an 8mm default.
• Cost Tag: Assign a default cost or price if necessary.

When inserting the block, AutoCAD will prompt for these attributes, making it easy to add details without manual entry each time.

Visibility States: Customize What You See

Dynamic blocks also support visibility states, allowing you to control what parts of the block are visible based on context. This feature is helpful for managing large blocks with various configurations. For example, you might create a dynamic bolt block that shows different head types or lengths depending on the selected visibility state.

The Power of the Block Editor Ribbon

The Block Editor is where all these dynamic block settings come together. Here, you’ll find specific tools that aren’t available in the regular drawing area. Use the dynamic ribbon to access geometric constraints, add dimensional constraints, manage attributes, and configure visibility states.

This contextual setup streamlines the creation process, making it efficient to apply the necessary settings in one place. The Block Editor includes everything needed to create fully customized blocks that can adjust dynamically based on parameters.

Conclusion

Dynamic blocks are a game-changer in AutoCAD for engineers, particularly those in mechanical engineering. By setting up parameters, constraints, attributes, and visibility states, dynamic blocks enable flexibility and precision that AutoCAD mechanical users need. If you’re just getting started with AutoCAD basics, mastering these elements will help you design more efficiently and accurately.

For a deeper dive into AutoCAD essential training, stay tuned as we continue exploring AutoCAD essentials for mechanical engineers. With every new skill, you’ll be equipped to handle complex drawings, optimize designs, and utilize CAD software like a pro. Whether you’re working with 3D CAD, drafting in AutoCAD 2D, or looking to make the most of AutoCAD 2024 features, dynamic blocks are a valuable tool in your design software toolkit.
