Wiring harness routing & packaging Rules Week 3 Challenge

Wiring harness Routing & Packaging

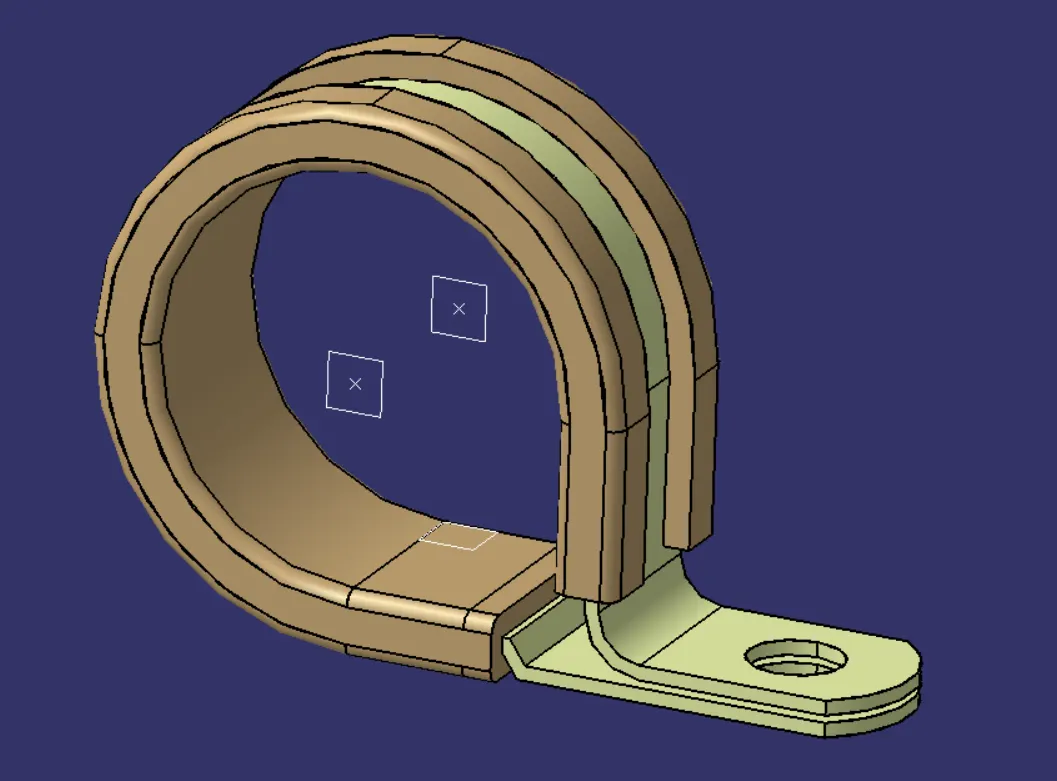

P-Clamp:

• Create two points one as entry and another as exit point.
• create planes at two points and another at base.
• Switch to Electric part desgn
• Click on support defination - select part - select entry point - select entry plane, exit and base plane.
• Again Click on support defination - select part - select exit point - select exit plane and base plane as secondary plane is automatically taken.

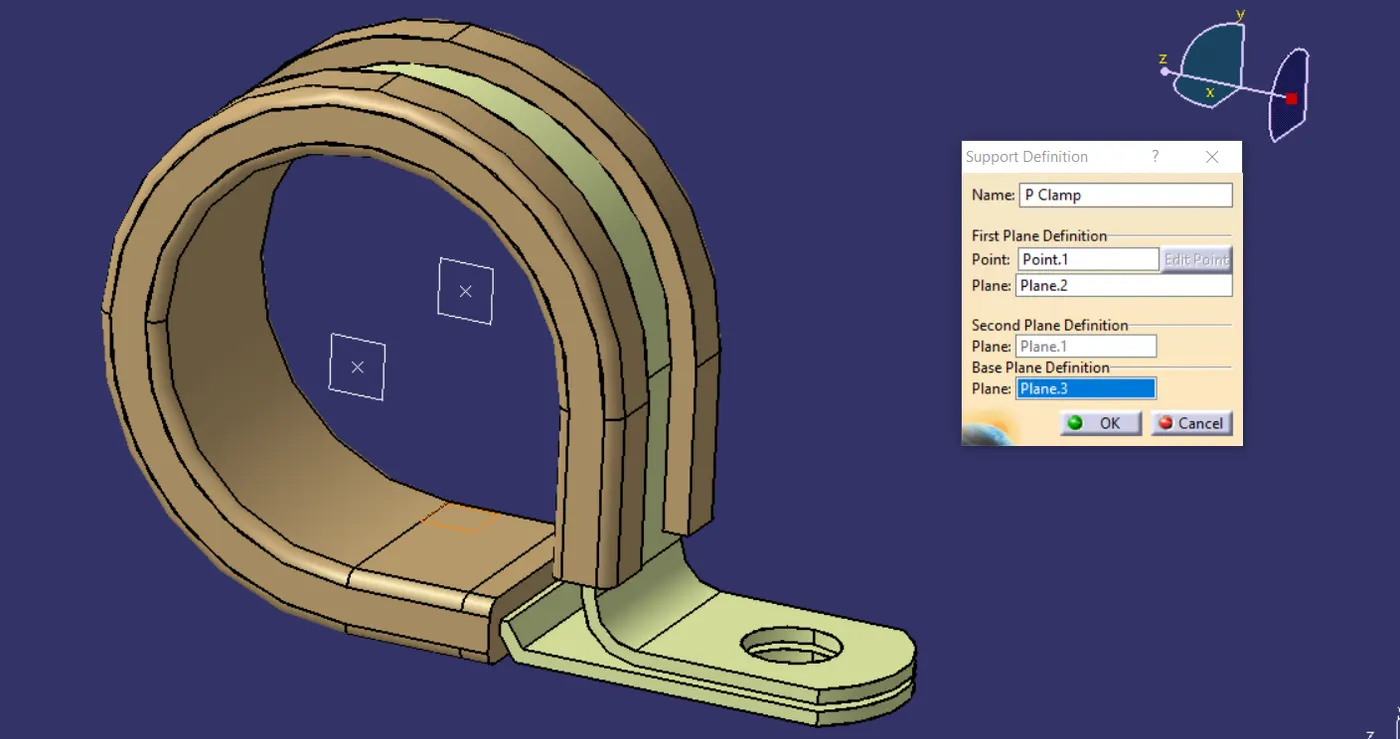

Define Support:

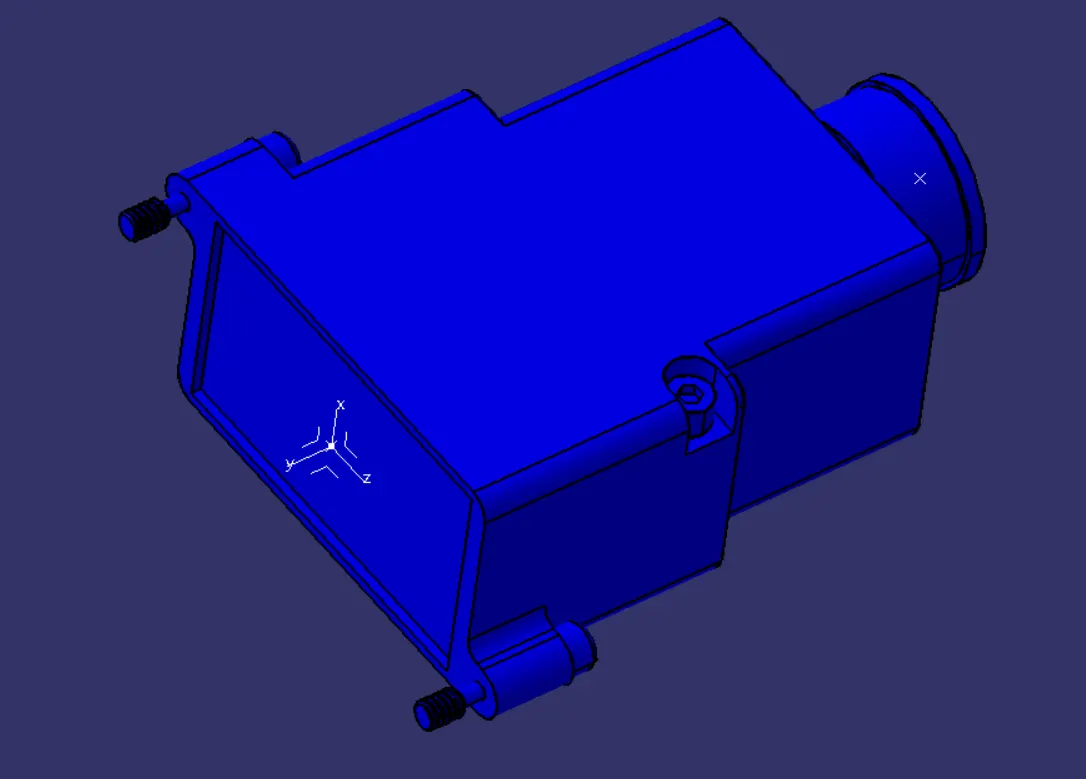

BACK SHELL:

Process:

• create Back shell entry point.
• create axis system for back shell entry.
• create bundle connection point.
• switch to Electrical part design.
• Define part electricaly as back shell.
• Then define Back shell connection point.
• Define bundle connection point.

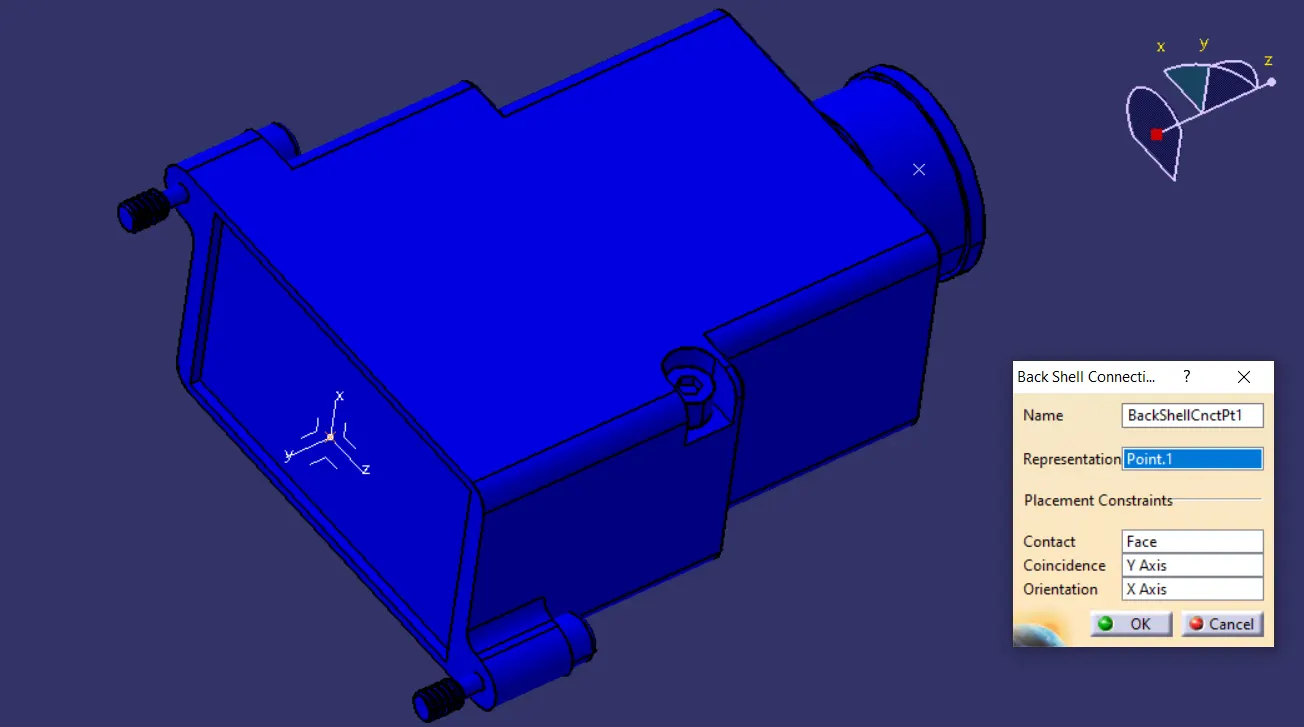

Define BackShell:

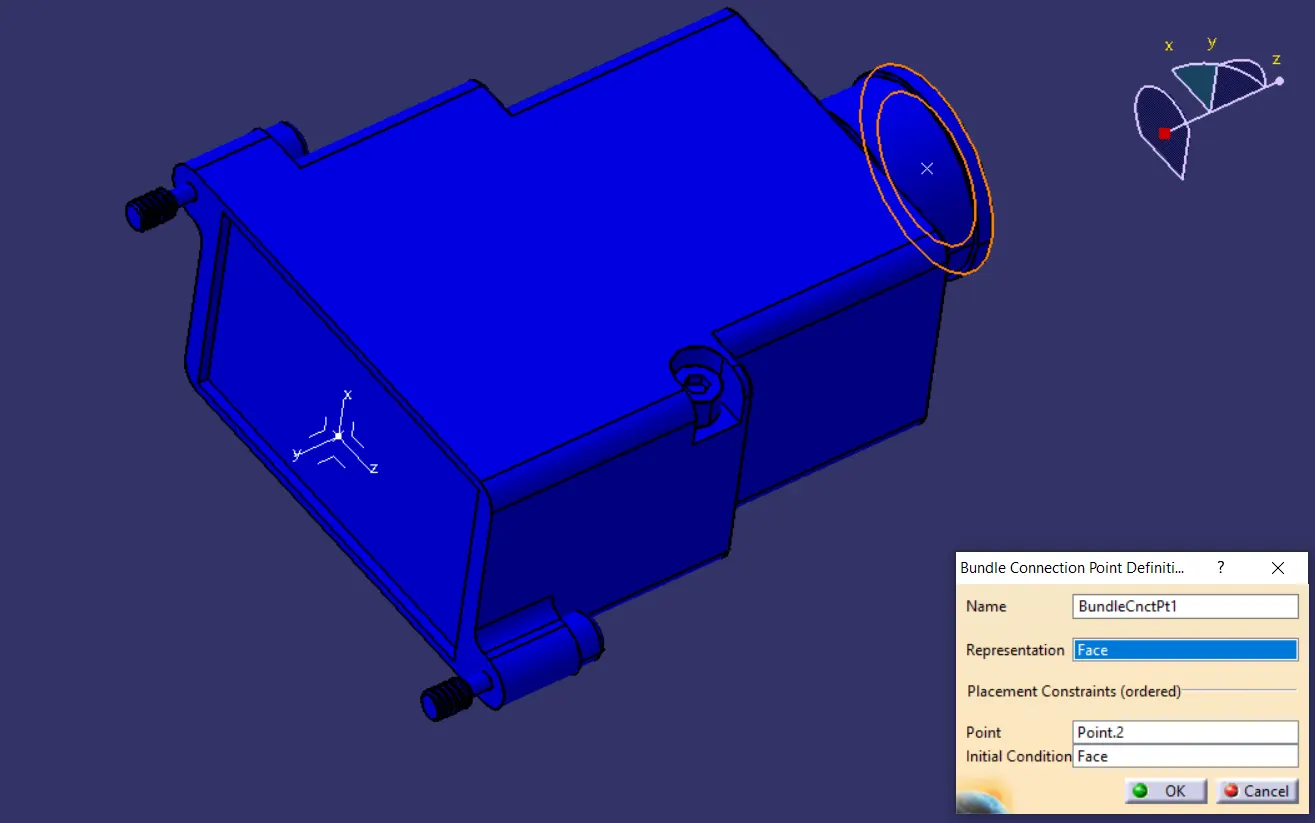

Define Bundle Point:

Corrogated Tubes:

Process:

• Switch to Electrical part design
• Select Define protection Part
• Click on part (on file name in specification tree)
• Provide given parameters and bend radius as '1.5 x Outer Dia'.

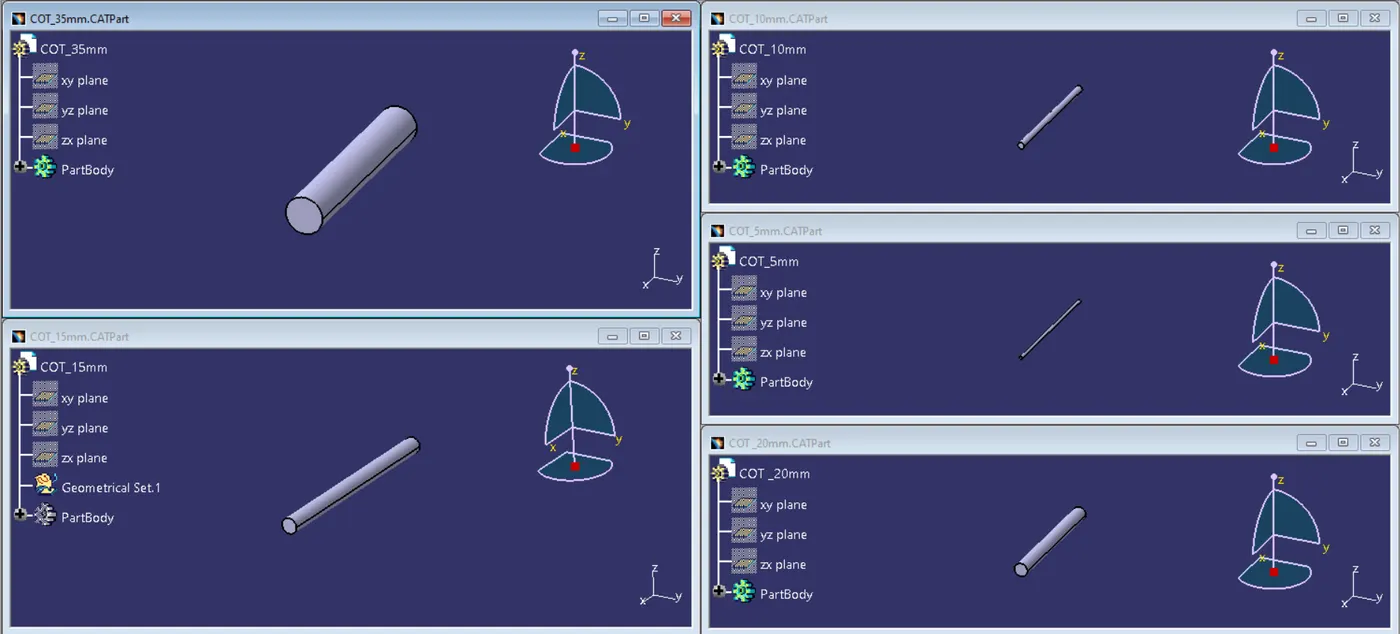

Catalogue Creation:

• new part - catalogue document - add family - give name - type - select Conduit - save.

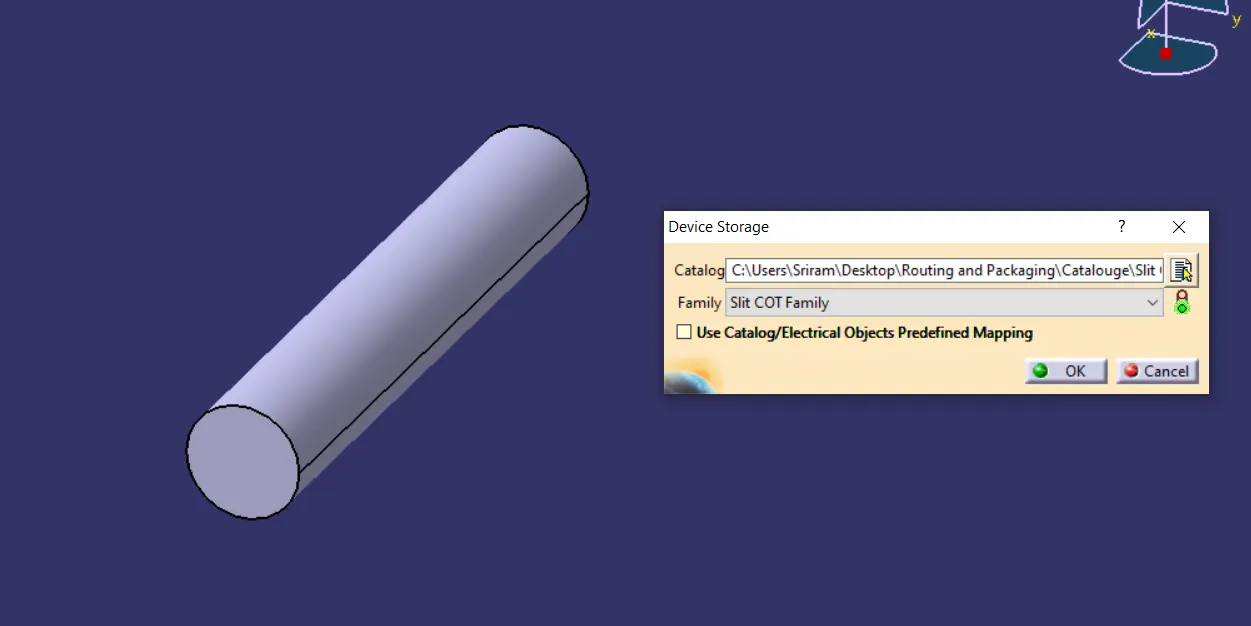

• Open part to add catalogue - store device command - select catalogue - family - Slit_cot_tube - ok

Parts addition to CATALOUGE:

Conclusion:

All the 3 tasks are done as per the standards. P-clamp and Backshell have been defined. COT tubes are created and added to family catalouge.
