Wiring harness routing & packaging Rules Week 3 Challenge
WIRING HARNESS ROUTING & PACKAGING RULES WEEK 3 CHALLENGE
AIM:
*Q1. DOWNLOAD FOLLOWING CLIP CAD DATA & DEFINE IT AS ELECTRICAL PART DESIGN WORKBENCH . DEFINE ALL THE NECESSARY PROPERTIES. HELLARMANN TYTON-1738312-1 PROCESS: CREATE TWO POINTS ONE AS ENTRY AND ANOTHER AS EXIT POINT . CREATE PLANES AT TWO..
WIRING HARNESS ROUTING & PACKING RULES WEEK 3 CHALLENGE
DEFINE ALL THE NECESSARY PROPERTIES . HELLARMANN TYTON -1738312-1
.
PROCESS:

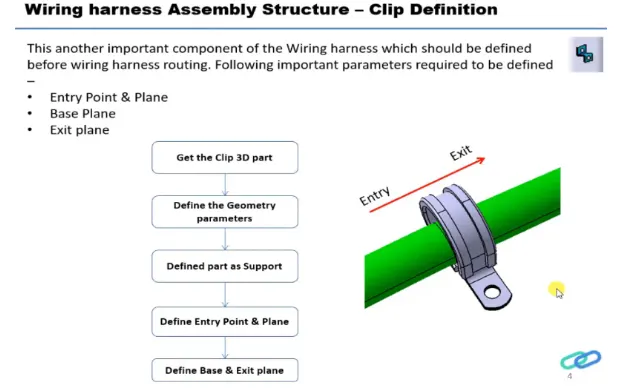

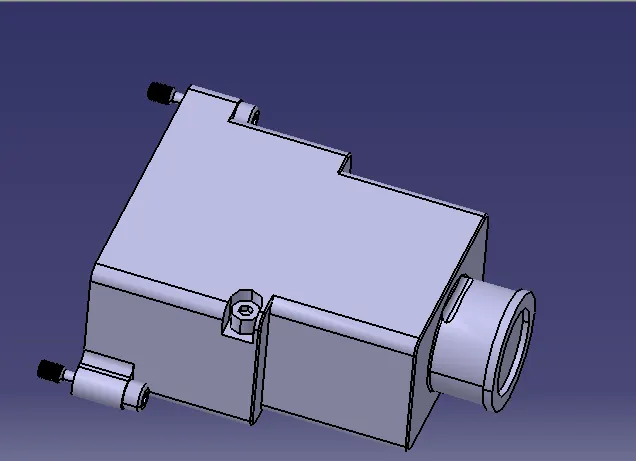

* CREATE TWO POINTS ONE AS ENTRY AND ANOTHER AS EXIT POINT .
*CREATE PLANES AT TWO POINTS AND ANOTHER AT BASE.
*SWITCH TO ELECTRIC PART DESIGN .

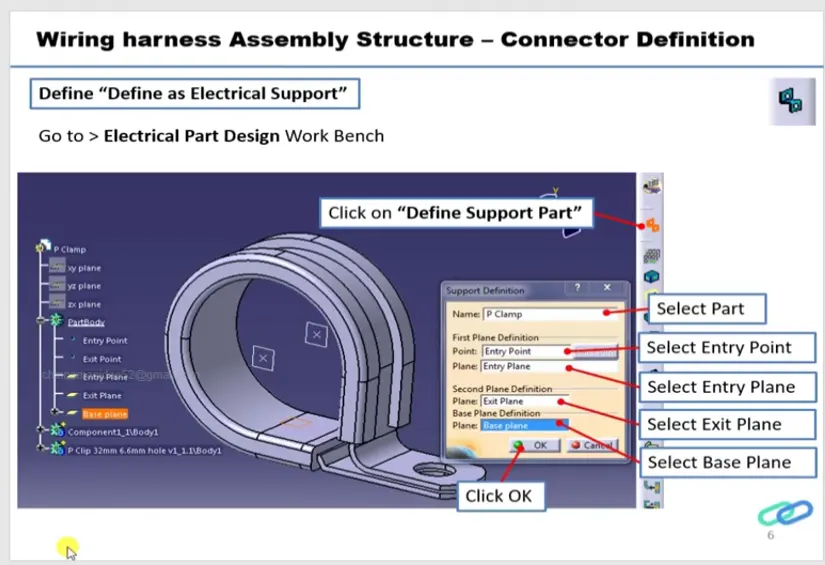

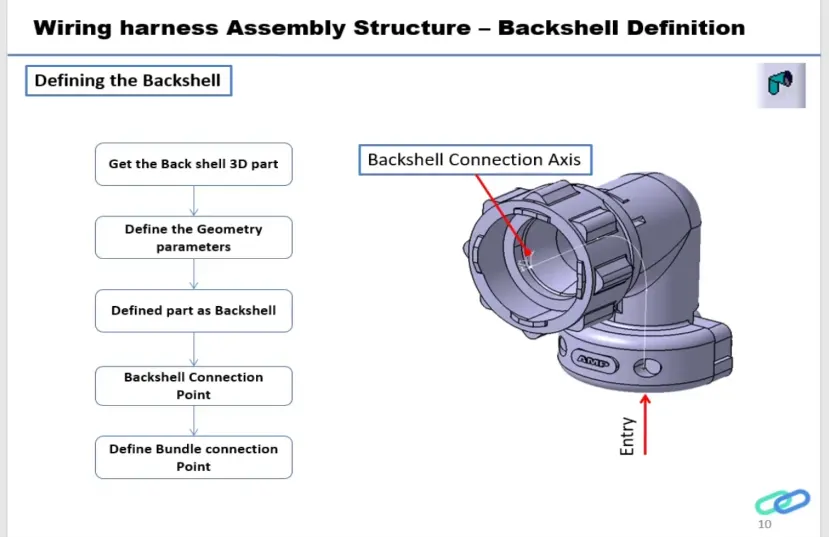

- * CLICK ON SUPPORT DEFINATION - SELECT PART - SELECT ENTRY PLANE , EXIT AND BASE PLANE .
- *AGAIN CLICK ON SUPPORT DEFINATION -SELECT PART- SELECT EXIT POINT - SELECT EXIT PLANE AND BASE PLANE AS SECONDARY PLANE IS AUTOMATICALLY TAKEN .
6 STEP OF PREOCESS:

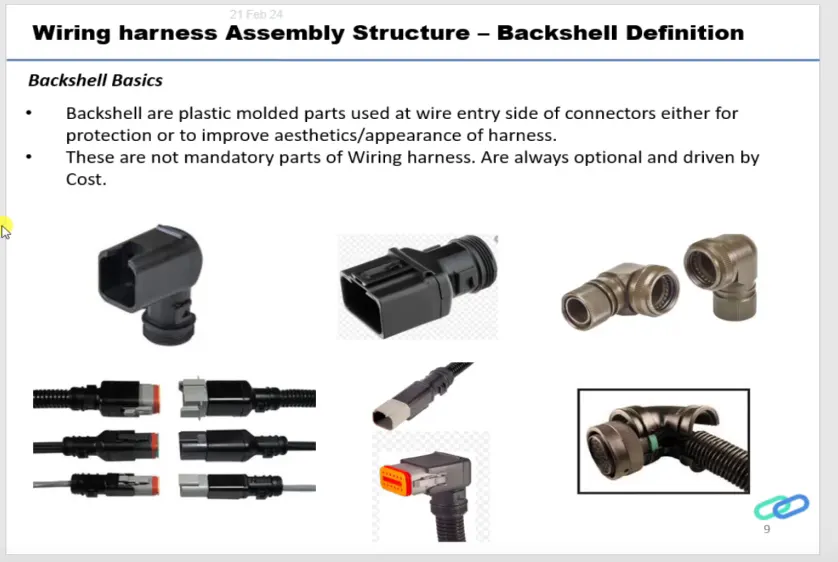

*IDENTIFY THE HARNESS ASSEMBLY COMPONENTS
* DEFINE ALL HARNESS COMPONENTS AS ELECTRICAL DOWNLOAD / CREATE/ REQUEST COMPONENT DATA DEFINE AS AN ELECTRICAL PART
*PREPARE HARNESS ASSEMBLY PLACE ALL THE HARNESS COMPONENTS AT DESIRED LOCATIONS PREPARE CONTEXT ASSEMBLY WITH SURROUNDING DATA .
* DEFINE ASSEMBLY AS ELECTRICAL ASSEMBLY USE ELECTRICAL ASSEMBLY WORK BENACH .
* CHANGE /CUSTOMIZE TOOL SETTING AS REQUIED START ROUTING THE BUNDIES.

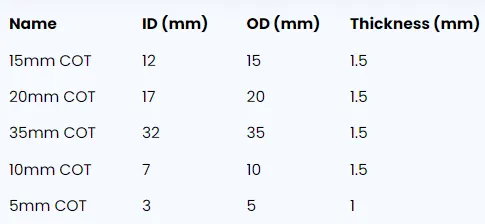

Q3.Create follwing corrugated tubes & add them in catalogue under "slit COT " family.
.
PROCESS:

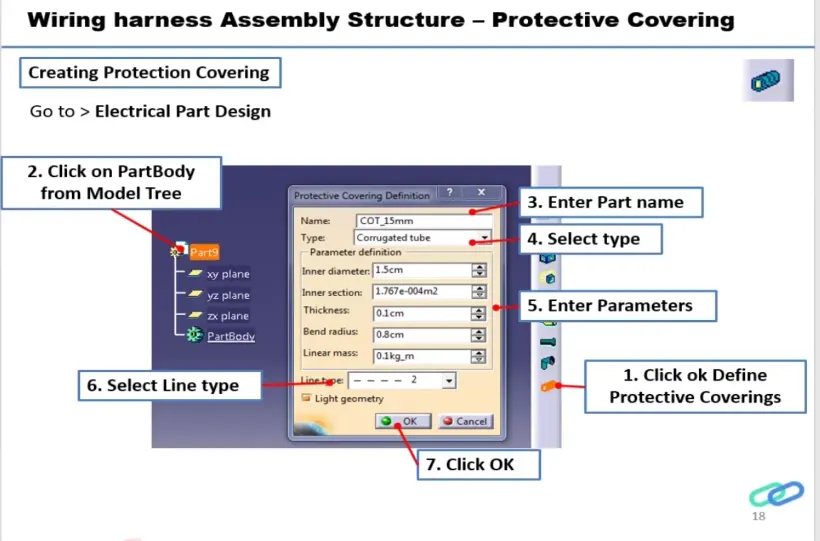

* SWITCH TO ELECTRICAL PART DESIGN
* SELECT DEFINE PROTECTION PART
* CLICK ON PART ( ON FILE NAME IN SPECIFICATION TREE) PROVIDE GIVEN PARAMETERS AND BEND RADIUS AS 1.5 xOUTER DIA .
