Wiring harness routing & packaging Rules Week 3 Challenge
AIM:- Download following cad data & define it as Electrical support using Electrical Part design Workbench.
Define all the necessary properties.

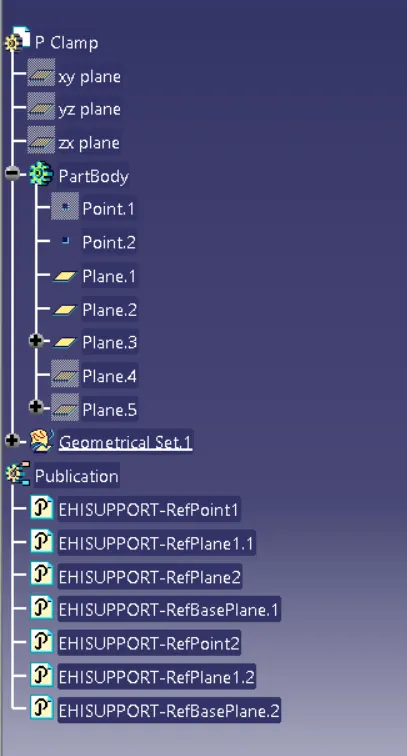

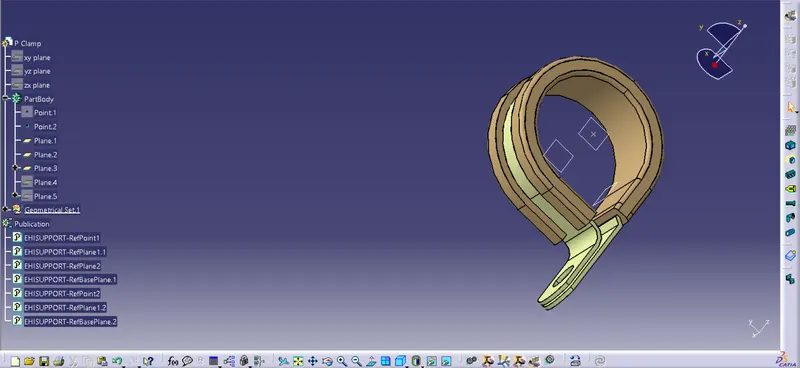

P CLAMP :-

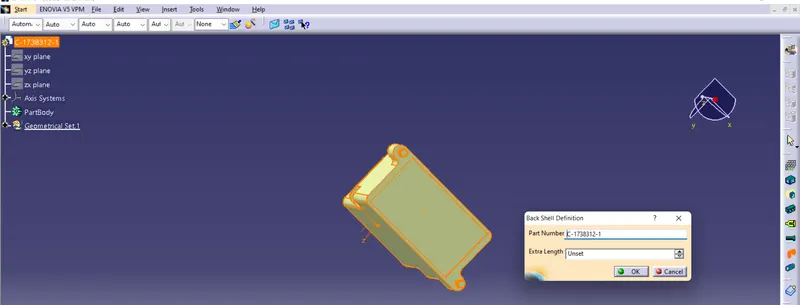

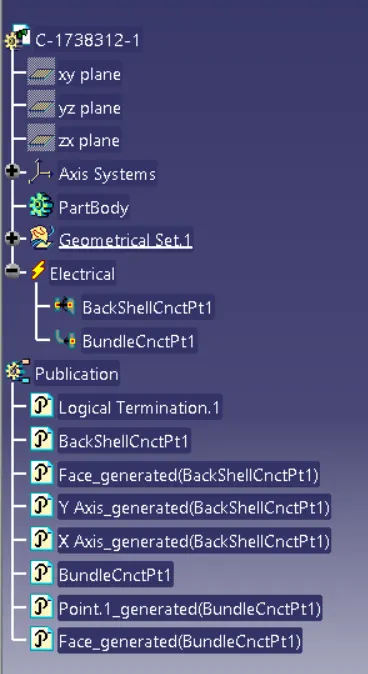

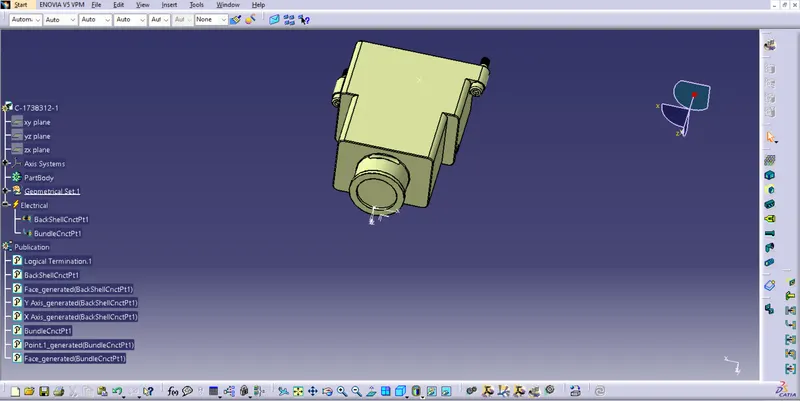

BACKSHELL :-
COT TUBES :-
Create Following Corrugated tubes & Add them in Catalogue under “Slit COT” family.
|
Name |
ID (mm) |
OD (mm) |
Thickness (mm) |
|
15mm COT |
12 |
15 |
1.5 |
|
20mm COT |
17 |
20 |
1.5 |
|
35mm COT |
32 |
35 |
1.5 |
|
10mm COT |
7 |
10 |
1.5 |
|
5mm COT |
3 |
5 |
1 |

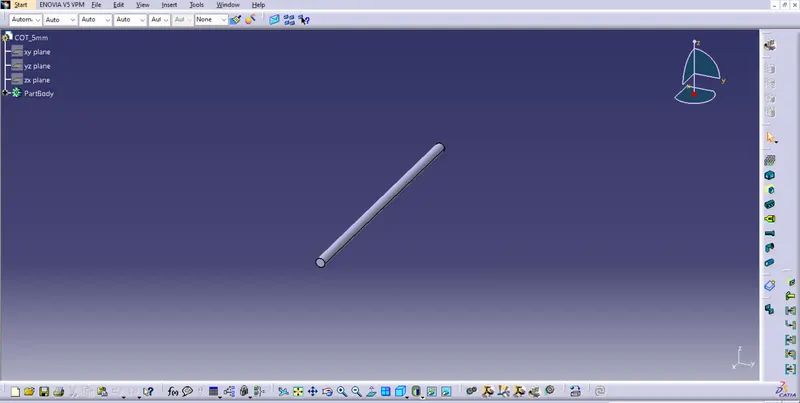

- 5mm

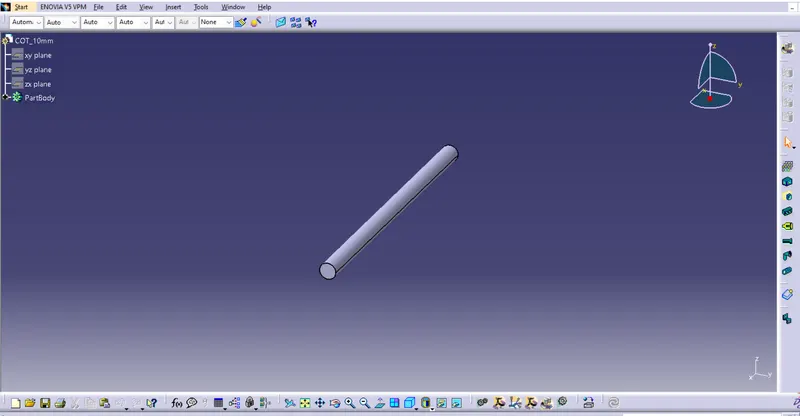

- 10mm

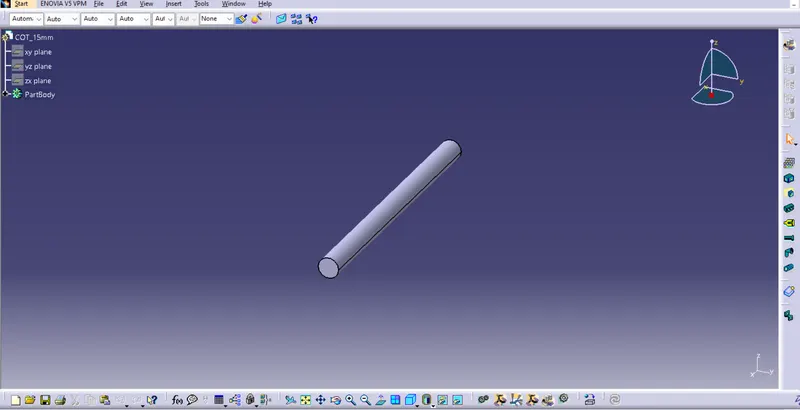

- 15mm

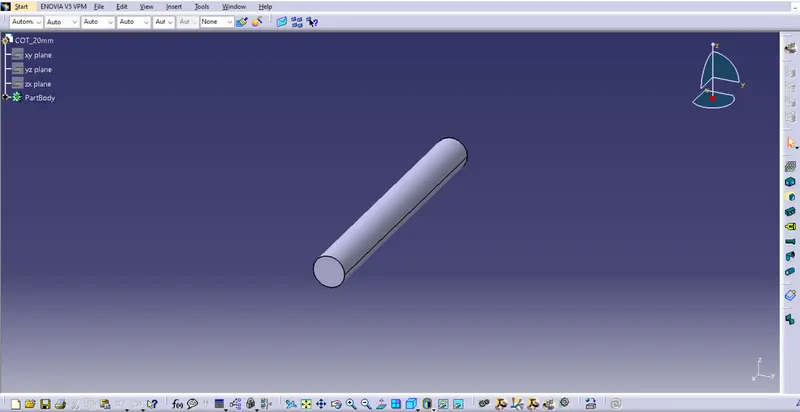

- 20mm

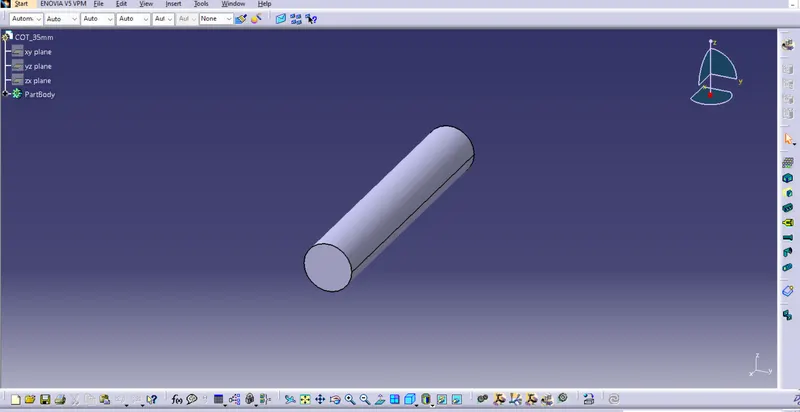

- 35mm
