Wiring harness routing & packaging Rules Week 3 Challenge

Q1. Download following cad data & define it as Electrical support using Electrical Part design Workbench. Define all the necessary properties.

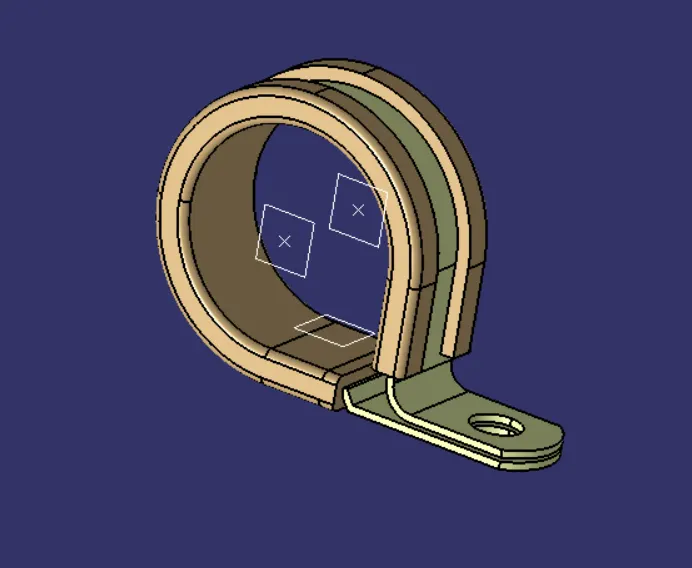

• The given clip was downloaded and opened as a part file.
• I have to define two points that will be used as entry and exit points.
• Then two planes are defined at the points.
• A base plane has to be defined at a distance of 2 mm from the clip.
• Then we define the entry point and exit points.

Q2. Download following Back shell cad data & define it as Electrical back shell using Electrical Part design Workbench. Define all the necessary properties.

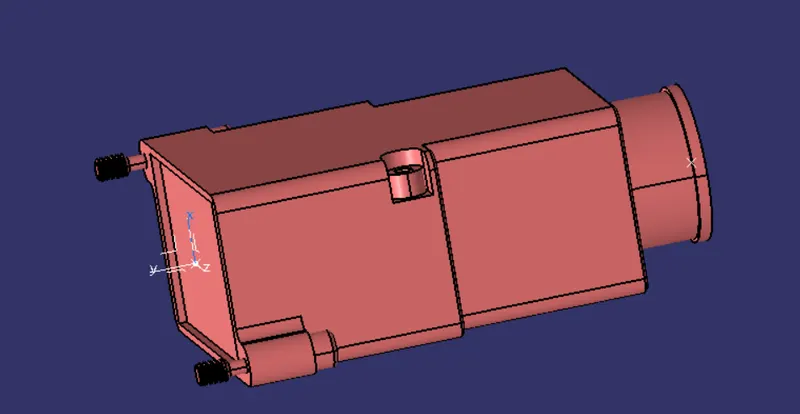

• The backshell data was downloaded from the website.
• We define the points in the part workbench.
• An Axis system with the correct axis orientation is placed at the backshell connection point.
• The points have to be defined as the backshell connection and bundle connection points.

Q3. Create Following Corrugated tubes & Add them in Catalogue under “Slit COT” family.

• We define the cot tubes in the electrical part workbench.
• The inner dia & thickness are given as the inputs.

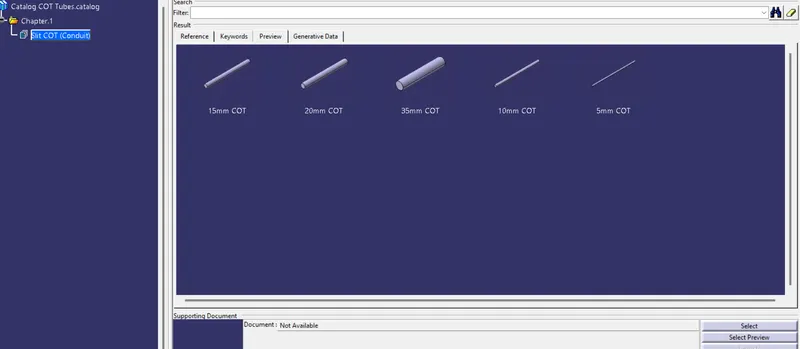

• A catalog was created as a “Slit COT” .
• All the cot tubes were saved in the catalog.
