Week 8 - Challenge 3 - Coin Holder Design

Coin Holder

Tooling axis

The axis in which the mold or core and cavity is opens or the axis which the designer can modify or create a model by taking axis as a reference is called Tooling Axis.

Procedure to creat tooling axis.

• Checking the Class A Surface, for to check which is the perfect place to create a tooling axis.

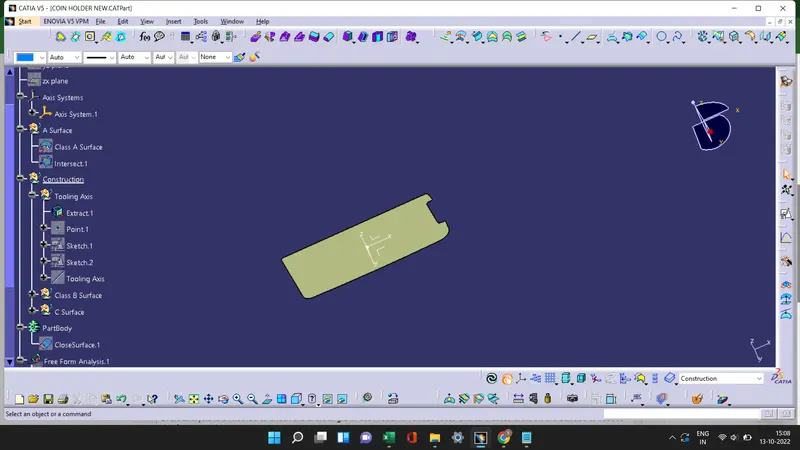

• Insert an axis system to the Class A Surface and by useing extract, extract the base surface of the Class A Surface.

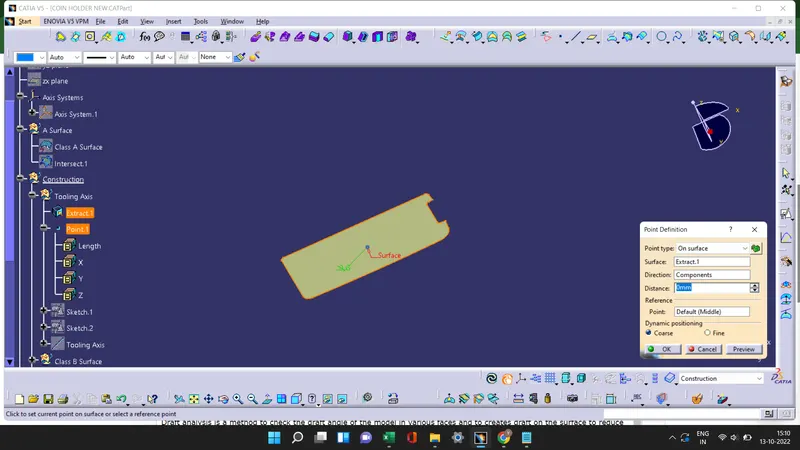

• By selecting base as a reference surface create a point and take a intersection of Class A Surface.

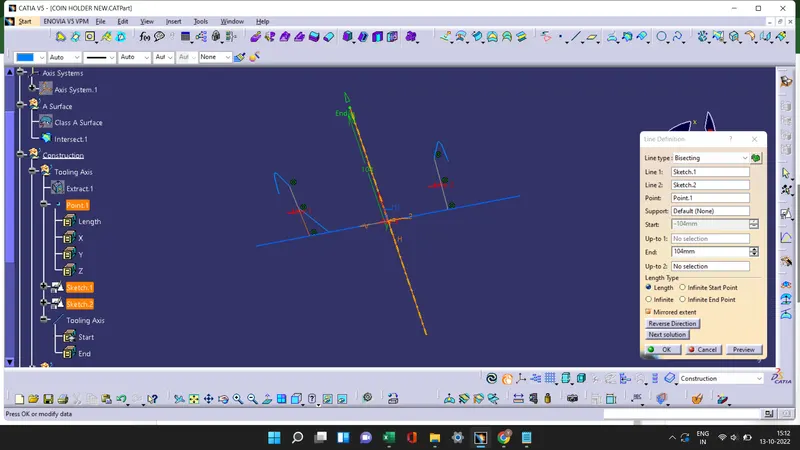

• By taking side wall as a reference create lines on the intersect lines and Bisecting line 1 and line 2 from sketch 1 and sketch 2 with the point we get the Tooling Axis and publish that tooling axis.

Draft analysis

Draft analysis is a method to check the draft angle of the model in various faces and to creates draft on the surface to reduce the friction in the Ejection process.

Procedure to Draft analysis

Draft analysis 1

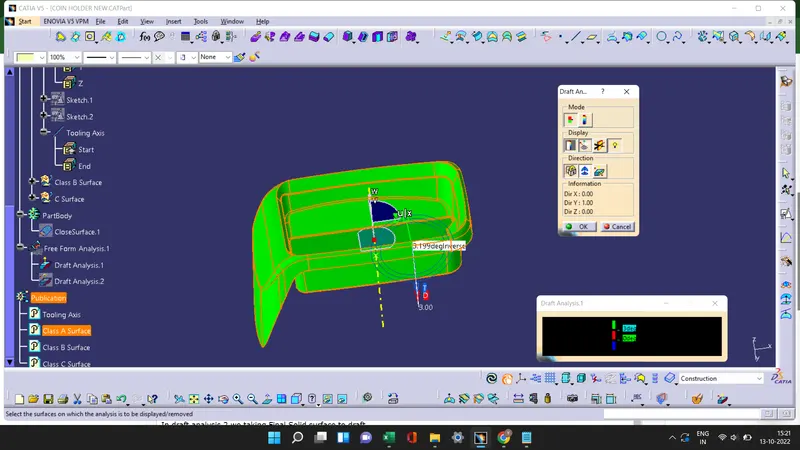

• In draft analysis 1 we taking Class A Surface to draft.
• Check the view mode and change it to material mode.

• Select the draft analysis tool in the tool bar and select Campass in the Direction option of the draft analysis tool. Then move the campass on the tooling axis at draft direction and lock the draft direction.

• Useing the running pointer we see the draft angle at different surfaces of the Coin Holder.

• Then by useing the color scale option we can change the Draft angle.The green color shows if the draft angle is 3 degree,red shows if the draft angle is between 0 to 3 and blue shows the negative draft angle.

Draft analysis 2

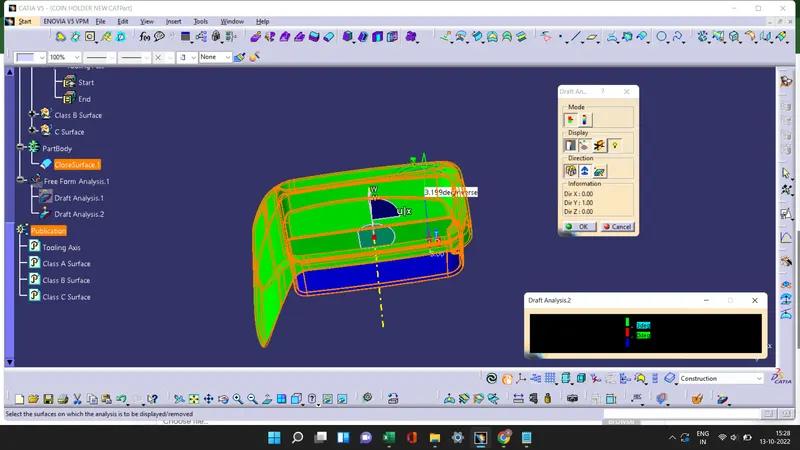

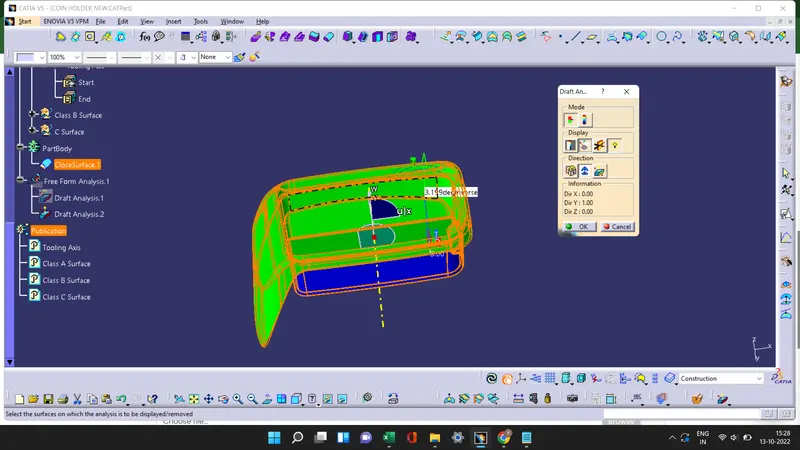

• In draft analysis 2 we taking Final Solid surface to draft.
• Select the draft analysis tool in the tool bar and select Campass in the Direction option of the draft analysis tool. Then move the campass on the tooling axis at draft direction and lock the draft direction.

• Useing the running pointer we see the draft angle at B surface and C Surface of the Coin Holder.

• Then by useing the color scale option we can change the Draft angle. The green color shows if the draft angle is 3 degree,red shows if the draft angle is between 0 to 3 and blue shows the negative draft angle.

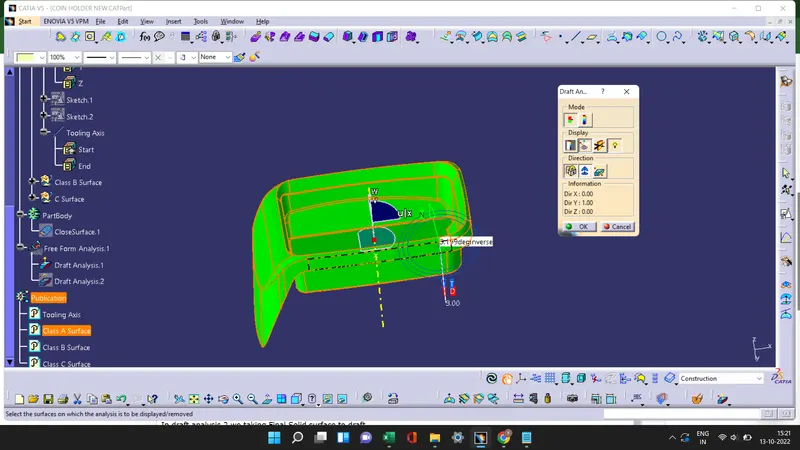

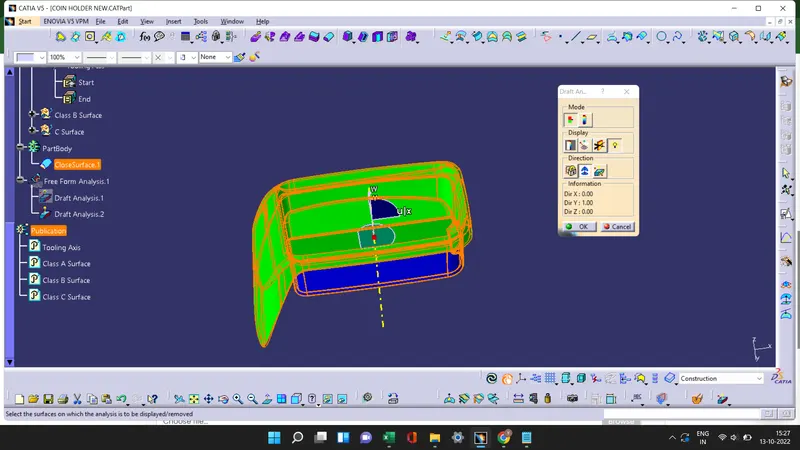

Screenshots of the Draft analysis report for both the given Class-A surface and the final plastic component

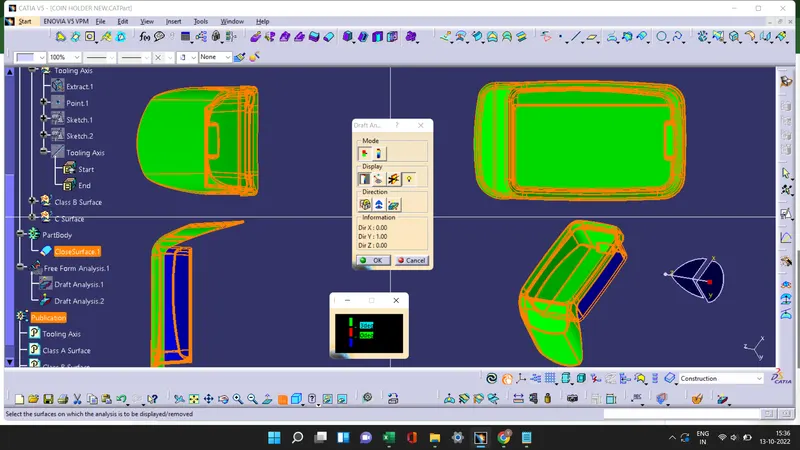

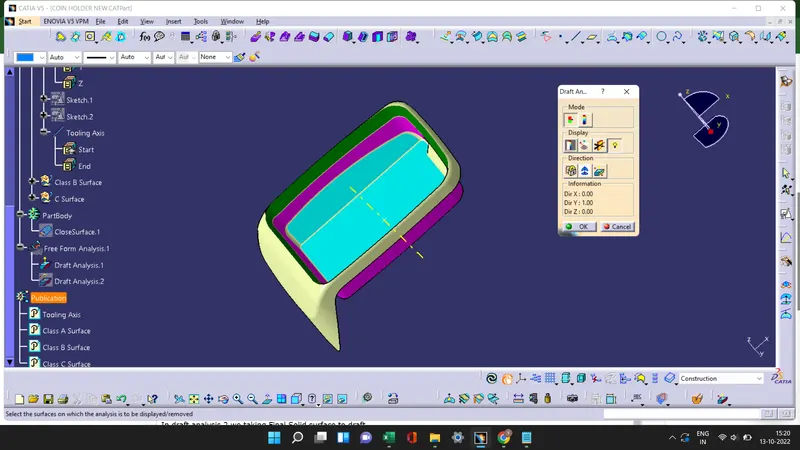

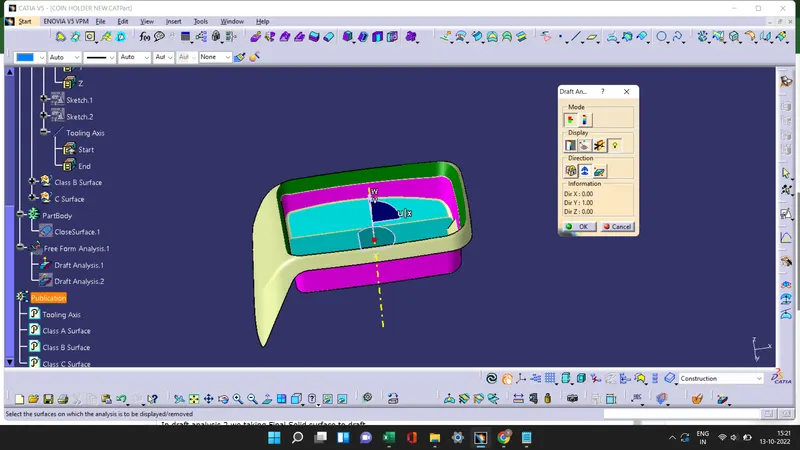

Screenshots of the solid model with the proper color code of the draft angle in various orientations

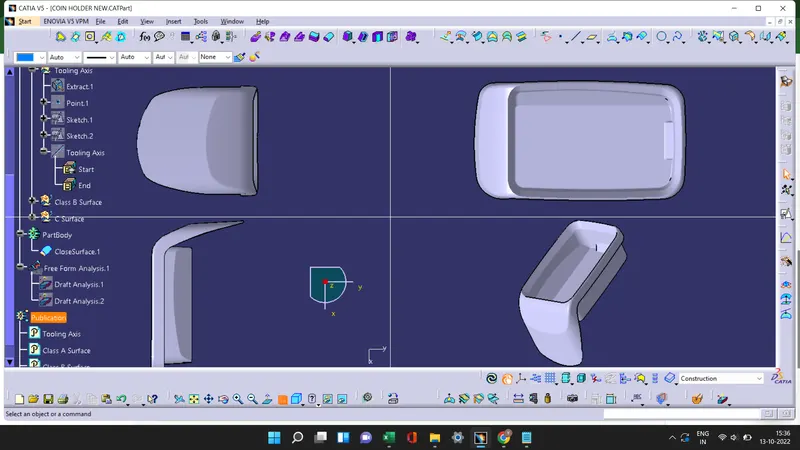

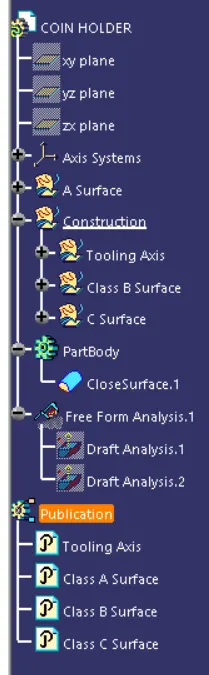

Tree

•
