Wiring harness routing & packaging Rules Week 3 Challenge
Download the following cad data & define it as Electrical support using the Electrical Part Design Workbench. Define all the necessary properties.
As given data P-Clamp is downloaded as a mechanical part it acts as a support to the wire bundle here it contains the entry face and exit face
where it has different properties to hold the wire and fix the position. given below are the process to define the P-clamp
1. open the CATIA v5 as a tool
2. select the electrical part design and open the P-clamp
3. locate entry point, exit point, plane at that points, and plane at the base as given below

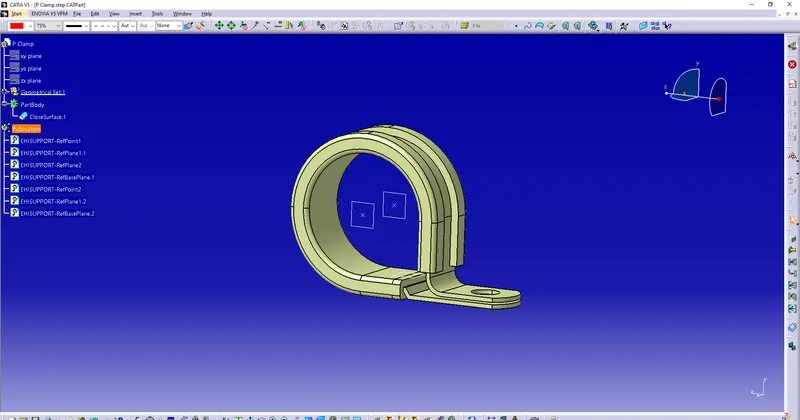

4. now define the support with the points and planes as shown below
now the part is ready to hold the wire and fix that
Download the following Back shell cad data & define it as an Electrical back shell using the Electrical Part design Workbench. Define all the necessary properties.
the given part is tyco-173812-1 it is the back shell cad part now it is to convert the electrical back shell as shown below
here back shell contains both bundle connection point and back shell connection point it i is defined in the electrical part design

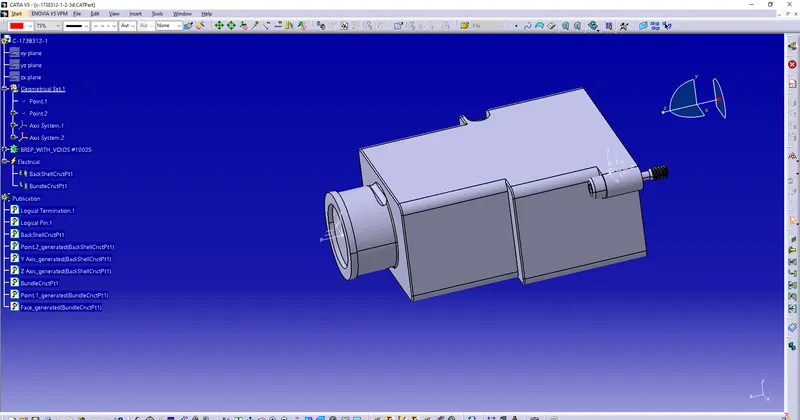

The above picture is the defined electrical back shell below process is explained how the cad part is defined to the electrical back shell
1. open the downloaded part in the electrical part design on CATIA v5
2. create a point at the front end and rare end and create axis systems at the point with Y axis as coincidence and Z-axis as rotation at both ends
3. back shell contains two connections one is the back shell connection point and the bundle connection points
4. it is defined with respect to the location of the point
Create Following Corrugated tubes & Add them in Catalogue under “Slit COT” family

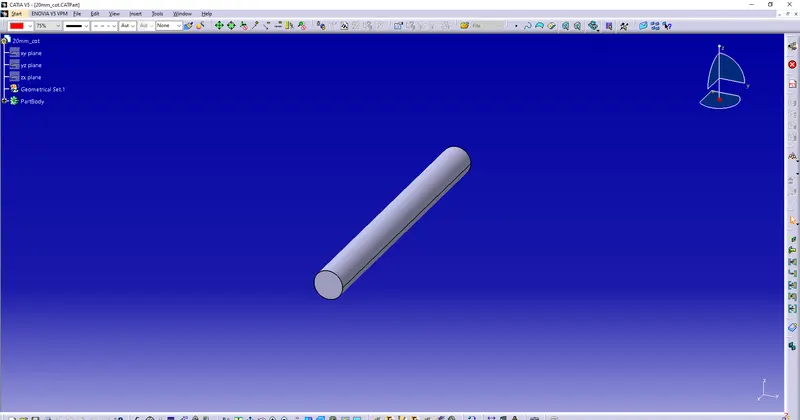

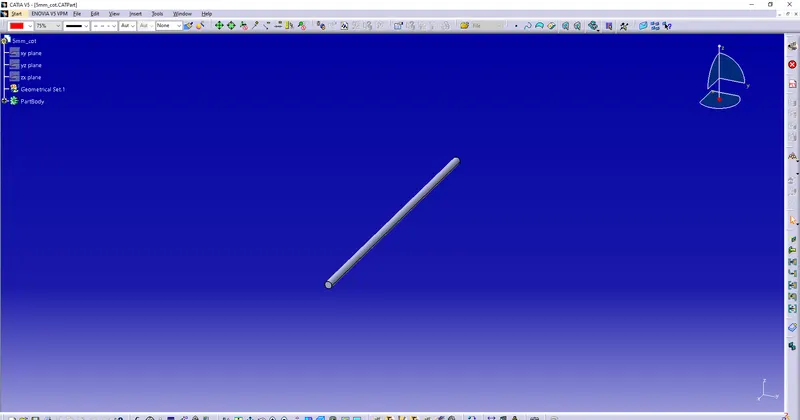

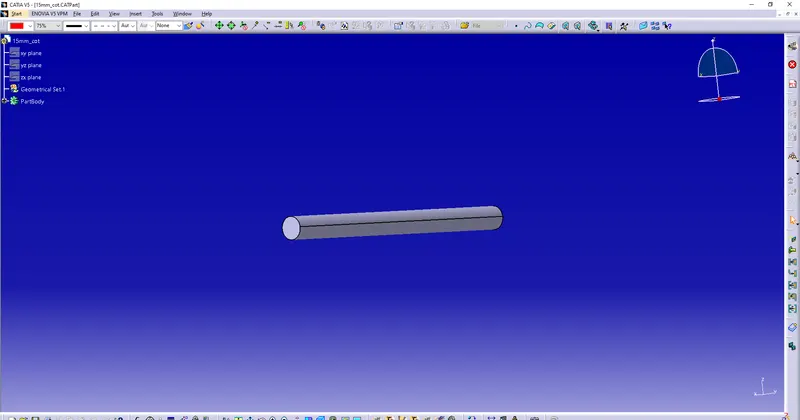

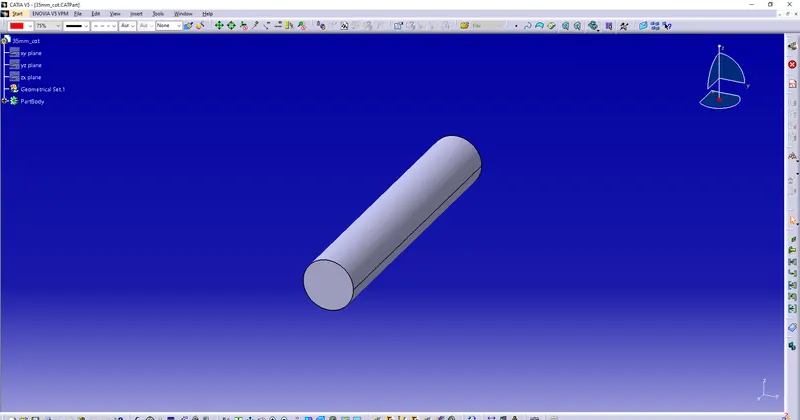

above are the corrugated tubes which helps wires to avoid the corrosion of copper wires this are of different sizes and with different property
these are created wtih the optio define protection part
asigning the different sizes can create the corrugated tubes
