Week 8 - Challenge 1 - Base Bracket Design

for the given sketch draft angle is 2 degrees so that changed to 3 degrees at below

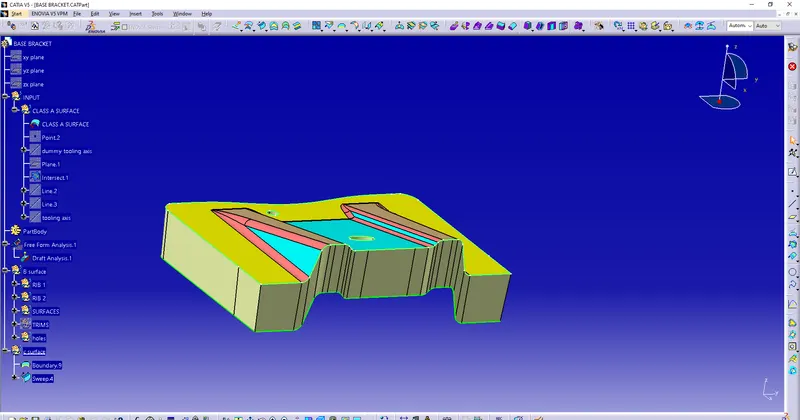

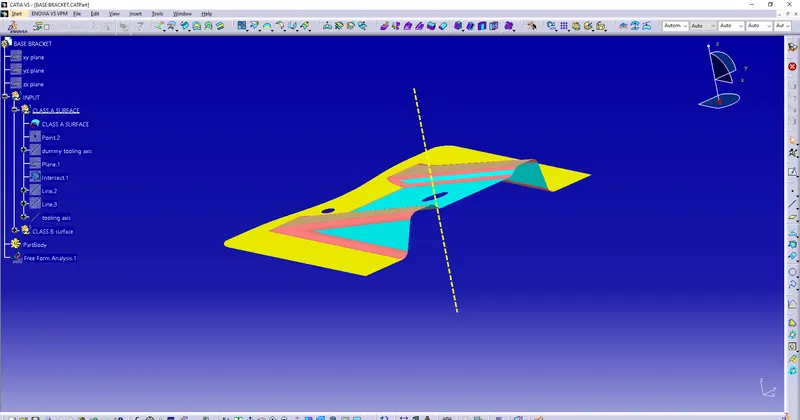

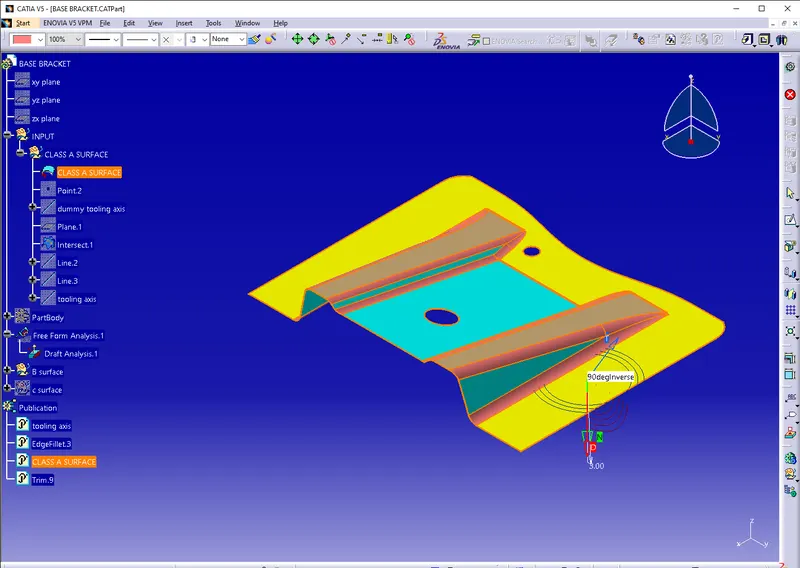

At every point draft angle is mesured to be 3 degree and futher draft analysis is done at different points on class A

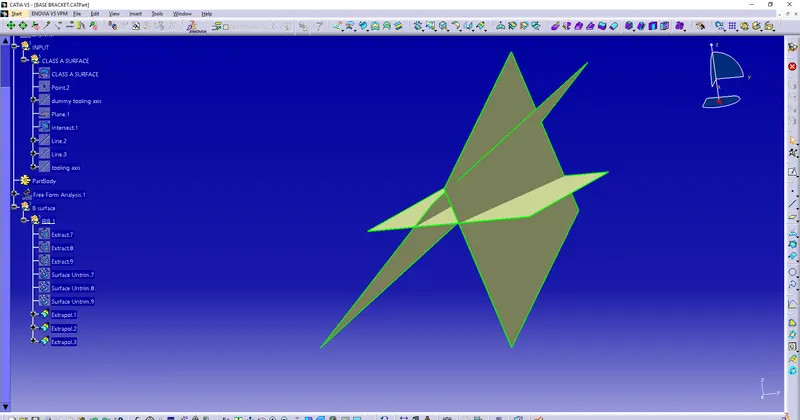

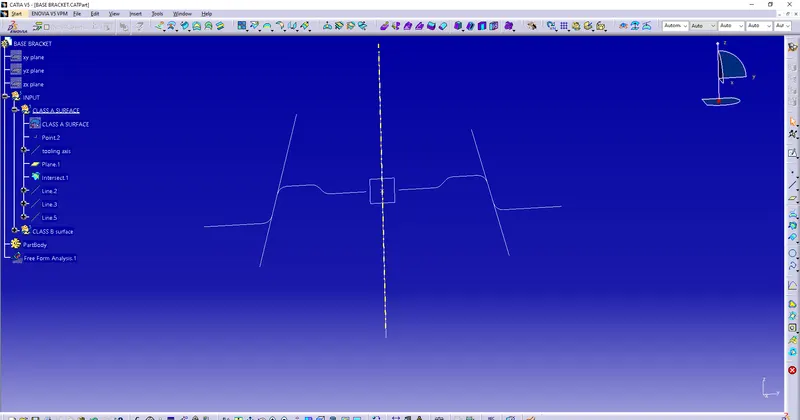

after the draft analysis tooling is made interseting profile anf by using bisecting lines option

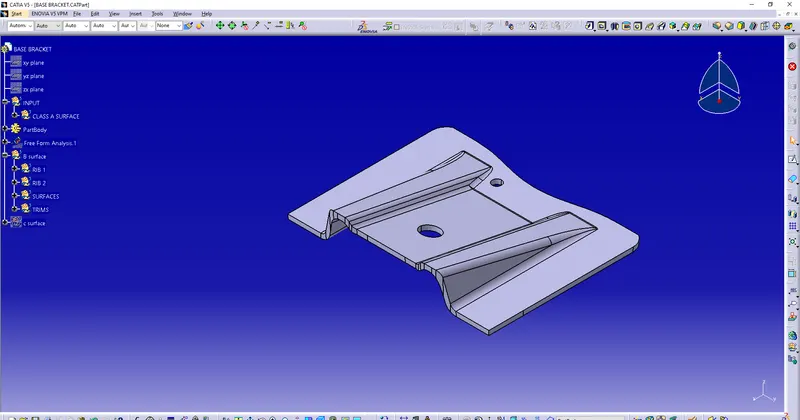

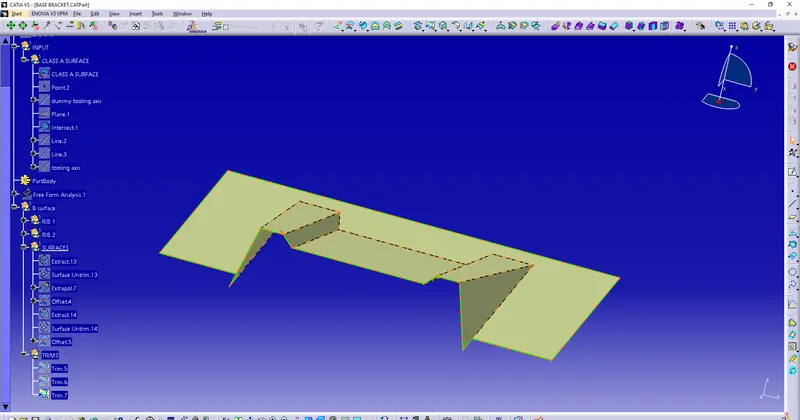

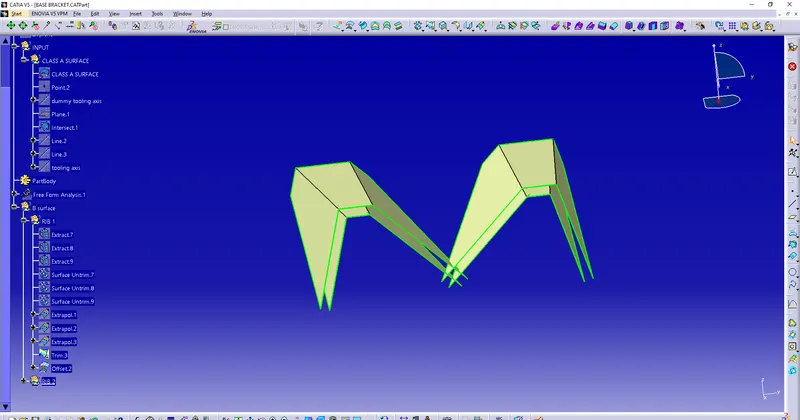

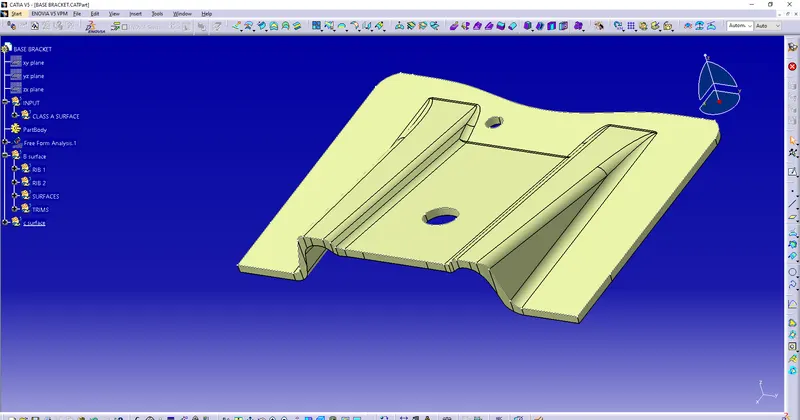

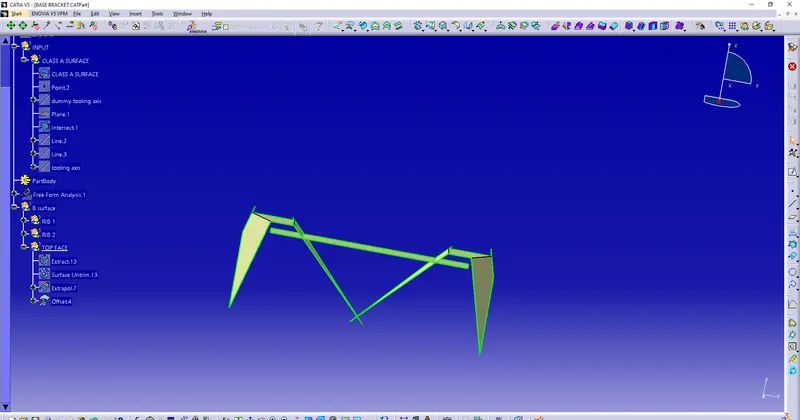

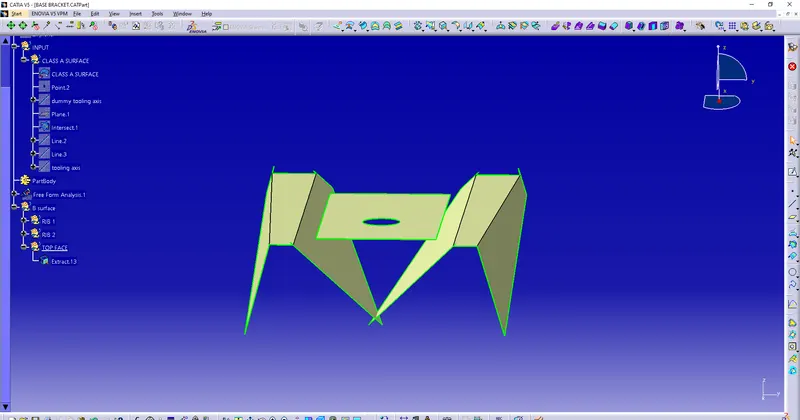

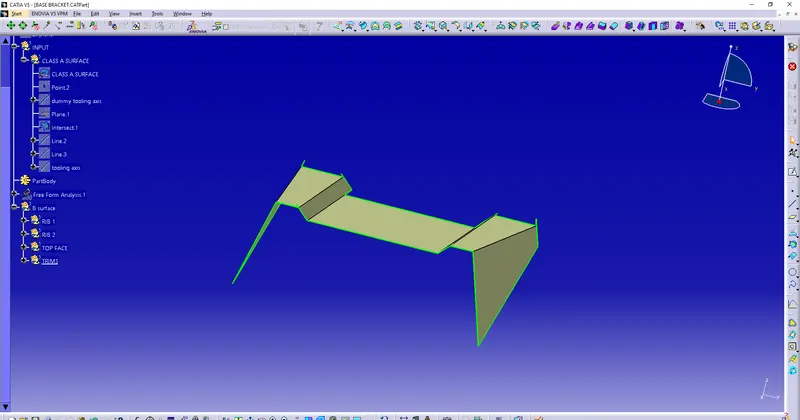

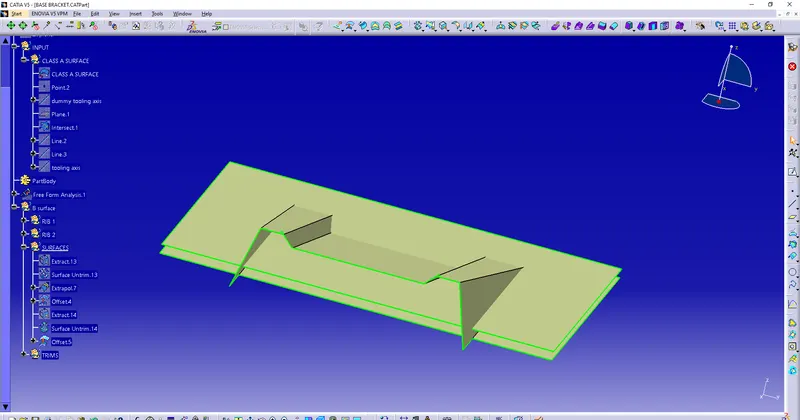

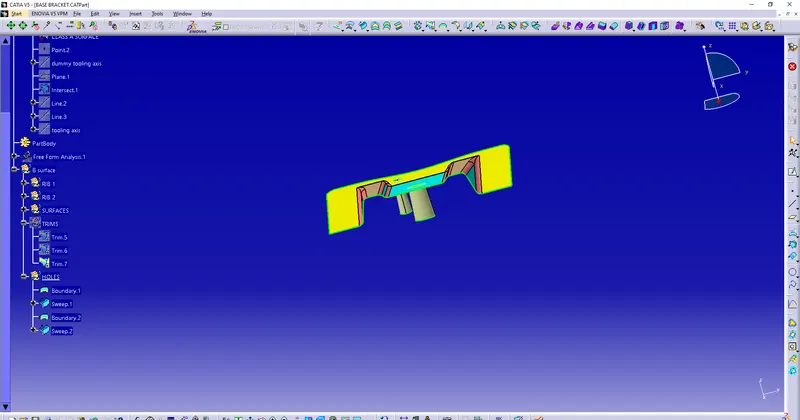

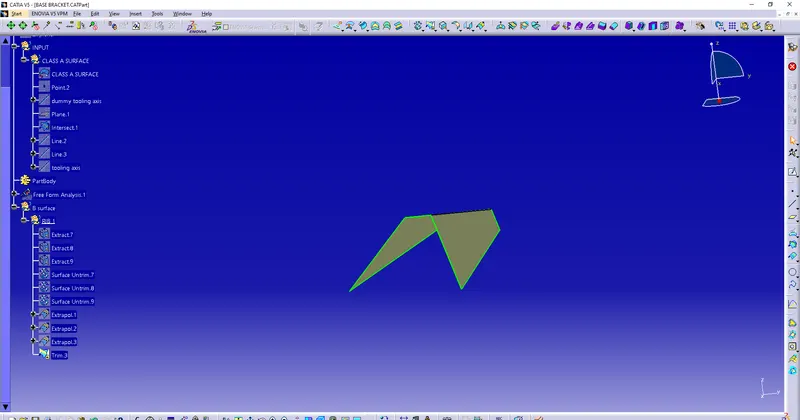

now the process is done to make body by different options
