Wiring harness routing & packaging Rules Week 3 Challenge

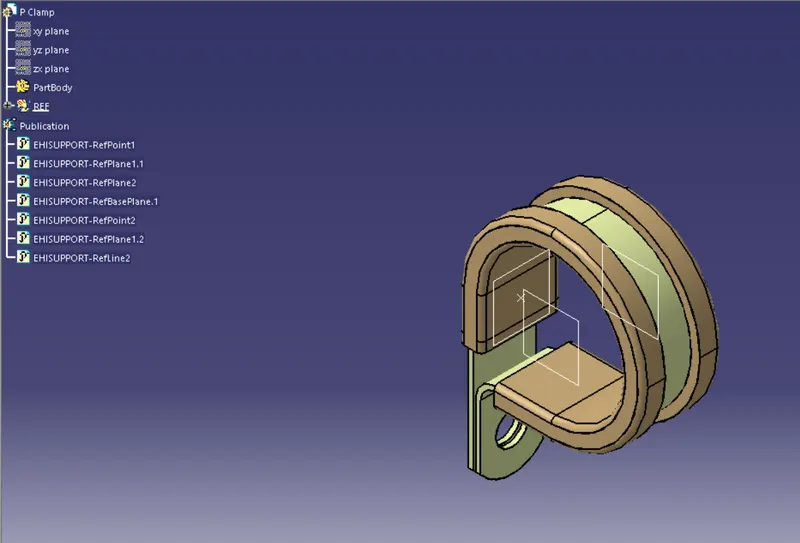

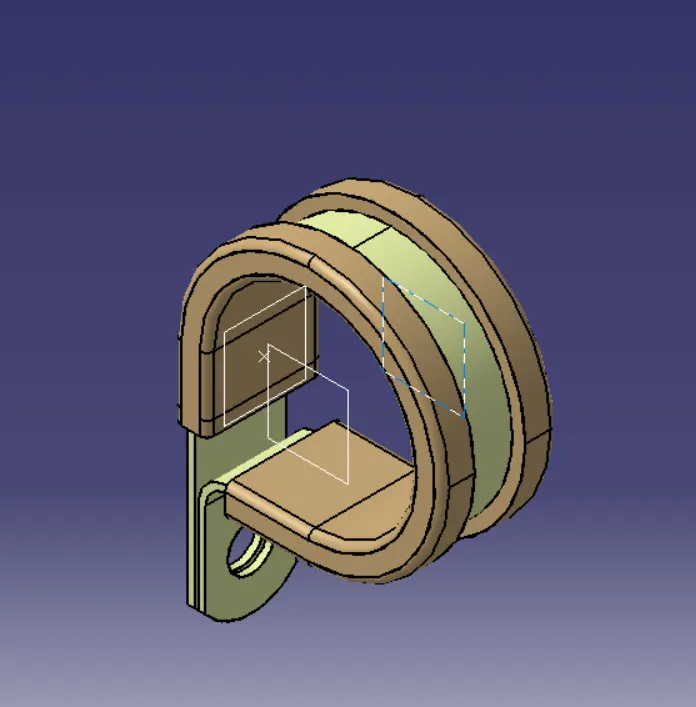

P CLAMP;

Draw a point for to creata a plane

A plane is used to define the entry and exit point of the wiring branches

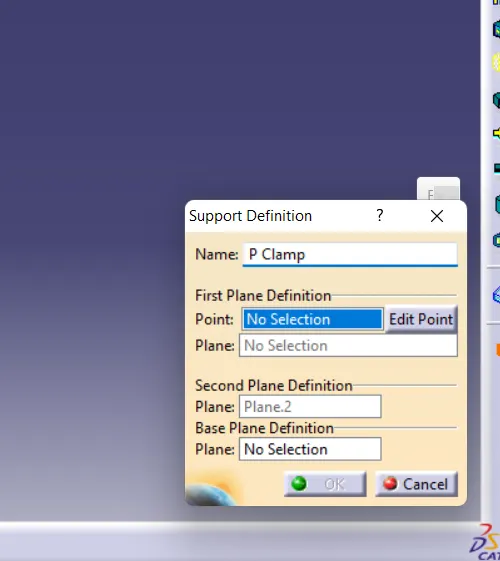

After that we move to electrical part design work bench and define the part as support part by using the command of define support part

In this we mention the first plane is also known as entry plane after the second plane has to define for exit plane atlast define define the base plane as a neutral plane

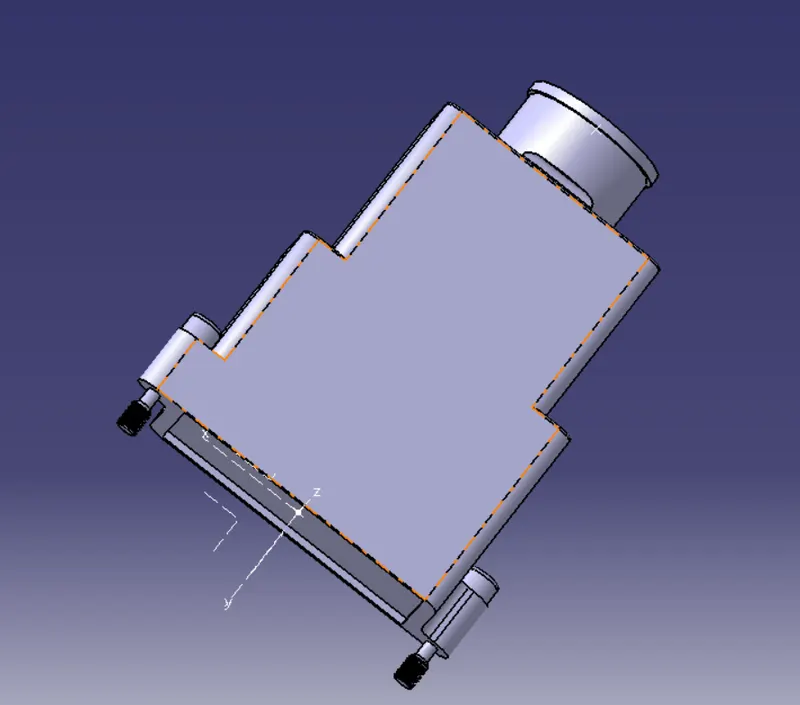

BACK SHELL;

DEFINE A PARTS AS MECHANICAL PART INTO ELECTRICAL PART;

open a part design work bench

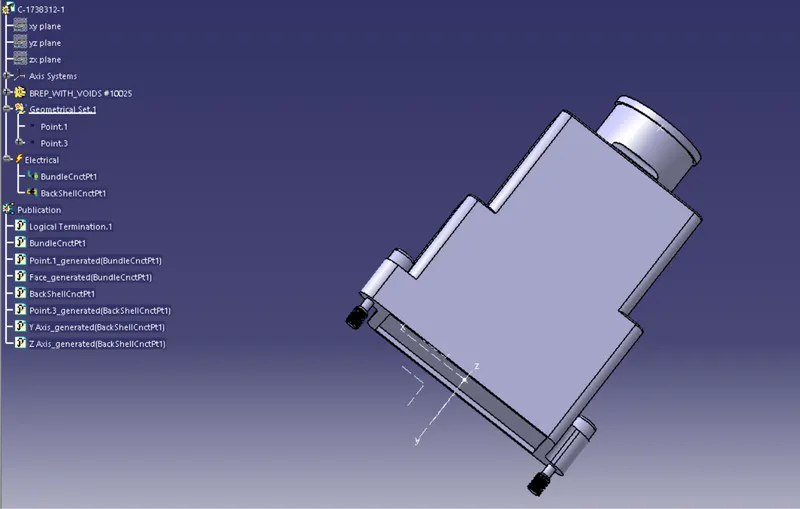

1.Create a new geometrical set to create for bundle connection on bundle entry point

2.After that other side of connector to create a point for the back shell connection point and create the axis system to make a back shell connection entry.

Next move to electrical part design work bench

3.In that there is a command call define connector to define the connector as electrical part

4.After that bundle connection and back shell connection as per the required side of connectors

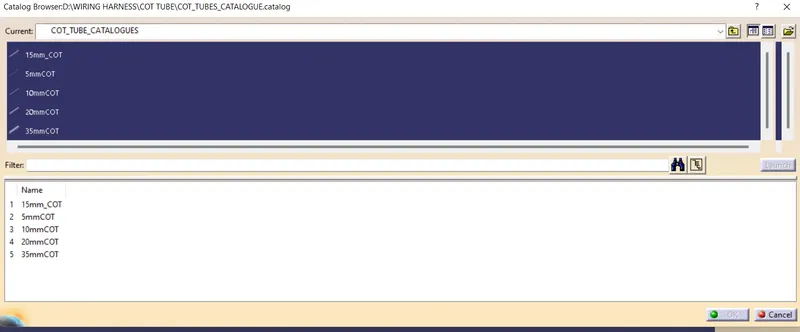

COT TUBES;
