Week 5:- Rest Unit & Clamp Unit Design Challenge

CLAMP UNIT DESIGN;

A clamp unit is a unit designed to clamp /hold the car panel with NC blocks/Mylar / Rest by using a pneumatic clamp cylinder.

Here the different parts of clamp unit shown below;

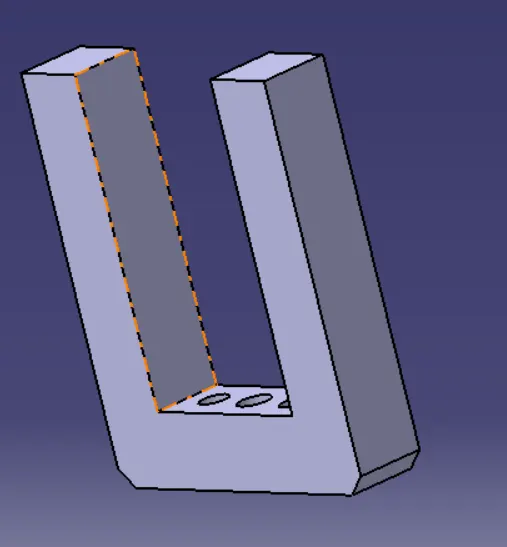

FINGER;

A finger is a NC Block,which is mounted on the clamp Arm of the cylinder and will press the car panel towards the rest,so that it holds the car panel.

REST OR MYLAR:

A rest is a NC block,which is fixed to the unit to support the car panel.Also it resist the clamp force of the finger and the clamp of car panel.

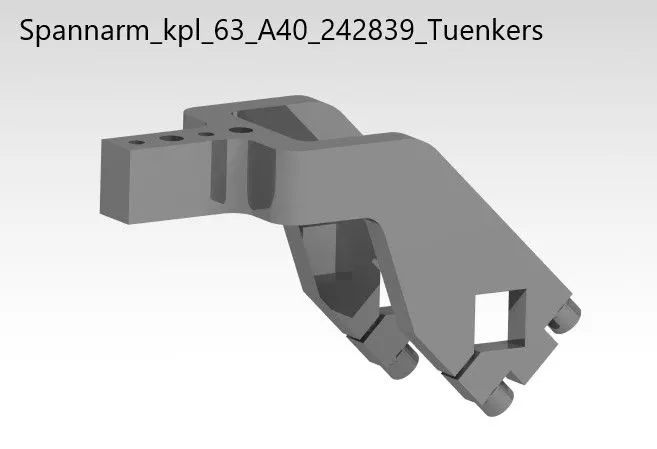

Clamp Arm:

A clamp arm is a bought out part to its all the movable parts are fixed in general a clamp arm is a part of clamp cylinder

• Clamp arm are different to the different bore of the cylinder.
• Clamp arm are available in different hole pitch.
• Clamp arm are available has

Middle arm-A10

Right arm -A11

Left arm -A12

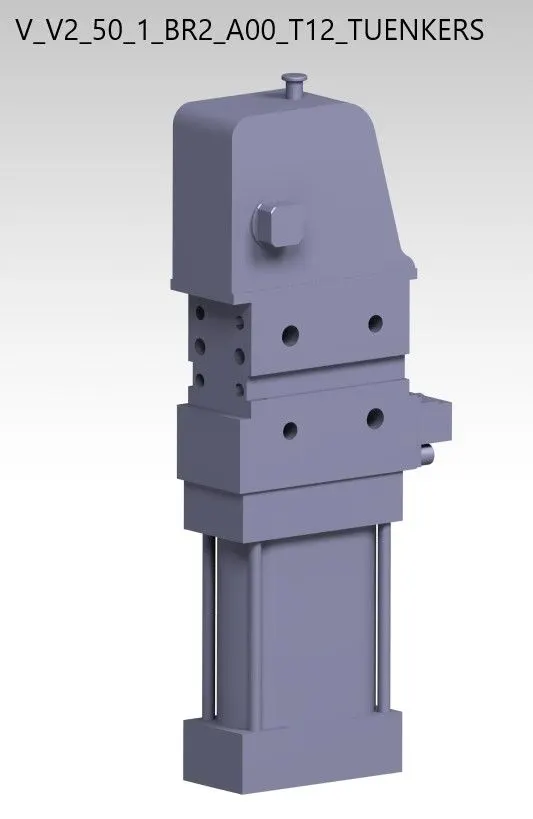

Clamp cylinder;

A clamp cylinder is a pneumatic device works with pressurised air.The clamp cylinder is used to open and close the part fixed to the clamp arm to the clamp body.

• Clamp cylinders are in general 40,50,63 and 80 bore capacity.
• Opens upto 135 degree for horizontal clamp mounting.
• Opens upto 105 degree for vertical clamp mounting.

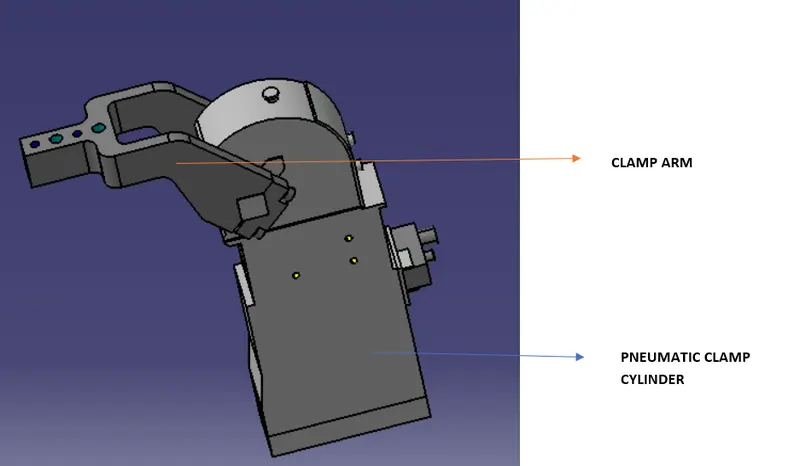

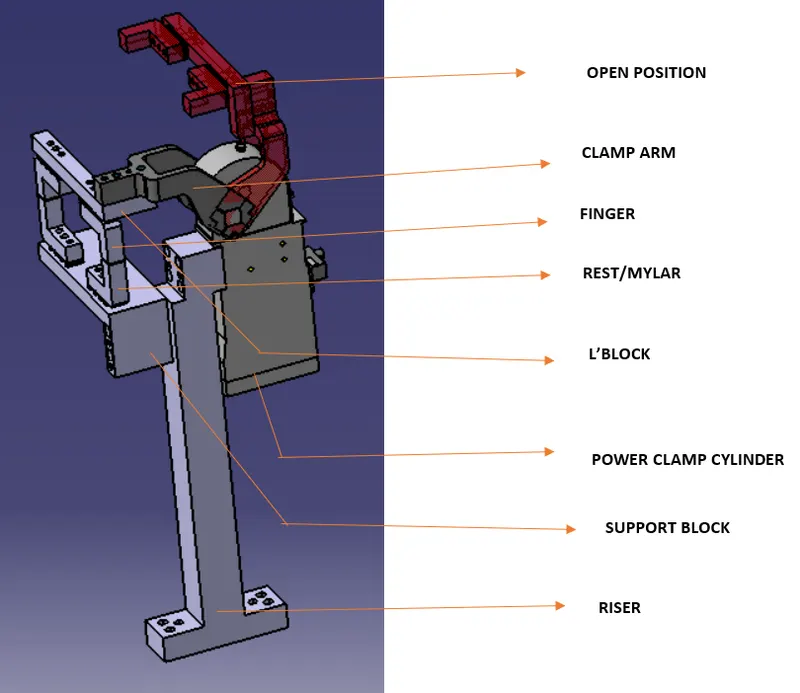

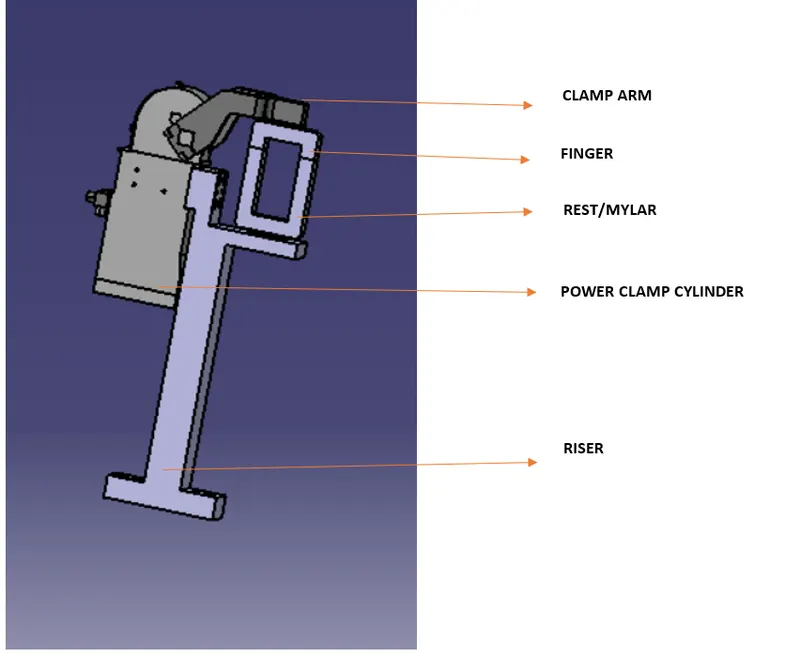

ASSEMBLED CYLINDER UNIT;

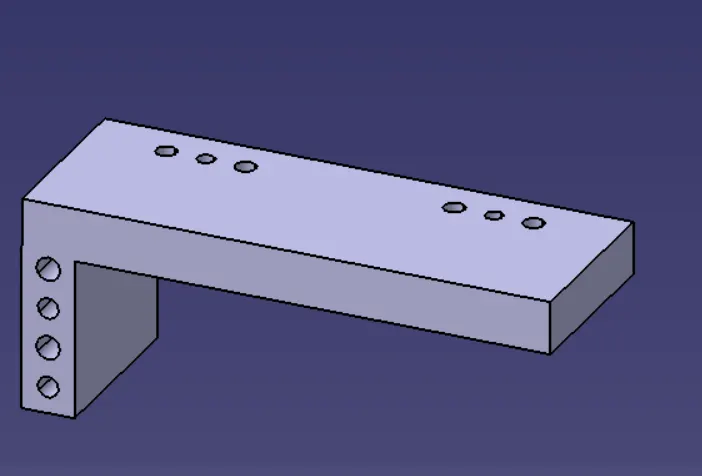

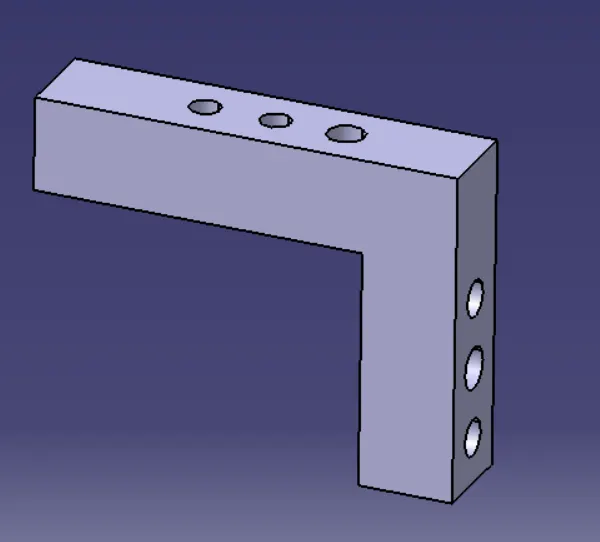

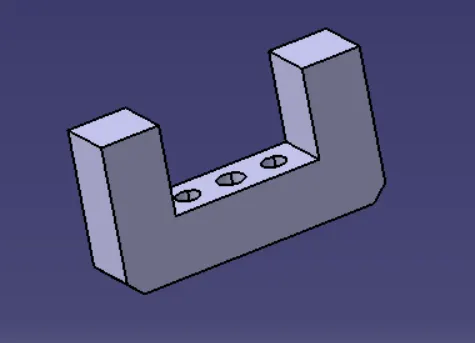

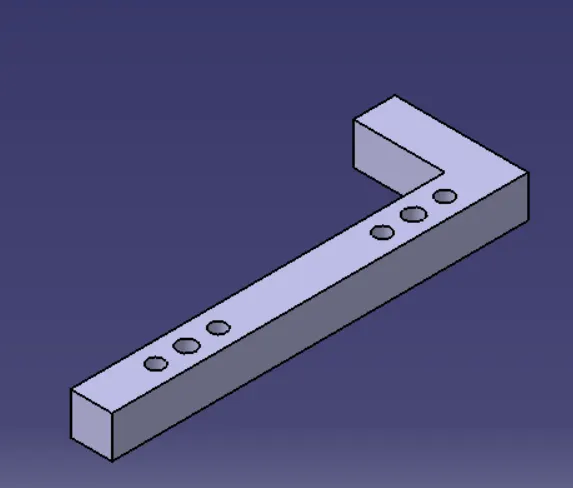

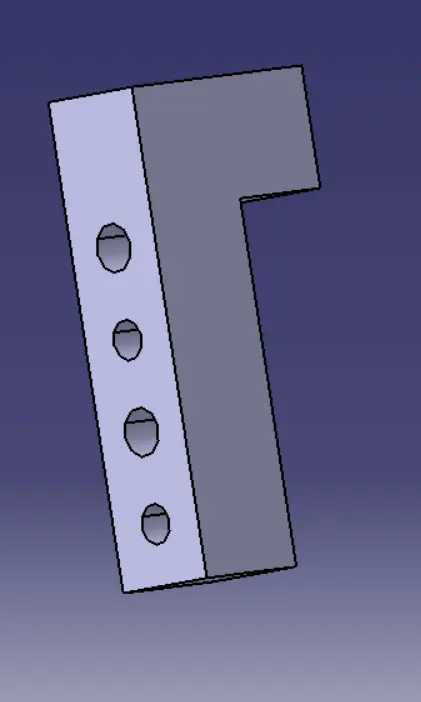

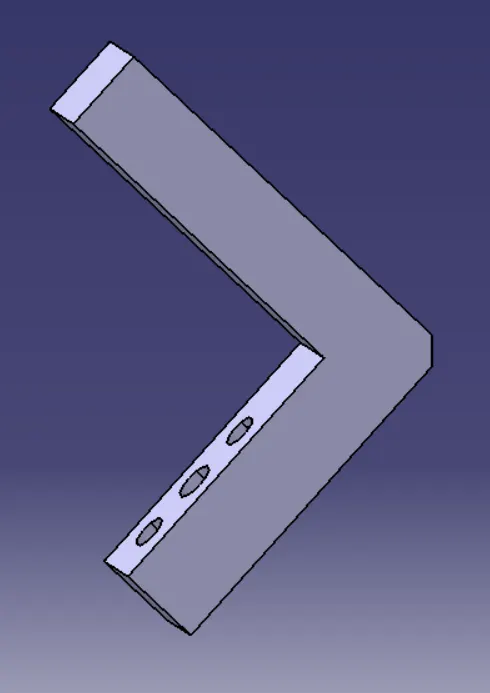

L'BLOCK AND SUPPORT BLOCK;

Both l block and support block or spacer is used the finger and rest/mylar ,in between these shim pack will be add to adjust the blocks.

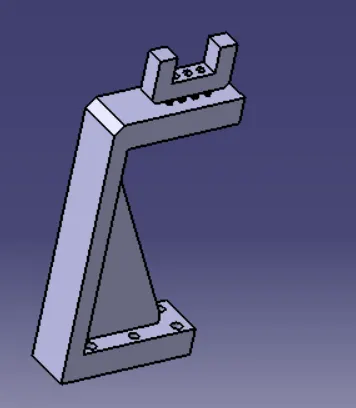

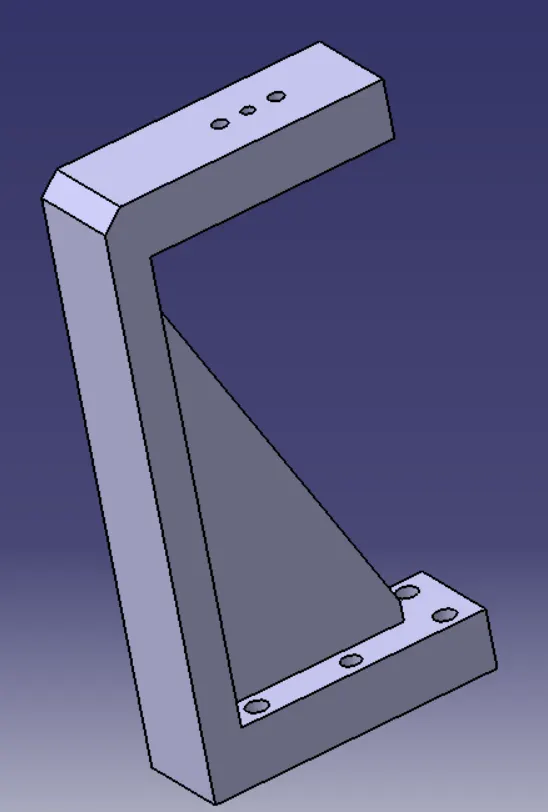

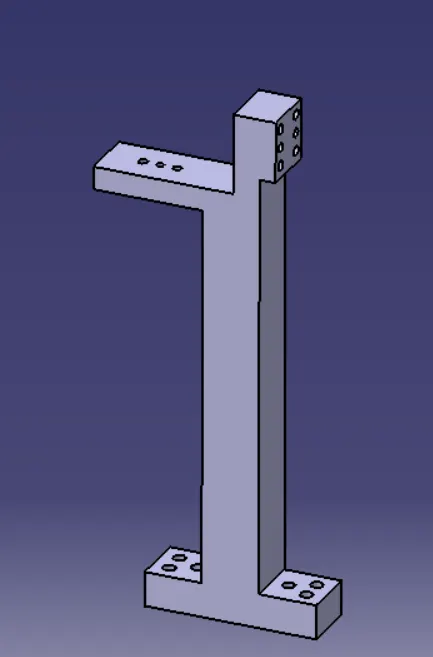

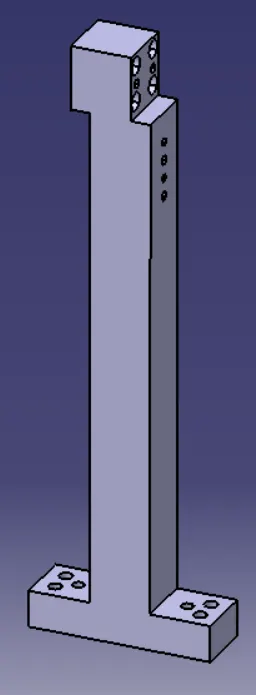

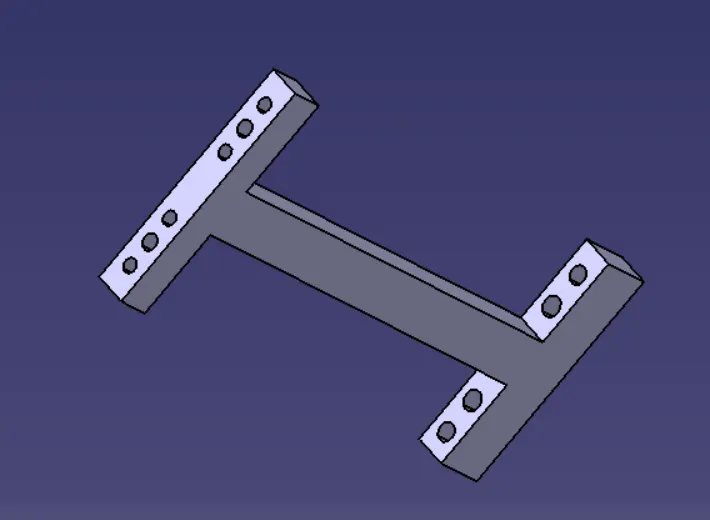

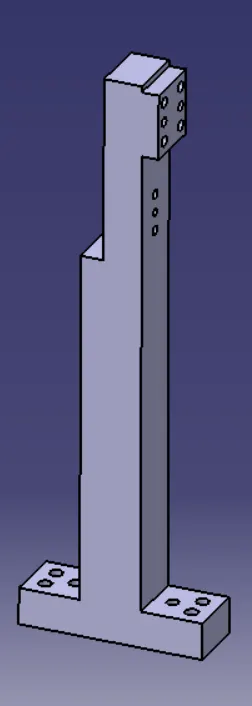

RISERS;

Risers is used to mount the cylinder and attached in base unit ,in cylinder the clamp unit will be mounted, we normally standard risers and a we manufacture based on the working features and cost saving the fixture.

REST UNIT DESIGN;

• Rest unit design is a unit to hold the car panel ,also it resist the clamp force of the finger with the help of rest mylar&thus clamp of car panel.

• Rest unit consist of rest mylar,shim packs and risers.

• Holding force should be considered while designing a rest unit.

• Mostly to avoid excess part,to reduce the weight and to reduce the cost of fixture,when the rest unit is combined with clamp unit.

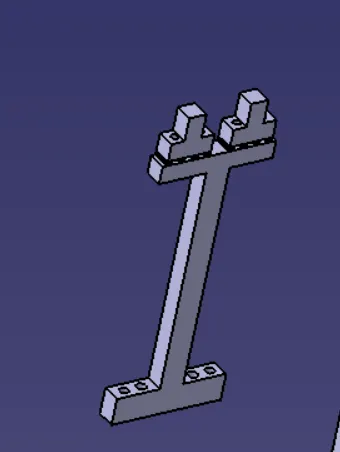

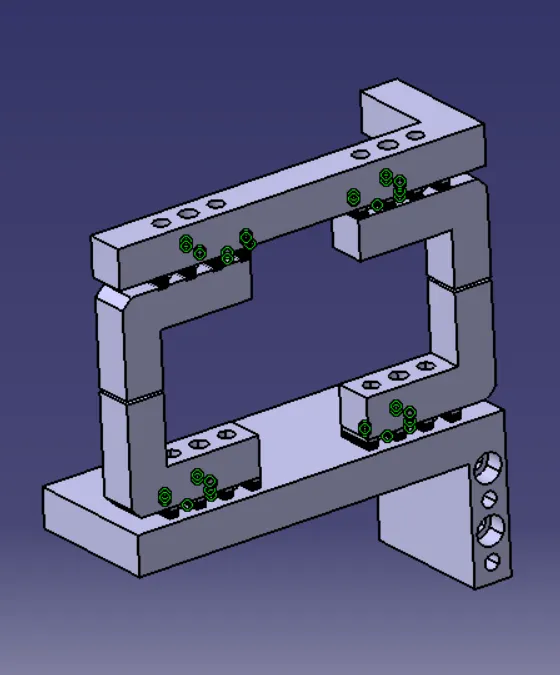

Hers some figures shown of rest unit assembly;

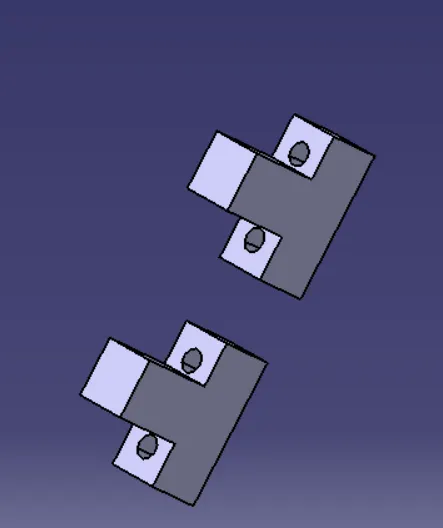

REST OR MYLAR:

A rest is a NC block,which is fixed to the unit to support the car panel.Also it resist the clamp force of the finger and the clamp of car panel.

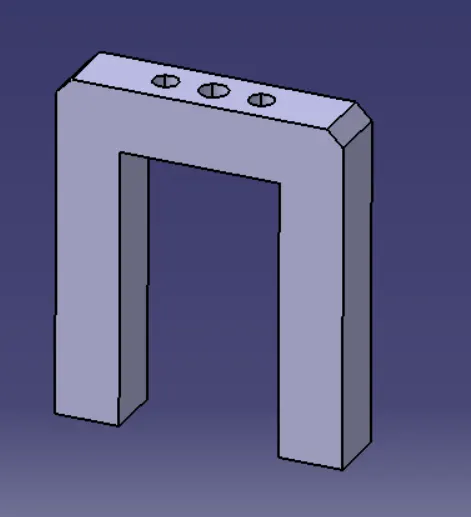

RISERS;

Risers is used to mount the cylinder and attached in base unit ,in cylinder the clamp unit will be mounted, we normally standard risers and a we manufacture based on the working features and cost saving the fixture.

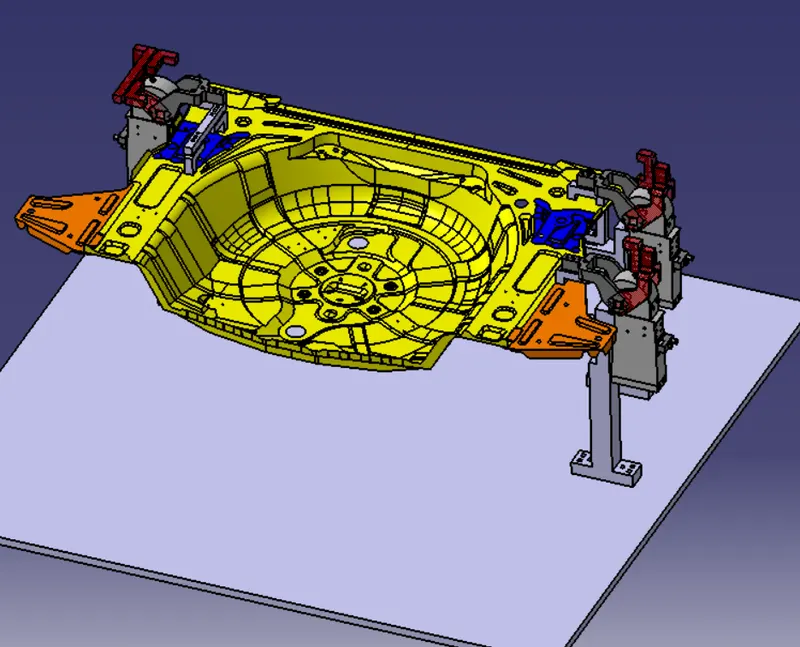

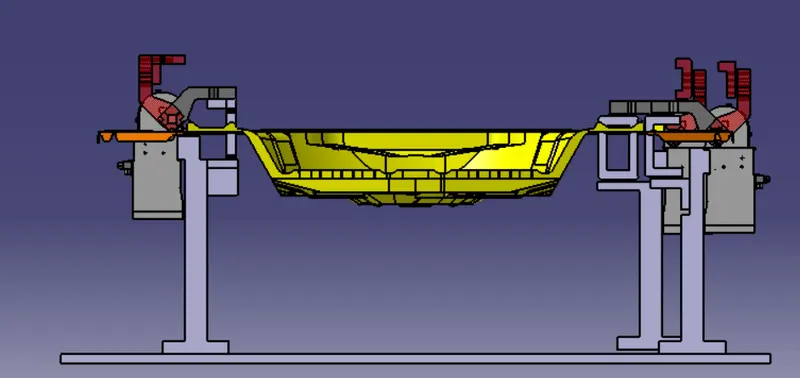

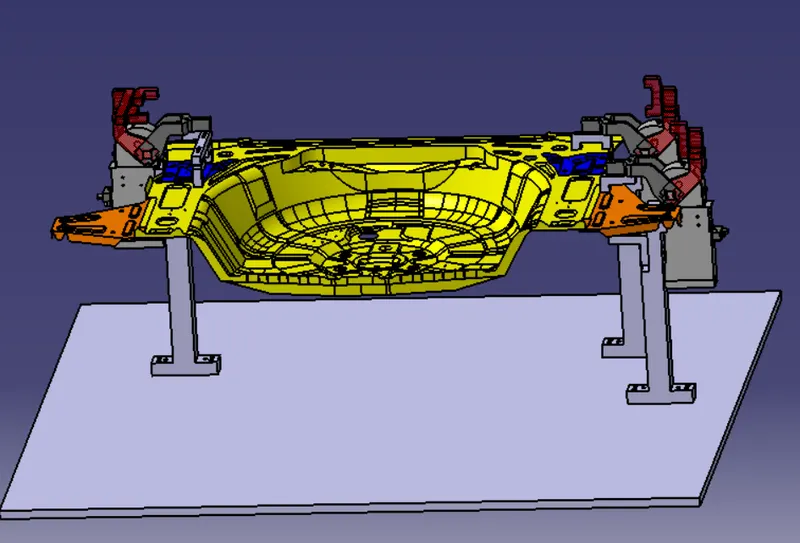

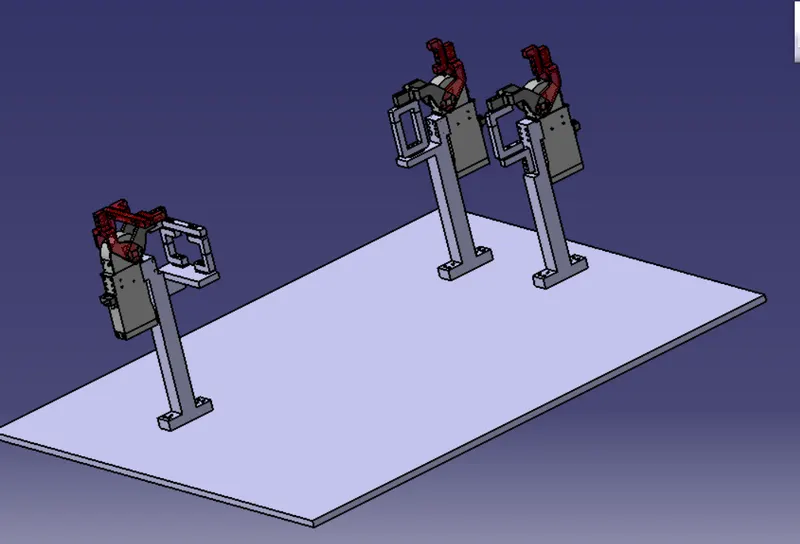

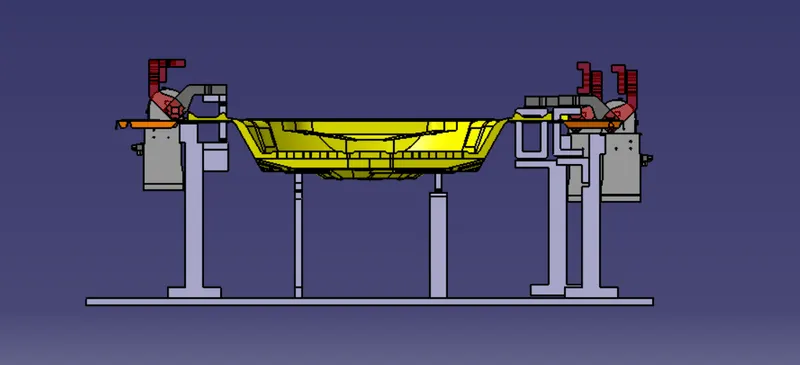

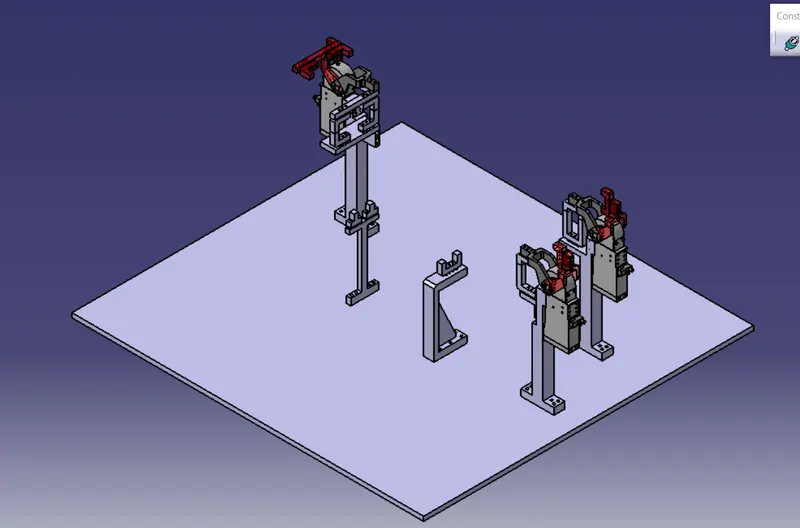

TOTAL ASSEMBLY FIGURE GIVEN BELOW OF THE CLAMP UNIT AND REST UNIT ASSEMBLED IN THE FIXTURE;
