Wiring harness routing & packaging Rules Week 3 Challenge

P Clamp

Clip Definition

This is the important component of the wiring harness which should be defined before wiring harness routing.

Important Parameter required to be defined

• Entry point & Plane
• Base Plane
• Exit plane

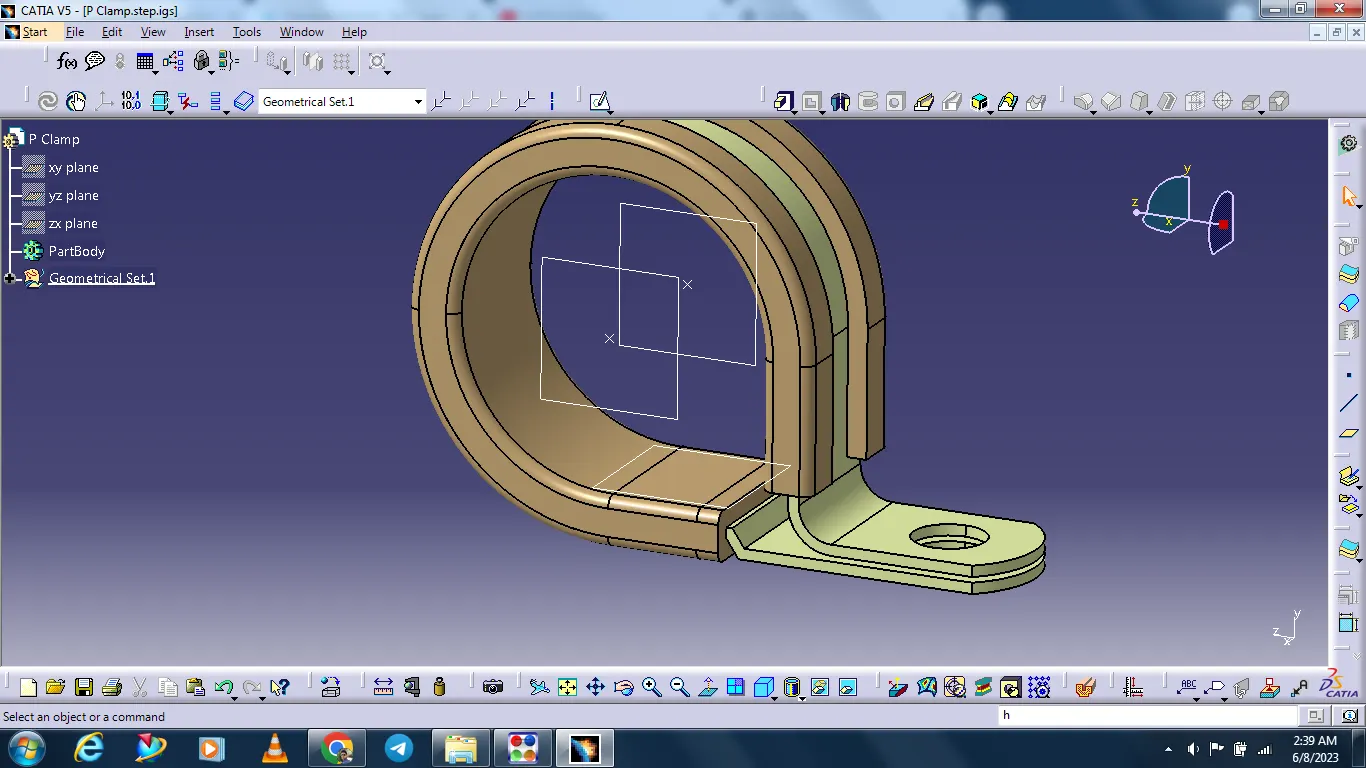

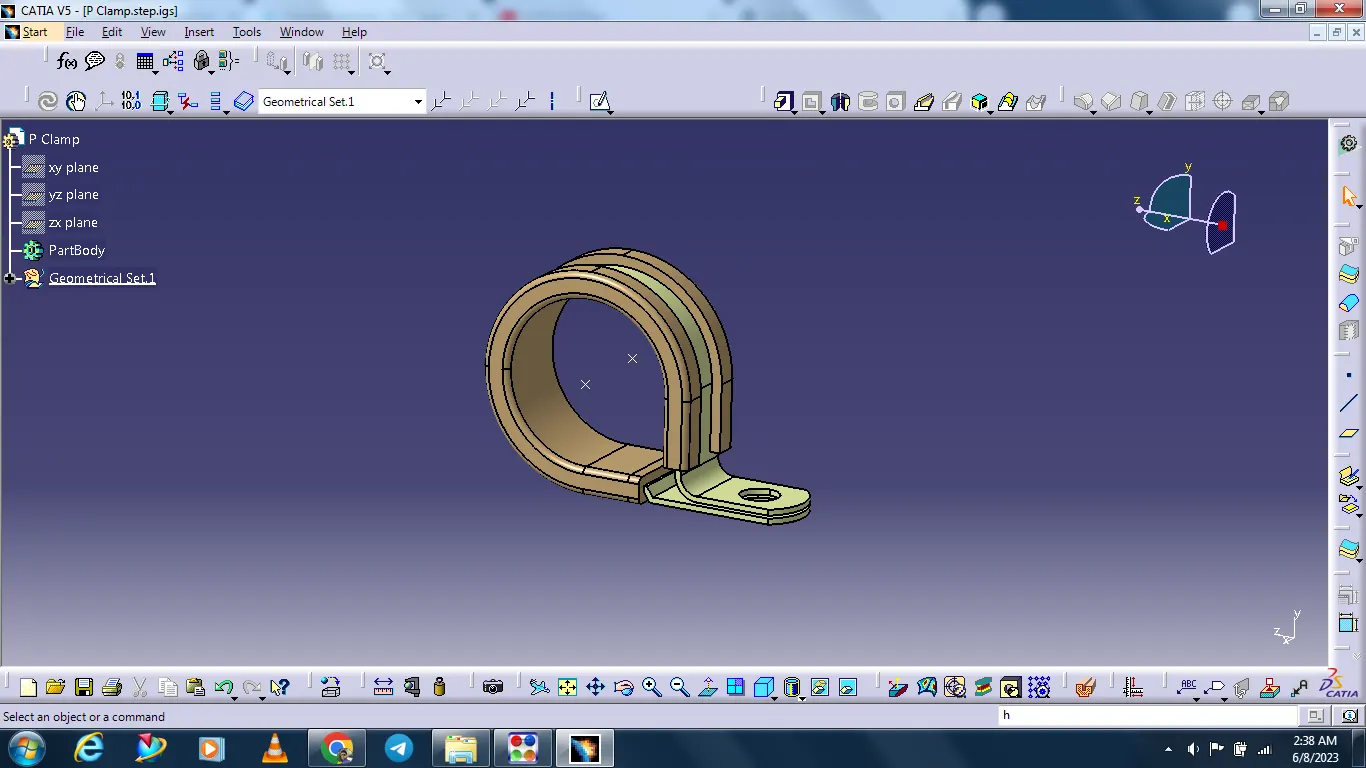

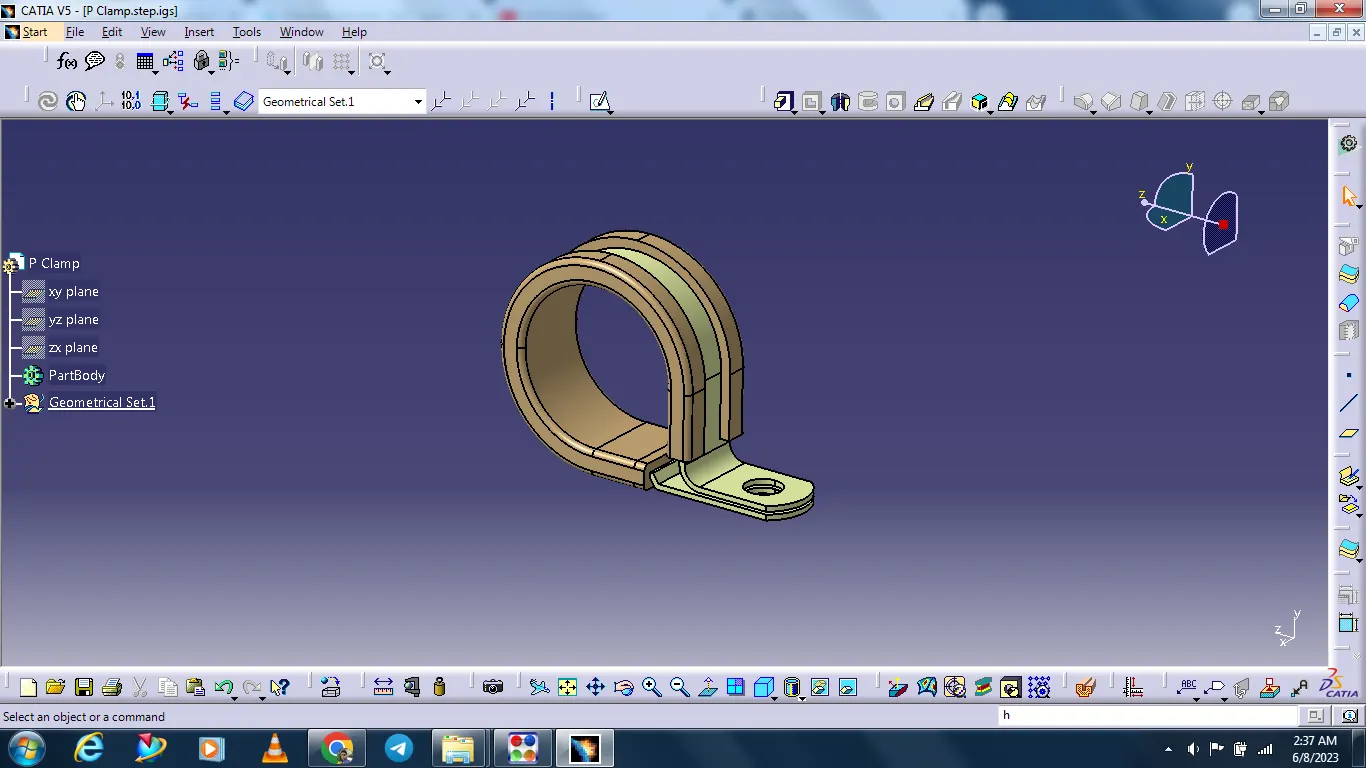

Get the 3d part.

Define the geometry parameter.

And creat the planes.

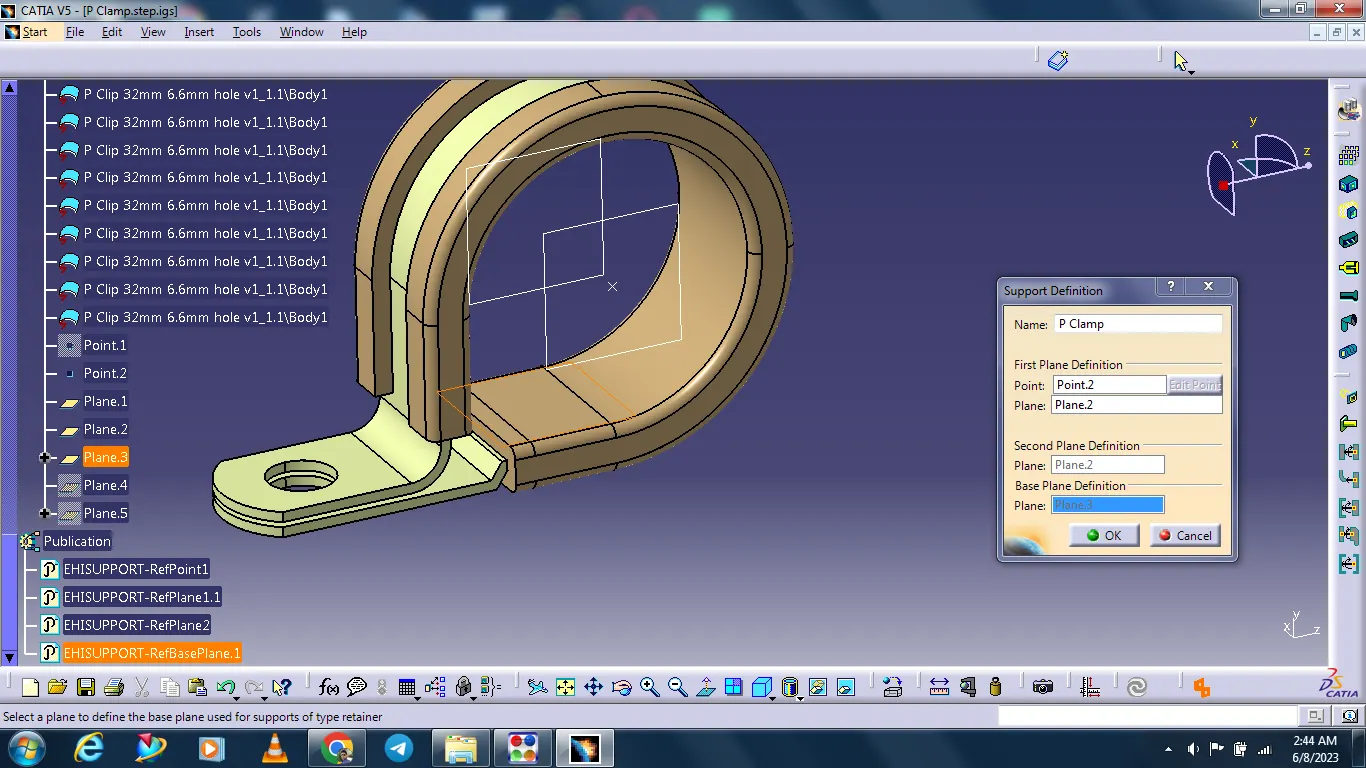

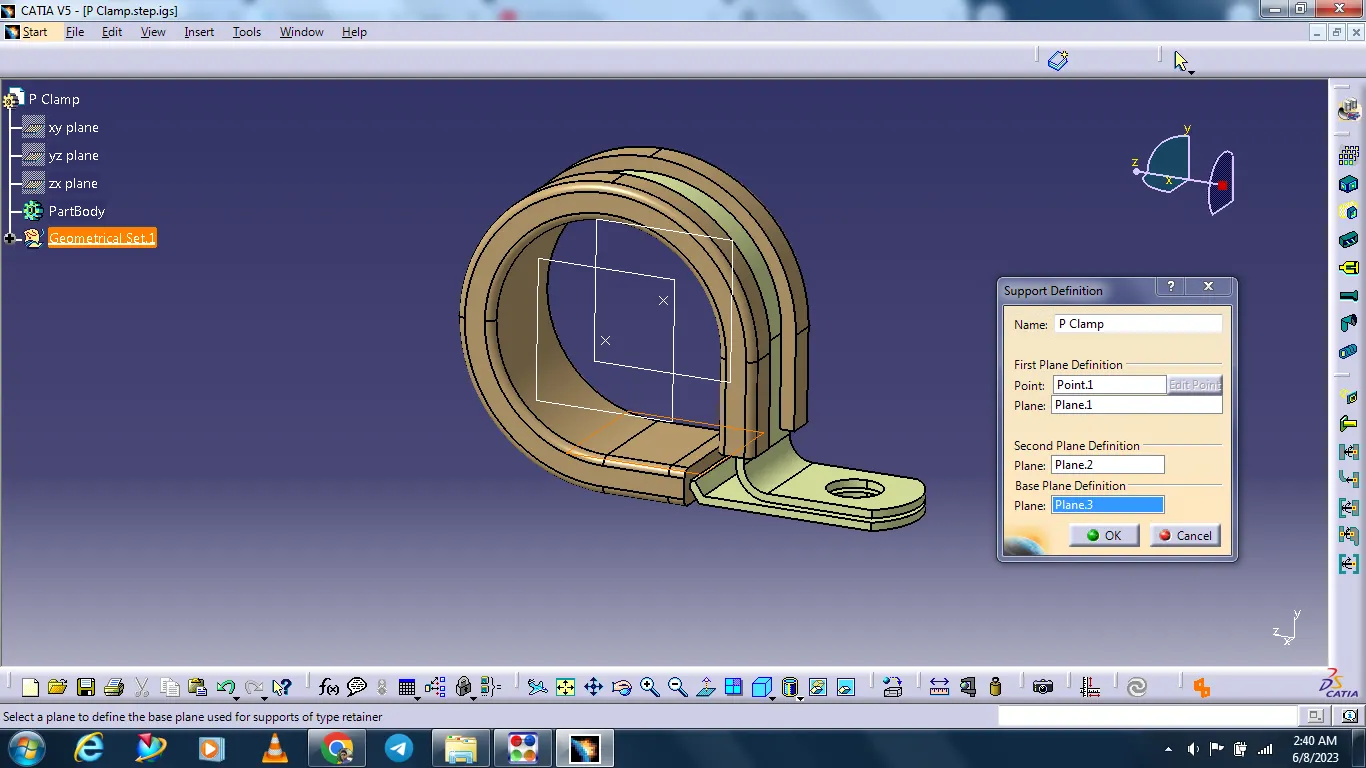

Define part as Support

And define the Entry point & Plane.

And Base and Exit plane of both sides of the faces.

Tyco 1738312-1

Backshell are plastic molded parts used at wire entry side of connectors either for protection or to improve aesthetics appearance of harness.

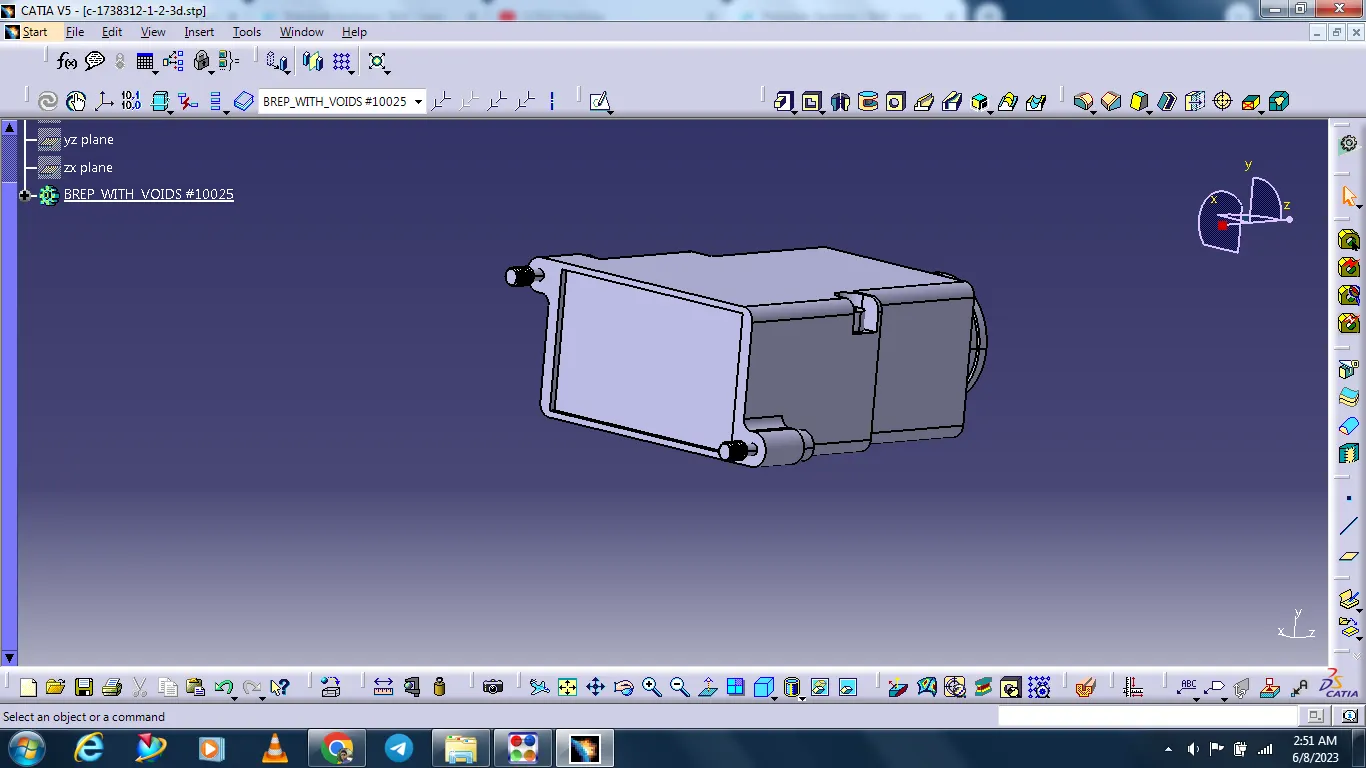

Get the backshell 3d part.

Define the Geometry parameter

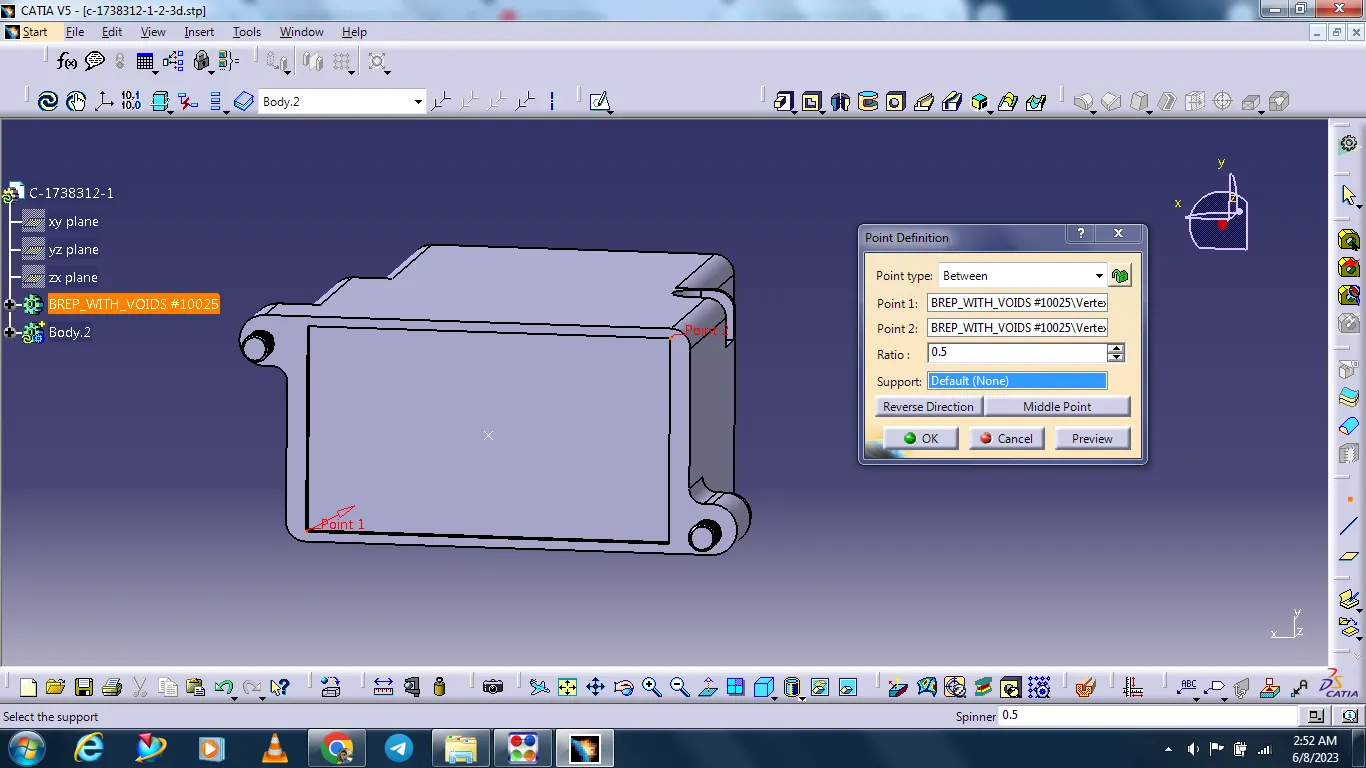

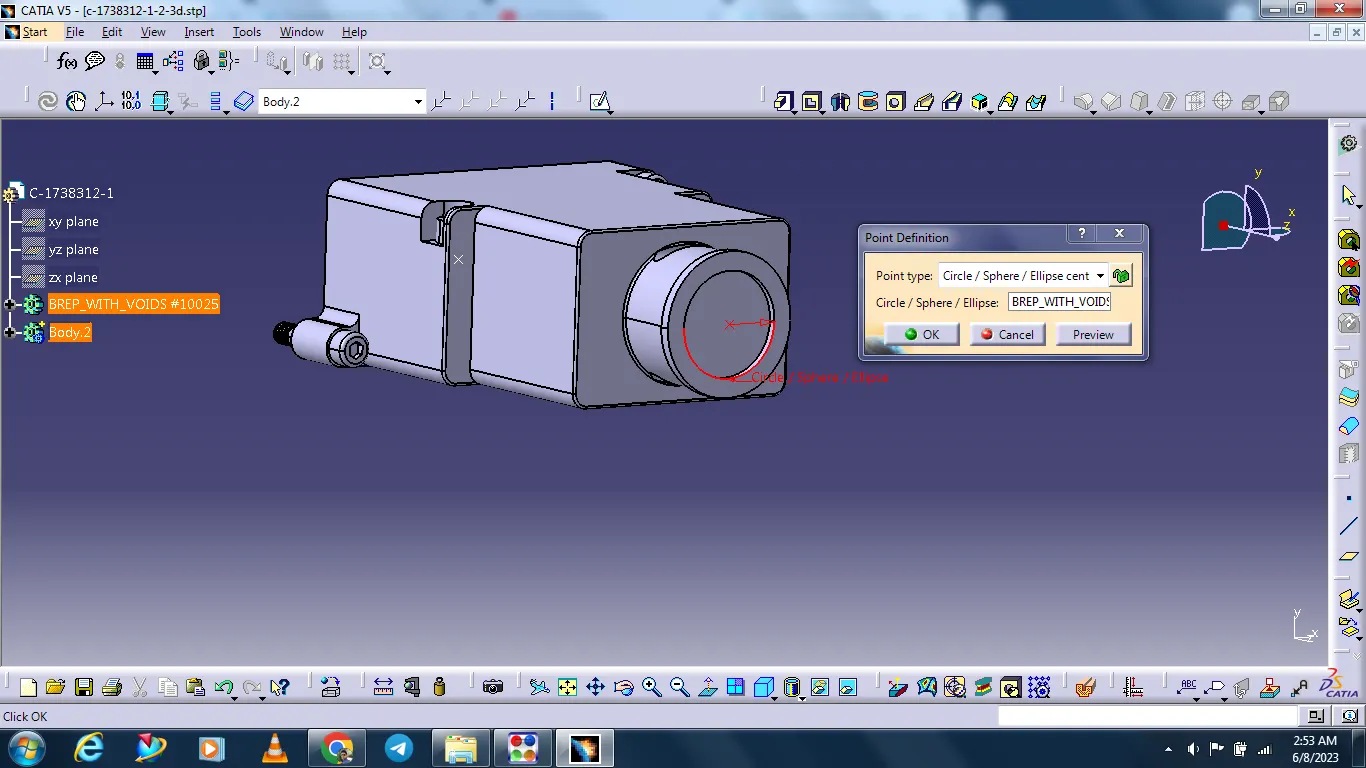

There is creating points & axis.

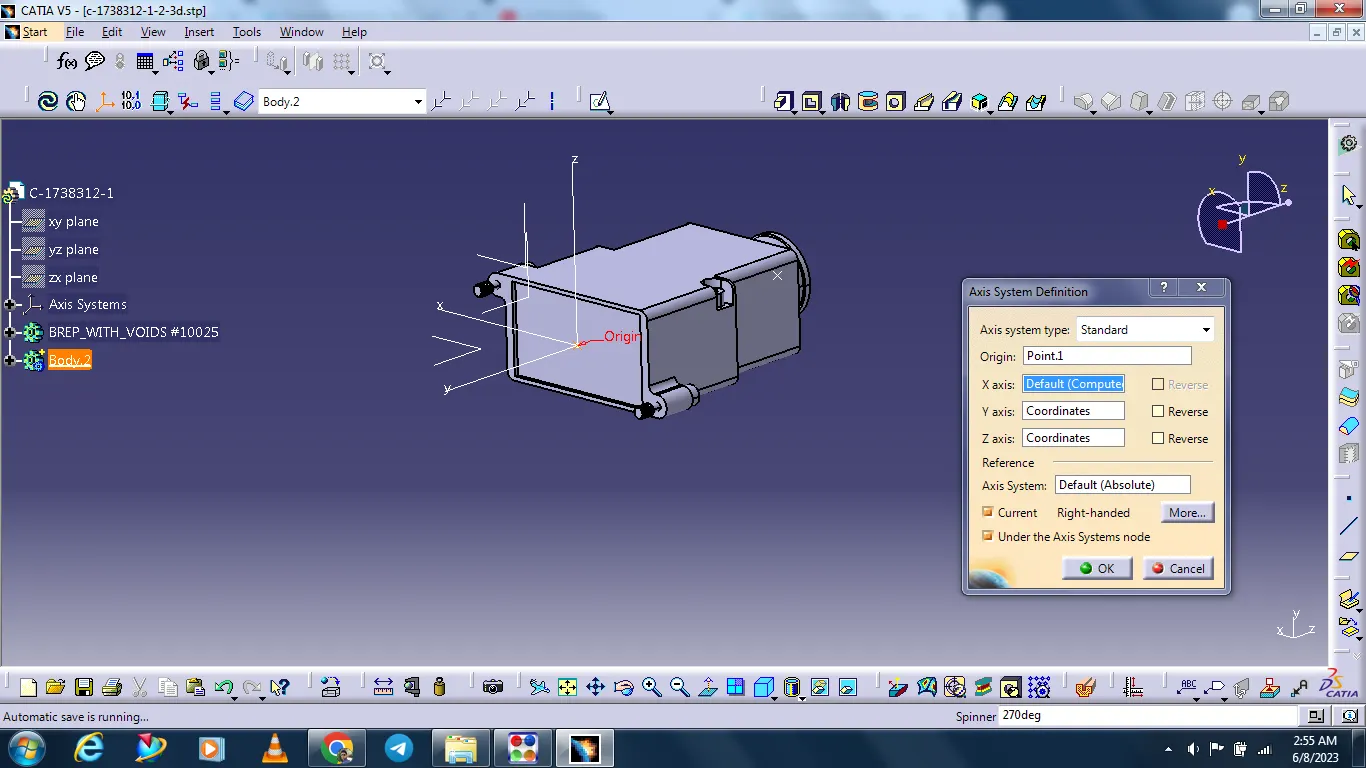

Define the axis system.

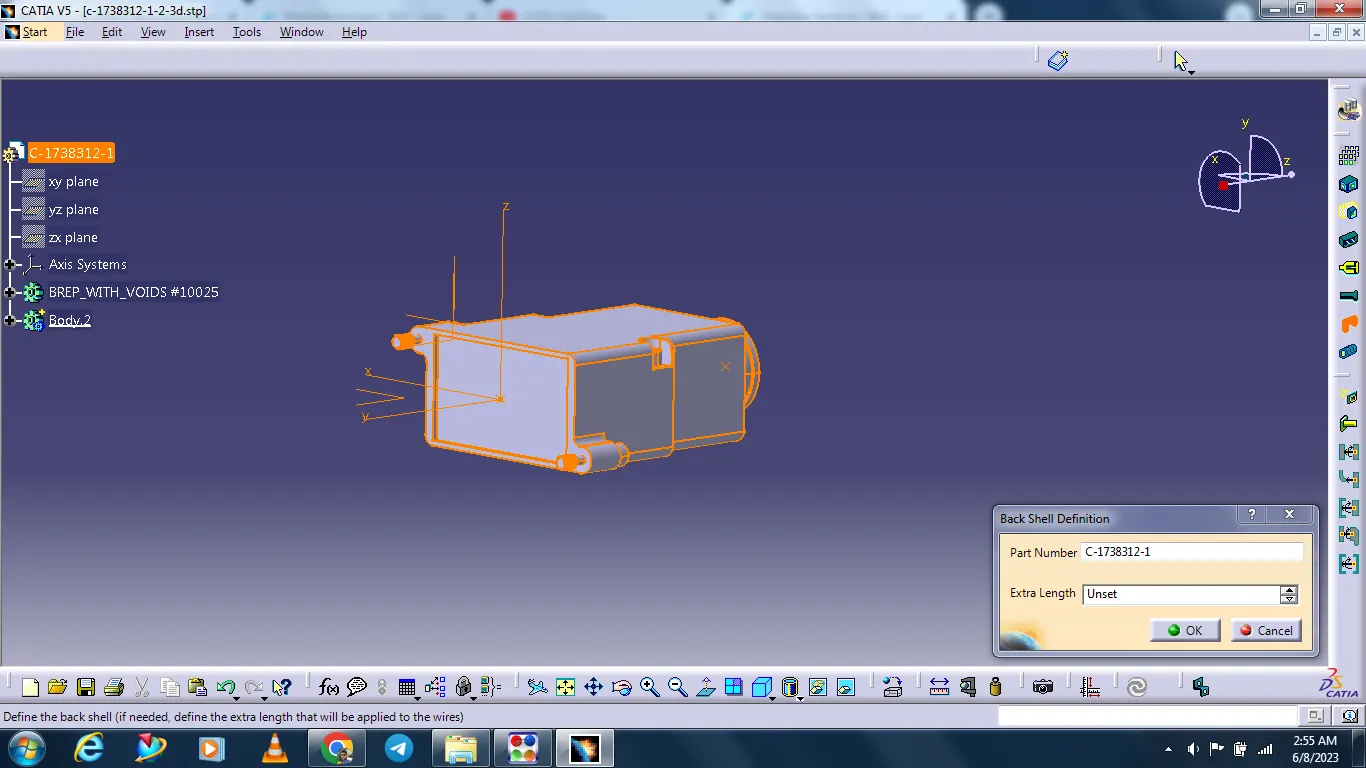

Define part as Backshell.

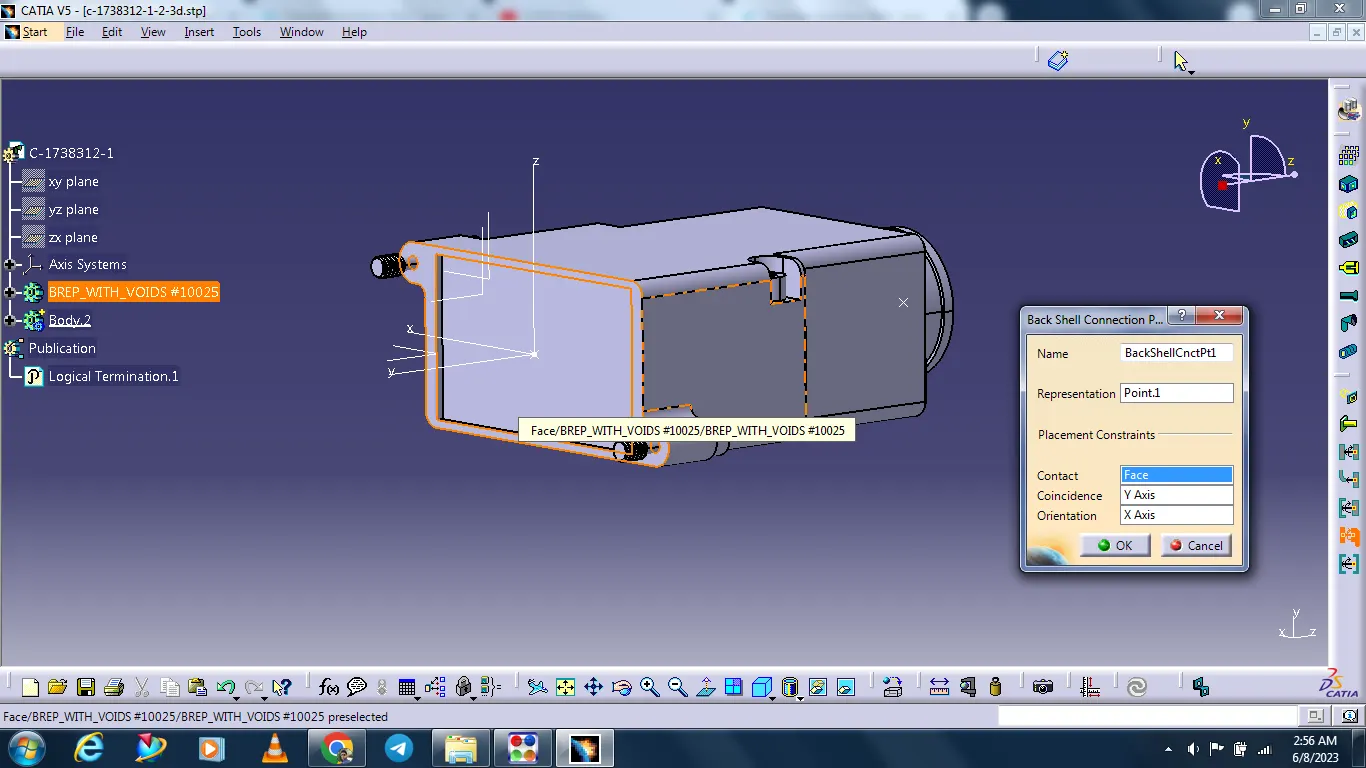

Define Backshell connection point.

The methodology and logic to define the point & axis system are the same as the connector connection system.

Ensure that the define axis & orientation should be identical to the mating part.

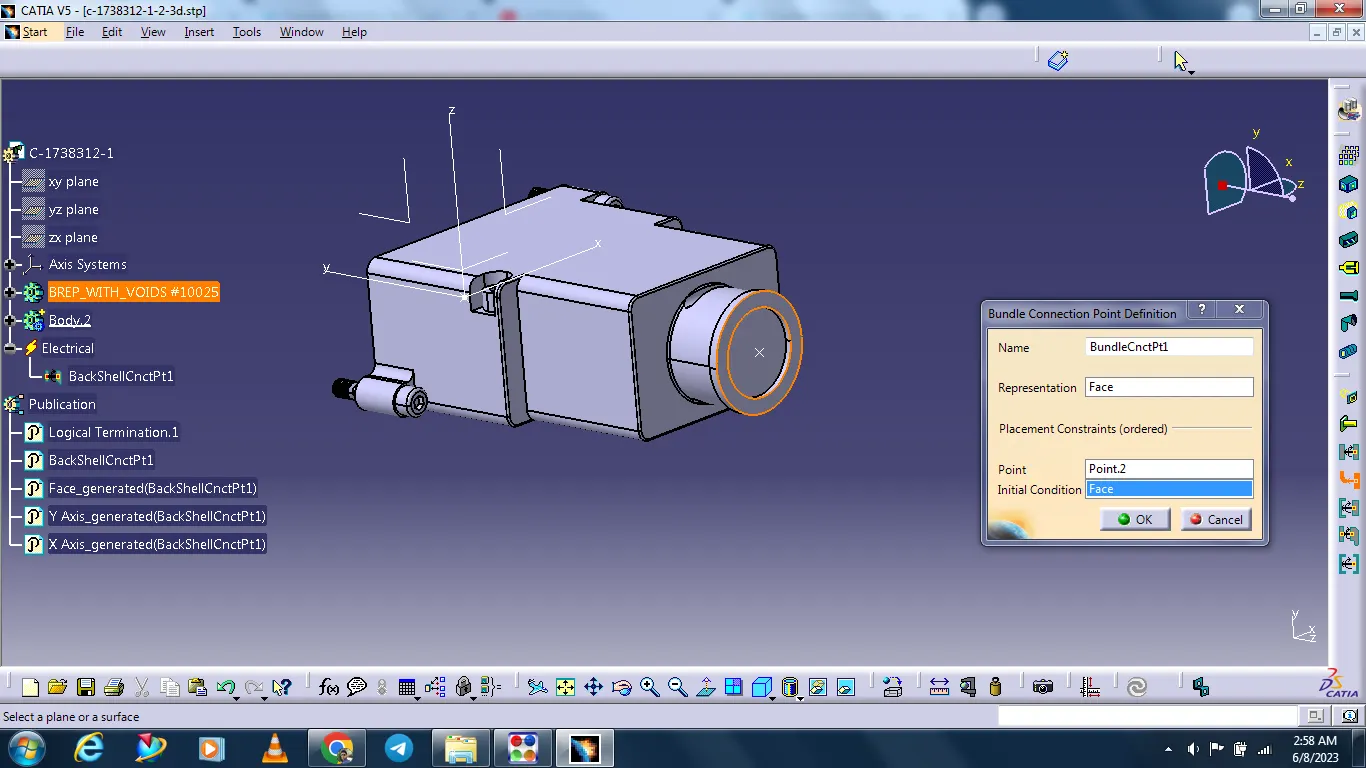

And define the Bundle connection point.

Protective Covering

Corrugated tubes, convolutes, sleeves and many other types of coverings are used to protect the wiring harness.

Graphical representation of coverings are applied on Bundles.

Corrugated tubes.

5mm COT.

10mm Cot.

15mm Cot.

20mm Cot.

35mm Cot.

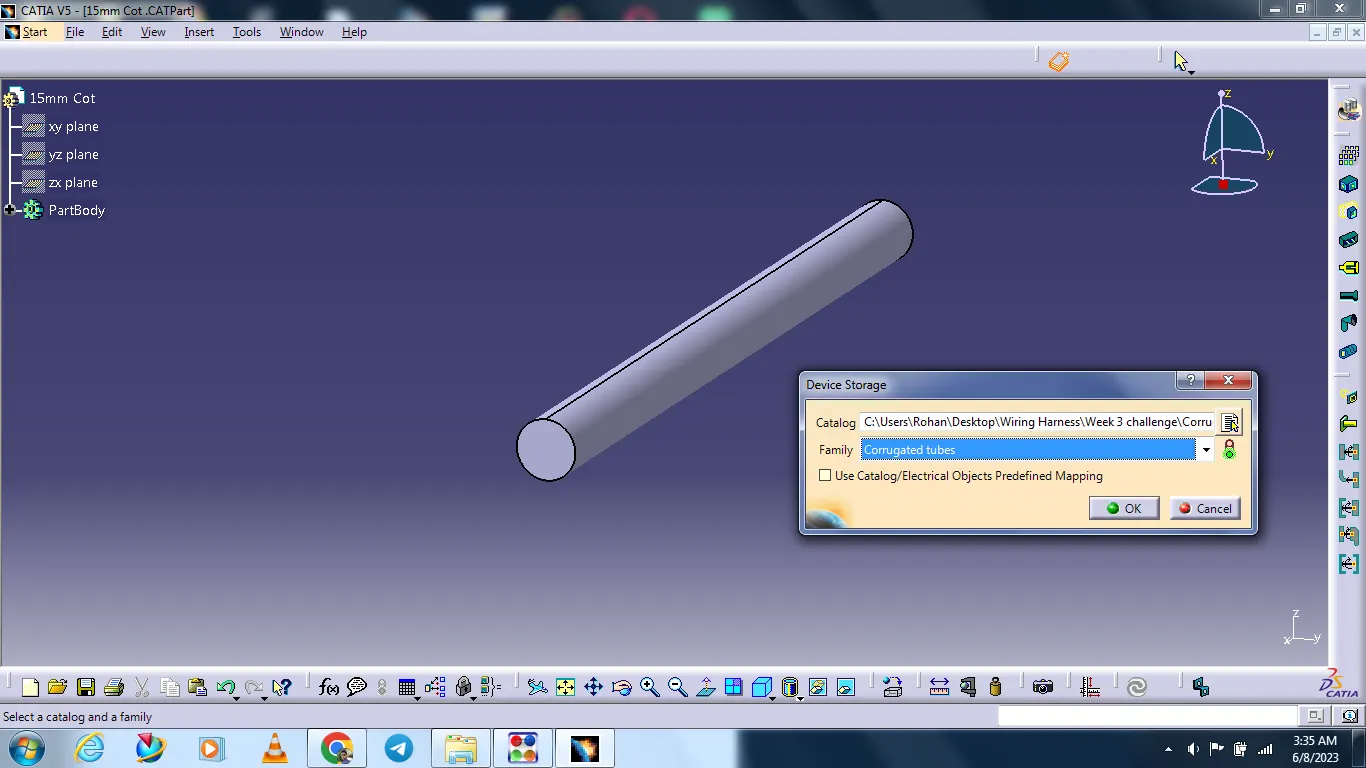

Add them in Catalogue.

Creating new catalogue file and adding the all Corrugated tubes.

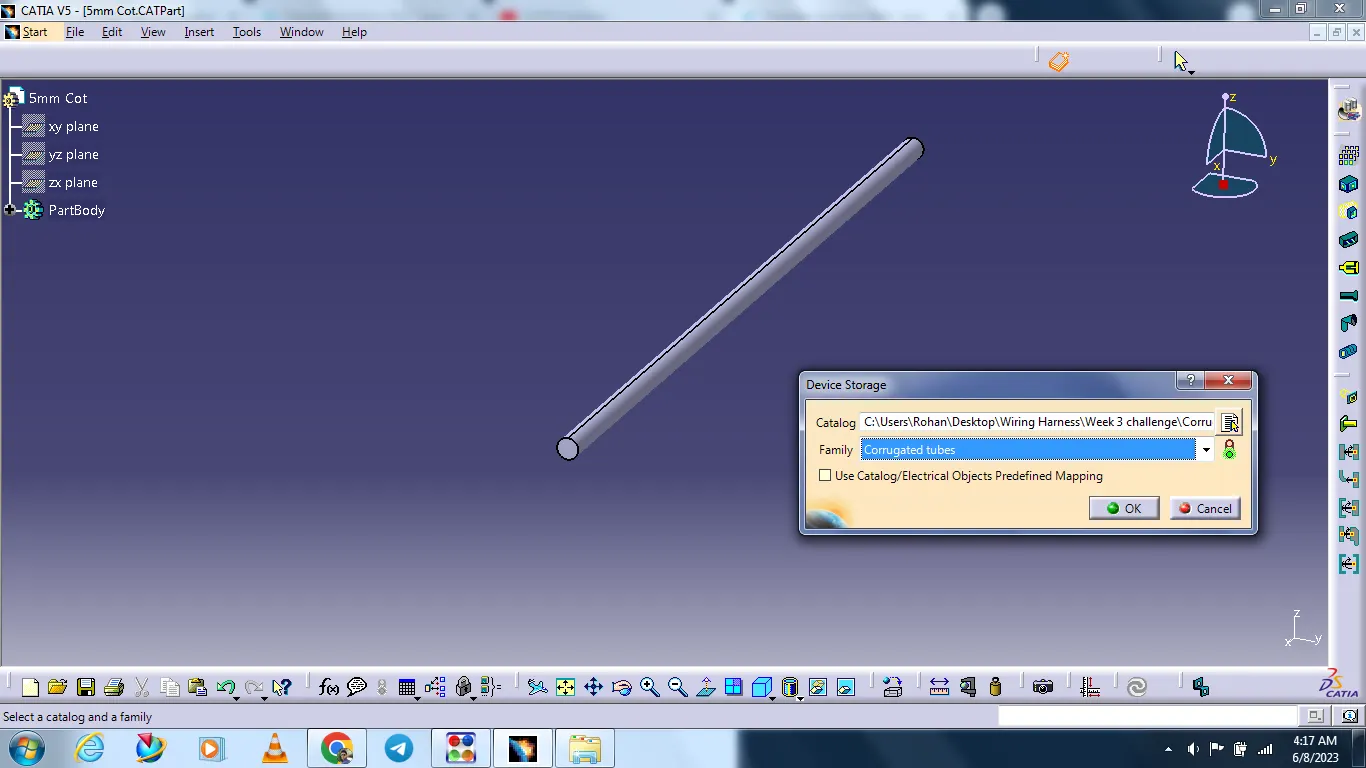

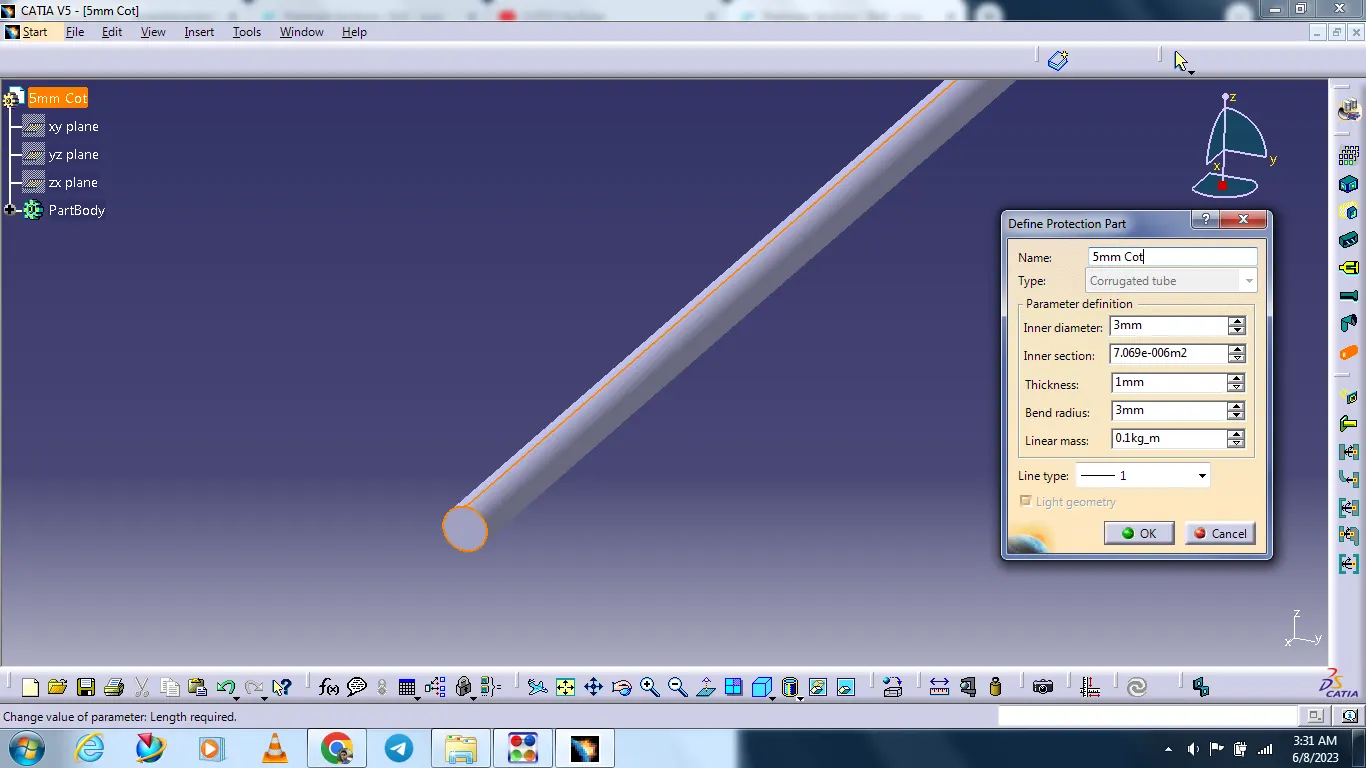

Creating 5mm cot.

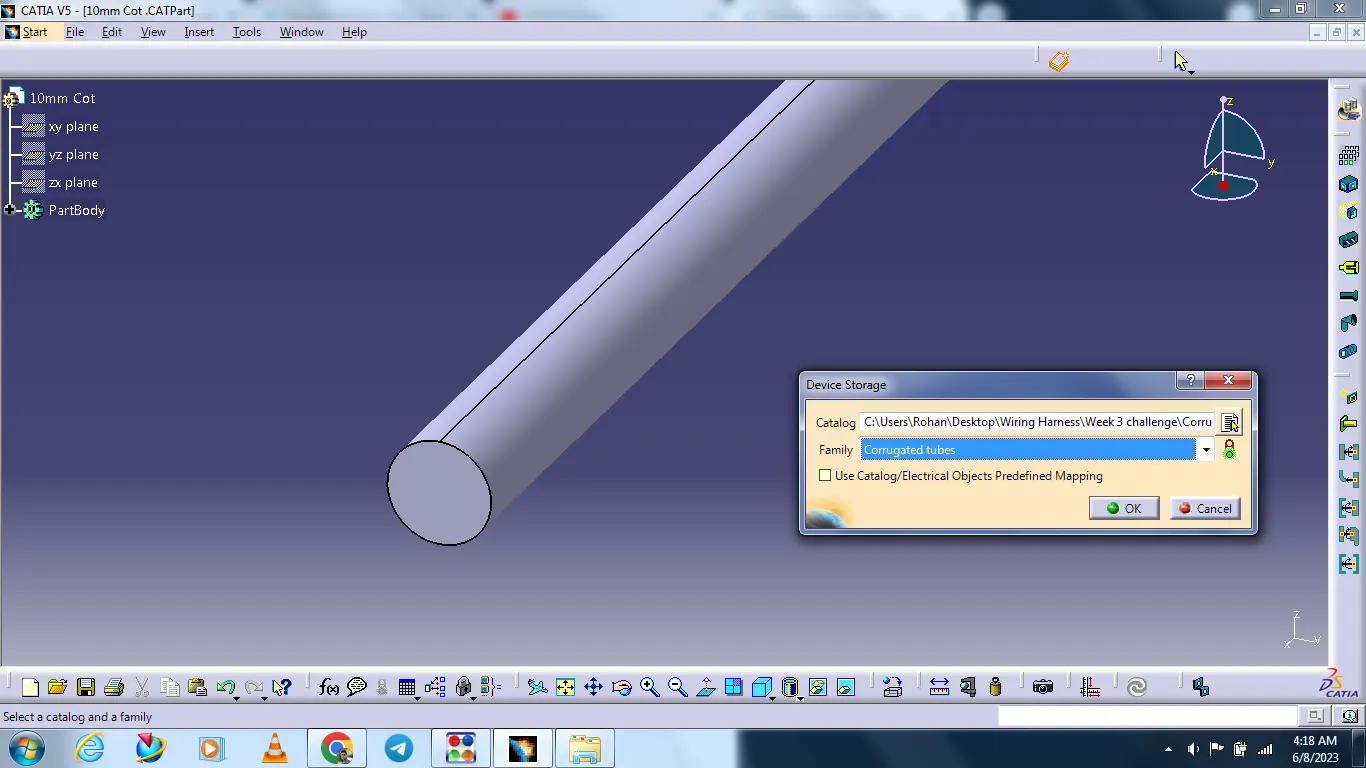

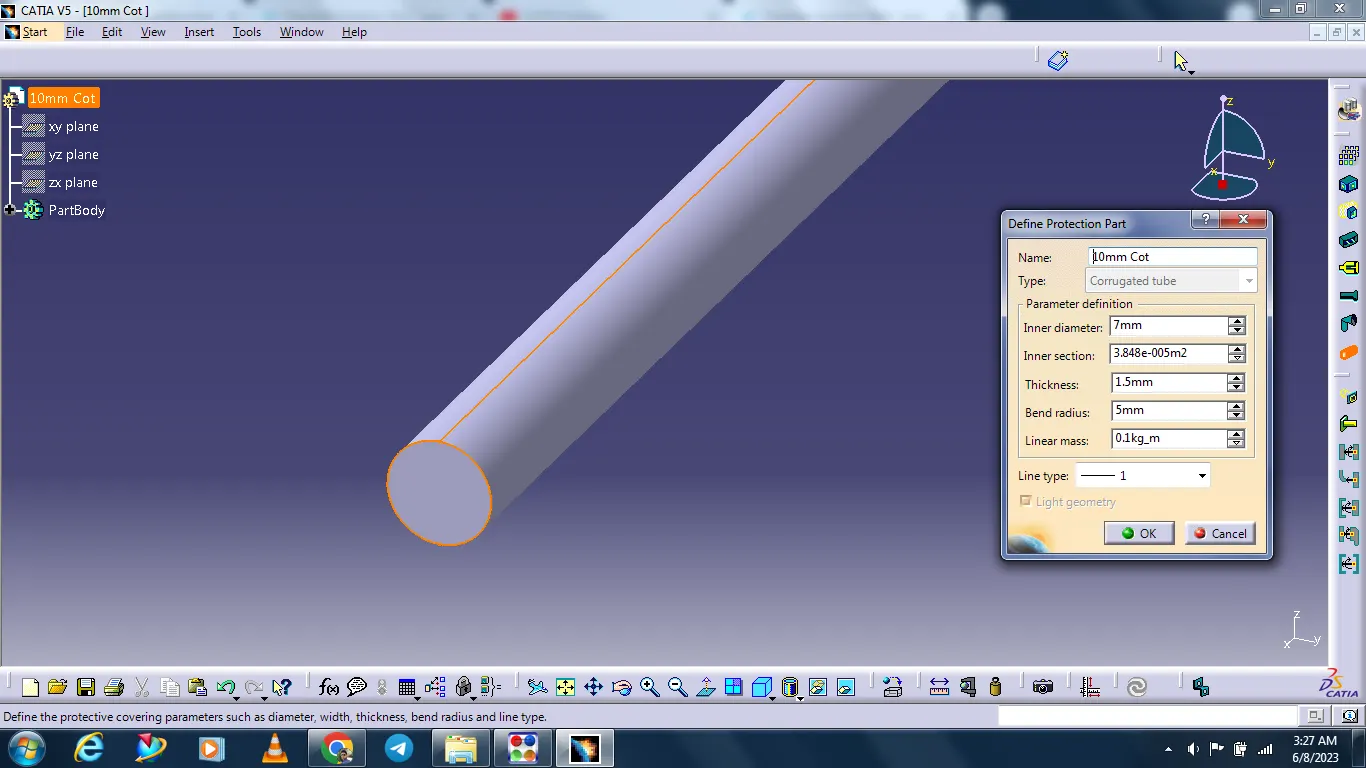

Creating 10mm cot.

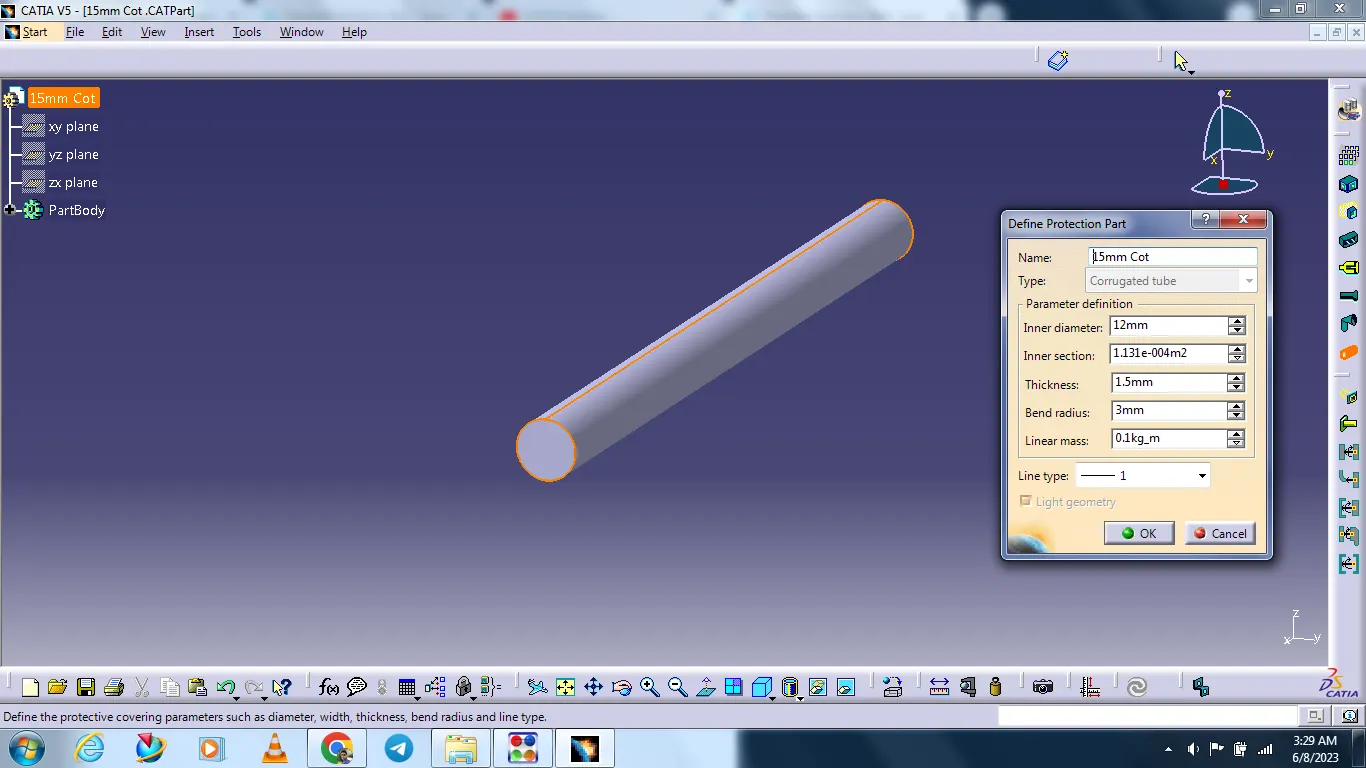

Creating 15mm cot.

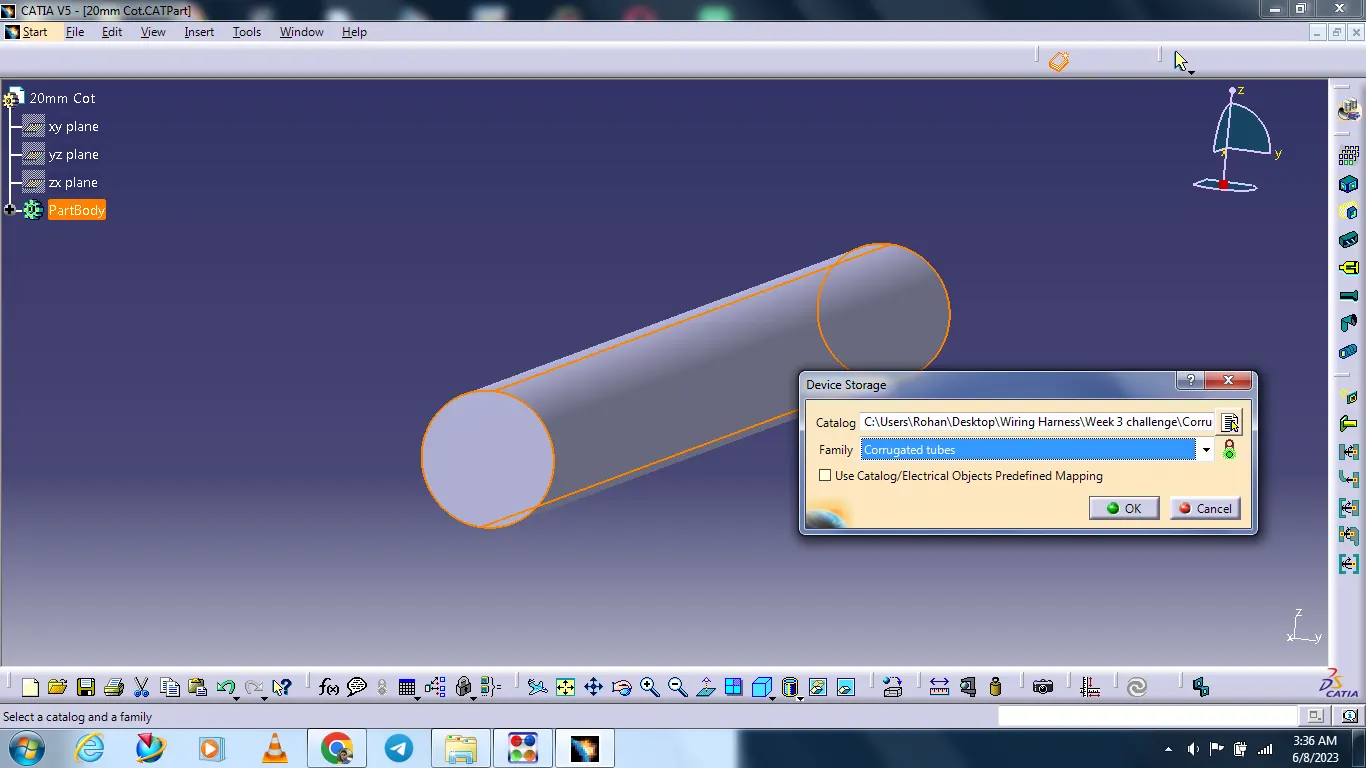

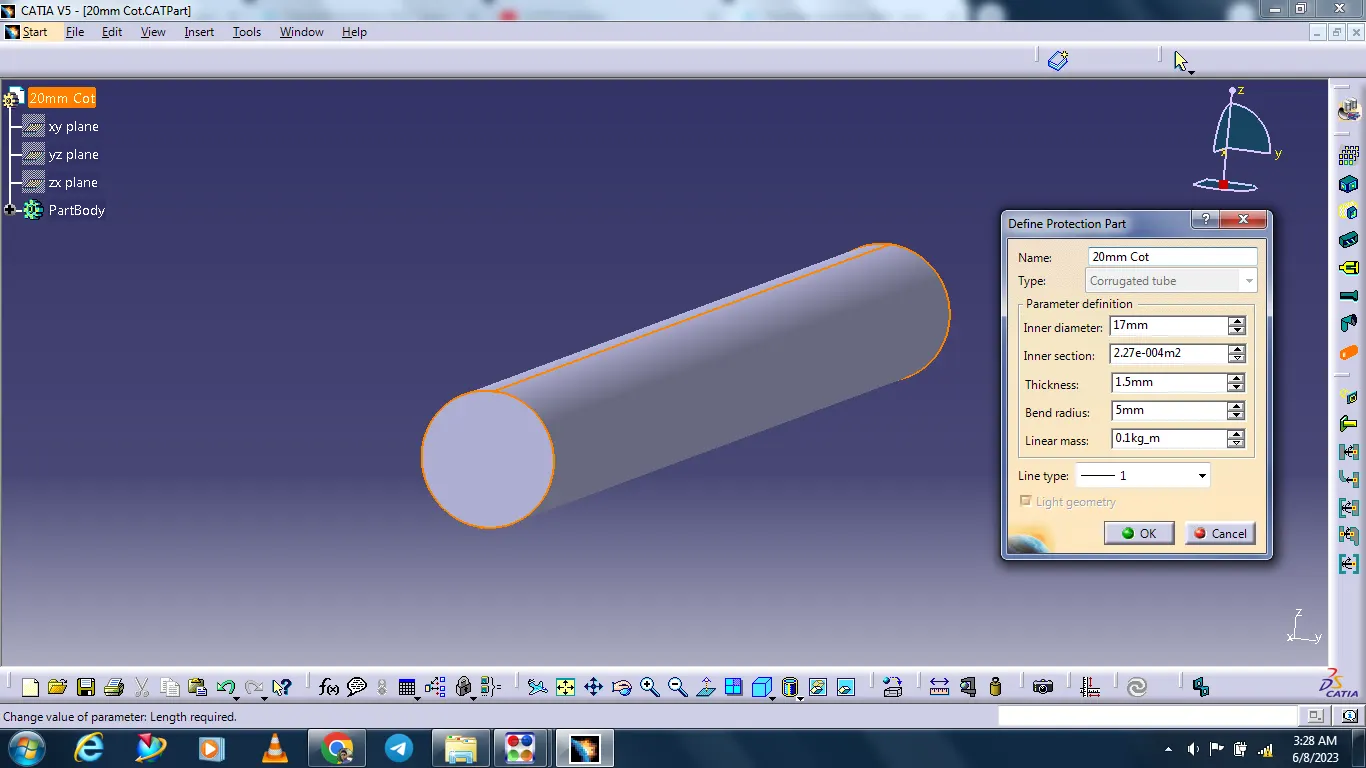

Creating 20mm cot.

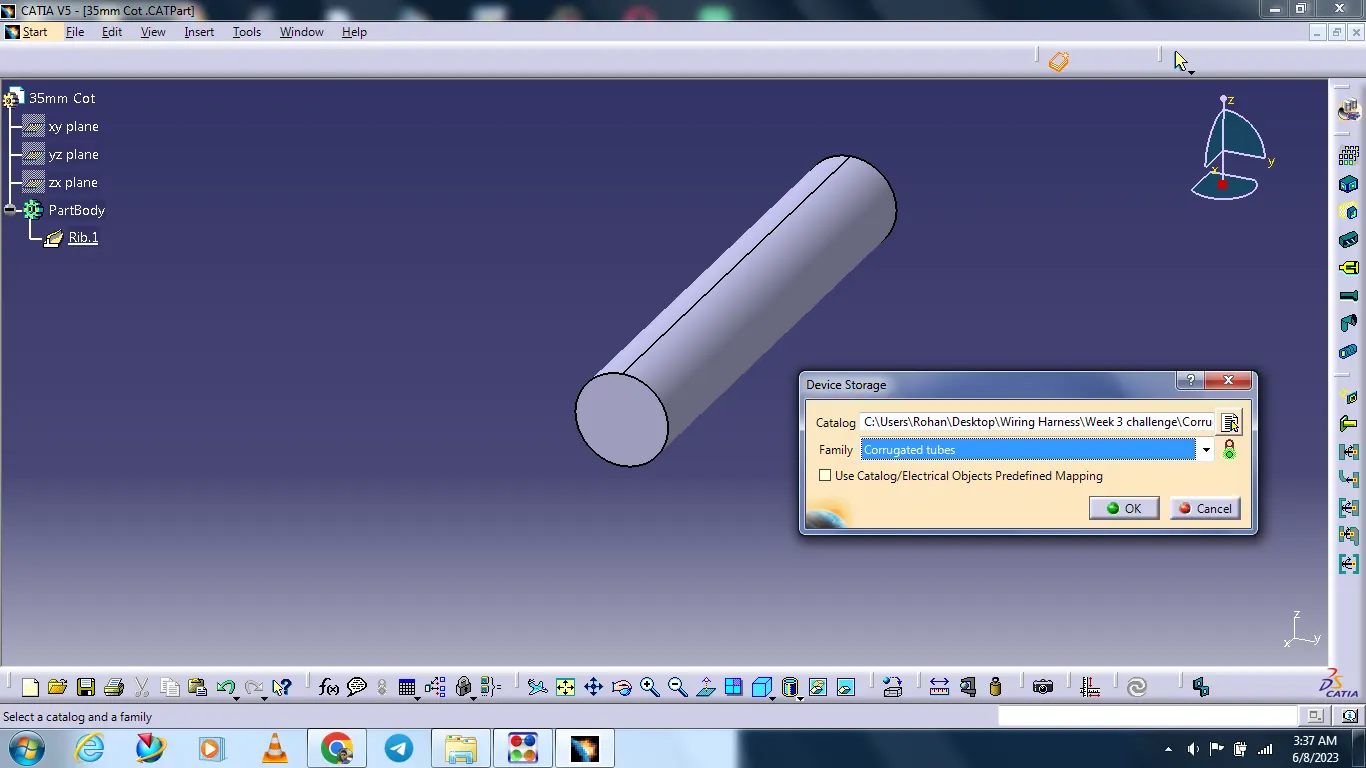

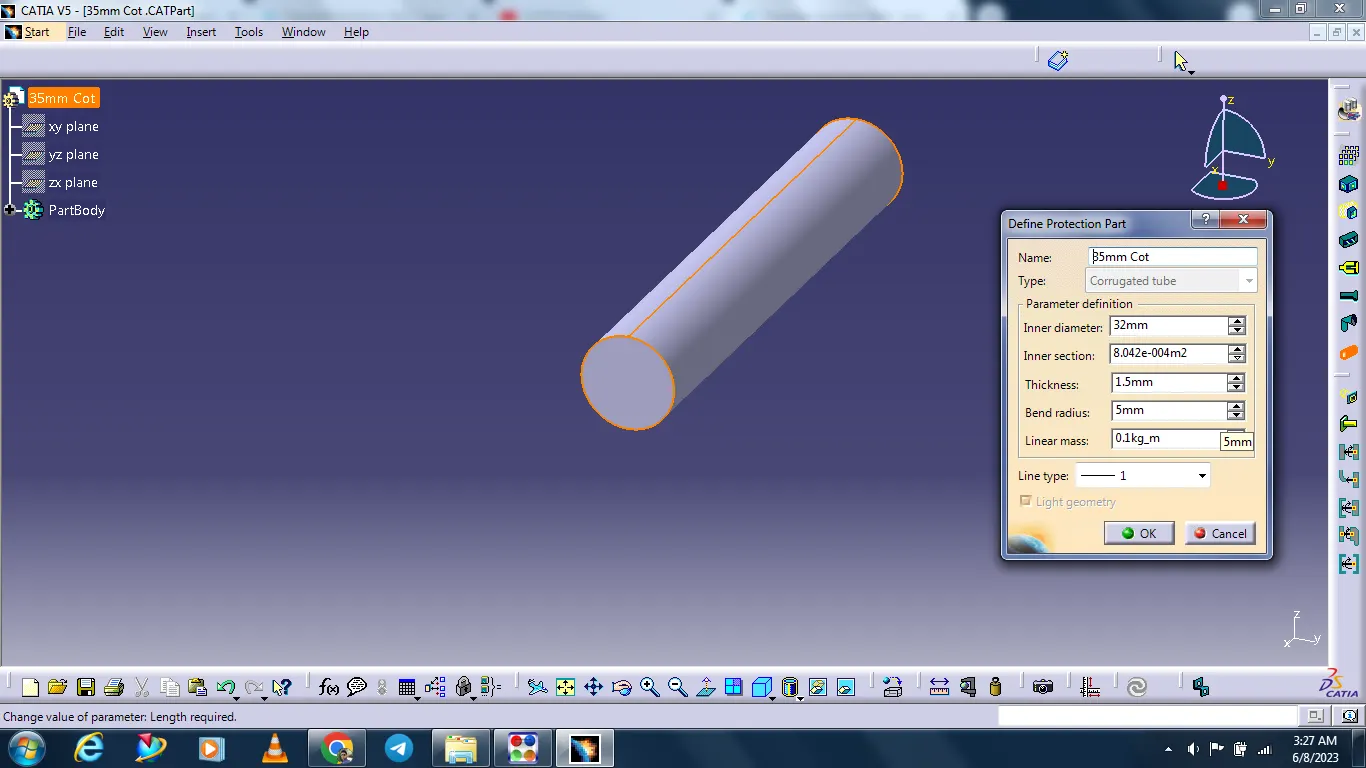

Creating 35mm cot.

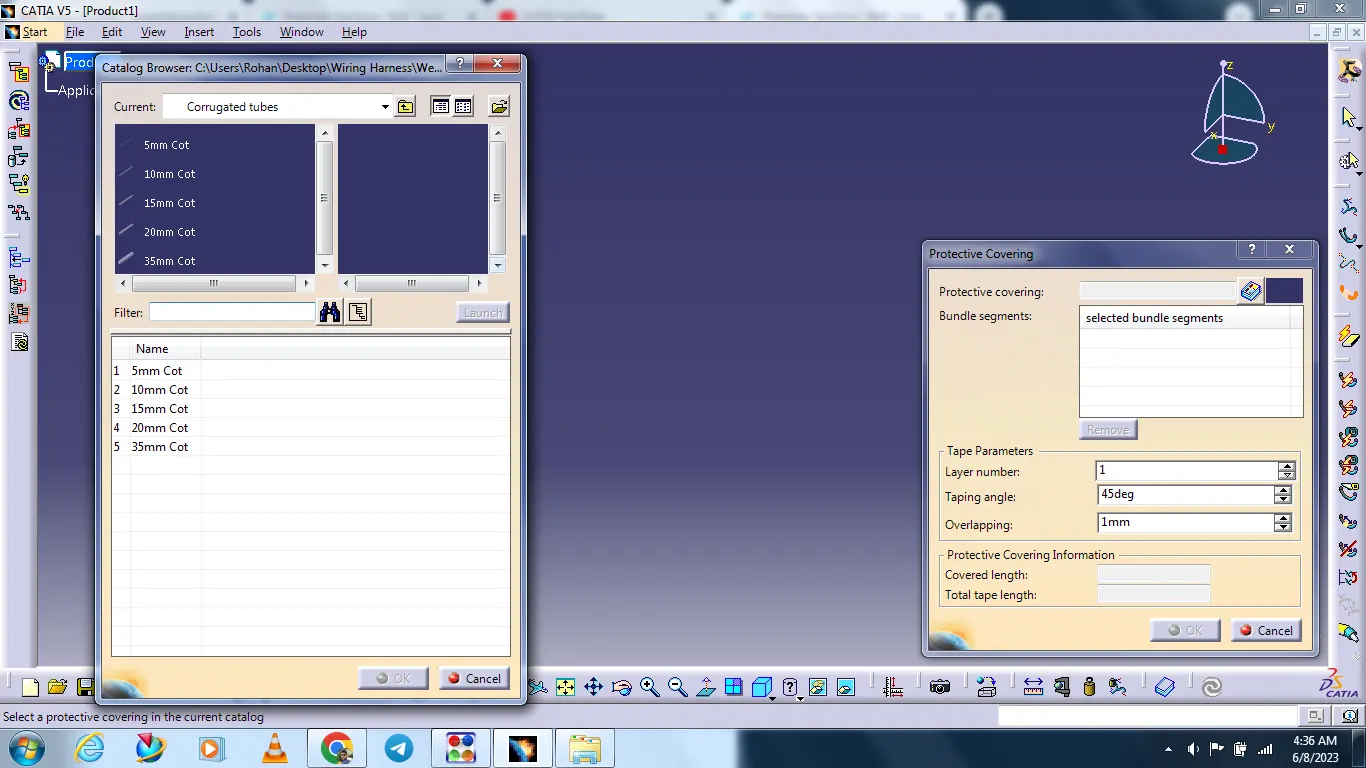

Define protective coverings.

Open the electrical harness assembly and check the Define protective coverings.
