Week 9 - Challenge 2 - Switch Bezel Design

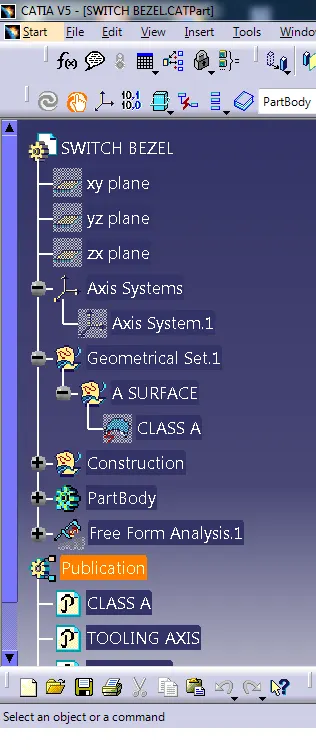

SELECT THE A SURFACE.

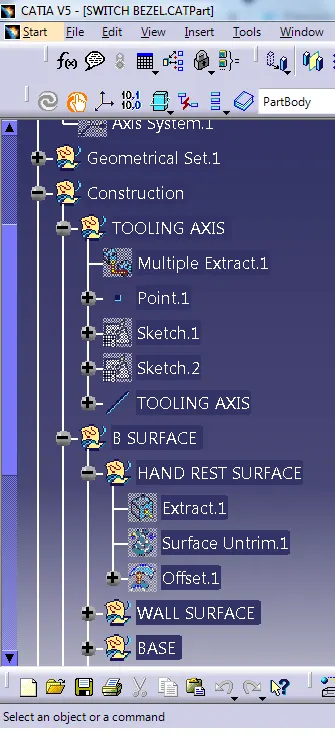

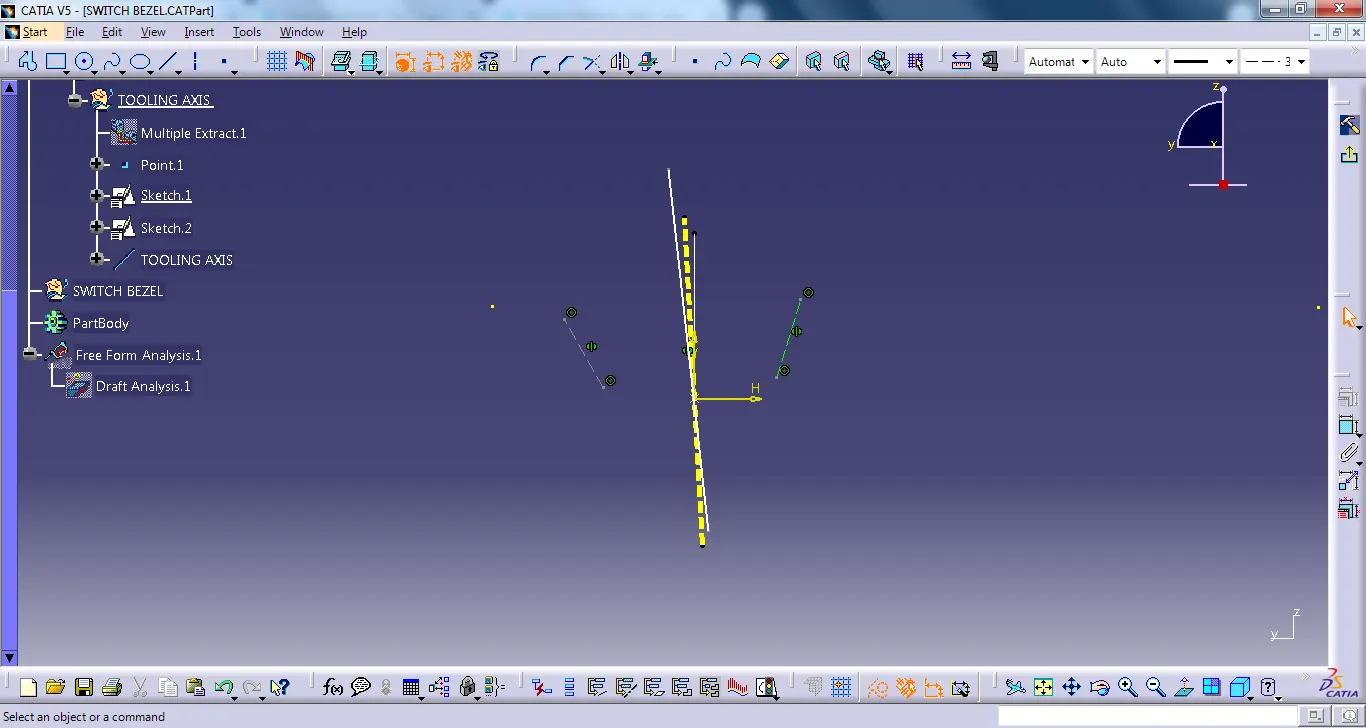

TOOLING AXIS
THE DUMMY TOOLING AXIS IS CREATED TO CREAT THE MAIN TOOLING AXIS. TAKE THE INTERSECTION OF THE BEZEL BODY AND MAKE THE LINES IN THE DEFICULT AREA IN THE BRAKET THEN BISECTING THE LINES TO CREATE THE TOOLING AXIS.

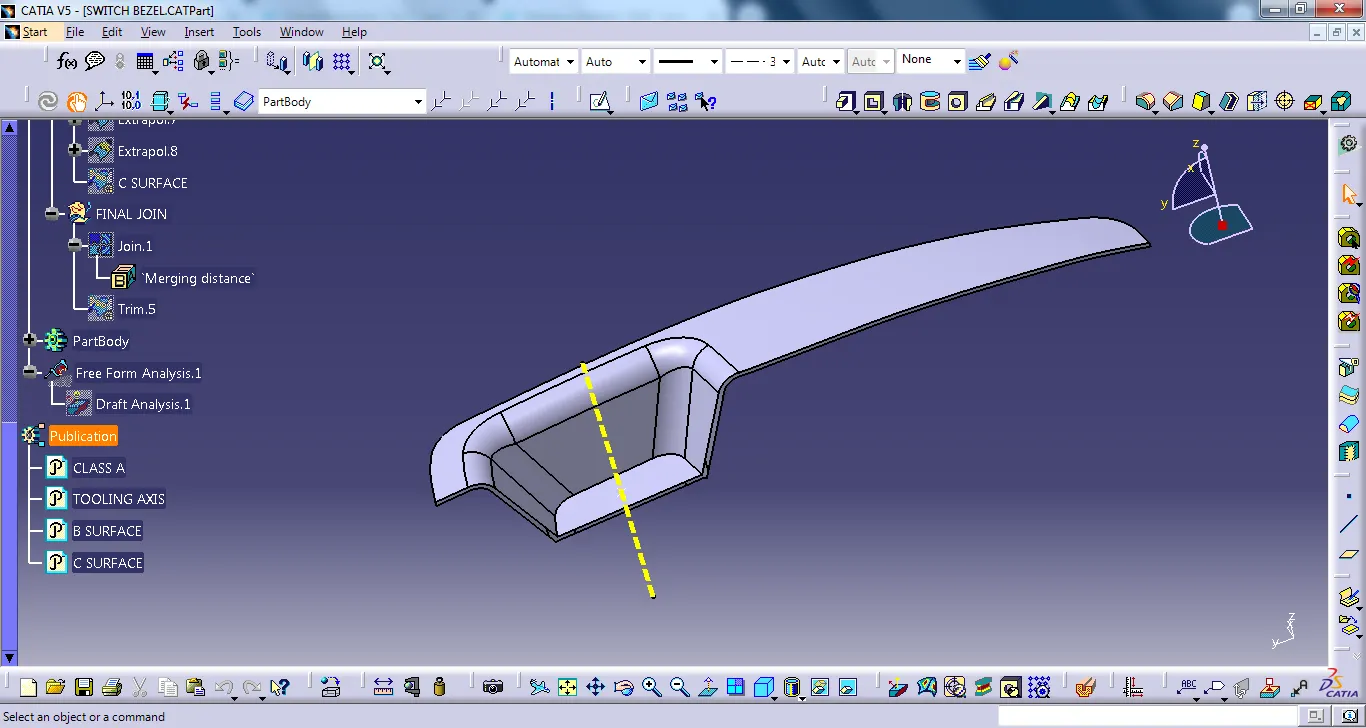

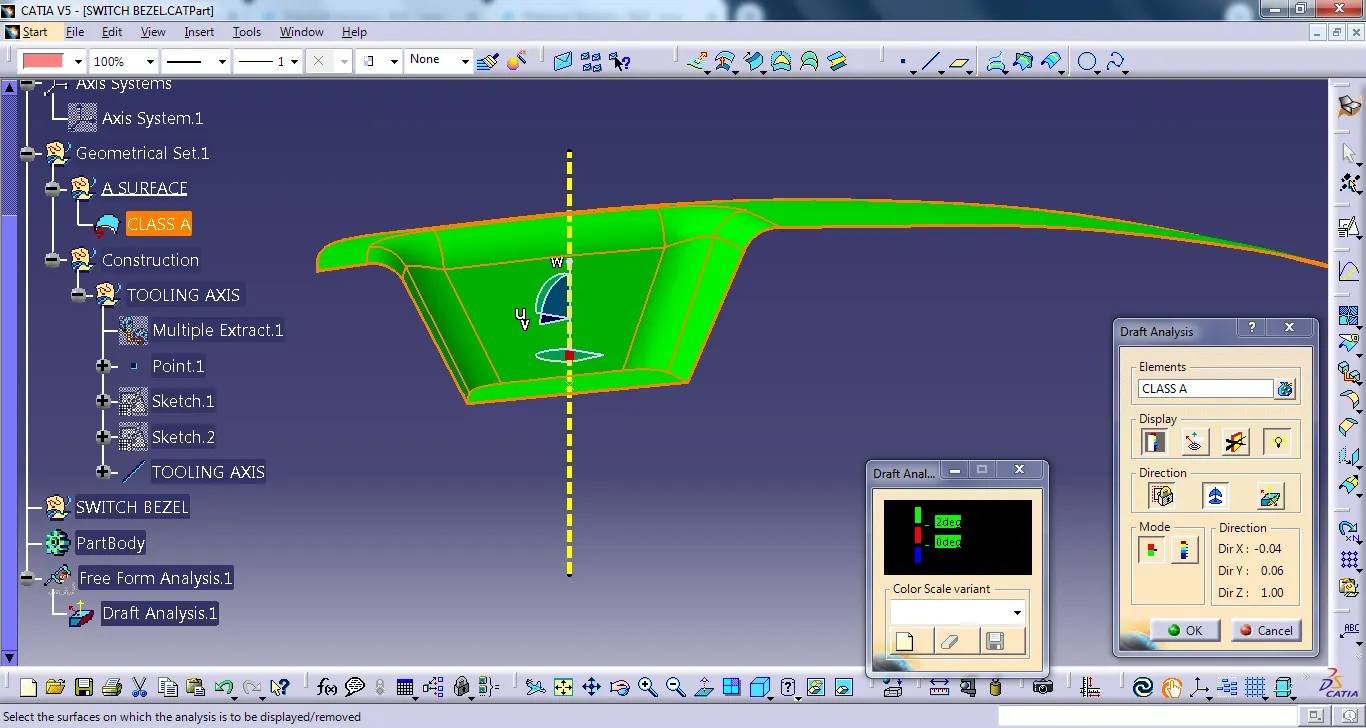

DRAFT ANALYSIS
THE DRAFT ANALYSIS IS TO IDENTIFY THE BODY IS IN PROPER DRAFT ANGLES OR NOT. THE NORMAL DRAFT ANGLE OF THE BODY IS 3 DEG. THE DRAFT ANGLE ALLOWS THE PART TO REMOVE OR EJECT FROM THE MOLD.

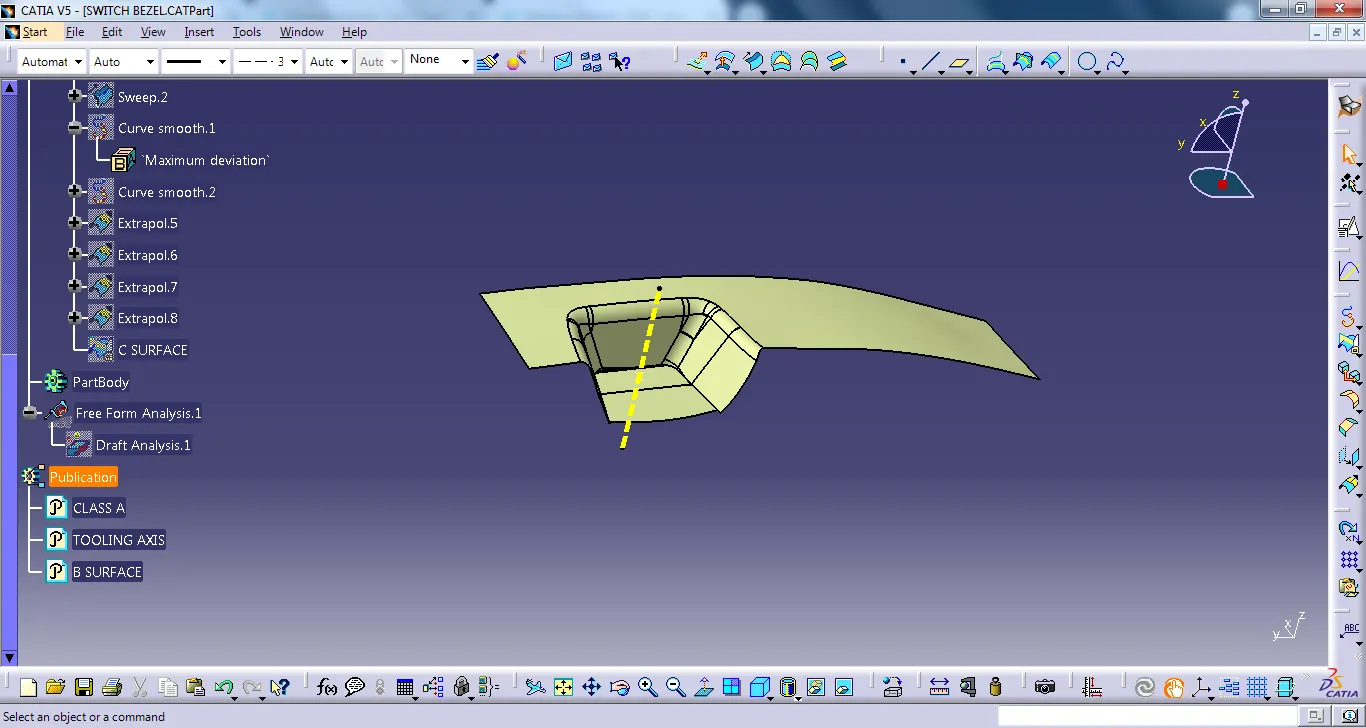

B SURFACE
FIRST MAKE A HAND REST SURFACE EXTRACT AFTER UNTRIM IT AND NEXT OFFSET IT 2.5MM.

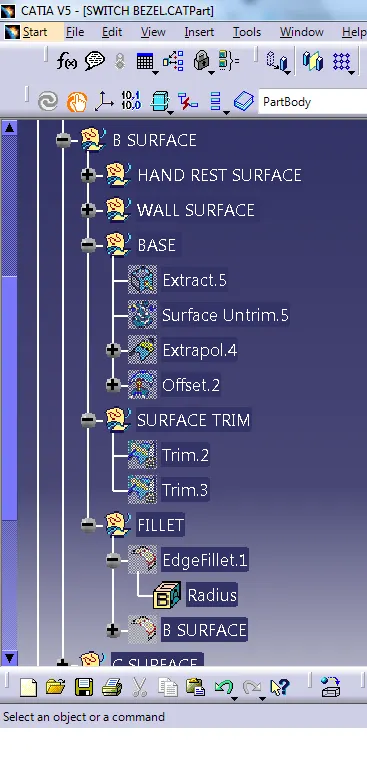

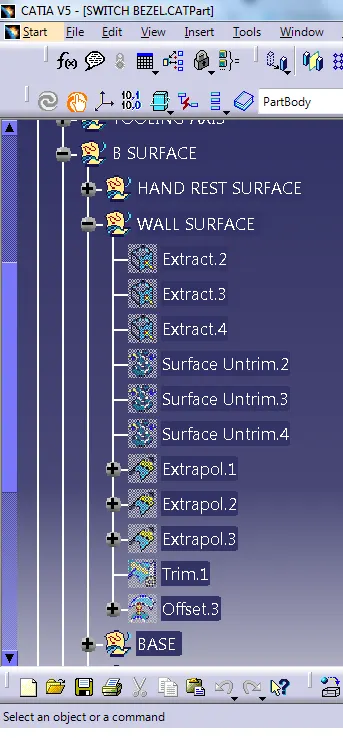

NEXT WALLS AND BASE ALSO DOING AS SAME .
AFTER FINISHING THE B SURFACE OF THE FINAL TRIM.

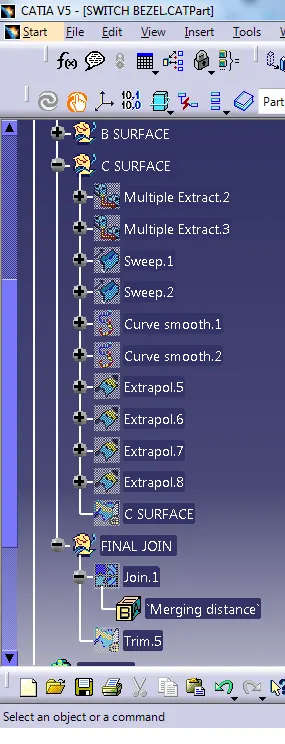

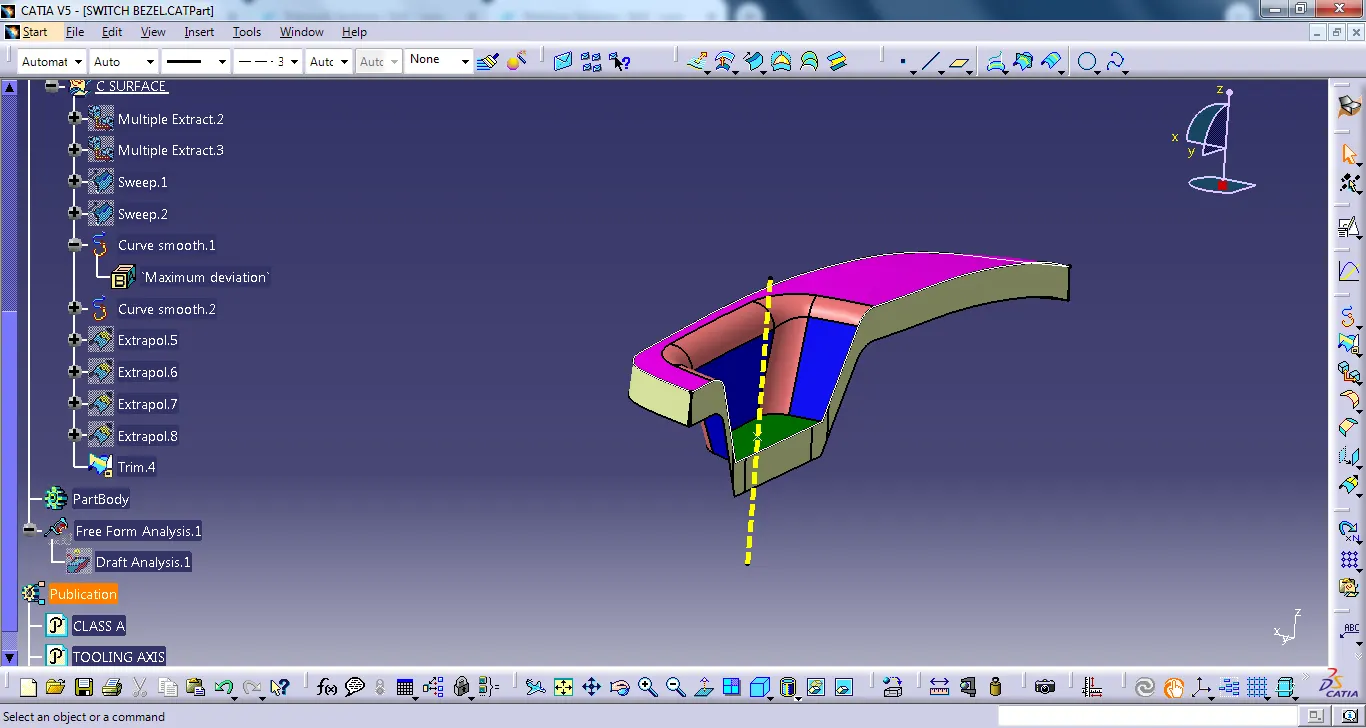

C SURFACE
SELECT THE A MULTIPLE EXTRACT AND CREATE THE BOUNDARY LINE AFTER APPLYING THE SWEEP COMMAND.

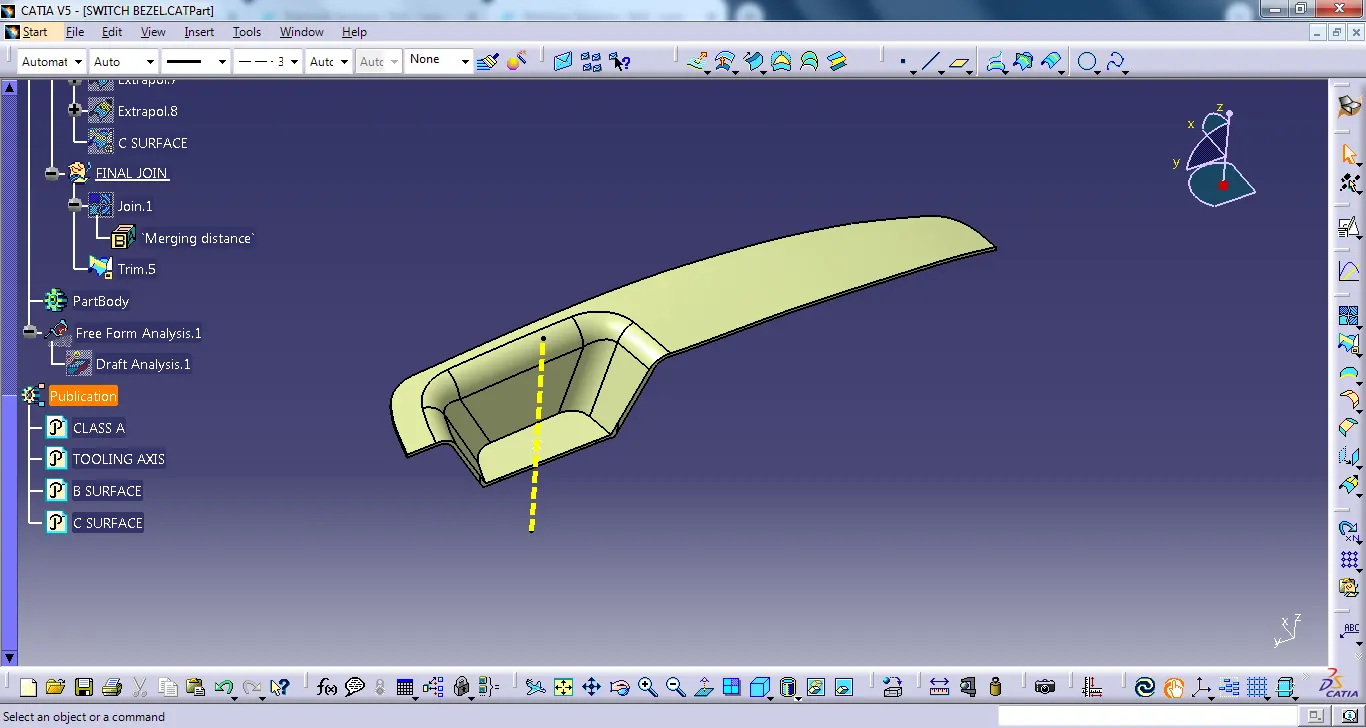

AFTER COMPLETE THE SWEEP COMMAND JOIN THE A & C SURFACE.

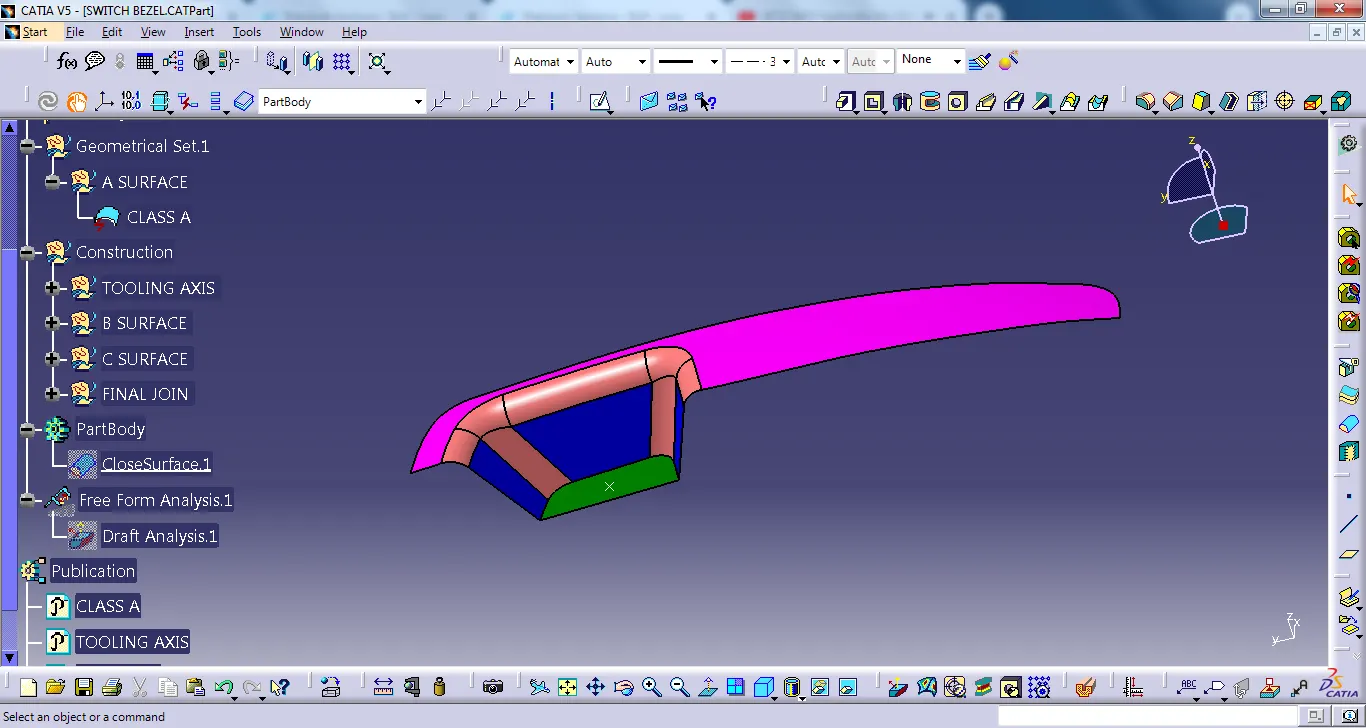

AFTER FINAL TRIM WITH THE B SURFACE AND MAKE THE SOLID BODY.

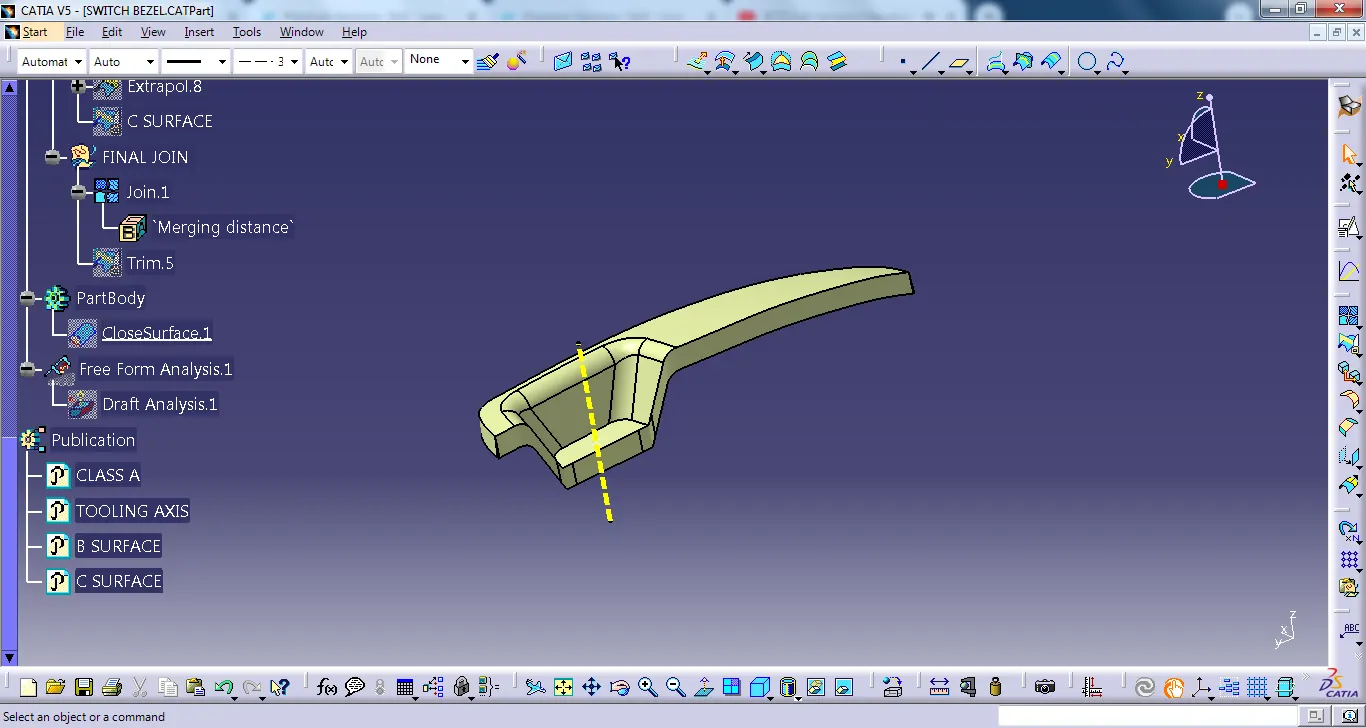

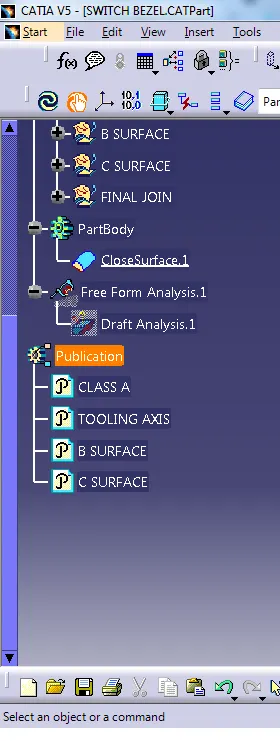

AFTER APPLY THE CLOSE SURFACE.
