Week 10 - Challenge 1- Attachment Feature Creation (Ribs & Screw Boss)

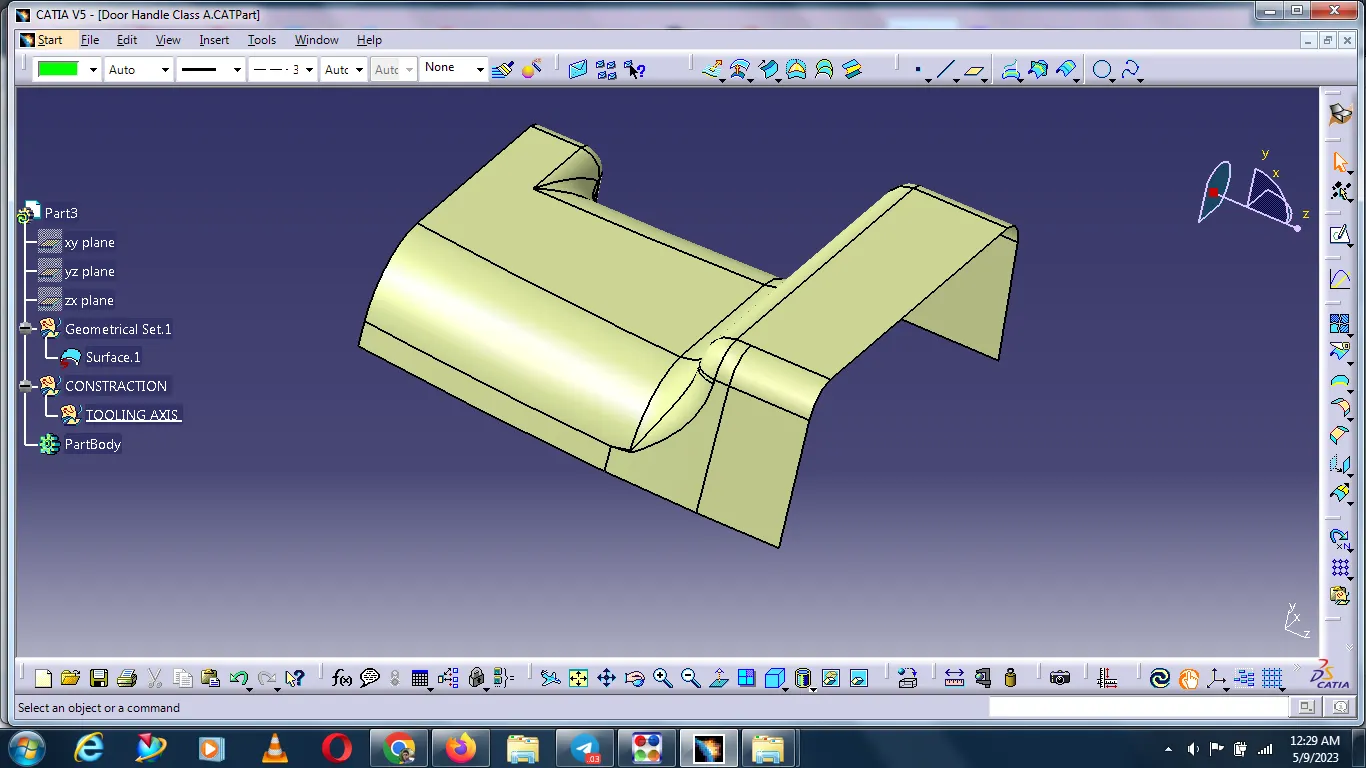

SELECT THE A SURFACE.

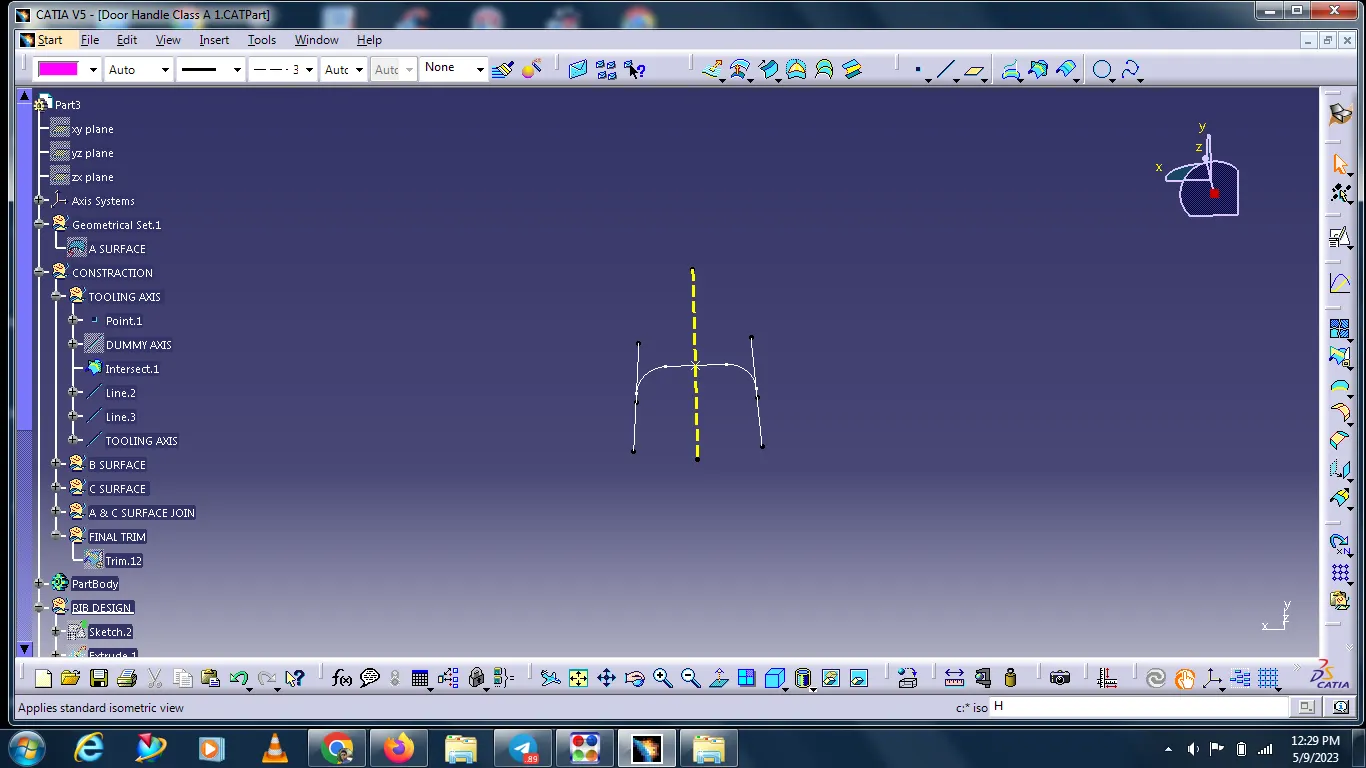

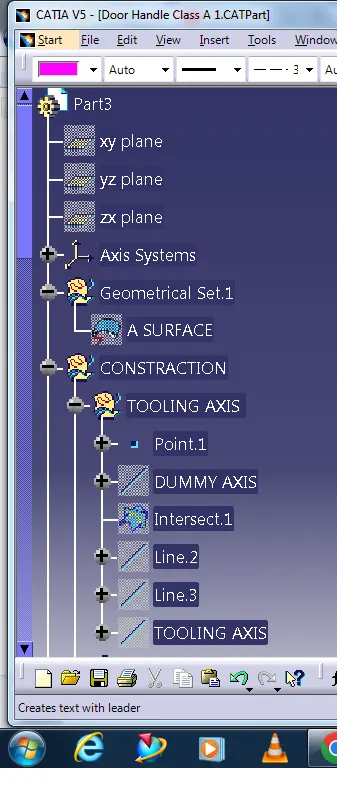

TOOLING AXIS
THE DUMMY TOOLING AXIS IS CREATED TO CREAT THE MAIN TOOLING AXIS. TAKE THE INTERSECTION OF THE DOOR HANDLE AND MAKE THE LINES IN THE DEFICULT AREA THEN BISECTING THE LINES TO CREATE THE TOOLING AXIS.

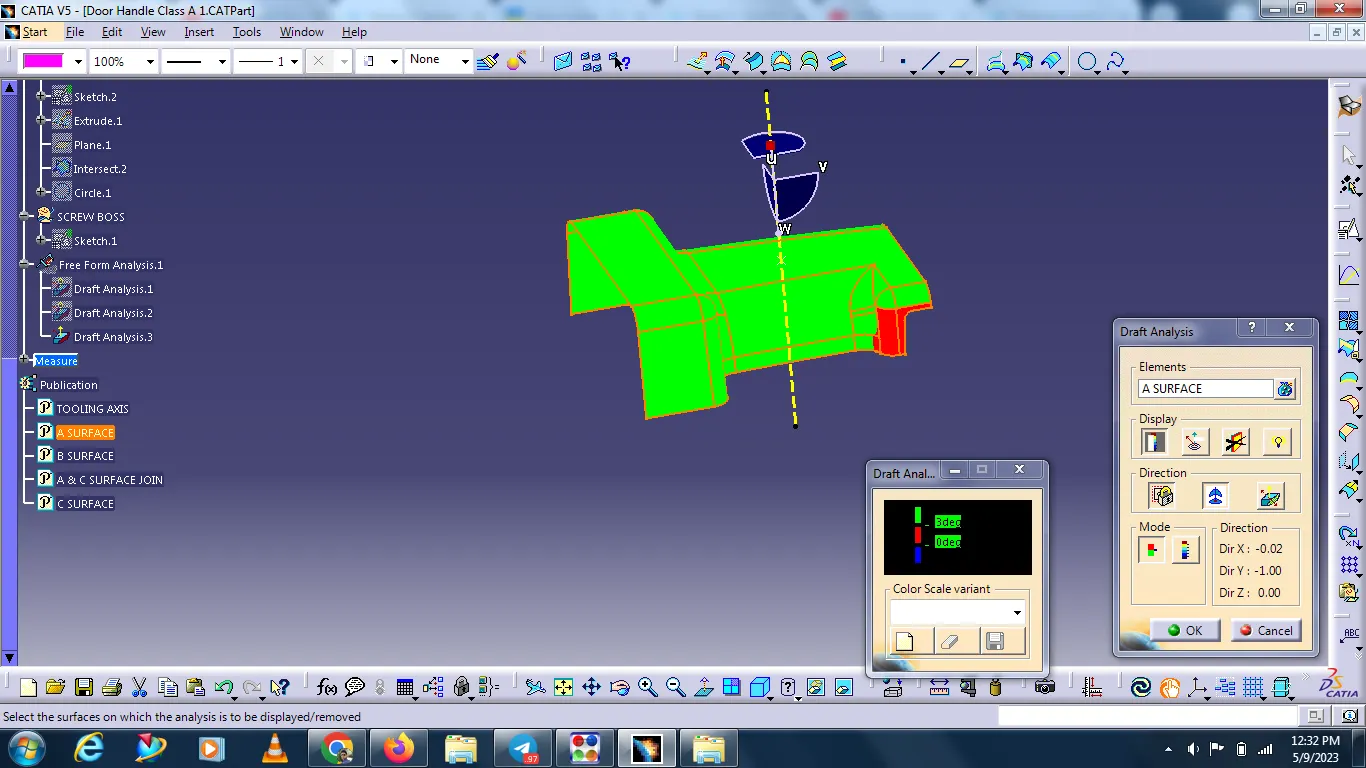

DRAFT ANALYSIS
THE DRAFT ANALYSIS IS TO IDENTIFY THE BODY IS IN PROPER DRAFT ANGLES OR NOT. THE NORMAL DRAFT ANGLE OF THE BODY IS 3 DEG. THE DRAFT ANGLE ALLOWS THE PART TO REMOVE OR EJECT FROM THE MOLD.

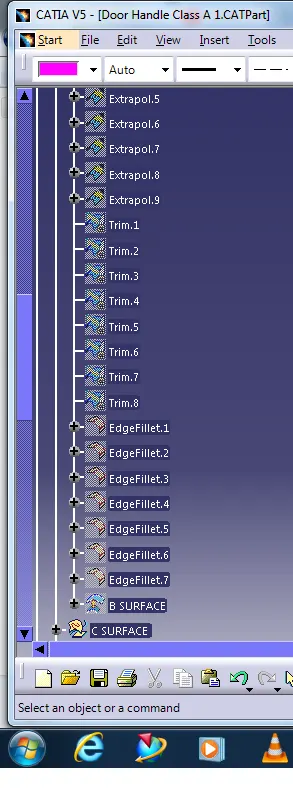

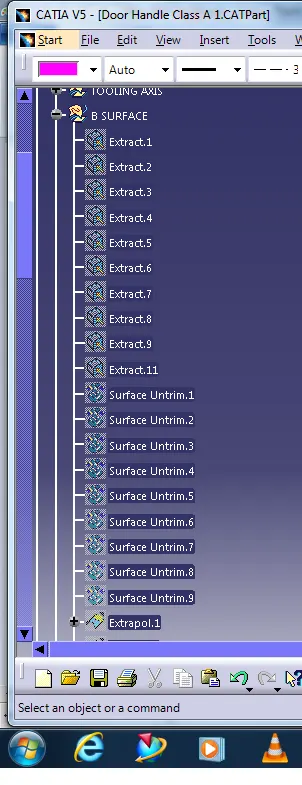

B SURFACE
SELECT ALL SURFACES AND THEN EXTRACT IT
THEN UNTRIM THESE FACES
EXTRAPOLATE IT
THEN OFFSET ACCORDING TO OUR NEED
TRIM THE SURFACES ACCORDINGLY
THEN AFTER TRIMMING SURFACES WE GET FINAL B SURFACE.

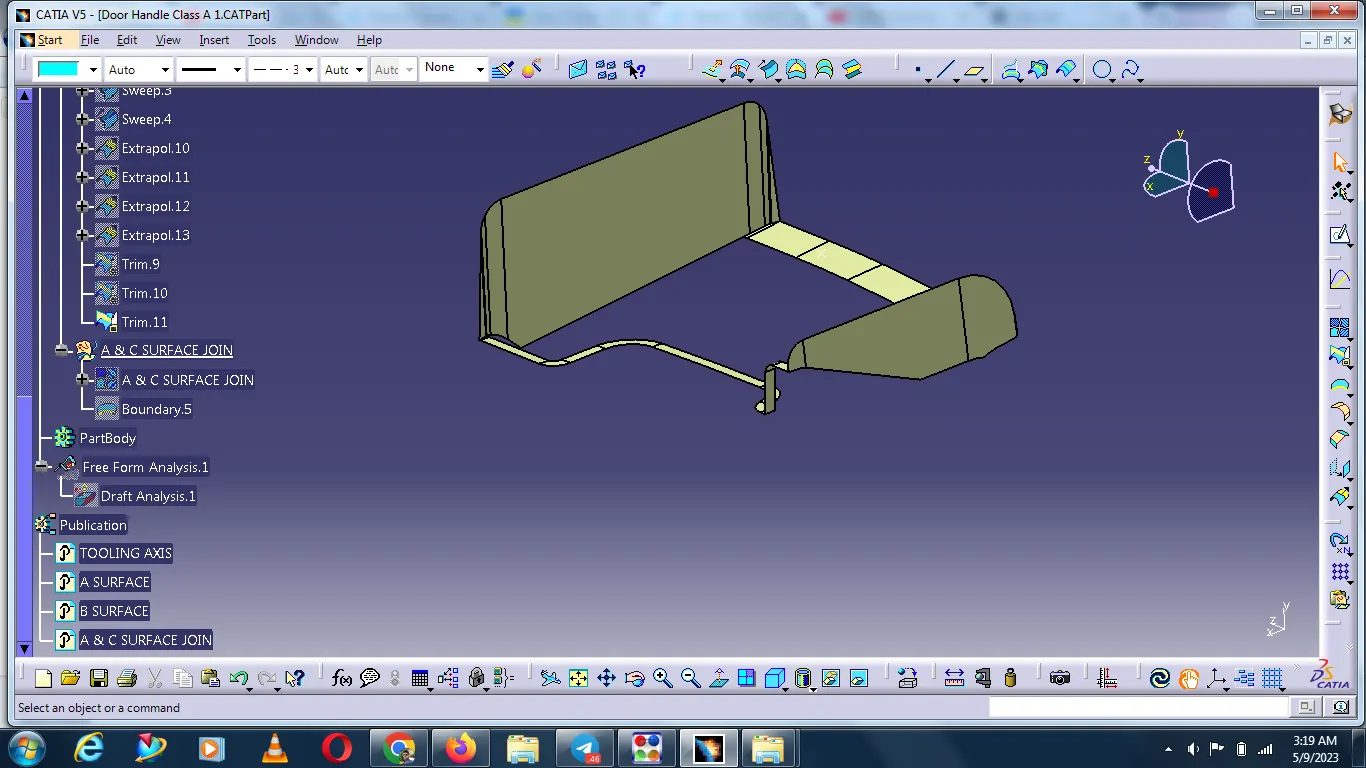

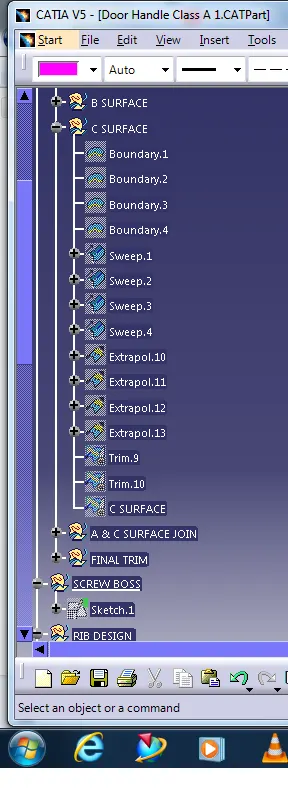

C SURFACE

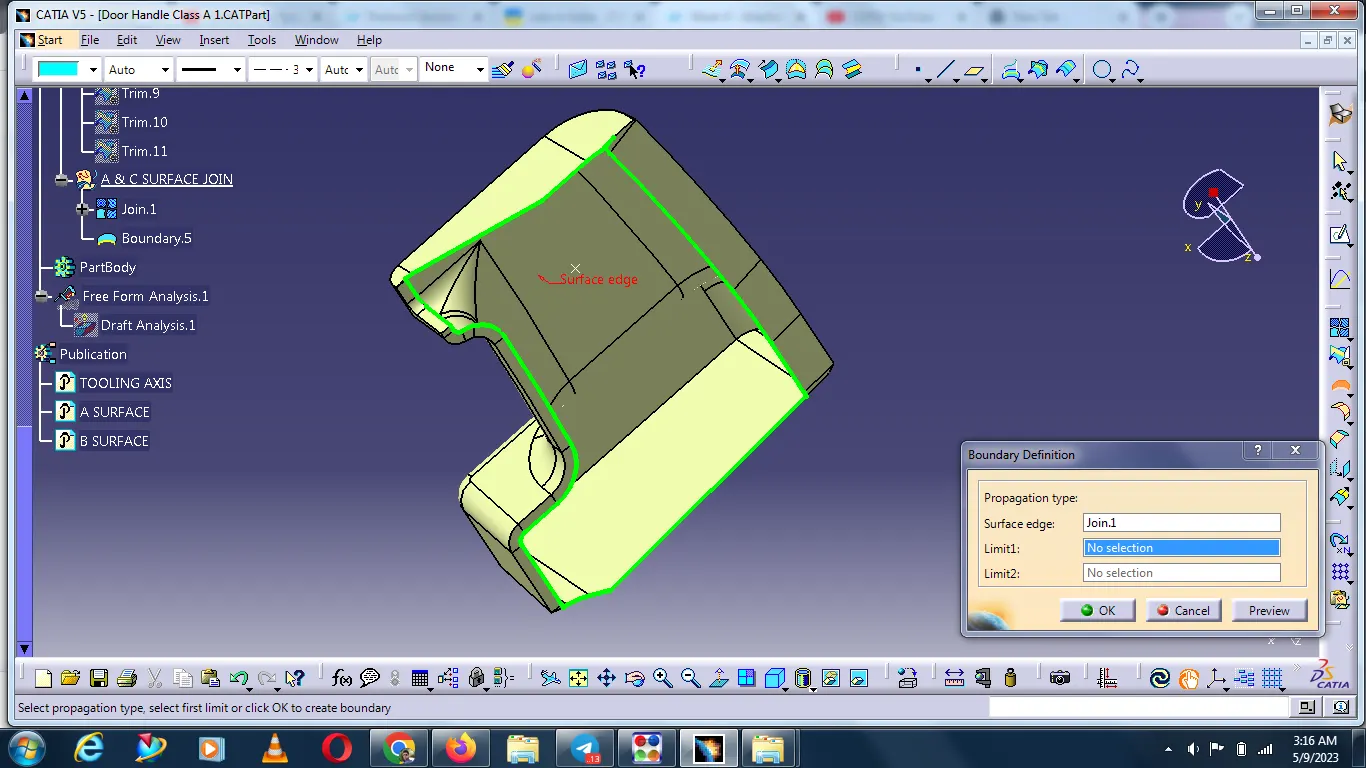

SELECT THE A SURFACE BOUNDARY AND APPLY THE SWEEP COMMAND.
AFTER COMPLATE THE SWEEP COMMAND JOIN THE A & C SURFACE.

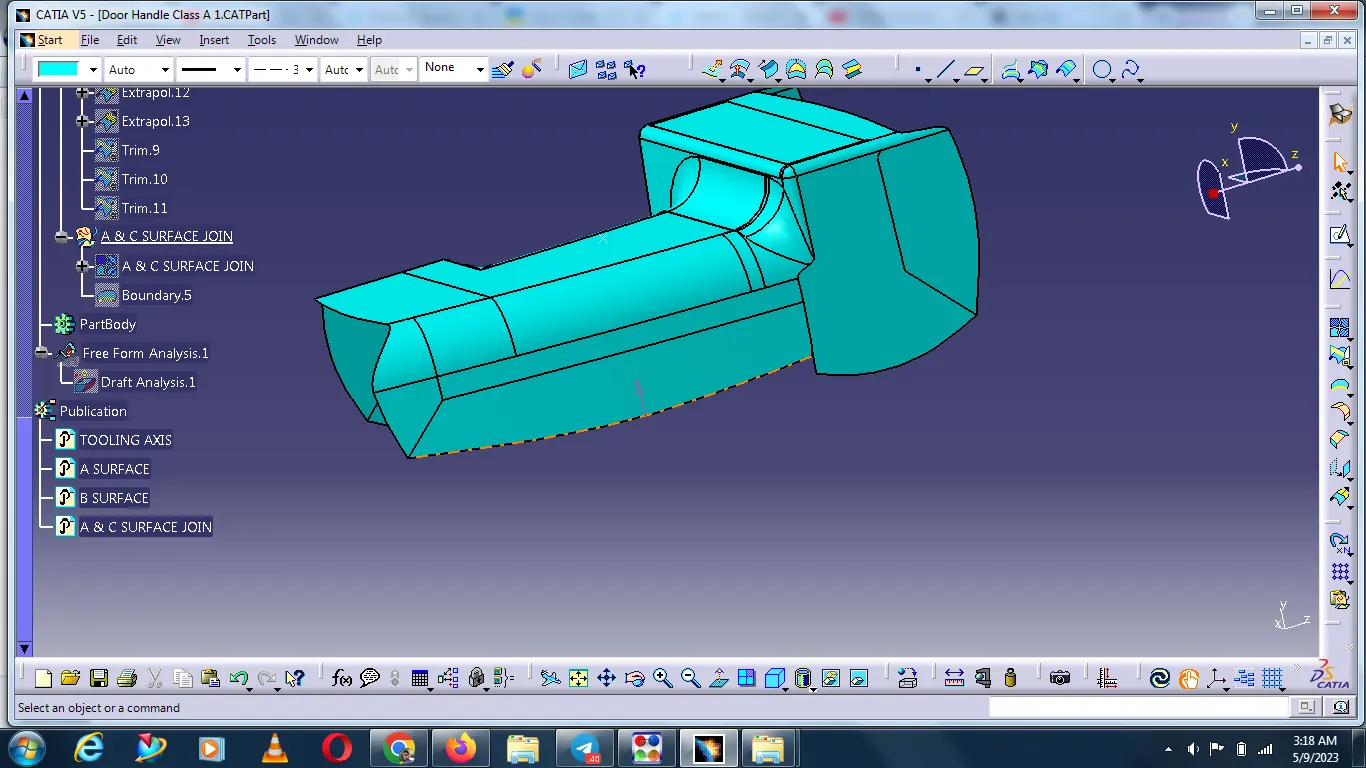

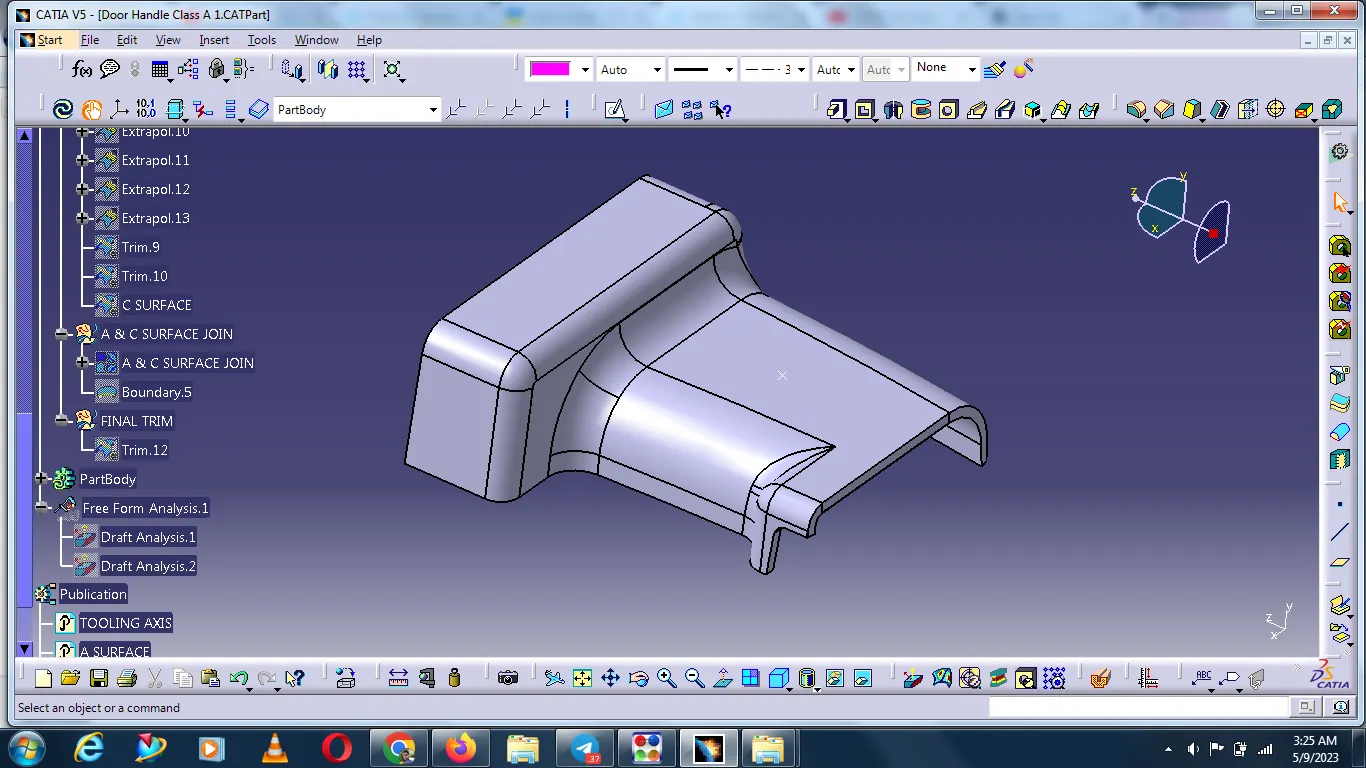

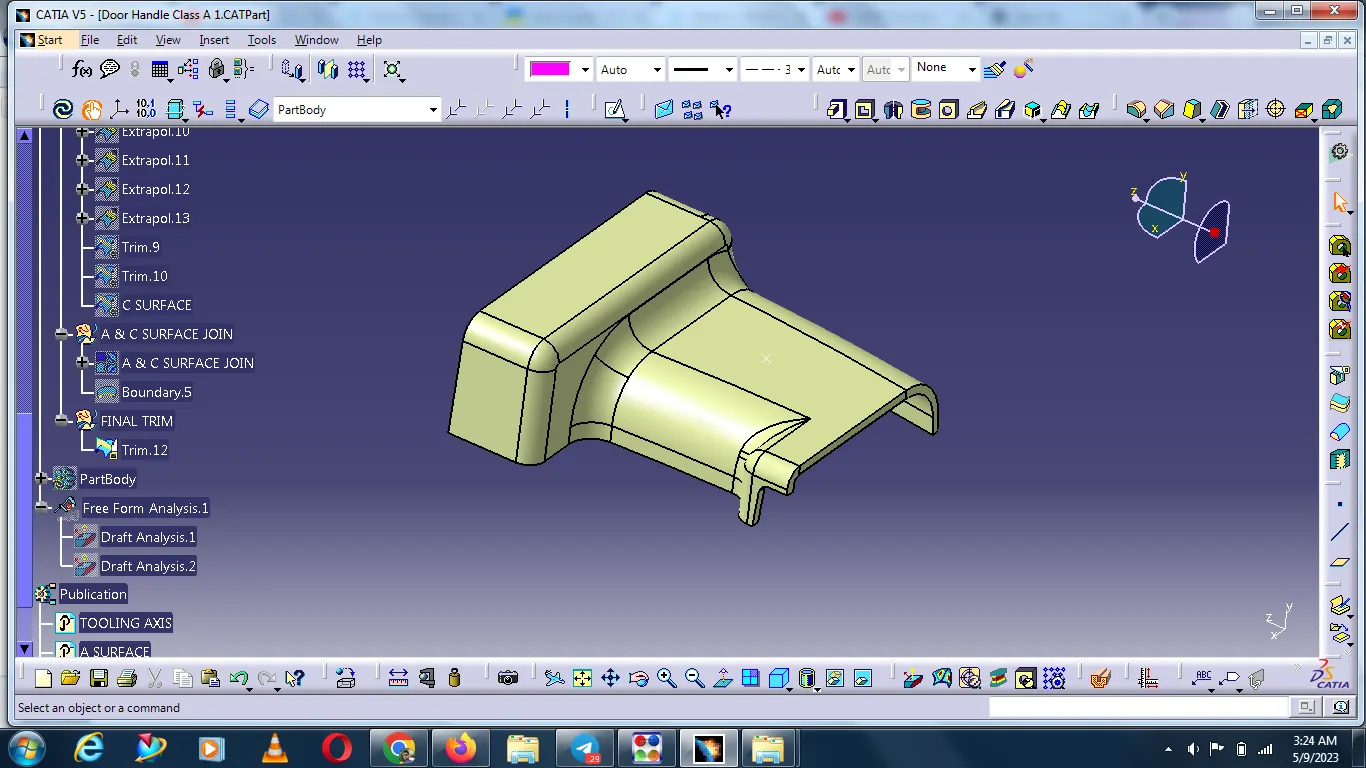

AFTER FINAL TRIM WITH THE B SURFACE AND MAKE THE SOLID BODY.
AFTER APPLY THE CLOSE SURFACE .

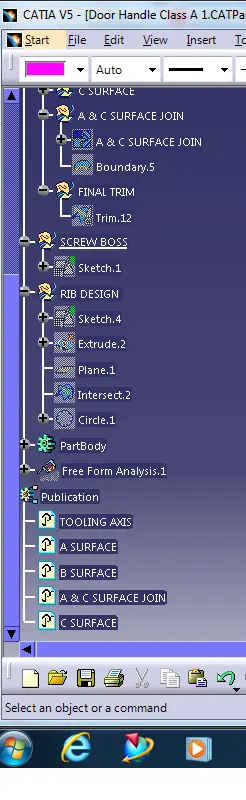

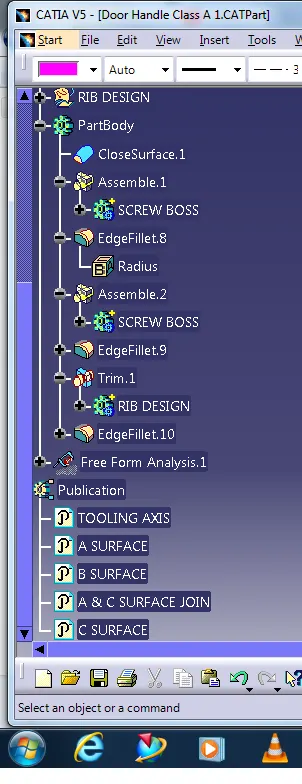

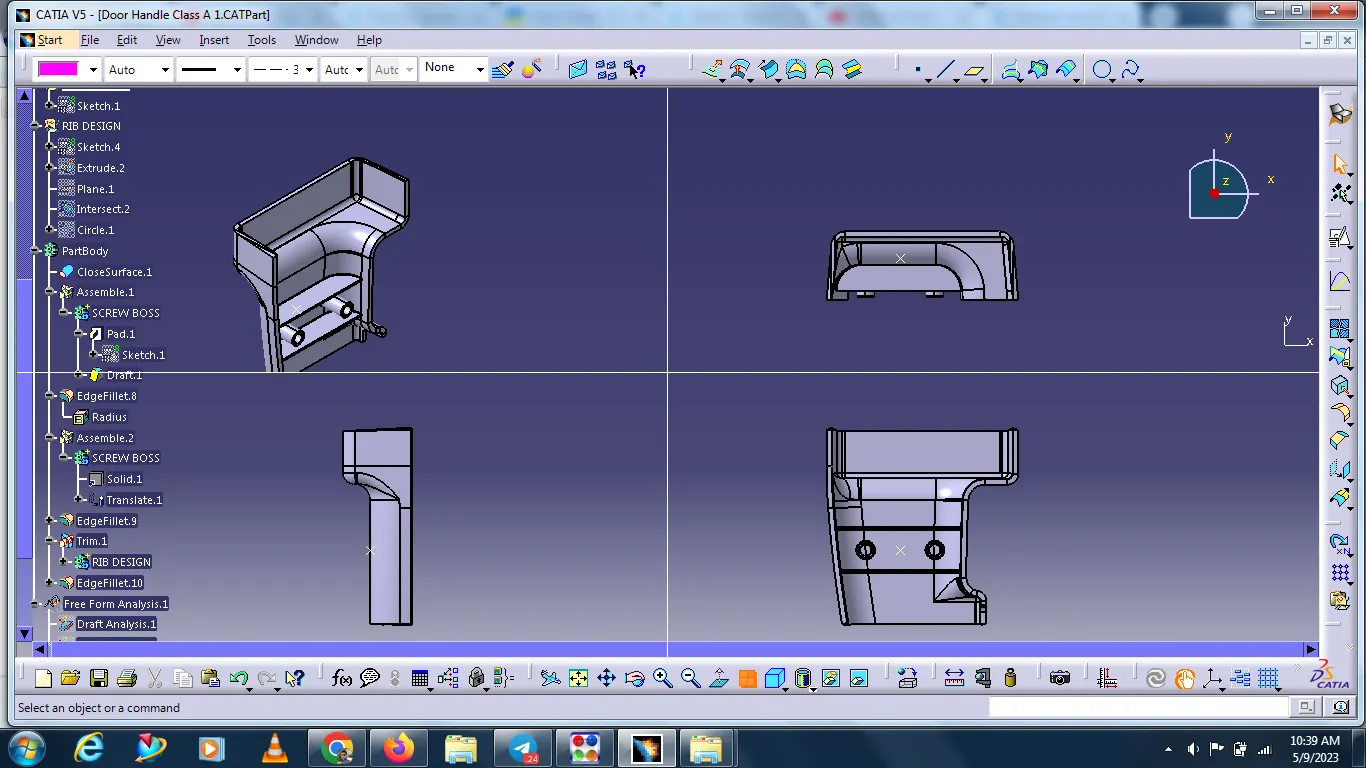

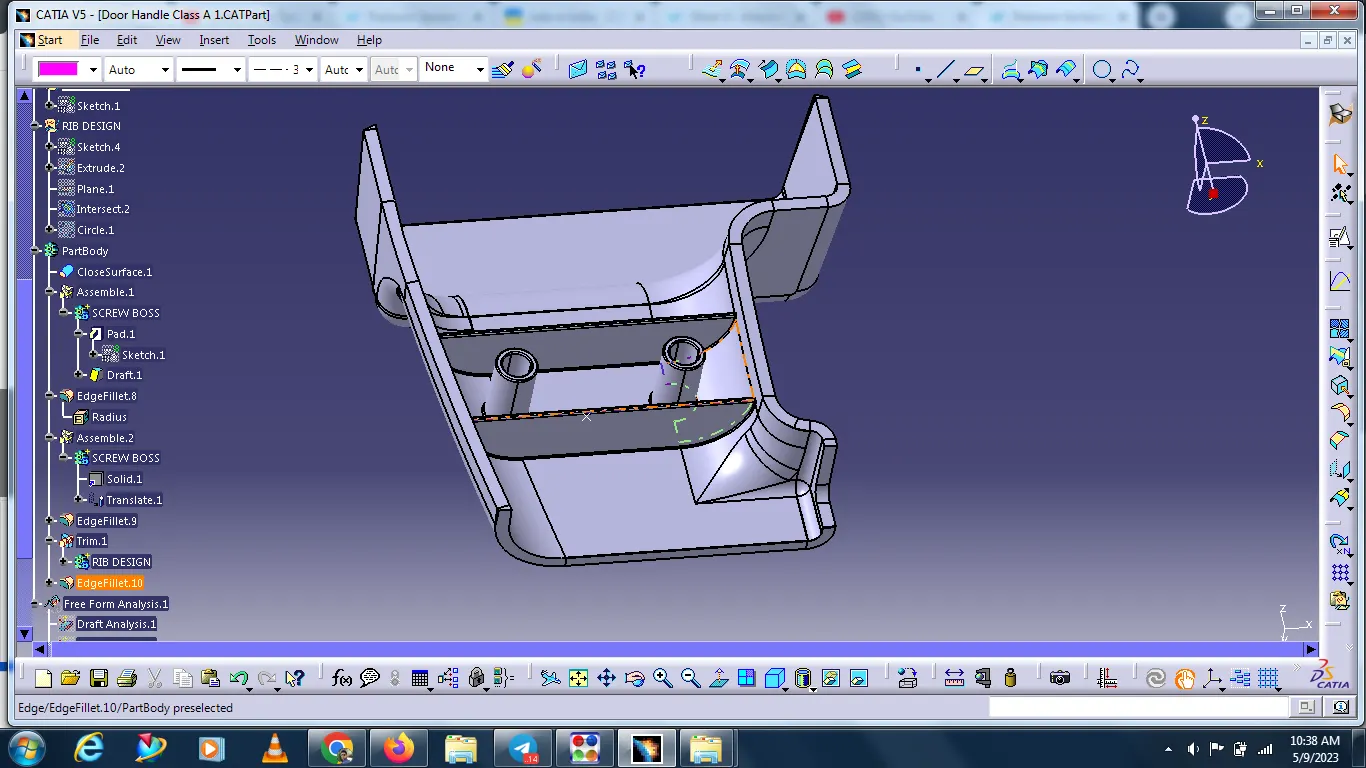

RIB AND SCREW BOSS FEATURE CREATION
FIRST CREAT THE SCREW BOSS AND NEXT CREAT THE RIB.
