Wiring harness routing & packaging Rules Week 3 Challenge

Dear Team ,

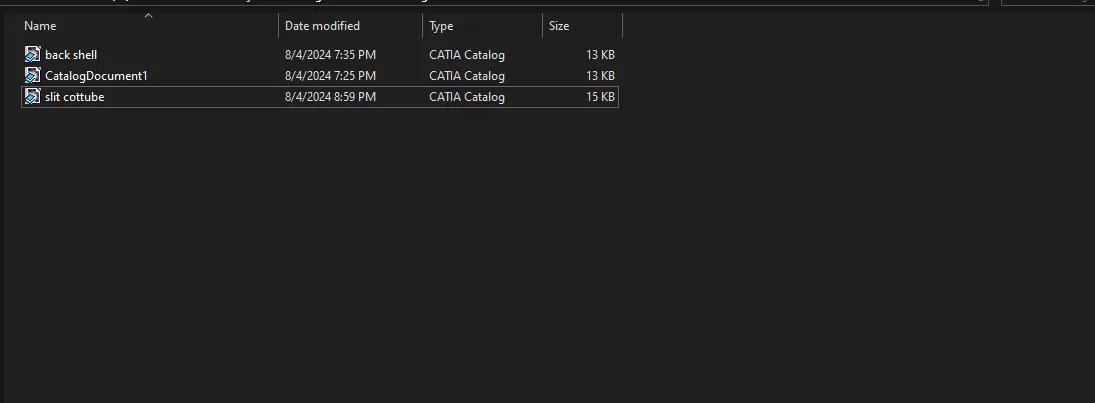

Please find the attached Cat part and images for your reference.

P Clamp:

Clamps are used to hold the wires in electrical routing . It is available in various types . such as simple cable tier , two way clamp and sticky clamp etc.

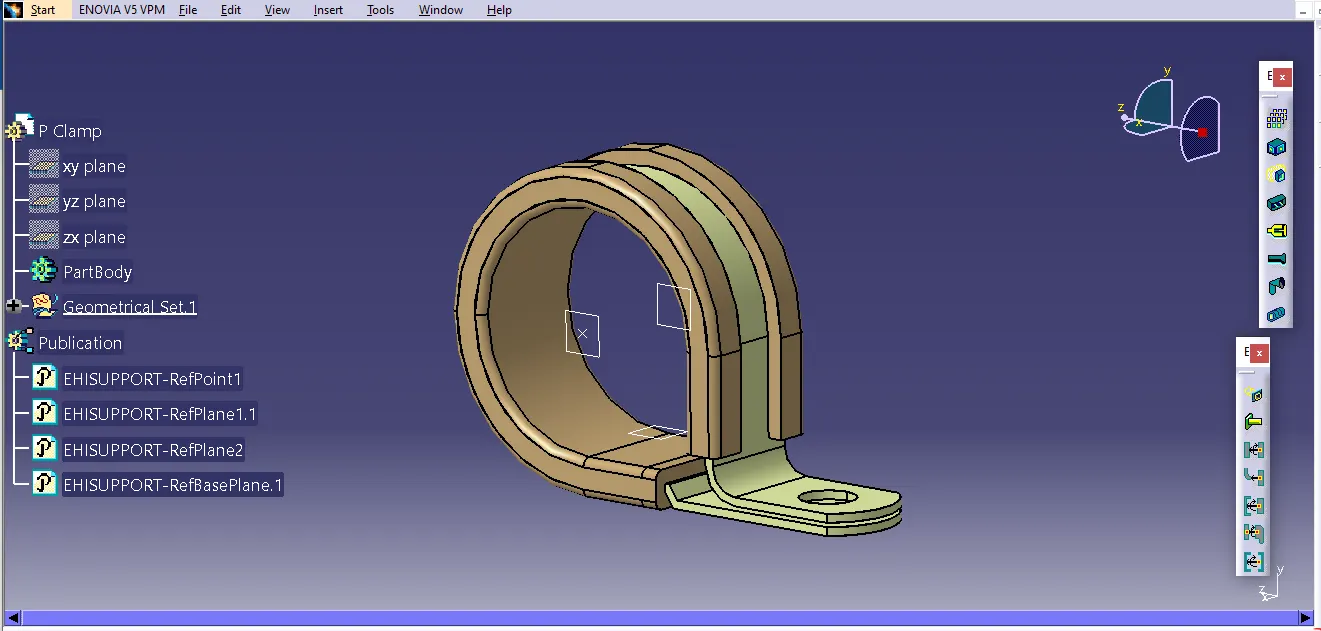

The clamp is crated as a electrical part using define a support option . we have to create a entry and exit point and plane . and also a base plane to define it as a support.

Back shell:

Back shell is used for protecting the wire . It is made by using plastic material. It is not a mandatory electrical part. It is a optional part which is easily negligible in terms of costing matters.

It also used for aesthetic purposes.

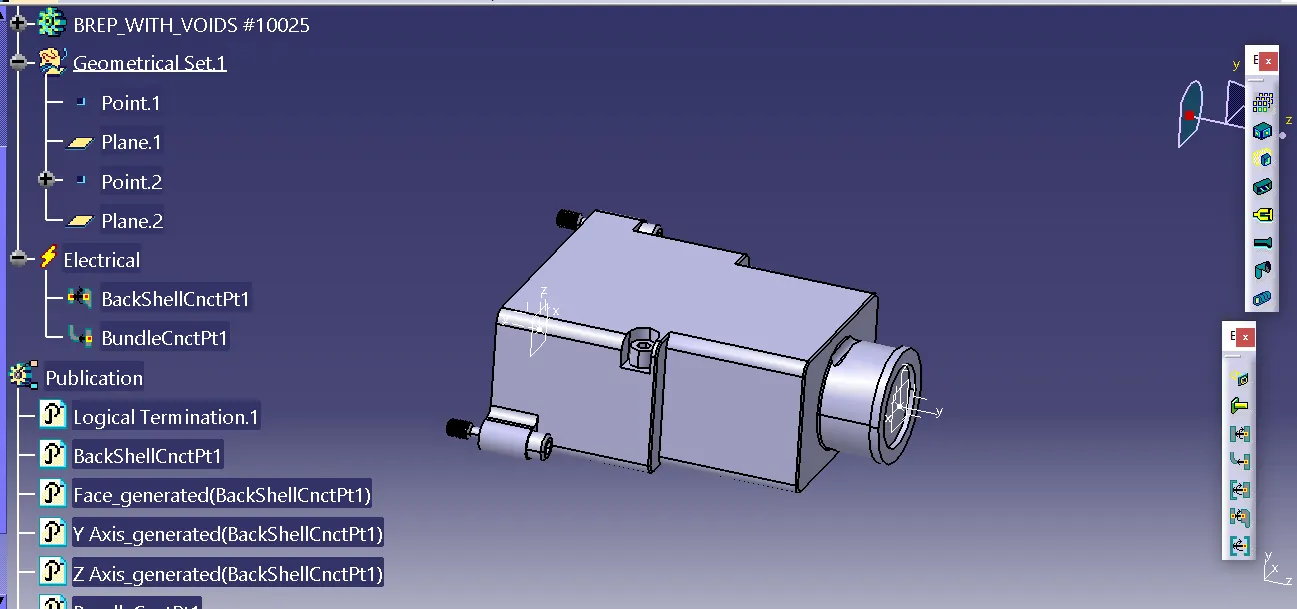

Backshell is defined as a electrical part using define backshell option. for this the bundle entry point and connector connection point . and saved in the catalogue for future reference and usage.

Contrugated tube:

Contrugated tubes are used to protect the wires throughout the routing way. It is madeup of PVC or rubber material. The size of the tube is varies depends upon the wire or bundle diameter.

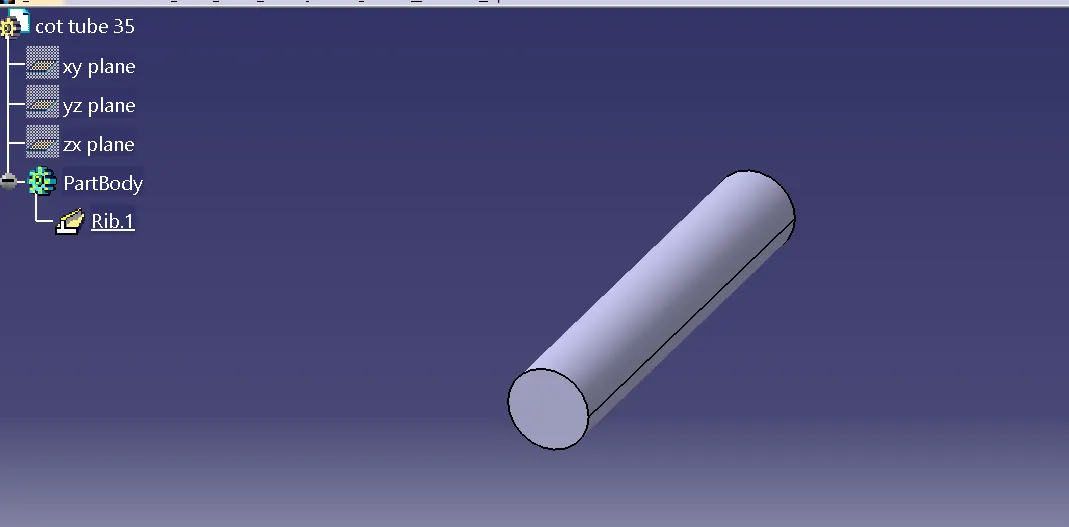

Contrugated tube is created by define protection option . by giving required inner dia and thickness for the tube.
