Week 10 - Challenge 1- Attachment Feature Creation (Ribs & Screw Boss)

Dear Team,

Please find the attached images and cat part for your reference.

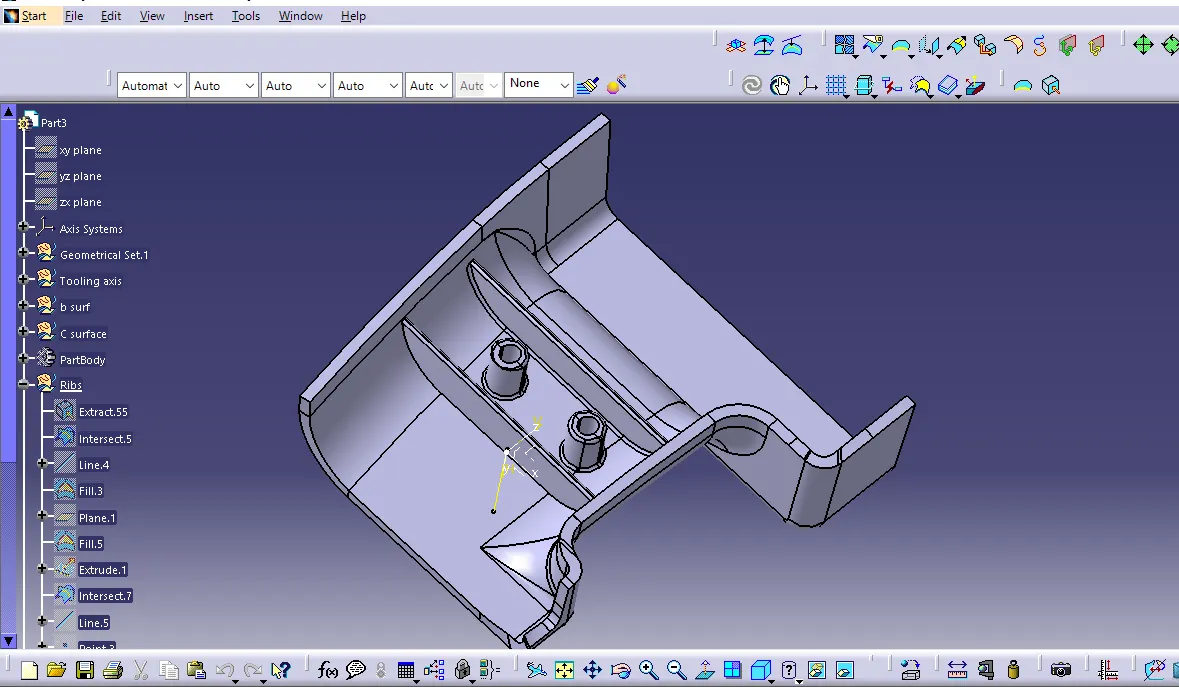

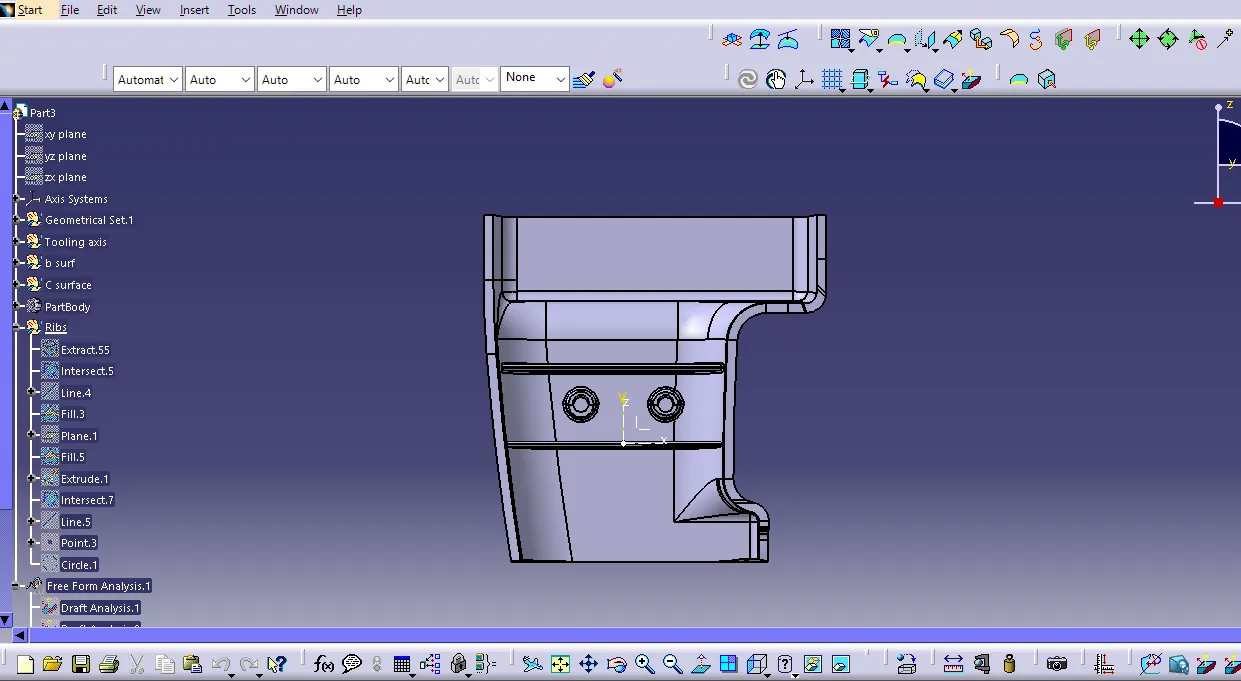

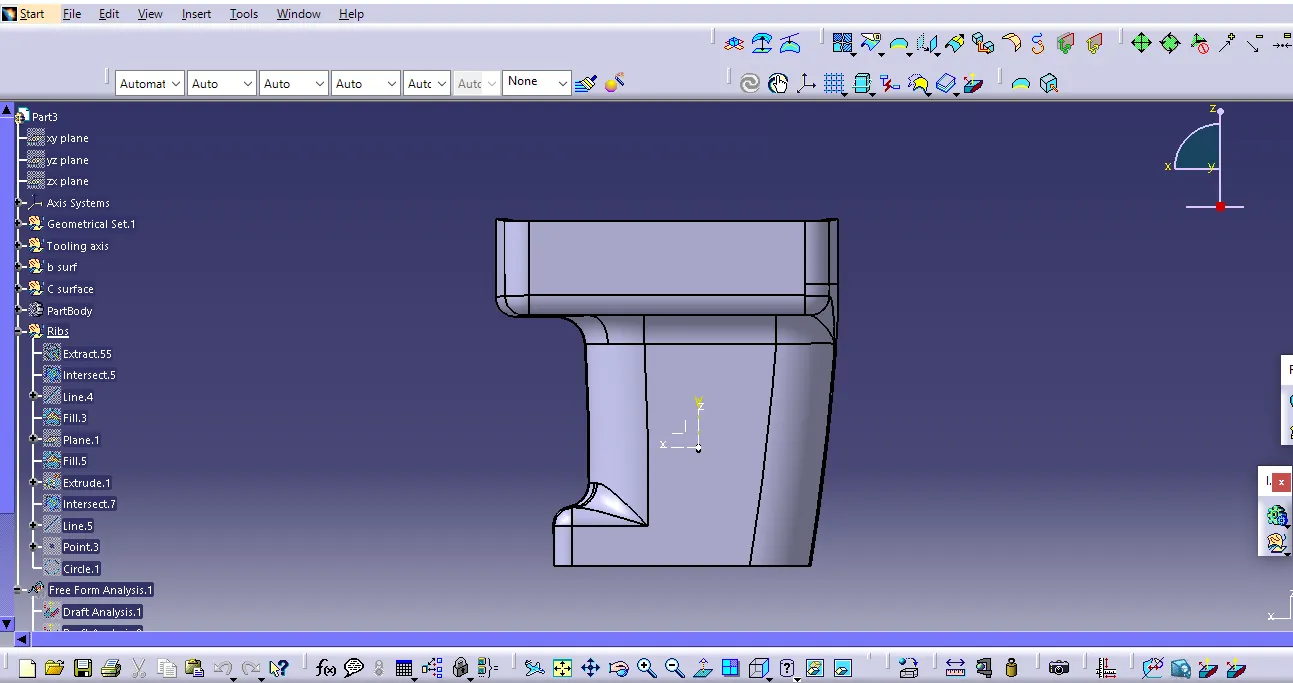

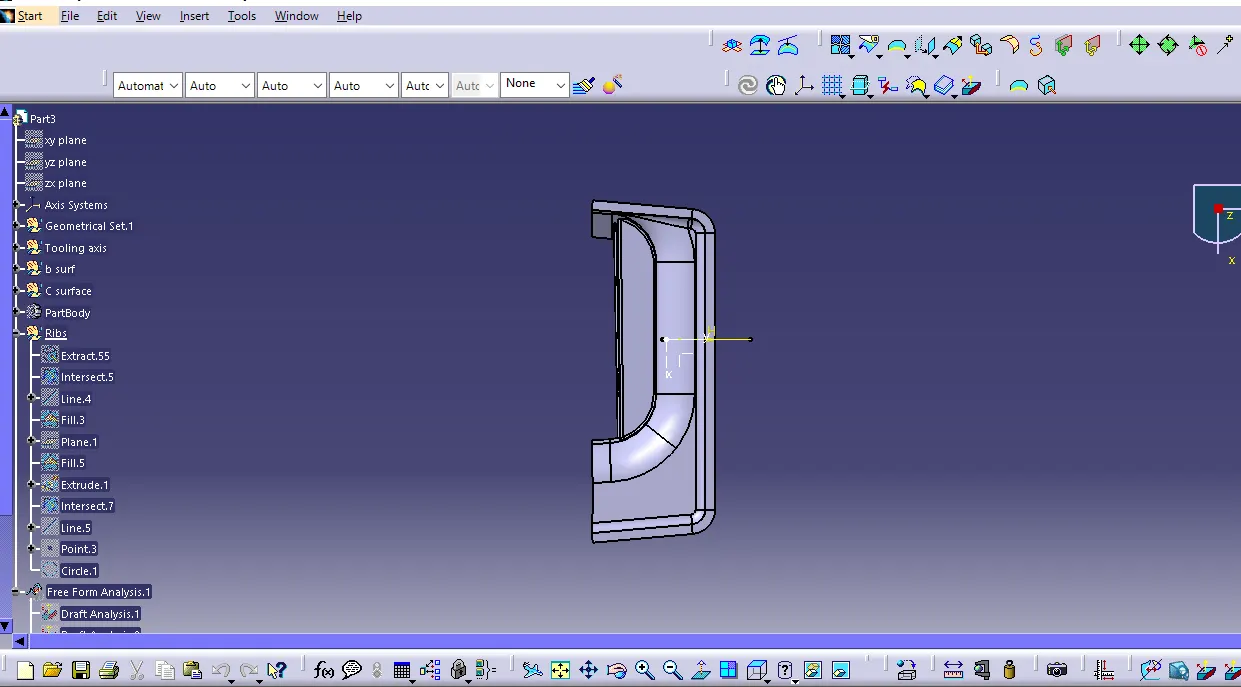

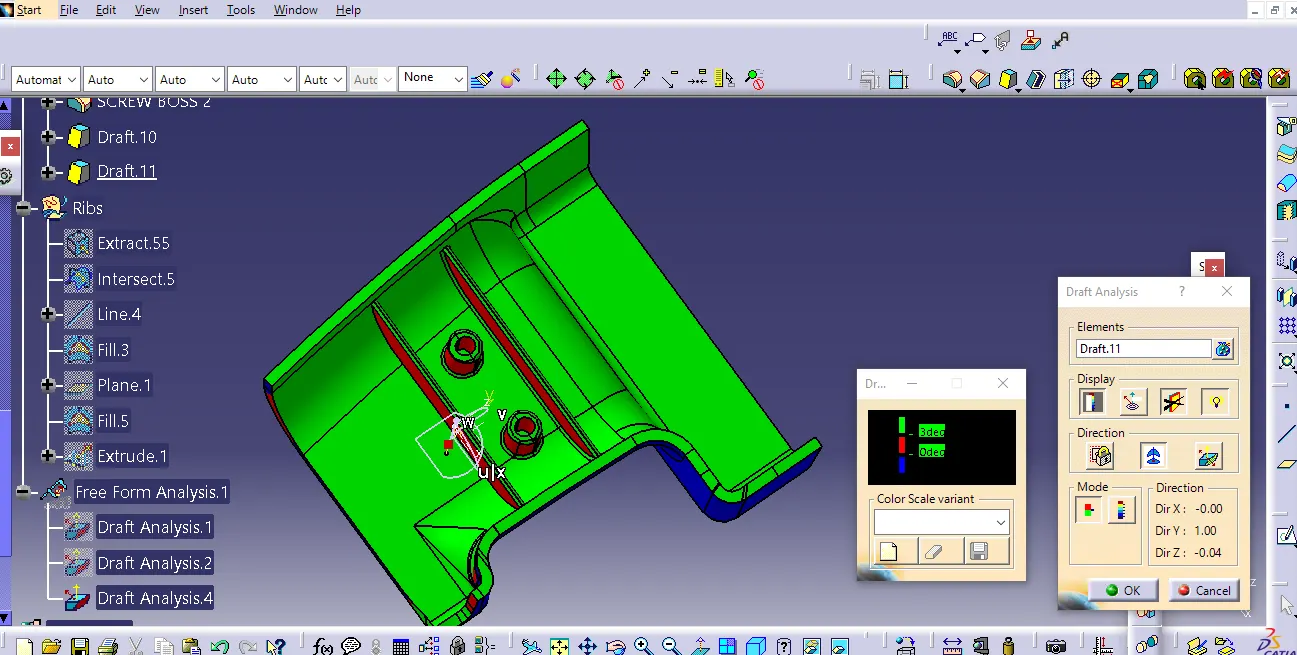

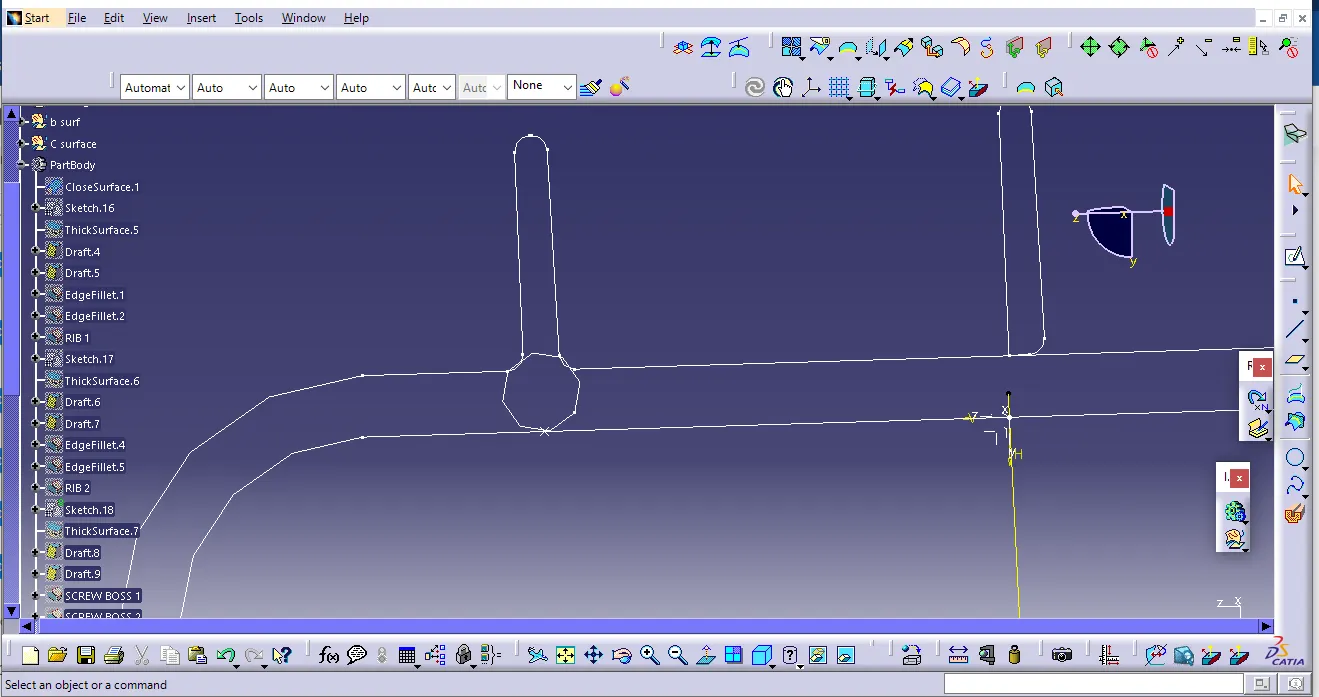

I create the intersection and found the tooling axis. I offset the A surface and created the B surface. I sweep the outer boundary to create C surface and join with the A surface.and made it as a closed body. After that create sketch for ribs and screw boss as per the design rules and thickened it and drafted it along with the tooling axis. after that check the root thickness by creating 3 point circle in the intersection.after i done the draft analysis and found ok.
