Week 9 - Challenge 3 - Bumper

Dear Team,

Please find the attached Cat Part file and Draft analysis Image for your reference.

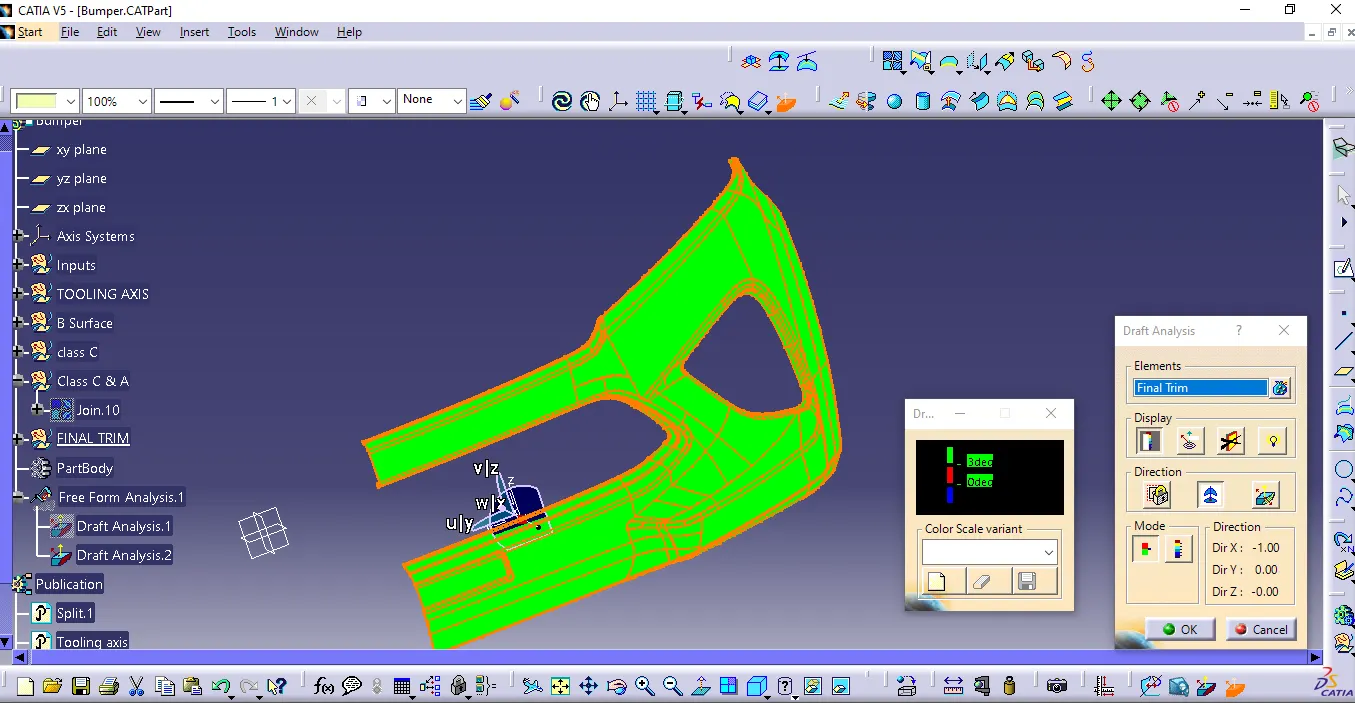

I created Tooling axis by checking all the direction finaly I arrived with the conclusion that X plane direction will be the perfect tooling axis and done the draft analysis properly.After Completing the final trim and made it as a closed surface, again done the draft analysis along with the tooling axis I created. the result shows all the surface are having proper draft angle and the tooling axis I created is correct.
