Wiring harness routing & packaging Rules Week 3 Challenge
Objective:
Download following cad data & define it as Electrical support using Electrical Part design Workbench. Define all the necessary properties.
Download following Back shell cad data & define it as Electrical back shell using Electrical Part design Workbench. Define all the necessary properties.
Create Following Corrugated tubes & Add them in Catalogue under “Slit COT” family.
|
Name |
ID (mm) |
OD (mm) |
Thickness (mm) |
|
15mm COT |
12 |
15 |
1.5 |
|
20mm COT |
17 |
20 |
1.5 |
|
35mm COT |
32 |
35 |
1.5 |
|
10mm COT |
7 |
10 |
1.5 |
|
5mm COT |
3 |
5 |
1 |
Desgin Procedure:

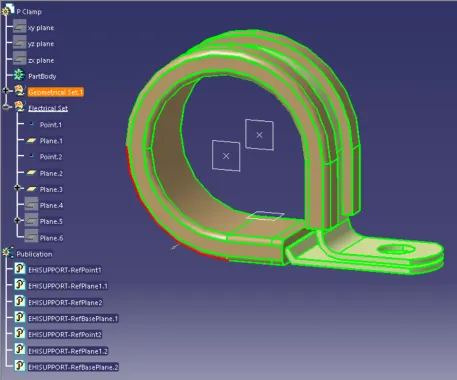

P-Clamp:

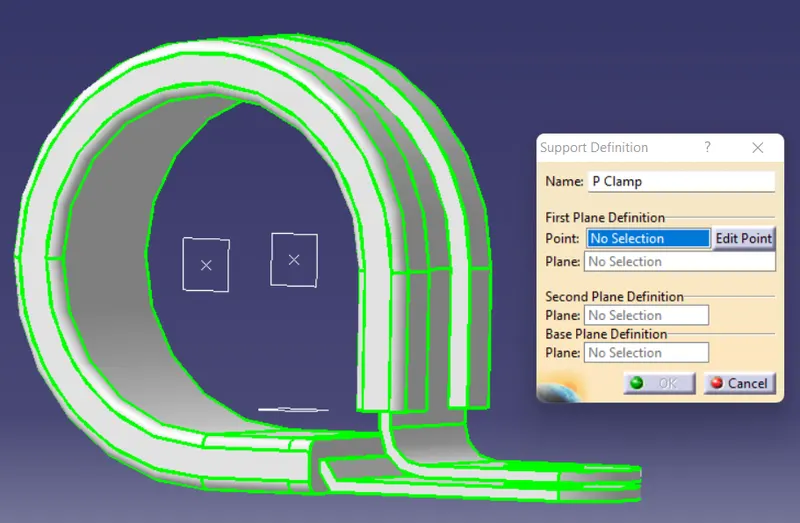

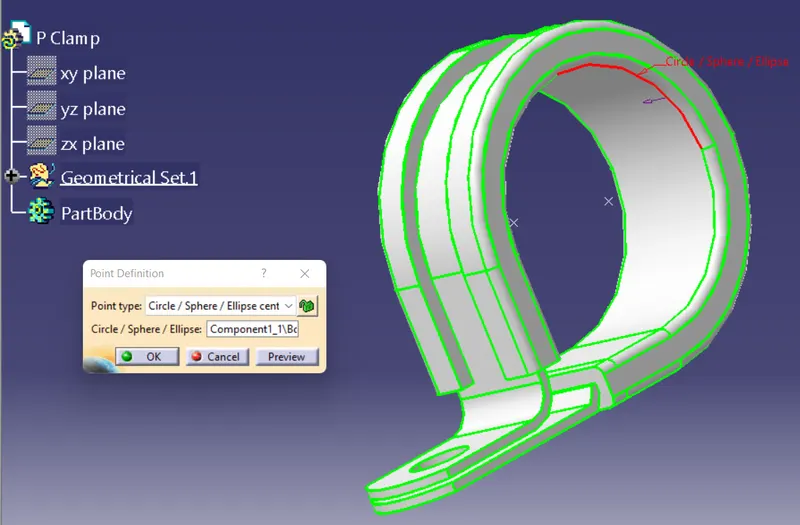

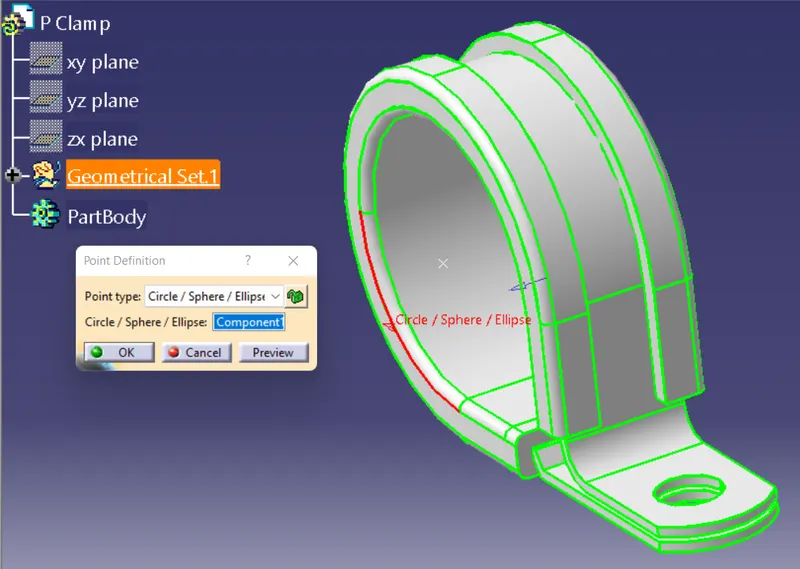

Creating a Bundle connection point

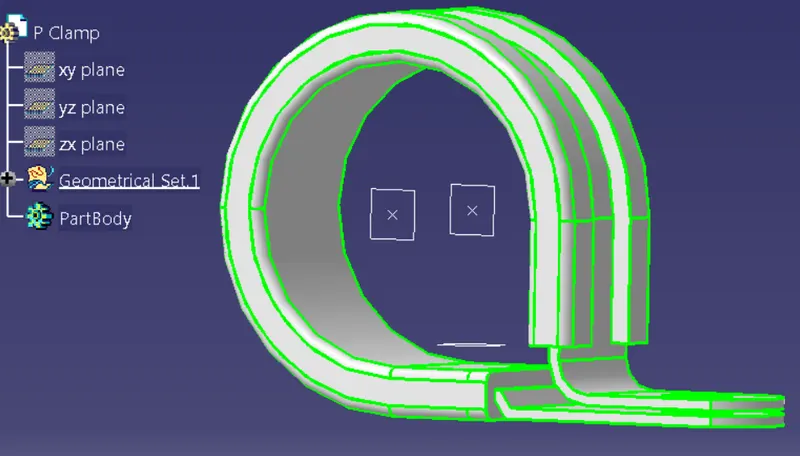

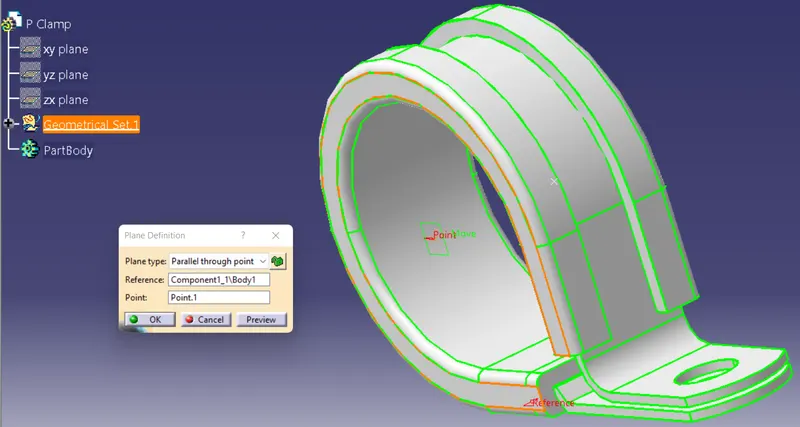

Creating the Planes on the point

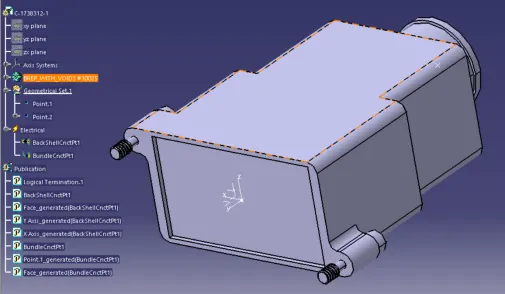

Back Shell: C-1738312-1
COT Tube:

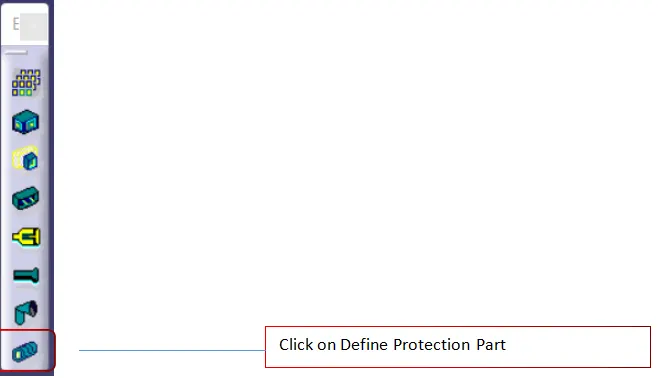

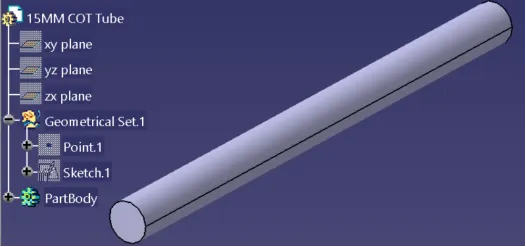

Creating the COT tube of DIA 15mm

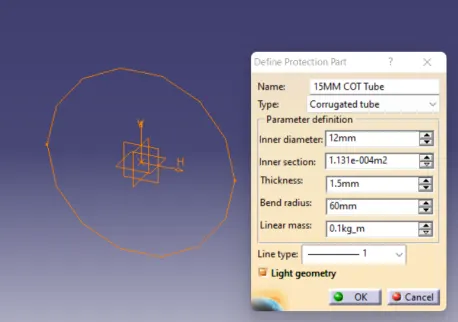

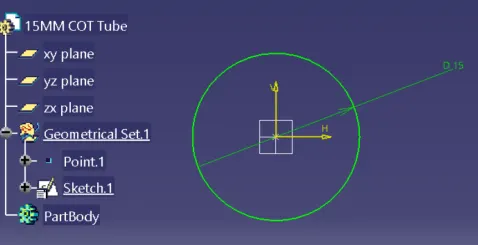

Creating Sketch for 15mm COT Tube

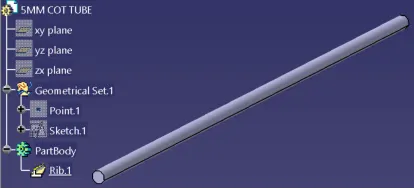

5MM COT TUBE:

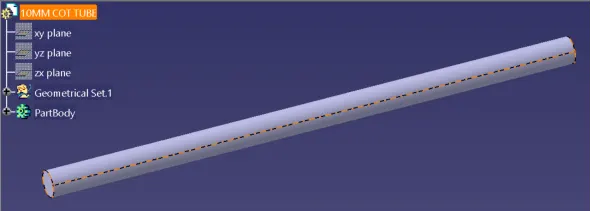

10MM COT TUBE:

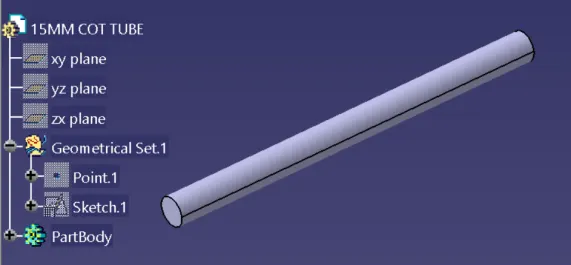

15MM COT TUBE:

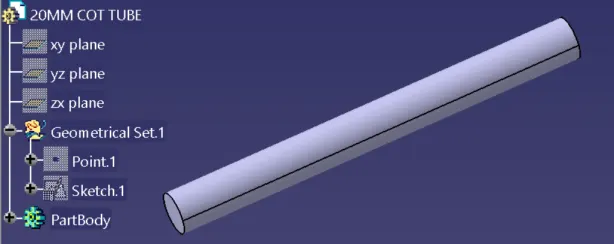

20MM COT TUBE:

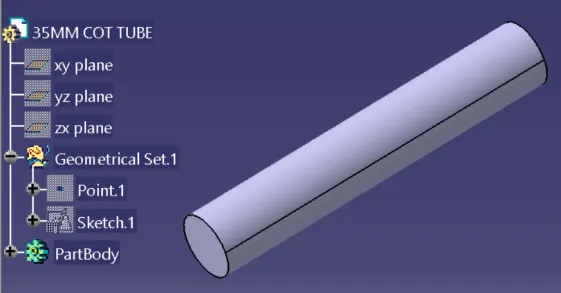

35MM COT TUBE:

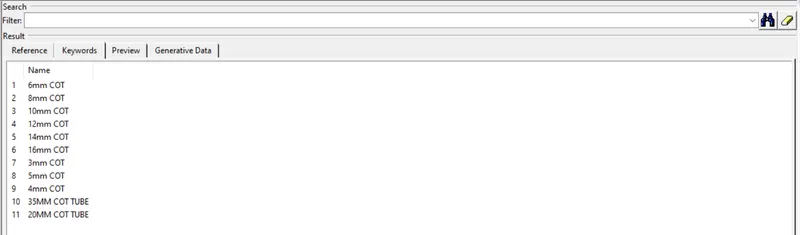

Adding COT Tubes in Catalog
