Photo Realistic Rendering
MODELING AND RENDERING OF AMERICAN CHOPPER USING SOLIDWORKS
OBJECTIVE:
- The objective of the project is to model a different component of American Chopper using SOLIDWORKS.
- Assembly of all the model component of American Chopper.
- Creating the photo-realistic view of American Chopper using Solidworks PhotoView 360 and Solidworks Visualize.
Components of American Chopper Modeled in Solidworks:
- Transmission Belt
- Kick Stand
- Front Render
- Rear Render
- Chain
- Oil Tank
- Pedal
- Front Wheel
- Rear Wheel
- Front Fork
- Chassis
- Engine
- Gas Tank
BASIC DESCRIPTION OF PARTS AND FEATURE USED IN SOLIDWORKS:

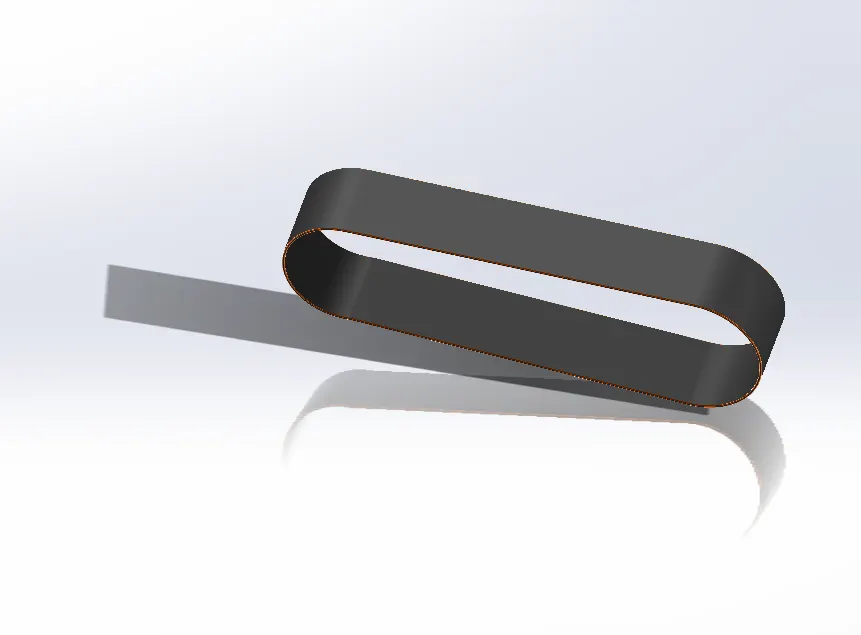

Transmission Belt
The Transmission belt is used to transmit the power from engine to gearbox.
Features Used:
- Sketch
- Boss Extrude
- Fillet
Appearance: Matte Rubber with fillet Siena colour

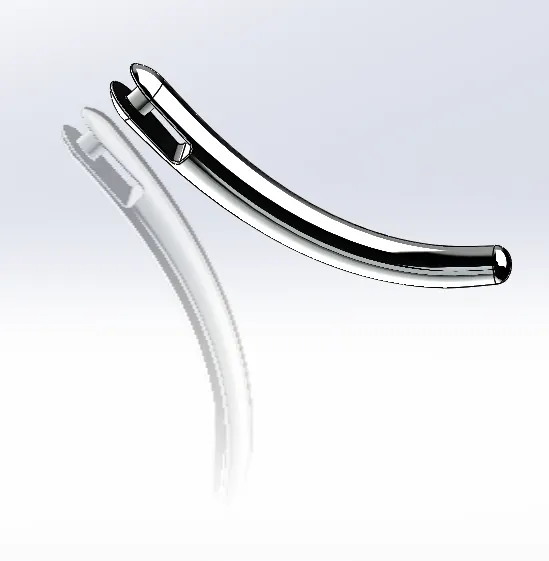

Kick Stand(Side Stand)
The Kick Stand used to give the side support to the chopper.
Features Used:
- Sketch
- Loft
- Dome
- Extrude Cut
- Split
Appearance: Chromium Plate

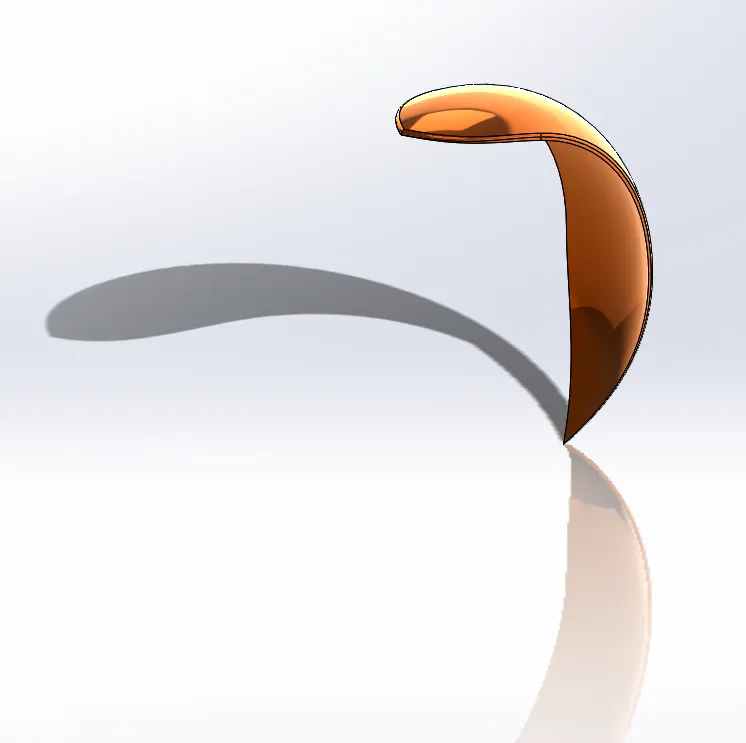

Front Fender:
The front fender used to protect the rider from debris and it is mounted on the front fork.
Features Used:
- Sketch
- Revolve
- Split
- Fillet
Appearance: Painted Car Siena

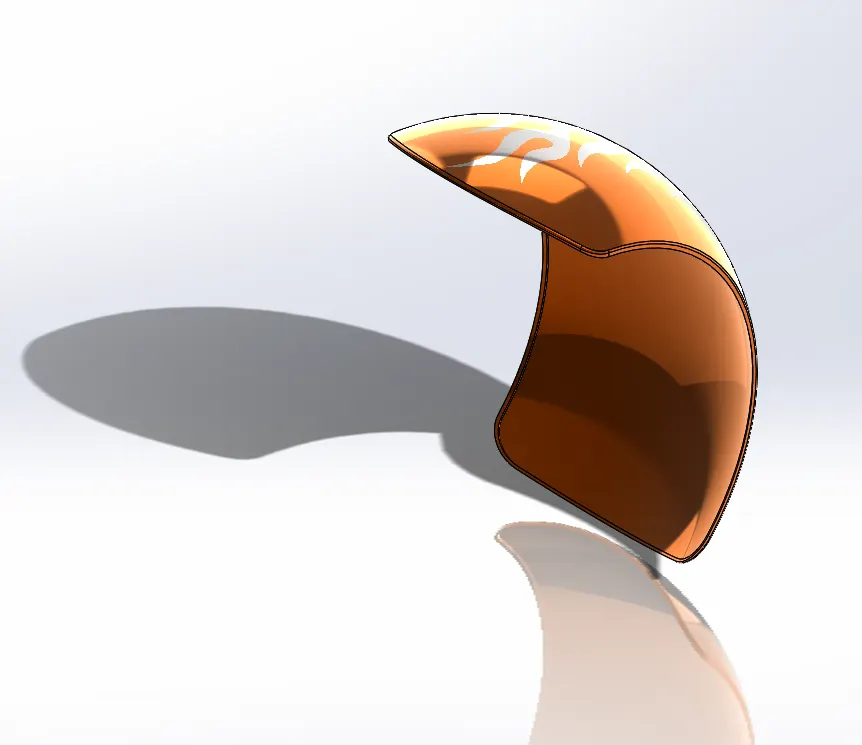

Rear Fender:
The application of the rear fender is same as front fender and it is mounted on the rear portion of chassis.
Features Used:
- Sketch
- Revolve
- Split
- Fillet
- Shell
Appearance: Painted Car Siena

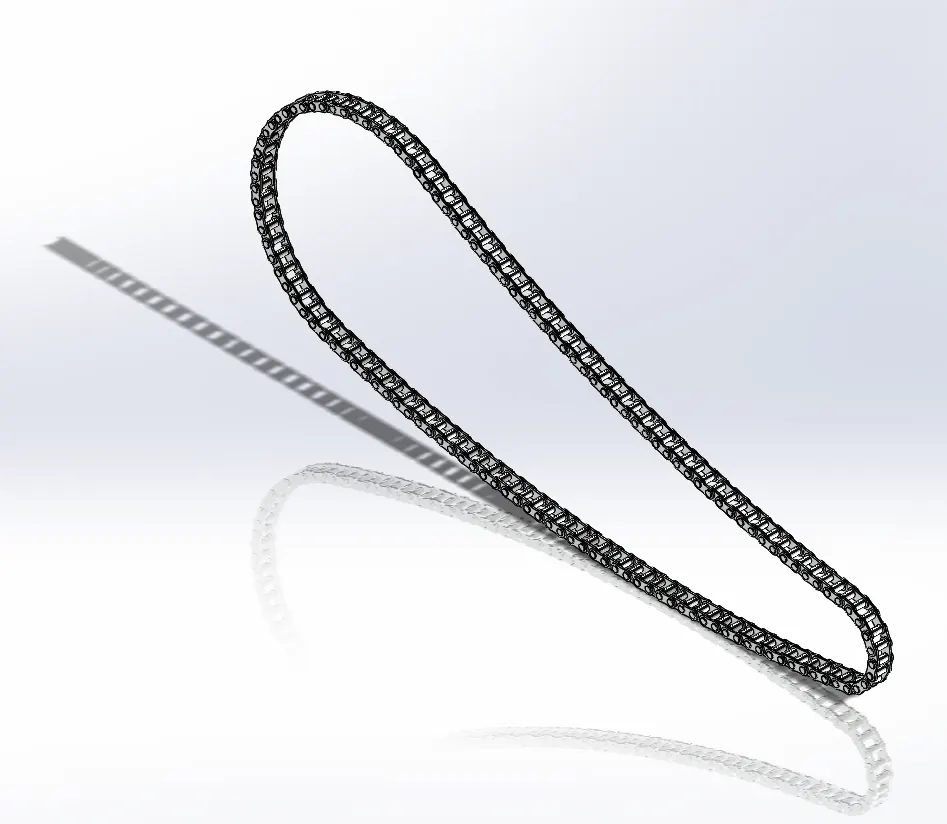

Chain:
The chain used to transmit the power from the gearbox to rear wheel. Basically, the chain is built from high carbon steel with brittleness properties.
Features Used:
- Sketch
- Block (Block Entities)
- Boss Extrude
- Fillet
- Curve Pattern
- Mirror
Appearance: Chromium Plate

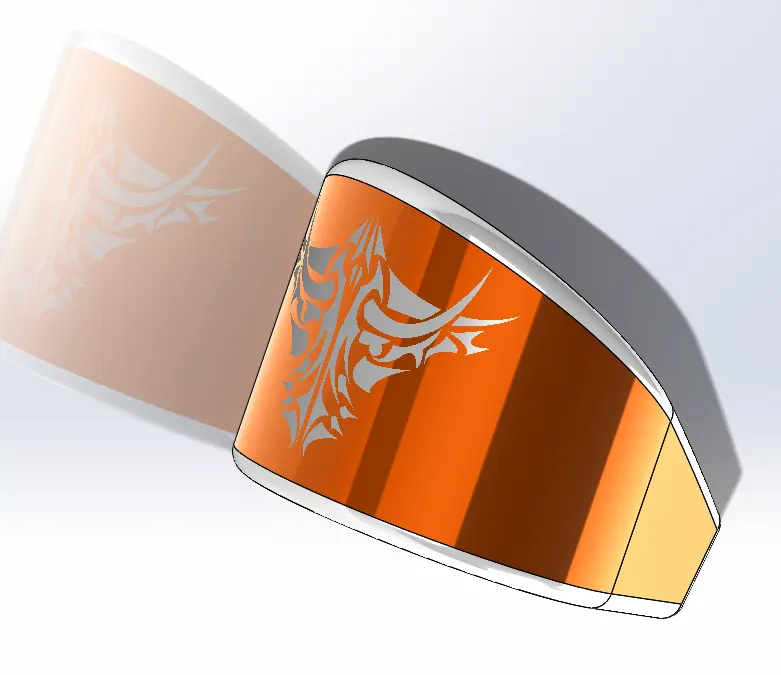

Oil Tank:
From its name, we can get an idea that it is a storage container of Oil.
Features Used:
- Sketch
- Boss Extrude
- Combine
- Fillet
- Shell
Appearance: Painted car Siena and Fillet in White

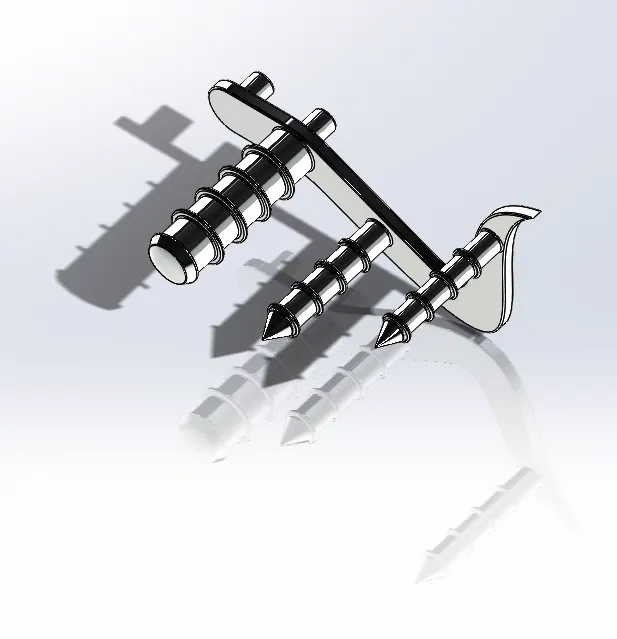

Pedal:
The pedal used to gives the support of rider feet and helps him to change the gears and apply brakes.
Features Used:
- Sketch
- Boss Extrude
- Revolve
- Dome
- Fillet
- Chamfer
- Linear Pattern
Appearance: Chromium Plate

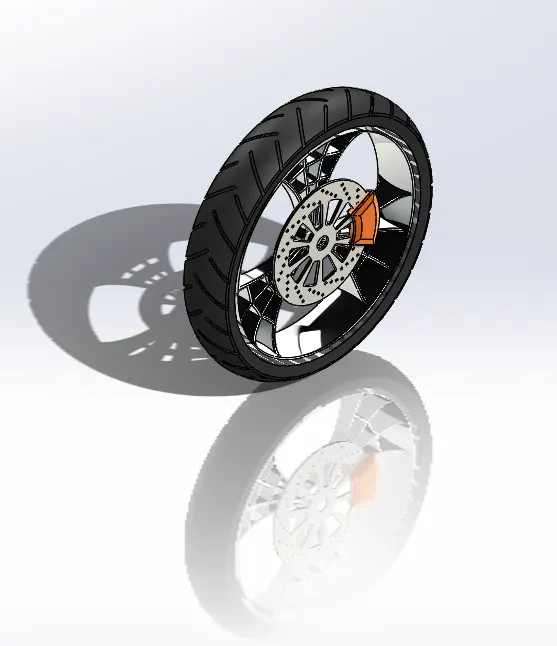

Front Wheel:
The front-wheel contains the basically 4 major elements.
1. Rim:
Features Used:
- Sketch
- Revolve
- Boss Extrude
- Cut Extrude
- Circular Pattern
- Combine Fillet
Appearance: Chromium Plate
2. Rotar:
Features Used:
- Sketch
- Boss Extrude
- Cut Extrude
- Fillet
- Circular Pattern
Appearance: Carbon Steel
3. Calliper:
- Sketch
- Boss Extrude
- Chamfer
- Fillet
Appearance: Painted car Siena
4. Tire:
- Sketch
- Revolve
- Extrude Cut
- Circular Pattern
Appearance: Matter Rubber

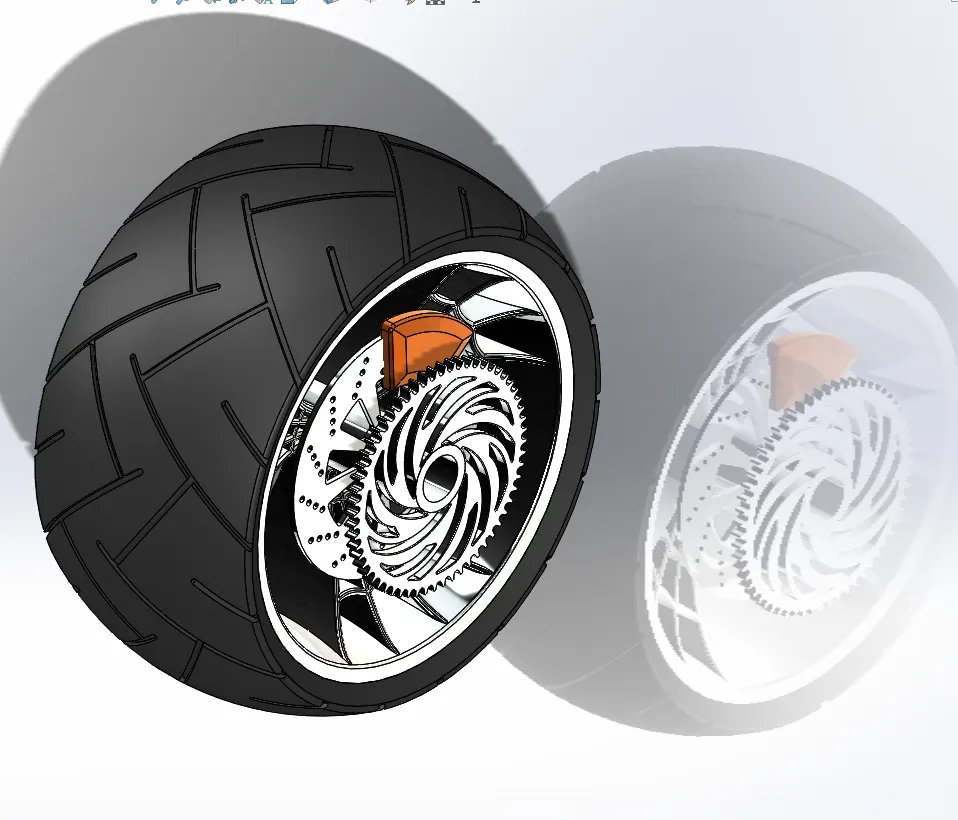

Rear Wheel:
The Rear wheel is almost similar to the front wheel, only the sprocket is added in the rear wheel.
1. Rim:
Features Used:
- Sketch
- Revolve
- Boss Extrude
- Cut Extrude
- Circular Pattern
- Combine Fillet
Appearance: Chromium Plate
2. Rotar:
Features Used:
- Sketch
- Boss Extrude
- Cut Extrude
- Fillet
- Circular Pattern
Appearance: Carbon Steel
3. Calliper:
- Sketch
- Boss Extrude
- Chamfer
- Fillet
Appearance: Painted car Siena
4. Sprocket:
- Sketch
- Boss Extrude
- Cut Extrude
- Fillet
- Circular Pattern
Appearance: Chromium Plate
5. Tire:
- Sketch
- Revolve
- Extrude Cut
- Circular Pattern
Appearance: Matter Rubber

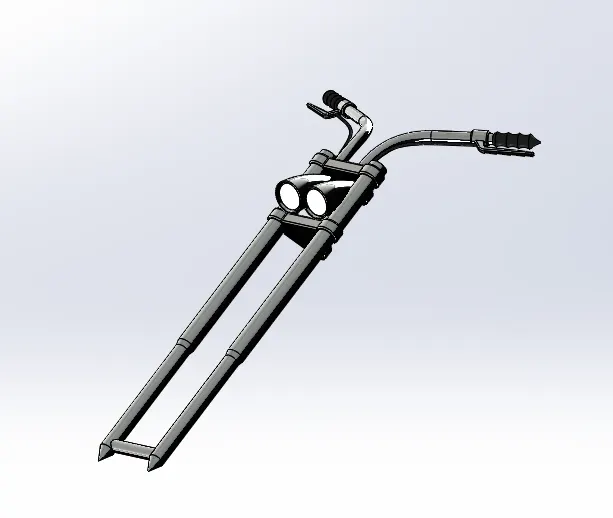

Front Fork:
The Front Fork used to hold the front wheel. It contains the headlight, electrical controllers, brakes and clutch which helps the rider to control the bikes.
Features Used:
- Sketch
- Revolve
- Boss Extrude
- Fillet
- Linear Pattern
- Extrude Cut
- Cut Revolve
- Dome
- Projected Curve
- Sweep
- Mirror
- Combine
Appearance: Chromium Plate, Glossy Rubber Handle, Transparent glass in the headlight

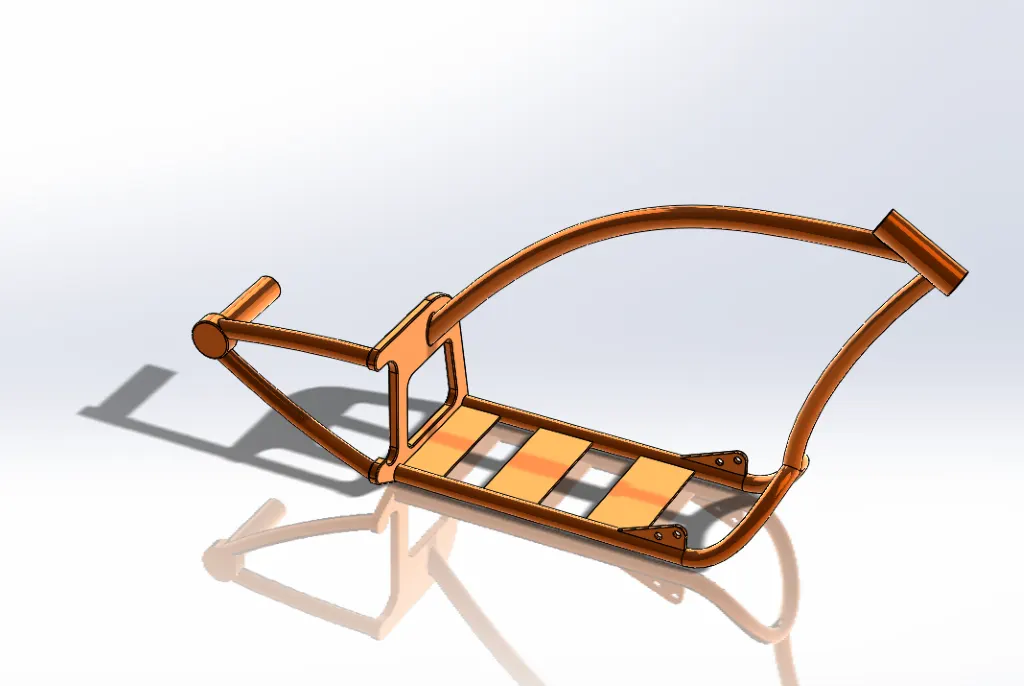

Chassis:
The chassis is a skeleton of any vehicle. All the components of a motorcycle are mounted on chassis. The chassis contains the following torsional rigidity, strength and firm base to handle all the stresses.
Features Used:
- Sketch
- Projected Curve
- Sweep
- Mirror
- Boss Extrude
- Chamfer
- Fillet
- Split
- Combine
- Mirror
Appearance: Painted car Siena

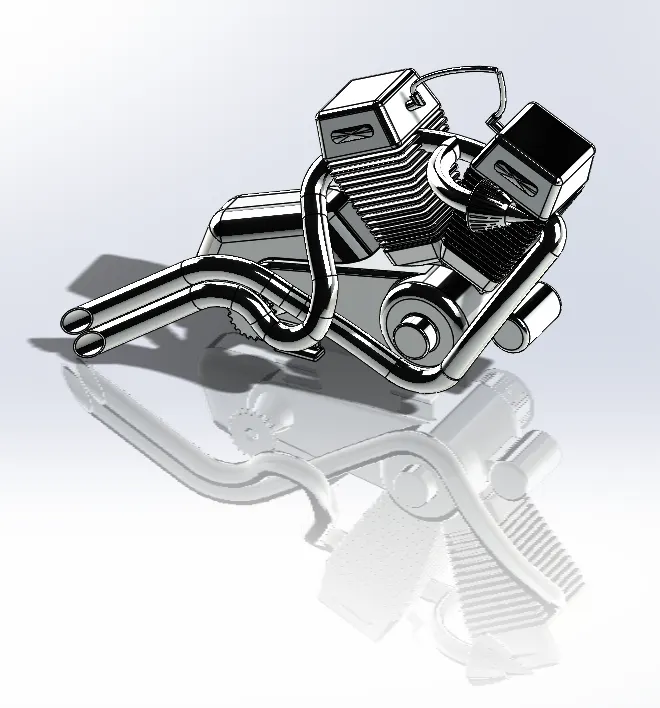

Engine:
An engine is a machine designed to convert chemical energy into heat energy, which further converted into mechanical work.
Features Used:
- Sketch
- Boss Extrude
- Fillet
- Revolve
- Circular Pattern
- Dome
- Cut Extrude
- Linear Pattern
- Mirror
- Split
- Chamfer
- Circular Pattern
- Combine
- Projected Curve
- Sweep
- Composite Curve
Appearance: Chromium Plate

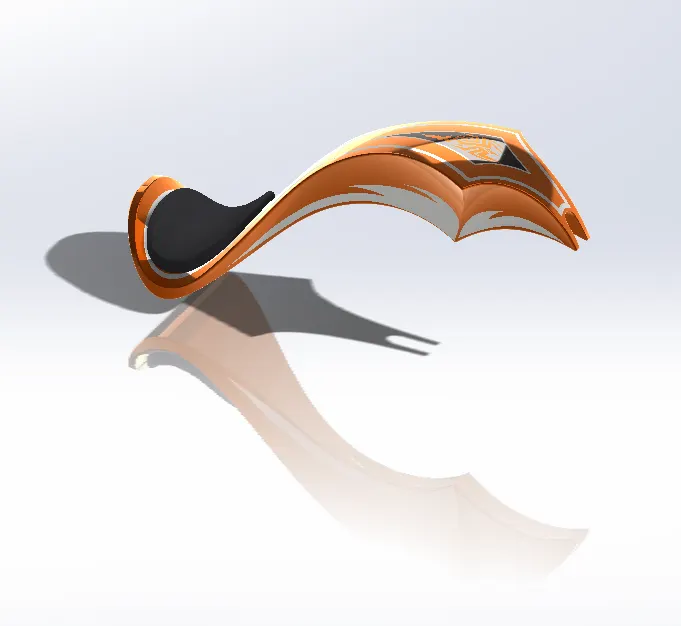

Gas Tank:
Gas Tank used as a storge of engine fuel.
Features Used:
- Sketch
- Surface Sweep
- Surface Trim
- Projected Curve
- Surface Loft
- Boundary Surface
- Mirror
- Surface Knit
- Split Line
- Surface Extrude
- Fillet
- Cut Sweep
- Shell
Appearance: Painted car Siena with grey fabric seat

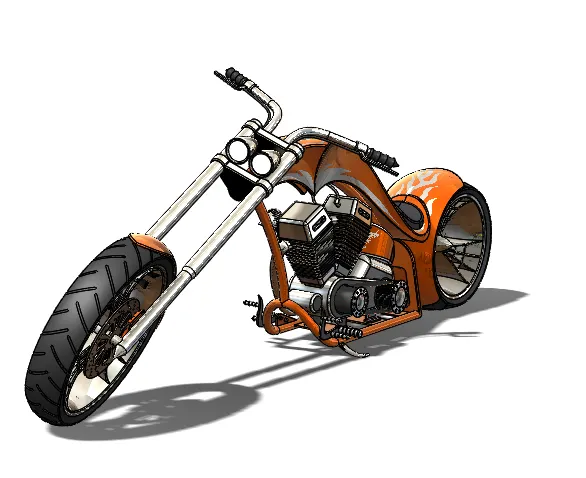

Assembly of American Chopper:
All the above components are taken and open into the assembly section of Solidworks and with the help of different mating features, the entire assembly will be created. Once after the assembly of the American Chopper, the decals will be applied to the component of the chopper.
After Completing the decals, the camera, background, additional lighting and scenes will get adjusted and later we start the rendering photo view 360 or Solidworks visualize.

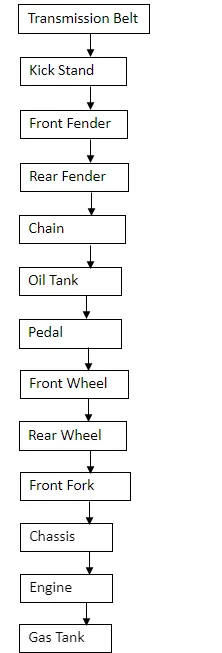

Assembly Tree of American Chopper:

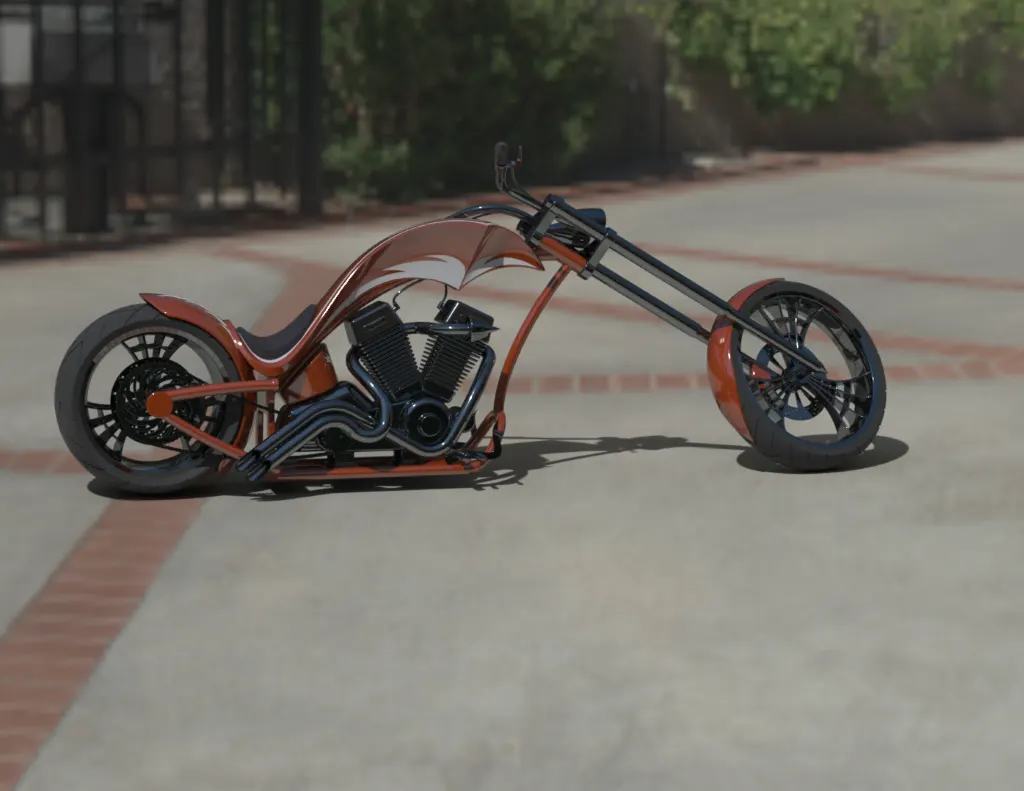

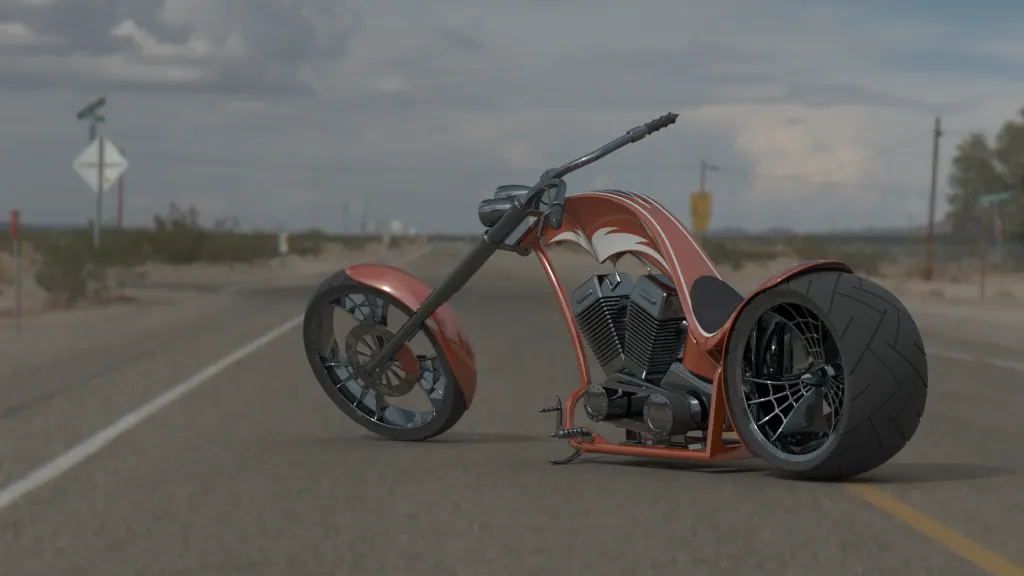

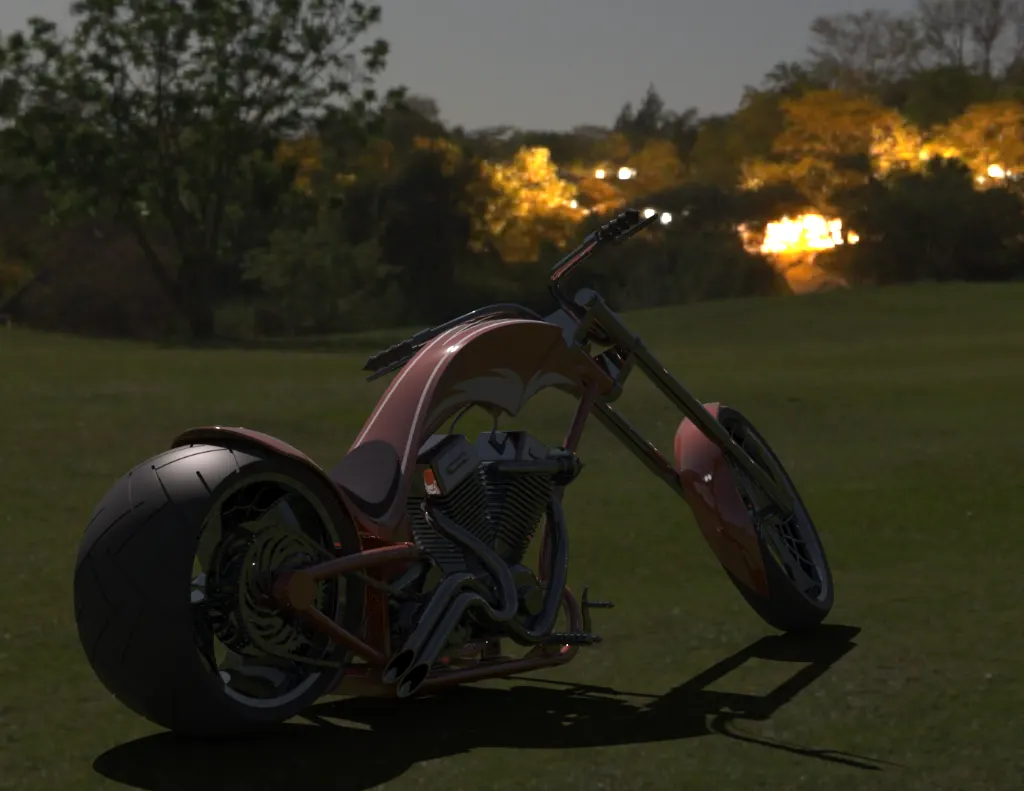

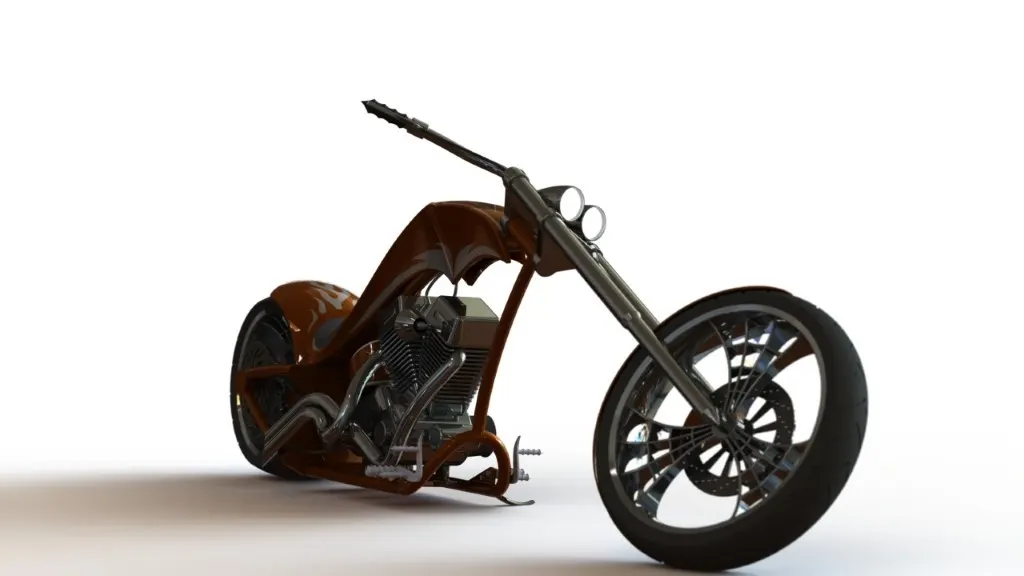

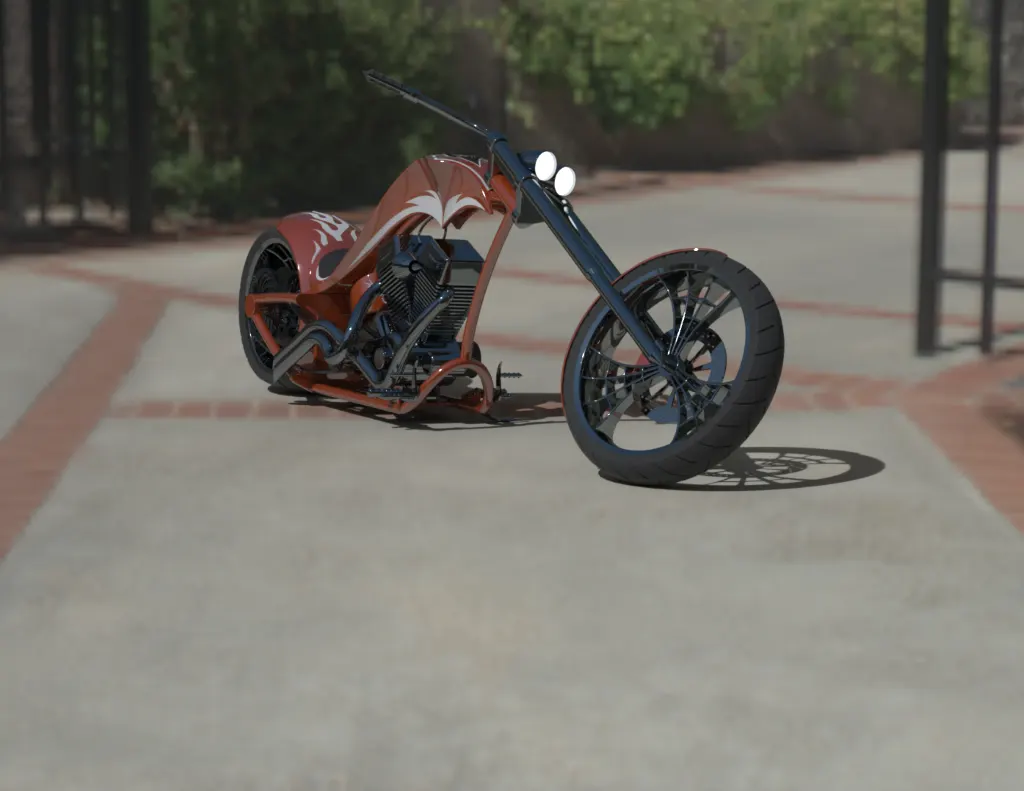

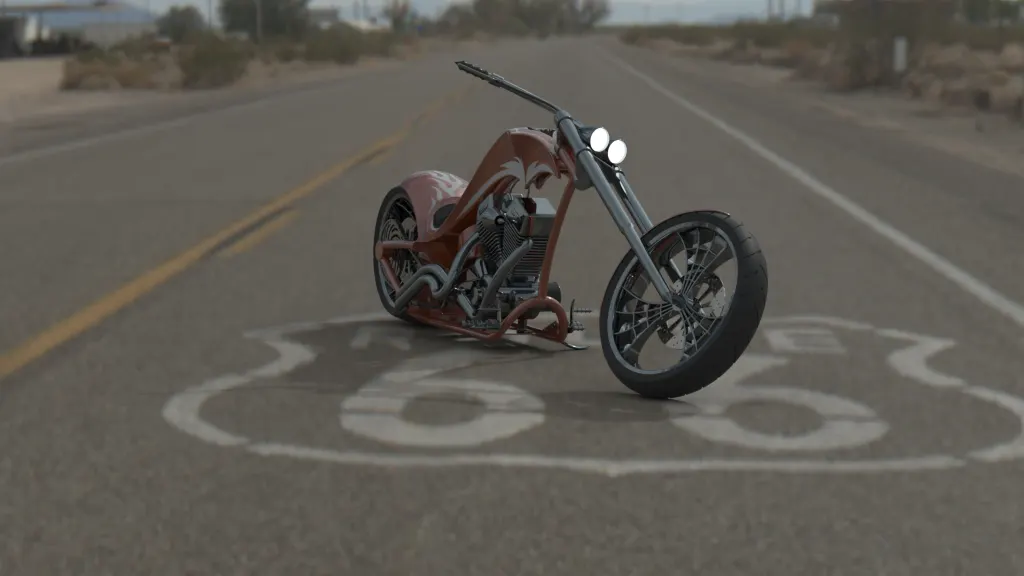

Rendering Images:
