Wiring harness routing & packaging Rules Week 3 Challenge

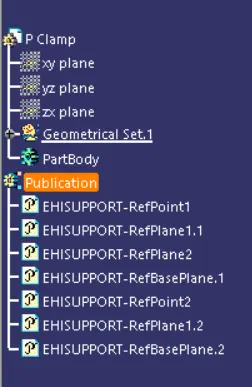

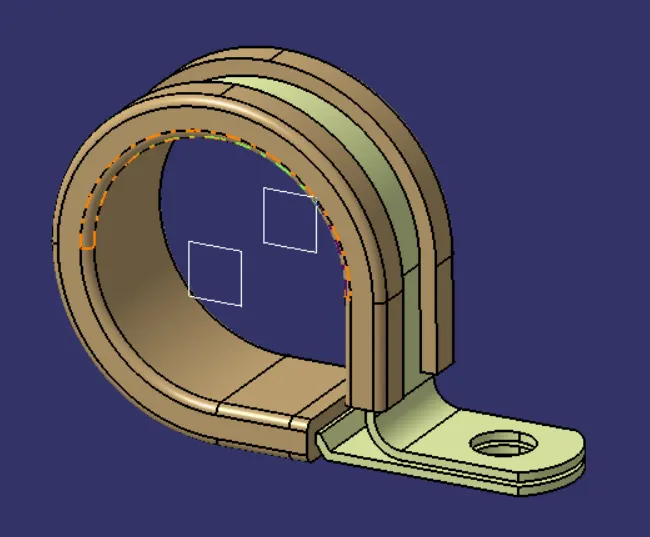

1. The required points and planes are created and the electrical support is defined with entry and exit points and base plane.

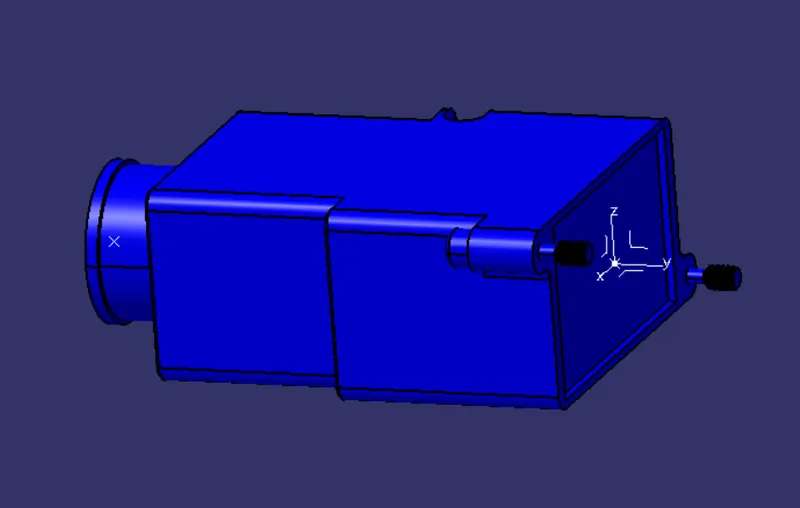

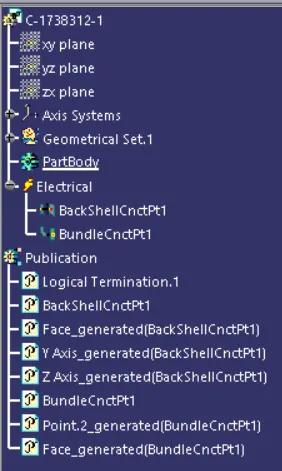

2. The required points and axis system were created. Then, in the electrical part design, the part is defined as backshell and backshell connection point and the bundle connection point is defined.

3.

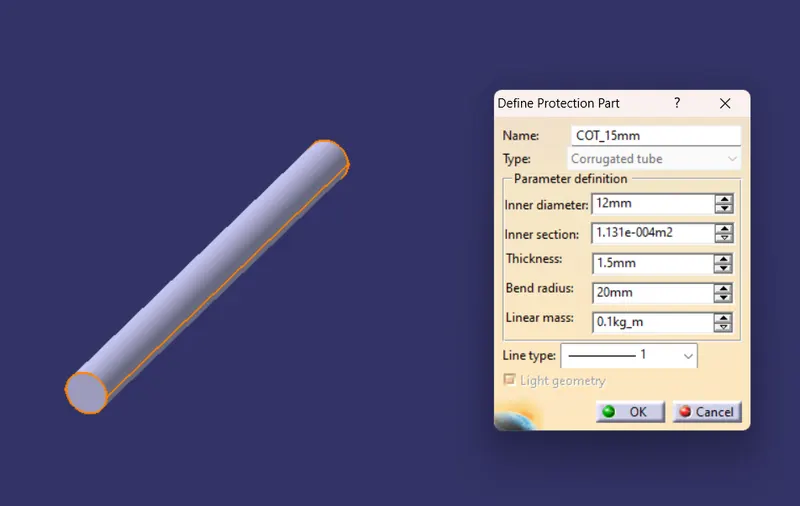

15mm COT

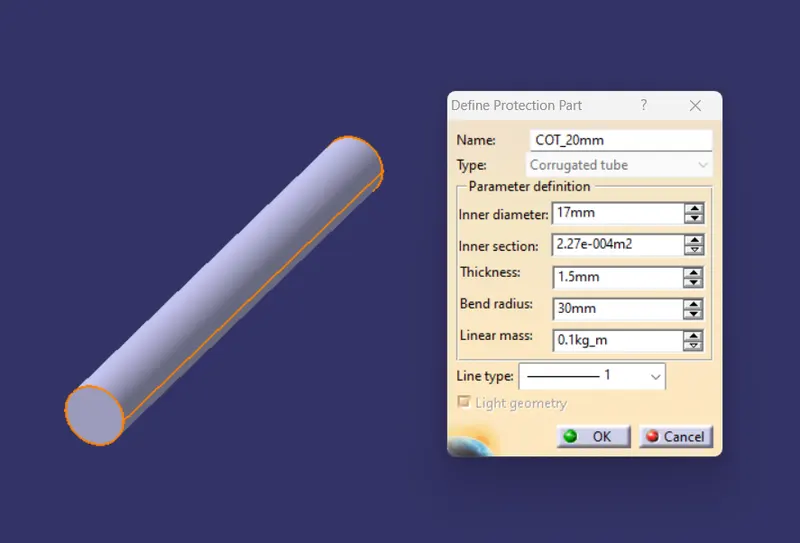

20mm COT

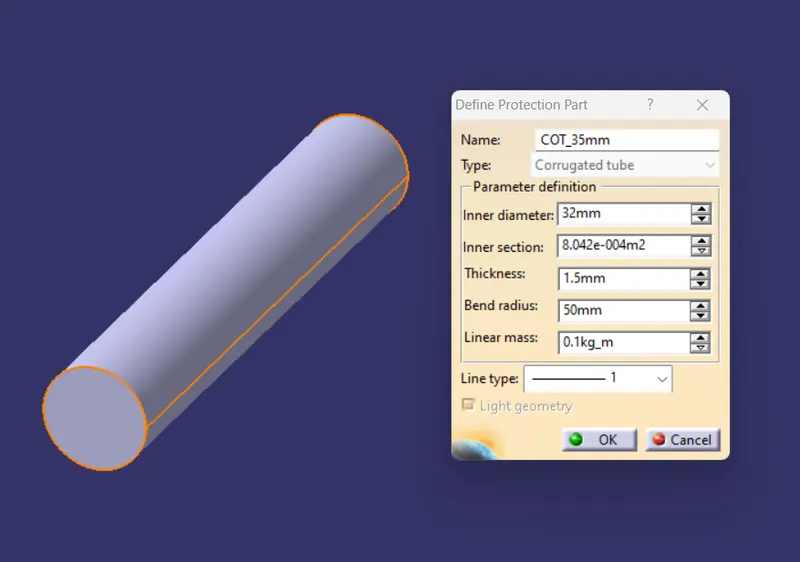

35mm COT

The bend radius is calculated as 1.5x the id.

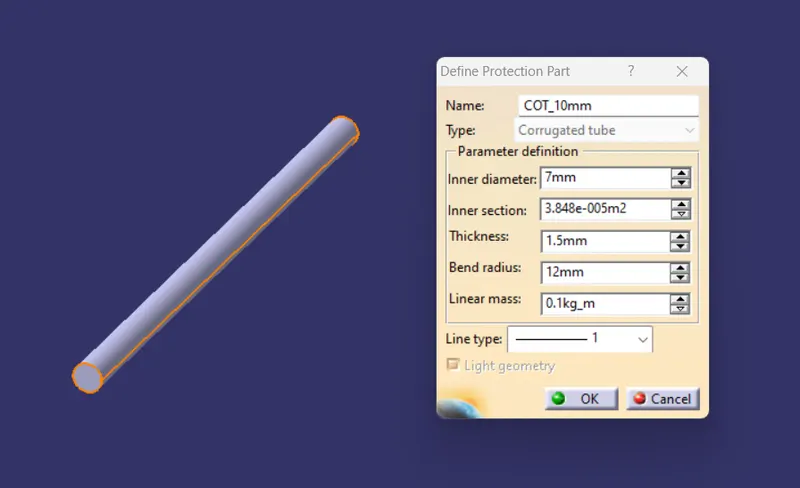

10mm COT

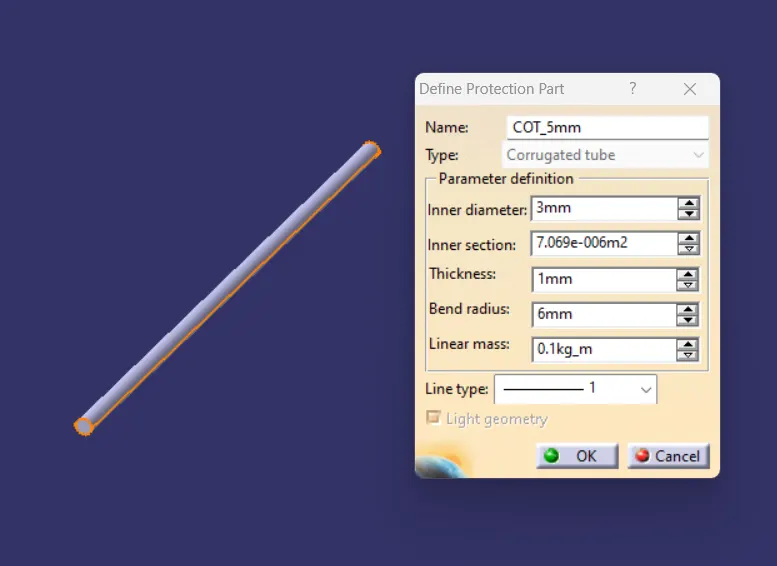

5mm COT

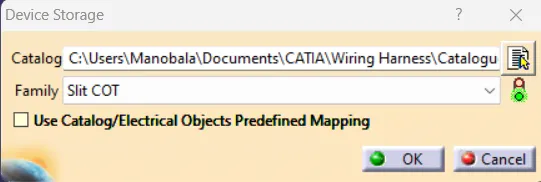

Each part is stored in the slit COT family catalog.
