Wiring harness routing & packaging Rules Week 3 Challenge
Question 1:
Download following cad data & define it as Electrical support using Electrical Part design Workbench. Define all the necessary properties
Answer 1:

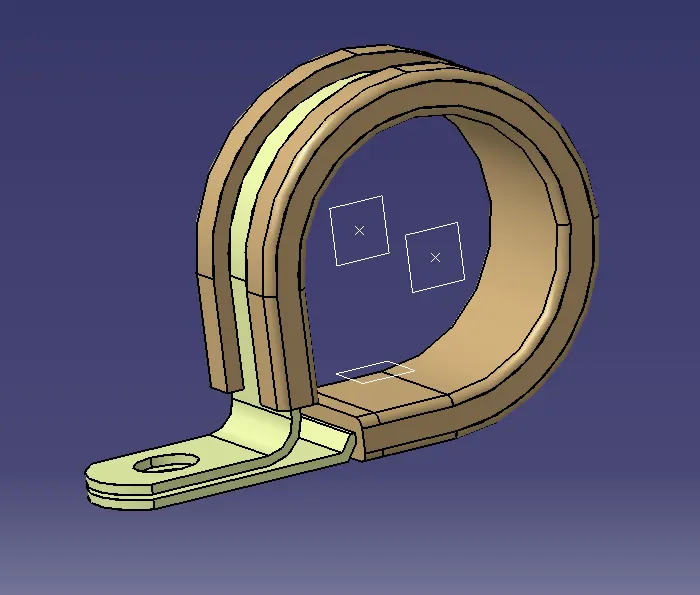

P - CLAMP
Steps:-

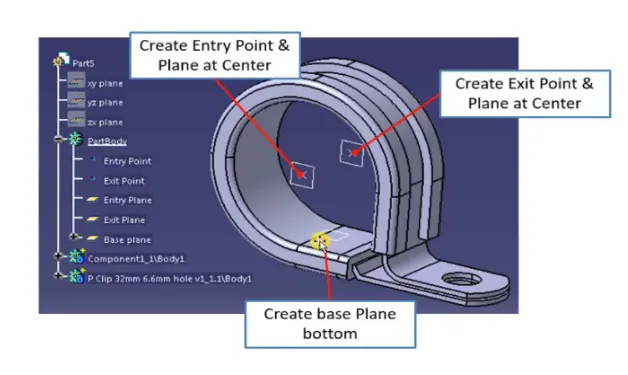

- Create two points one as entry and another as exit point.
- create planes at two points and another at base.
- Switch to Electric part desgn

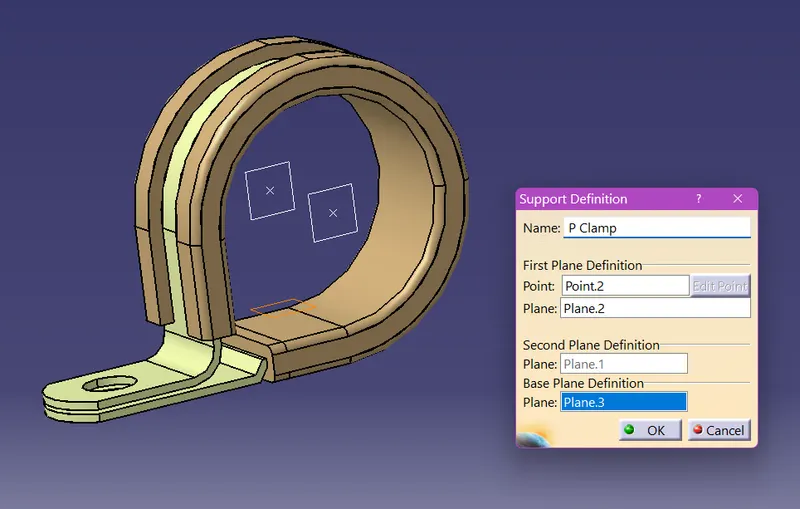

- Click on support defination - select part - select entry point - select entry plane, exit and base plane.
- Again Click on support defination - select part - select exit point - select exit plane and base plane as secondary plane is automatically taken
1.
2.
Question 2:
Download following Back shell cad data & define it as Electrical back shell using Electrical Part design Workbench. Define all the necessary properties
Answer 2:

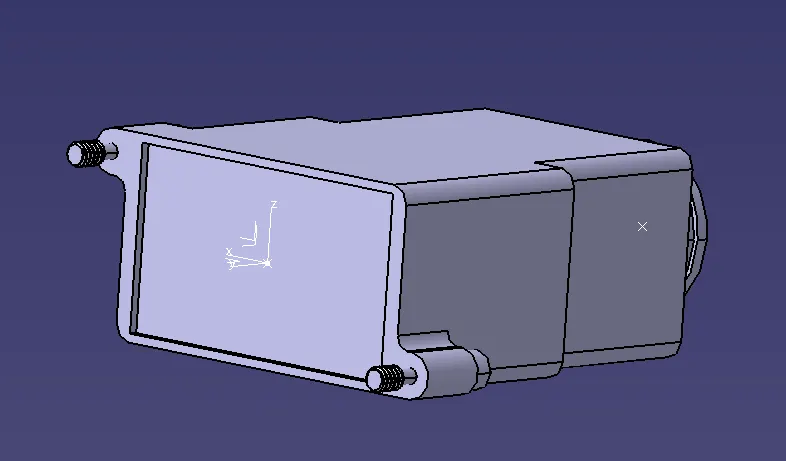

BACK SHELL
- A backshell is an add-on that mounts to a connector's back threads to improve the operational features.
- A backshell's main purpose is to reduce stress on the cable at the point where the wires terminate at the contacts by acting as strain relief.
- Backshells are available in a range of finishes, materials, and angles. Backshells and connections need to be the same material and finish for aesthetic and material compatibility reasons.
- Additionally, most backshells can be ordered in 45-degree and 90-degree angles to facilitate easy cable management.
- The processes listed below must be followed in order to establish the backshell's electrical characteristics

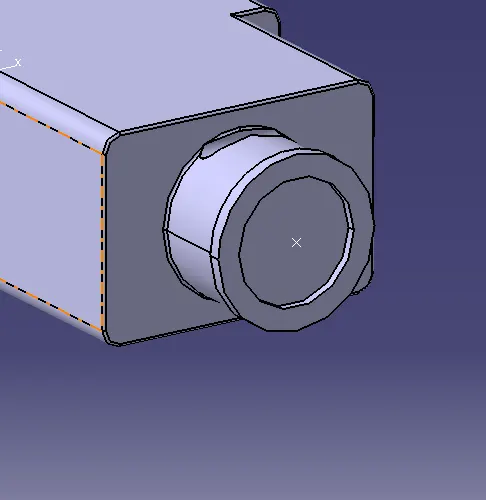

Step1- Creating backshell coneecting Point and axis:
STEP2 - Creating point for bundle connector:

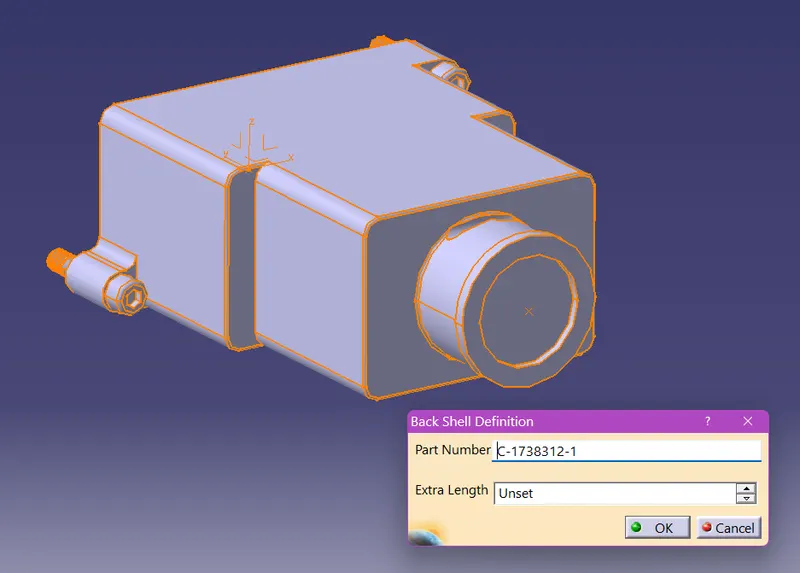

Step 3 - Defining the component as the Backshell:

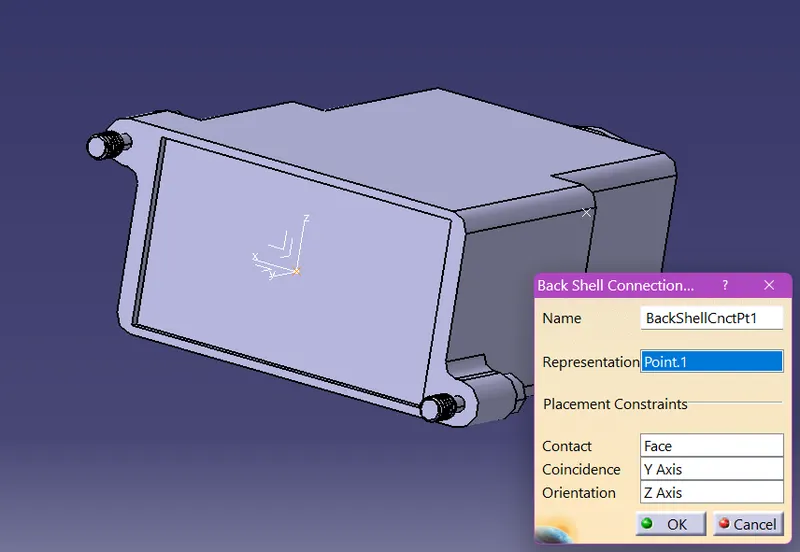

Step 4- Defining the Backshell connection point:

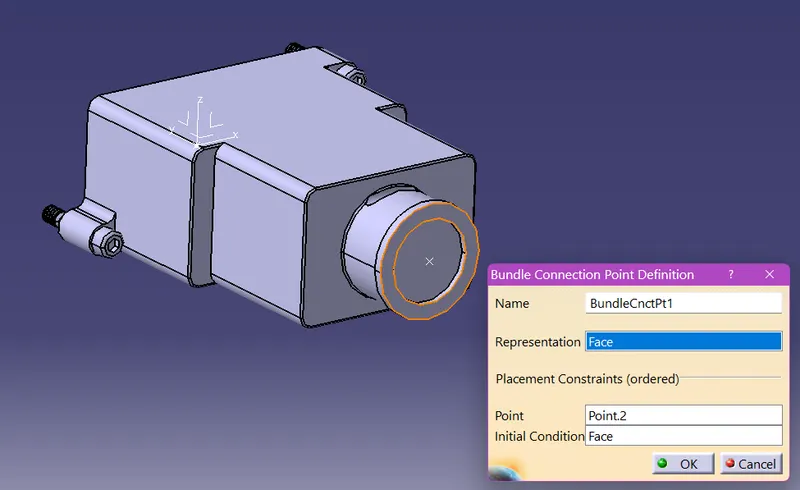

Step 5- Defining the Bundle connection point:
Question 3:
Create Following Corrugated tubes & Add them in Catalogue under “Slit COT” family.
|
Name |
ID (mm) |
OD (mm) |
Thickness (mm) |
|
15mm COT |
12 |
15 |
1.5 |
|
20mm COT |
17 |
20 |
1.5 |
|
35mm COT |
32 |
35 |
1.5 |
|
10mm COT |
7 |
10 |
1.5 |
|
5mm COT |
3 |
5 |
1 |
Answer 3:

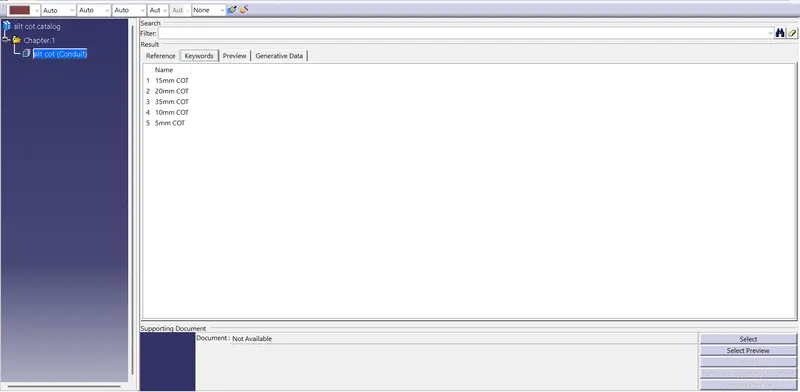

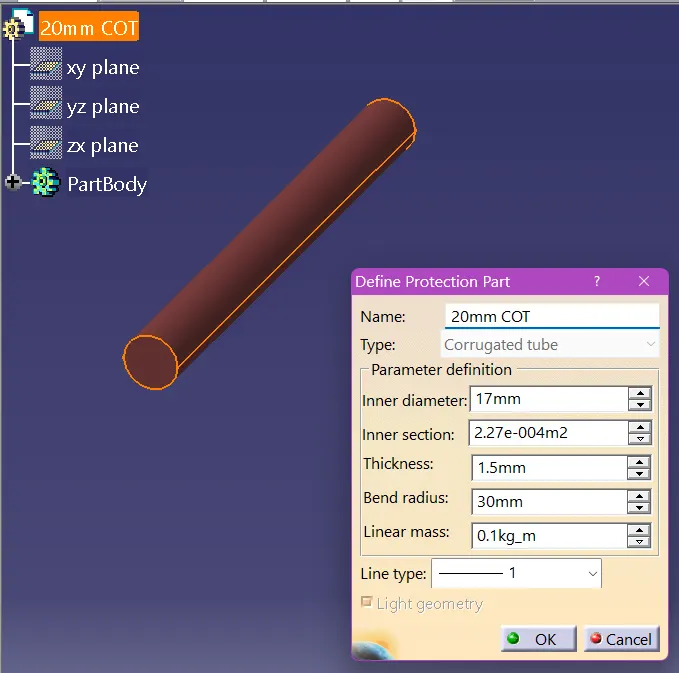

1.catalogue as slit cot

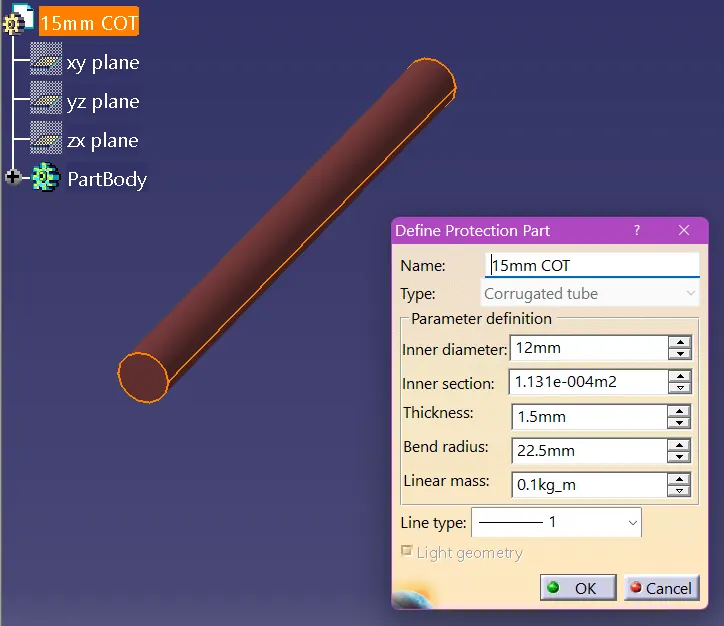

1.15mm Cot
2.20mm Cot

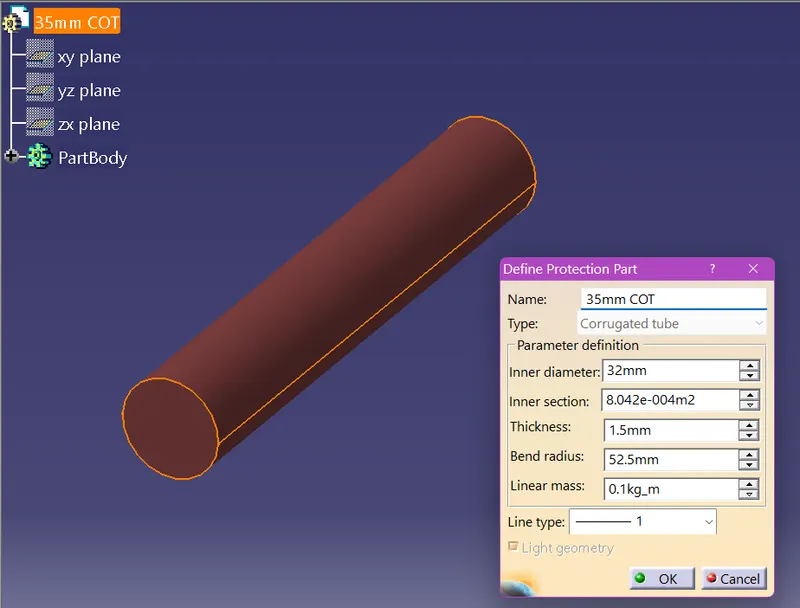

3.35mm Cot
4.10mm Cot

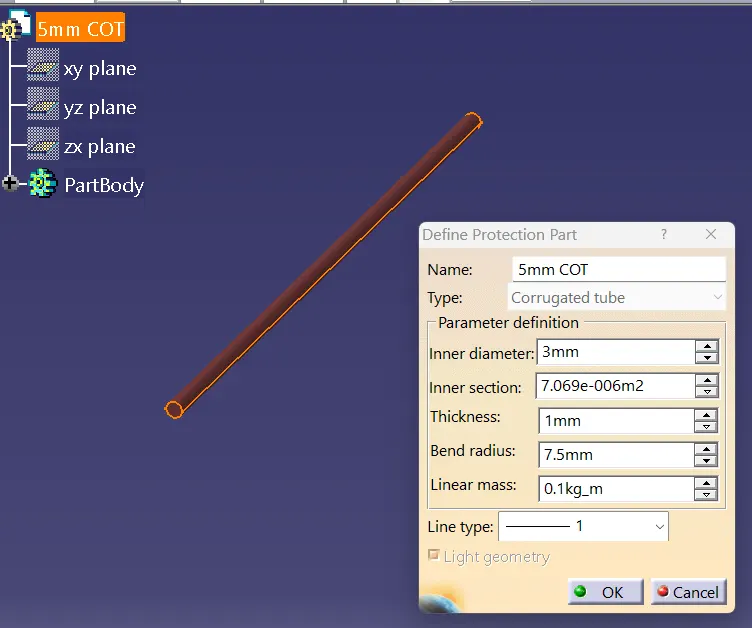

5.5mm Cot
NOTE:
1.All dimenstion are as per given tabular column.
2.Bending radius is 1.5 times of OD
3.The given brown colour is denotes corogated tubes
