Wiring harness routing & packaging Rules Week 3 Challenge
ANSWER:

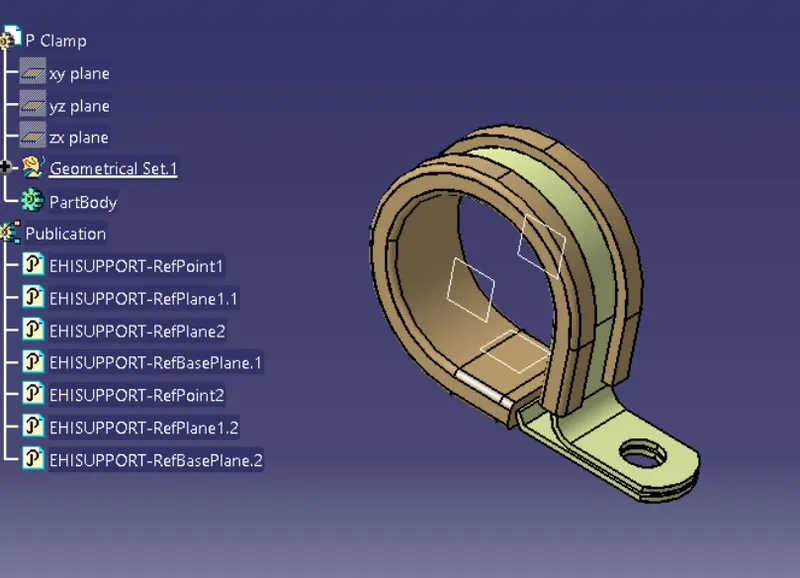

1) For below P-clamp defined two entry points and one base plane and its defined as supporting part in electrical part definition.

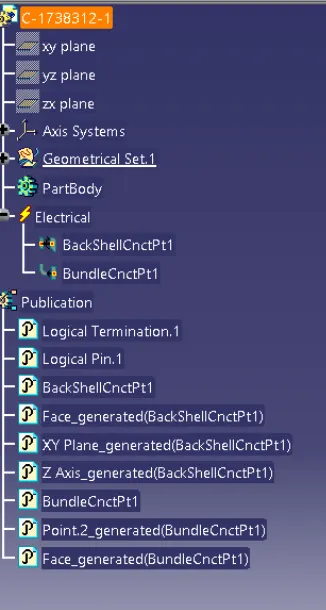

2) Tyco 1738312-1 Below backshell defined as backshell part in the electrical part definition work bench,also defined back shell connection point & bundle connection point.

Process:

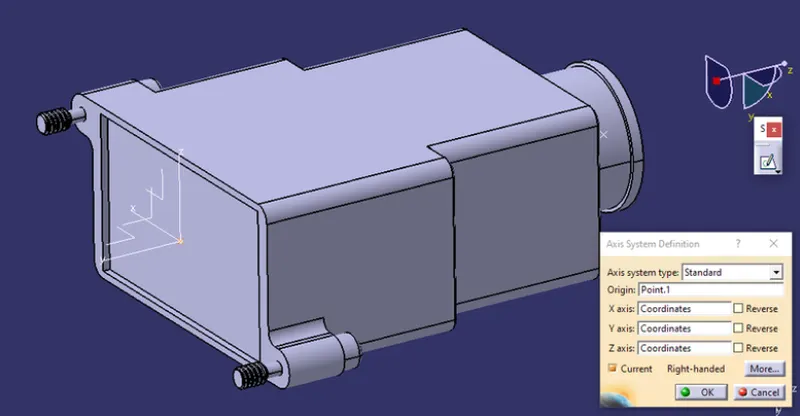

- create Back shell entry point.
- create axis system for back shell entry.
- create bundle connection point.
- switch to Electrical part design.
- Define part electricaly as back shell.

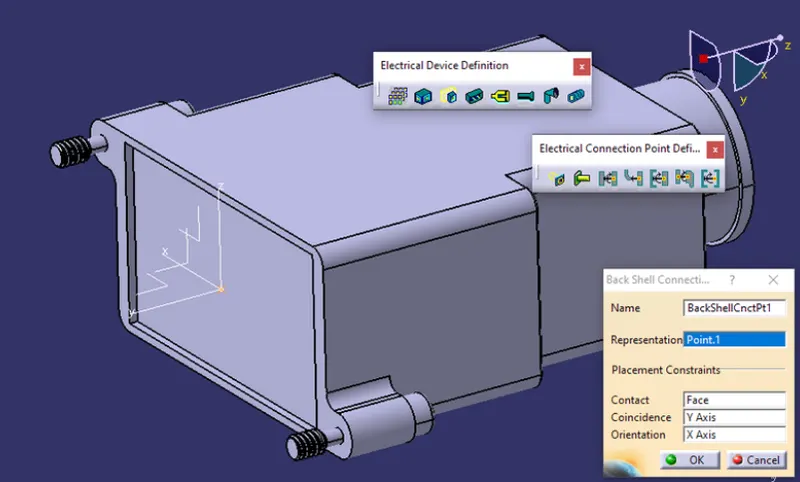

- Then define Back shell connection point.
- Define bundle connection point

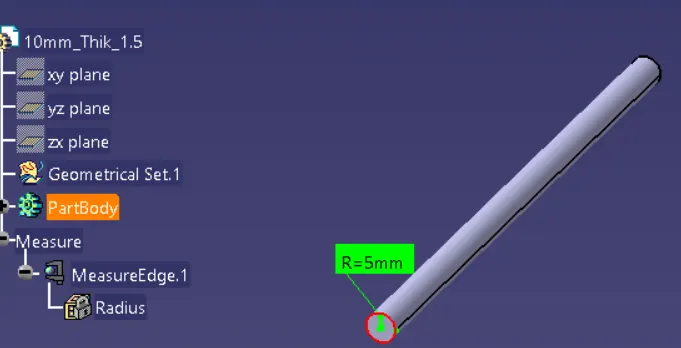

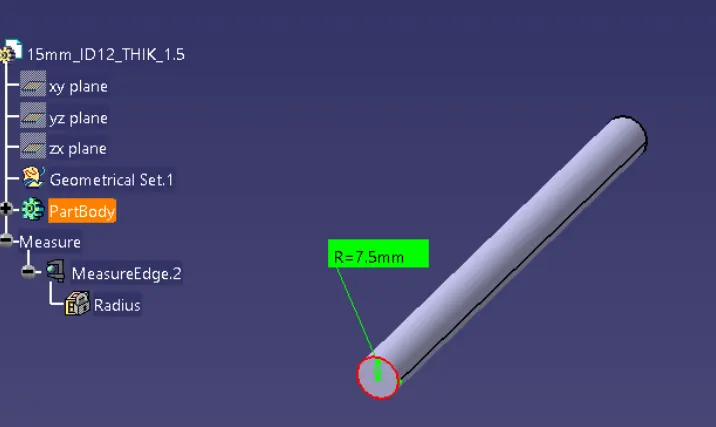

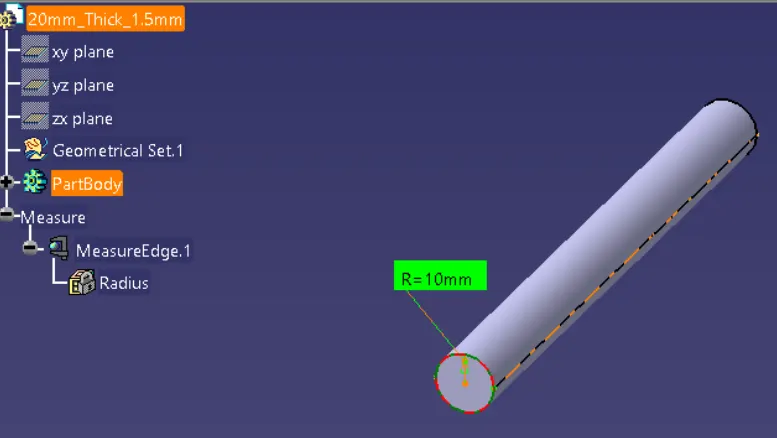

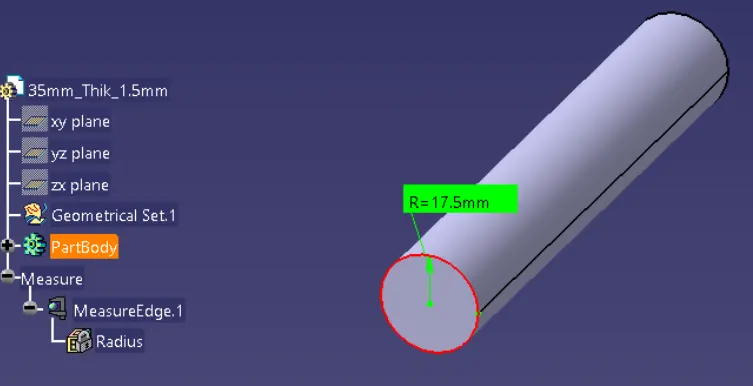

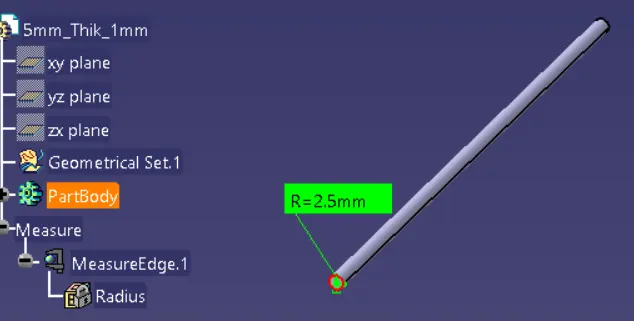

3) Create Following Corrugated tubes & Add them in Catalogue under “Slit COT” family.
Name ID(mm) OD(mm) Thickness (mm)
15mm COT 12 15 1.5
20mm COT 17 20 1.5
35mm COT 32 35 1.5
10mm COT 7 10 1.5
5mm COT 3 5 1
Process:
- Switch to Electrical part design
- Select Define protection Part
- Click on part (on file name in specification tree)
- Provide given parameters and bend radius as '1.5 x Outer Dia'.





CONCLUSION:
The cad part model the of P-clamp is converted into the electrical support model, back shell into the electrical back shell and create different corrugated tubes as per the given data and add them to a new catalog thereby understand the methods follow to create and convert the catalog, corrugated tubes, clips, back shells, and wiring harness routing and packaging rules.
