Wiring harness routing & packaging Rules Week 3 Challenge

Q1)

process:

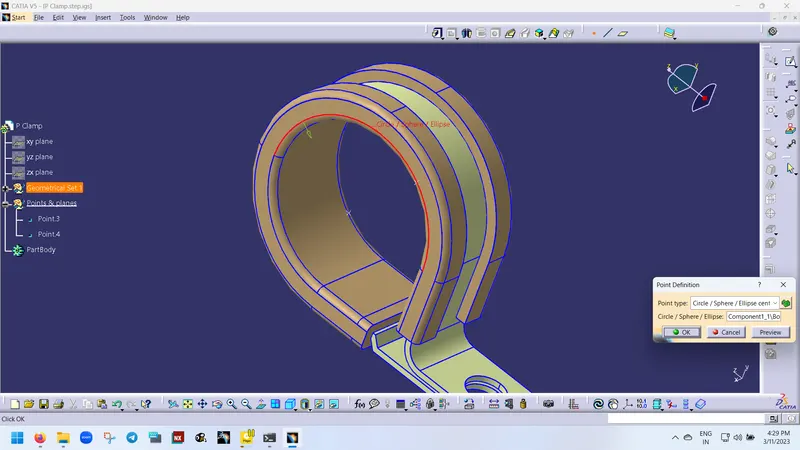

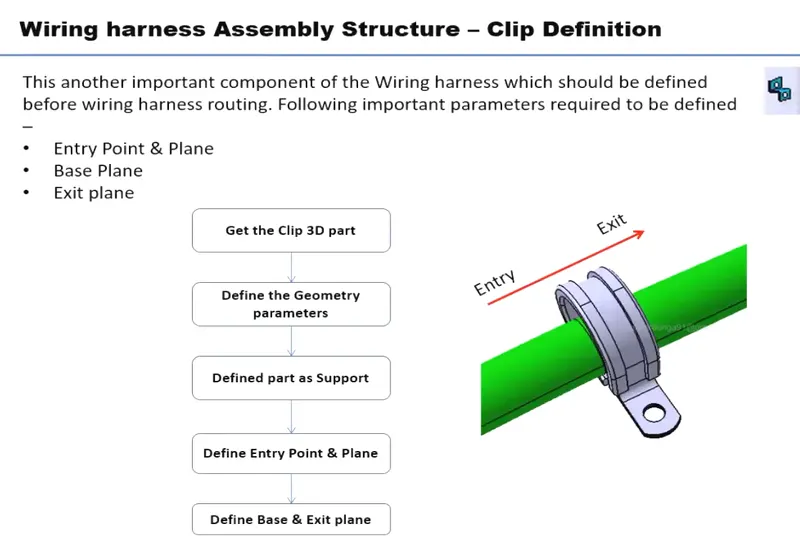

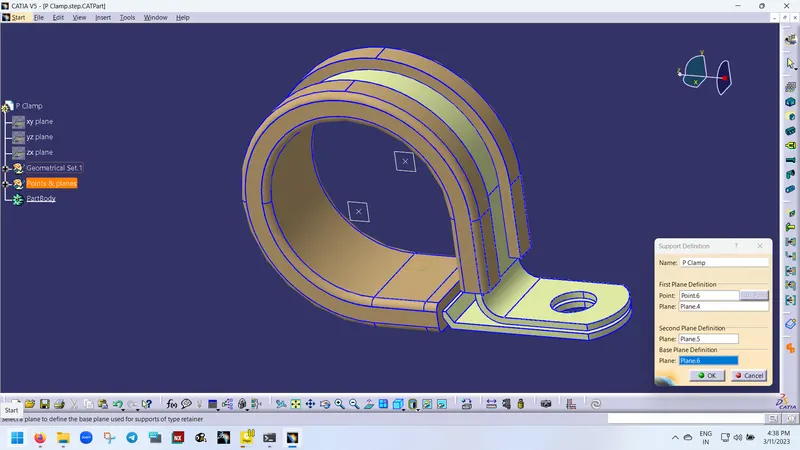

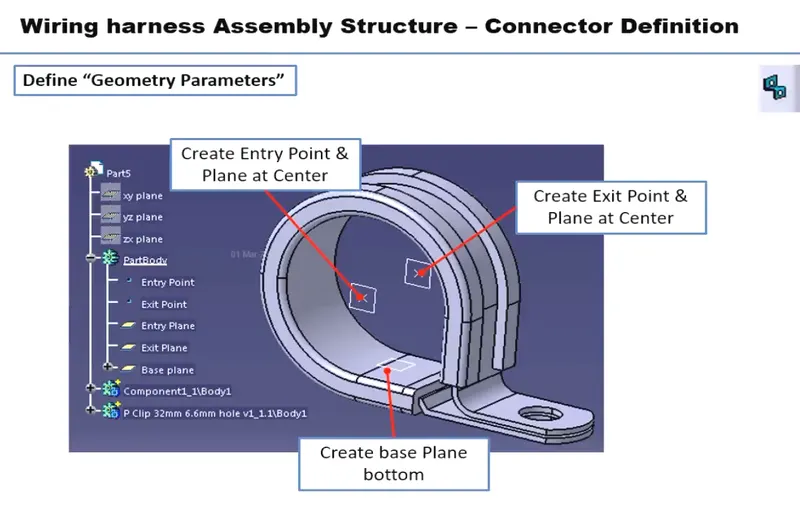

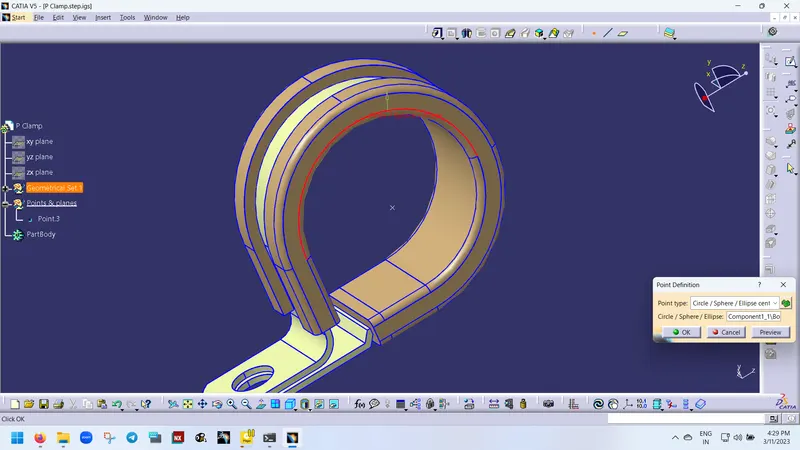

• Create two points one as an entry and another as the exit point.

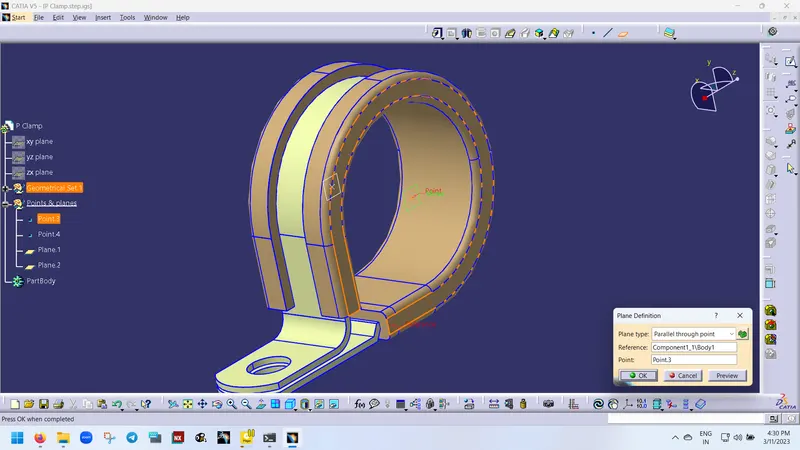

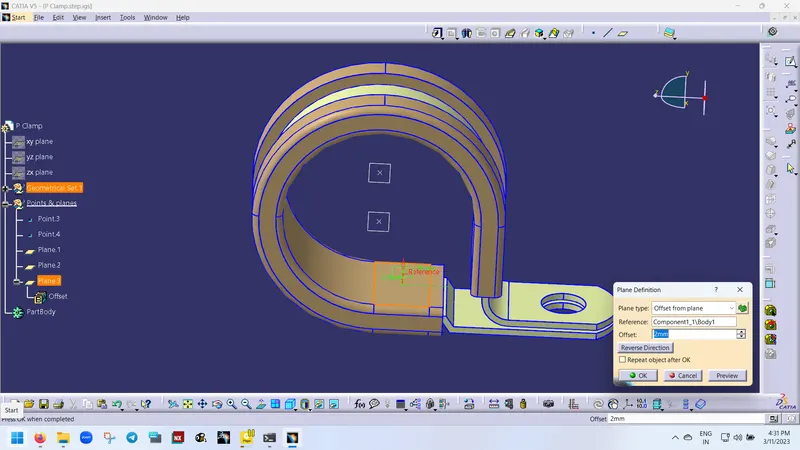

• create planes at two points and another at the base.
• Switch to Electric part design

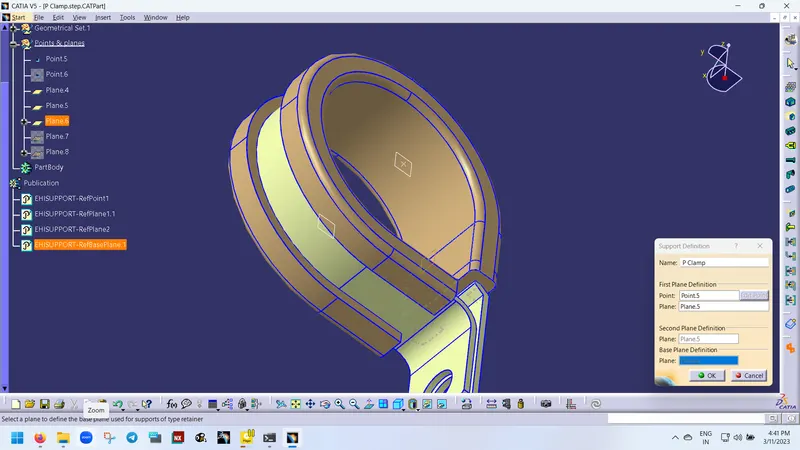

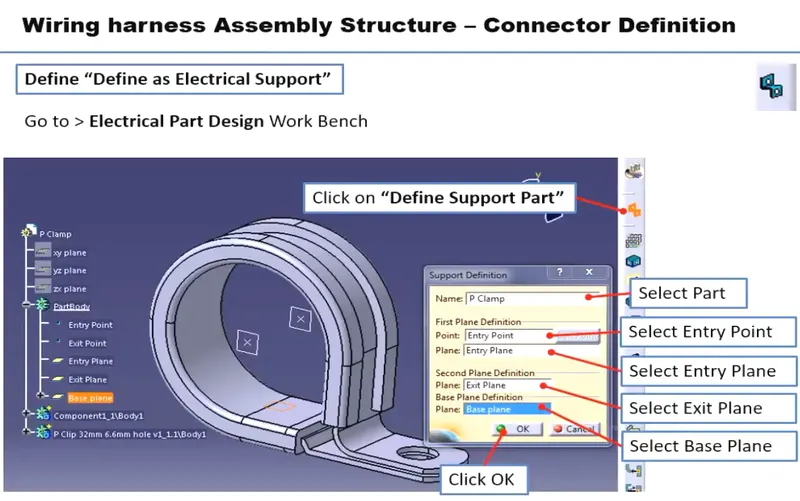

• Click on support definition - select part - select entry point - select entry plane, exit, and base plane.

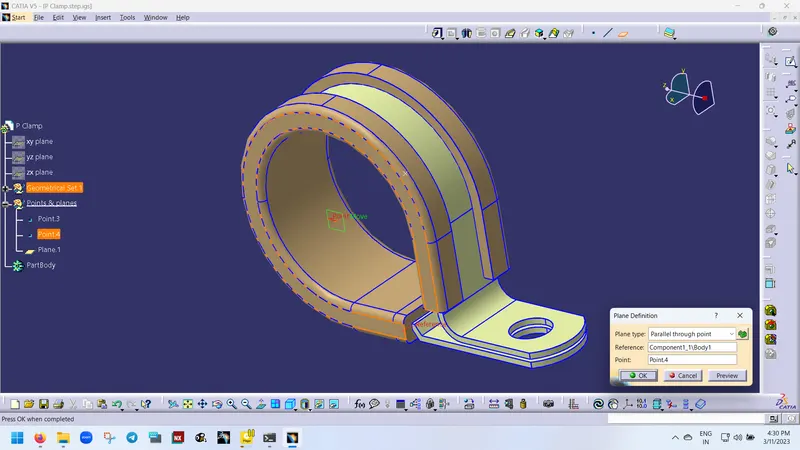

• Again Click on support definition - select part - select exit point - select exit plane and base plane as the secondary plane is automatically taken.

Q2)

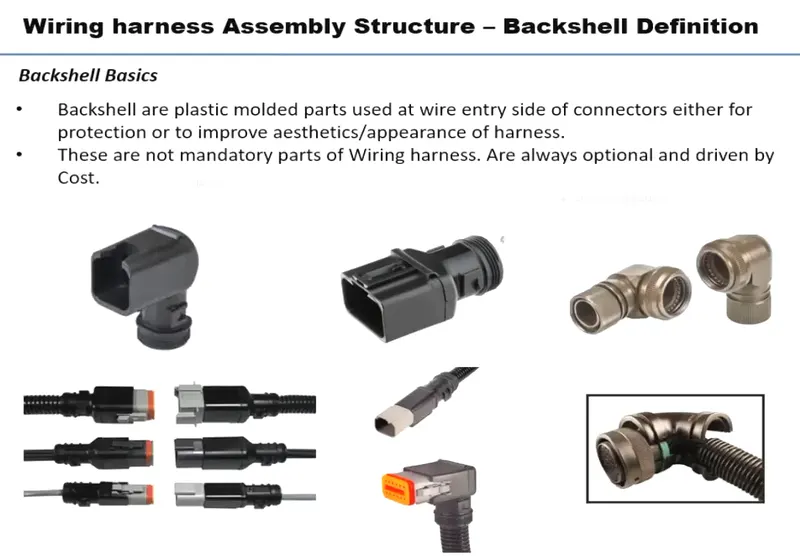

Process:

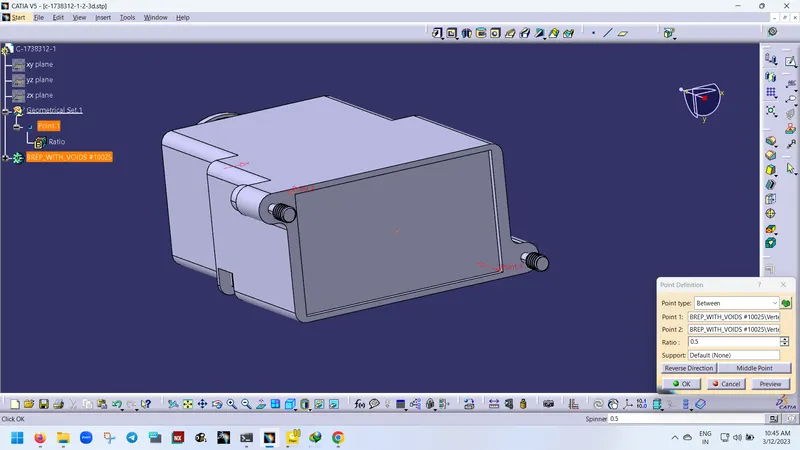

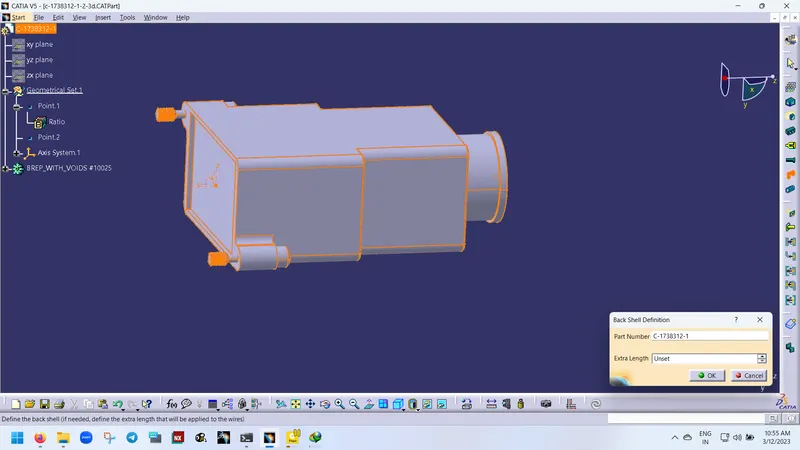

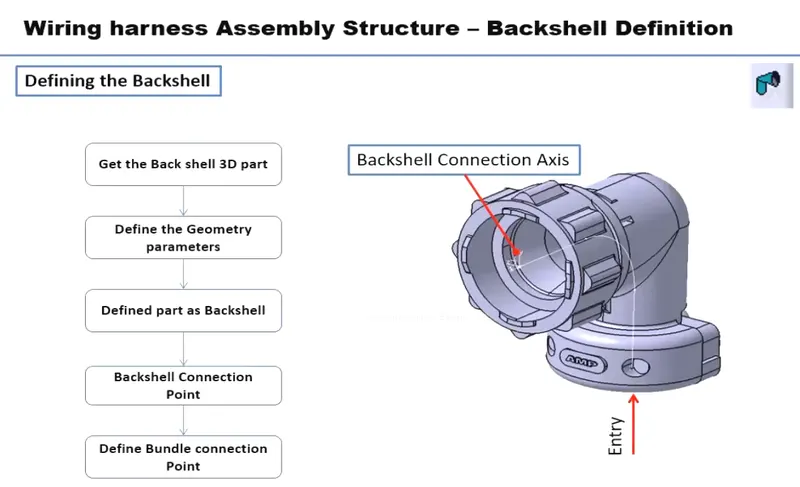

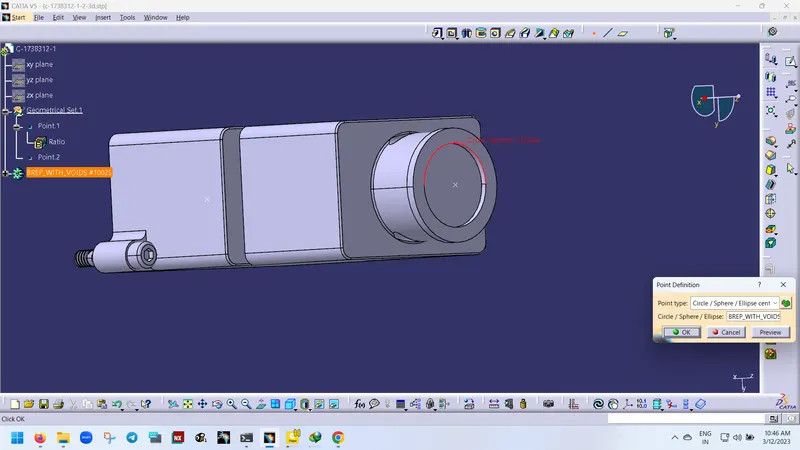

• create a Backshell entry point.

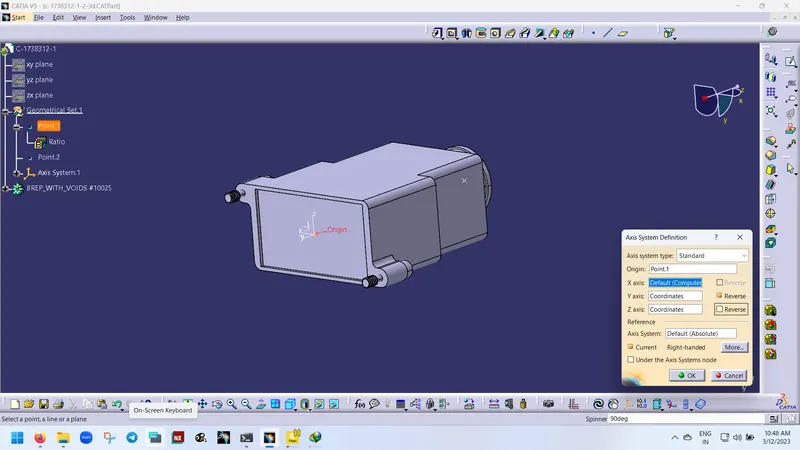

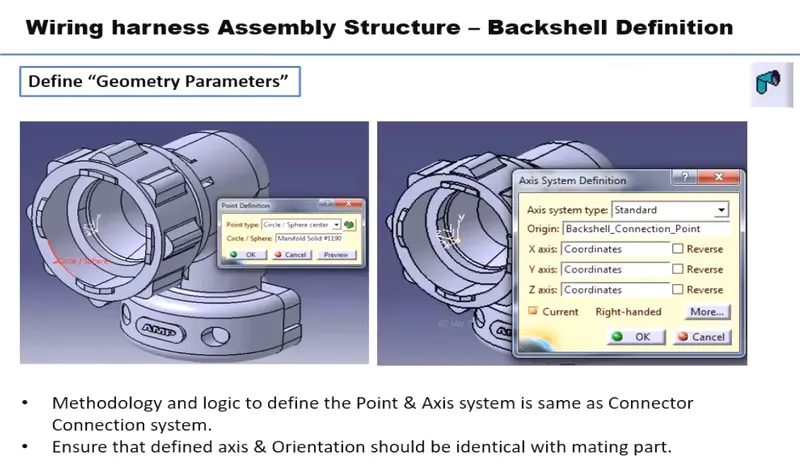

• create an axis system for back shell entry.
• create bundle connection point.

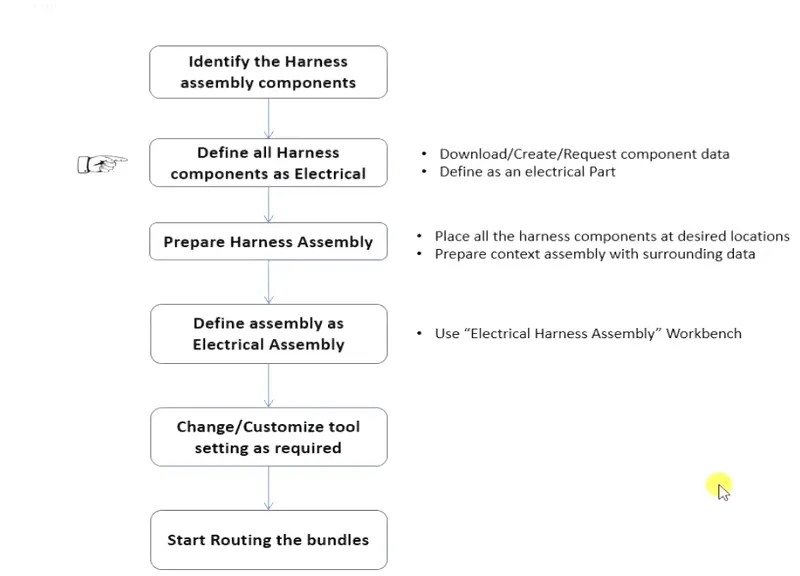

• switch to Electrical part design.
• Define the part electrically as the back shell.

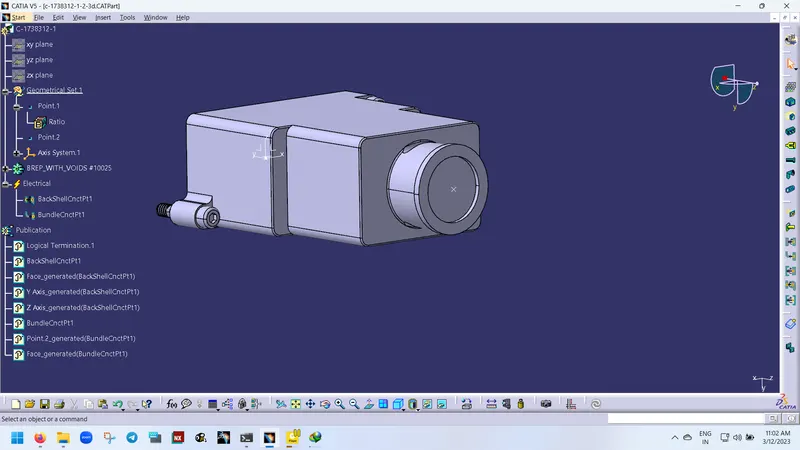

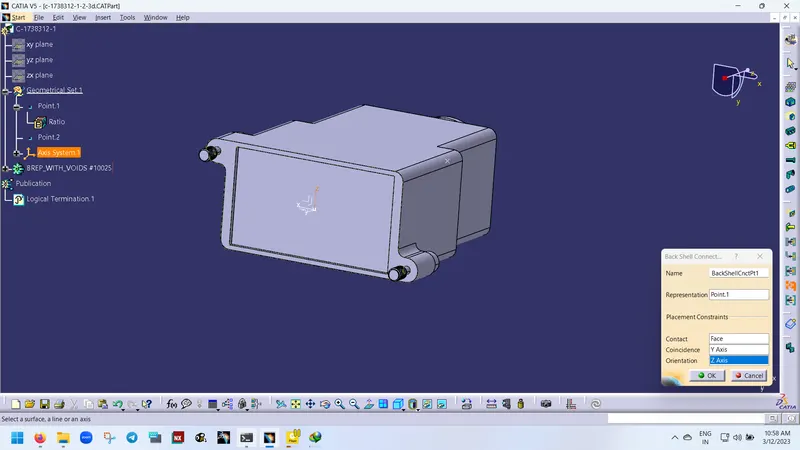

• Then define the Backshell connection point.

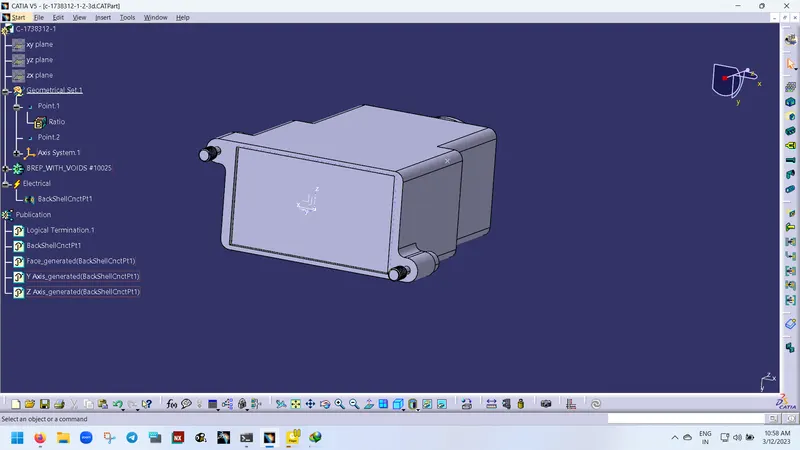

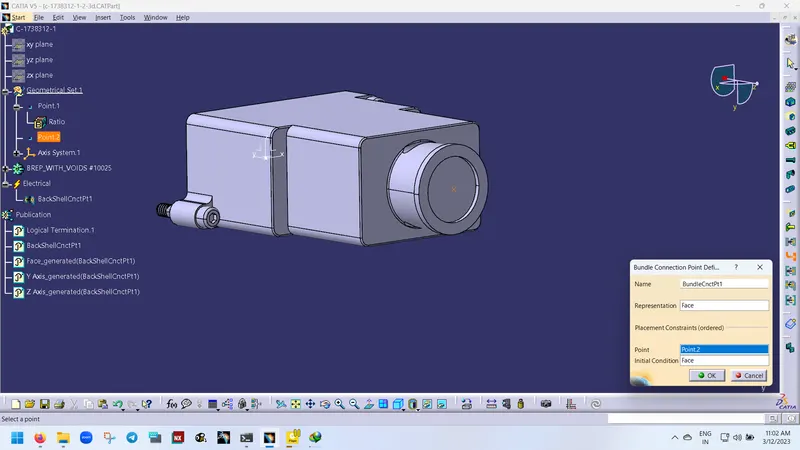

• Define bundle connection point.

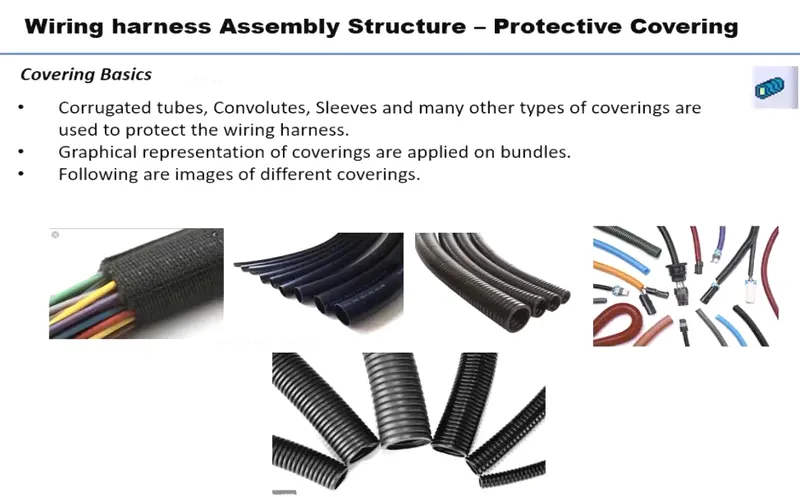

Q3. Create the Following Corrugated tubes & Add them to Catalogue under the “Slit COT” family.

Name	ID (mm)	OD (mm)	Thickness (mm)
15mm COT	12	15	1.5
20mm COT	17	20	1.5
35mm COT	32	35	1.5
10mm COT	7	10	1.5
5mm COT	3	5	1

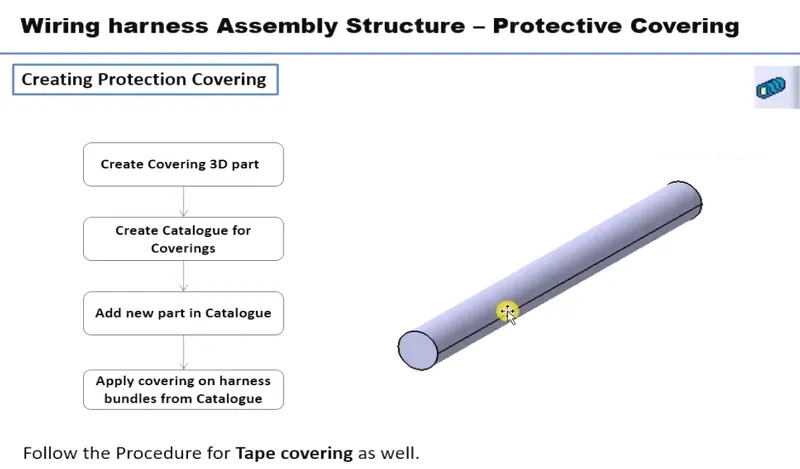

Process:

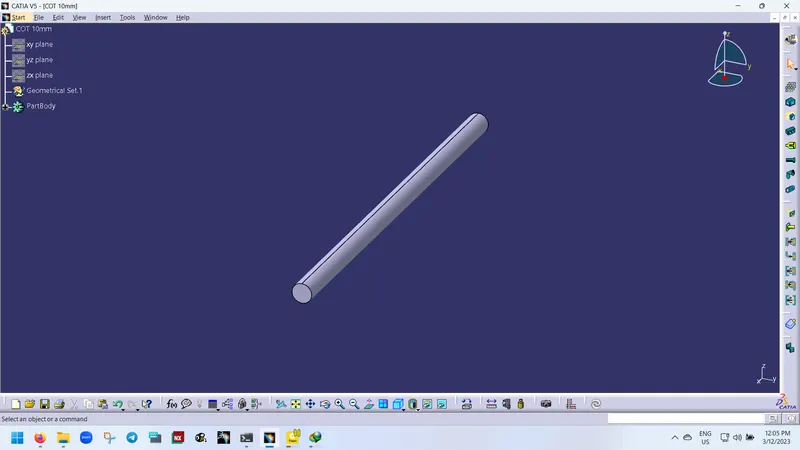

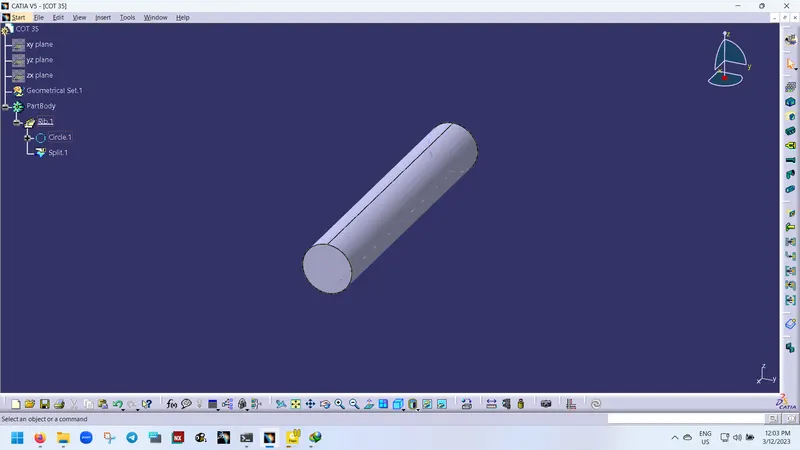

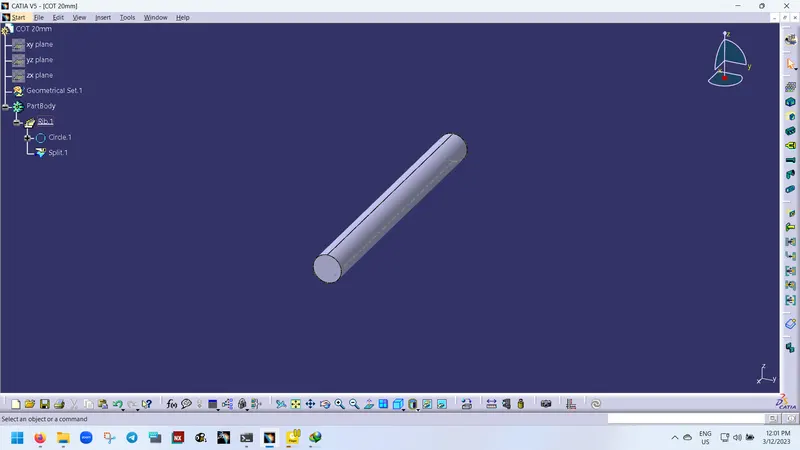

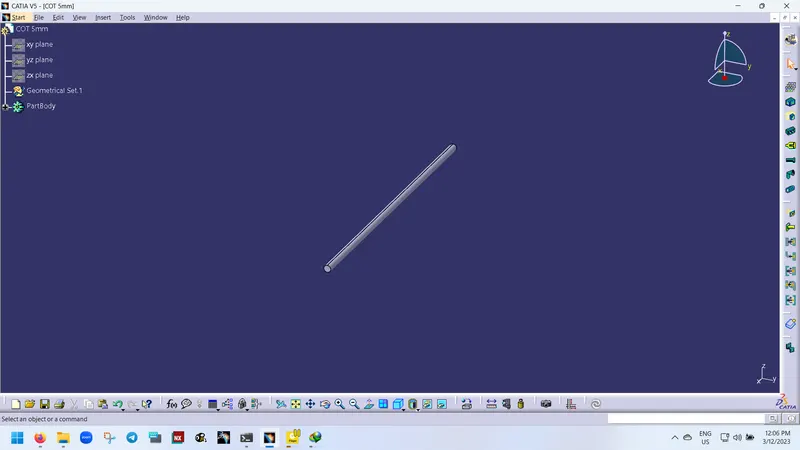

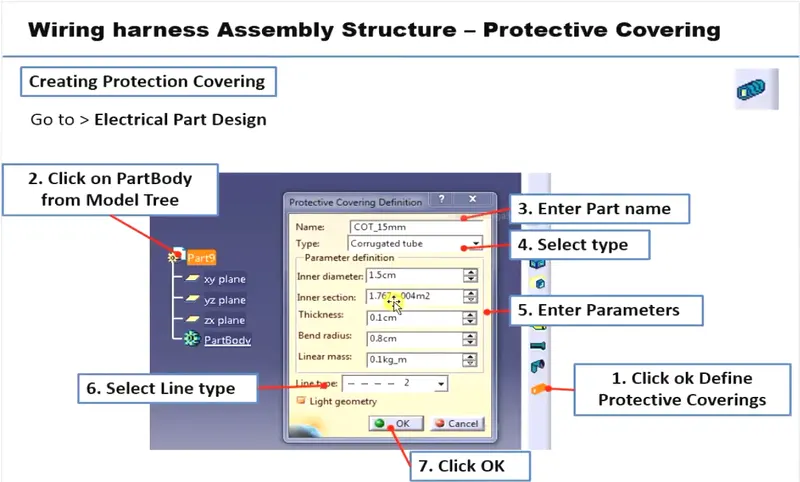

• Switch to Electrical part design
• Select Define protection Part
• Click on part (on the file name in specification tree)

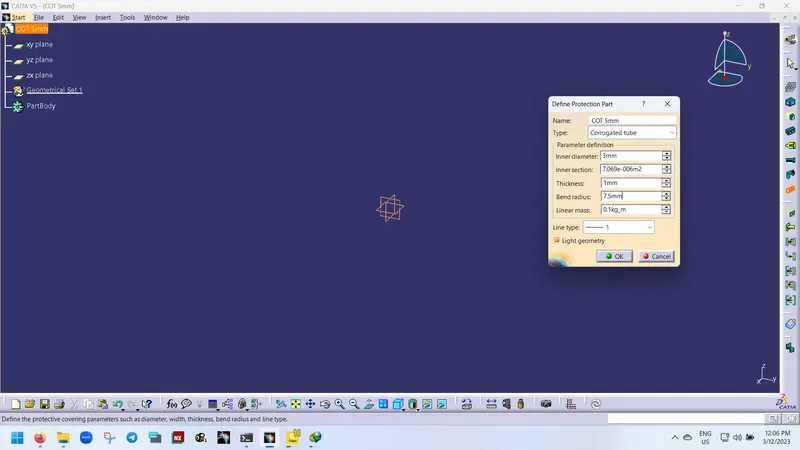

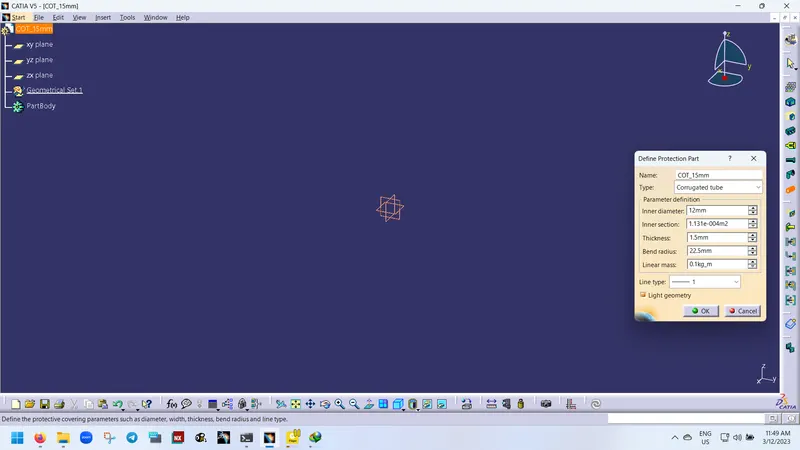

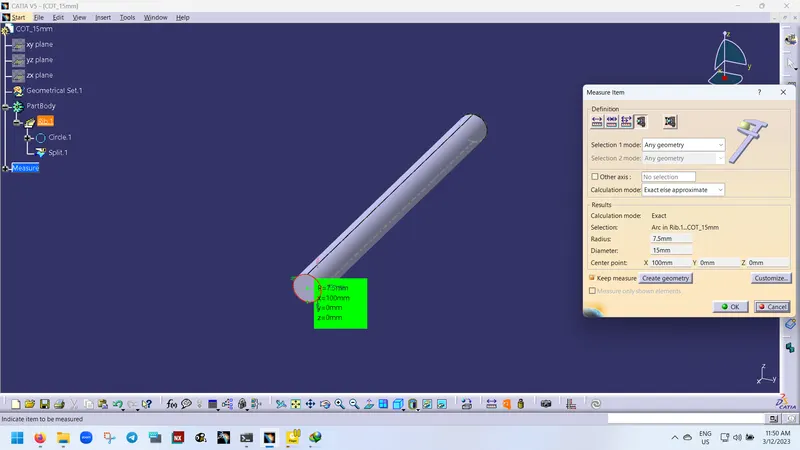

• Provide given parameters and bend radius as '1.5 x Outer Dia'.

Catalogue Creation:

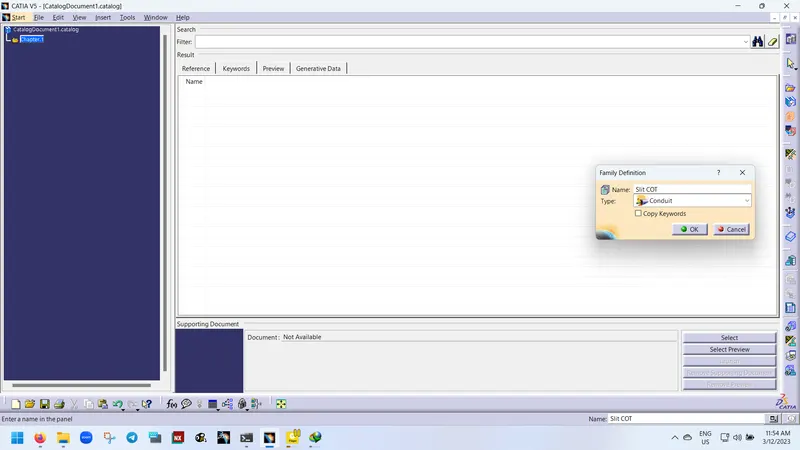

• the new part - catalogue document - add family - give name - type - select Conduit - save.

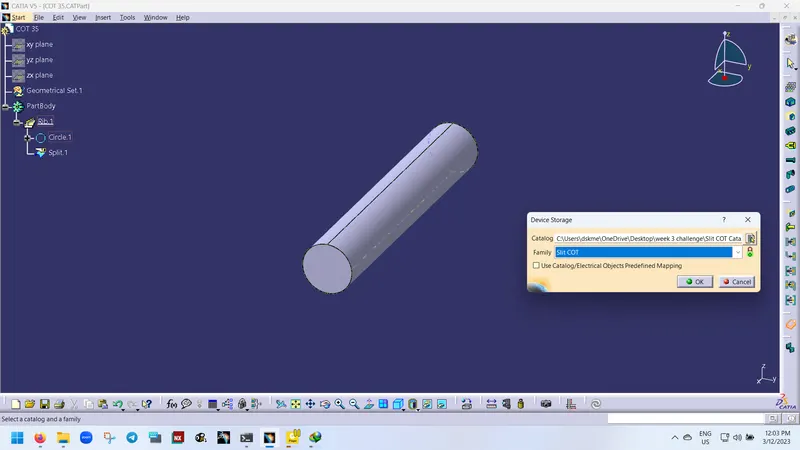

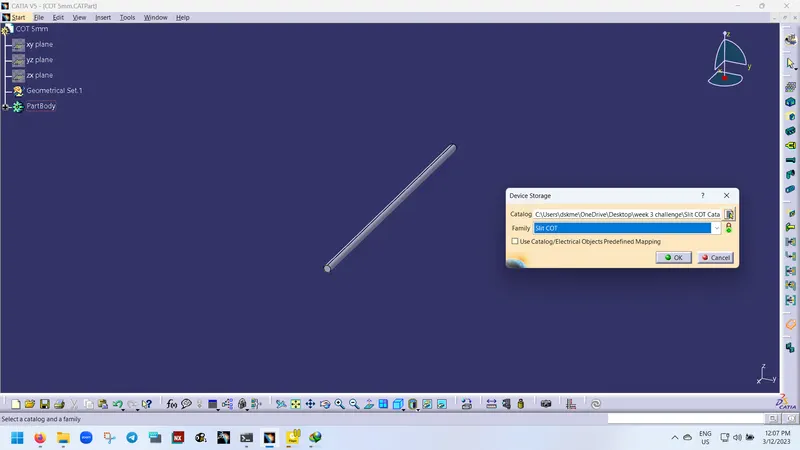

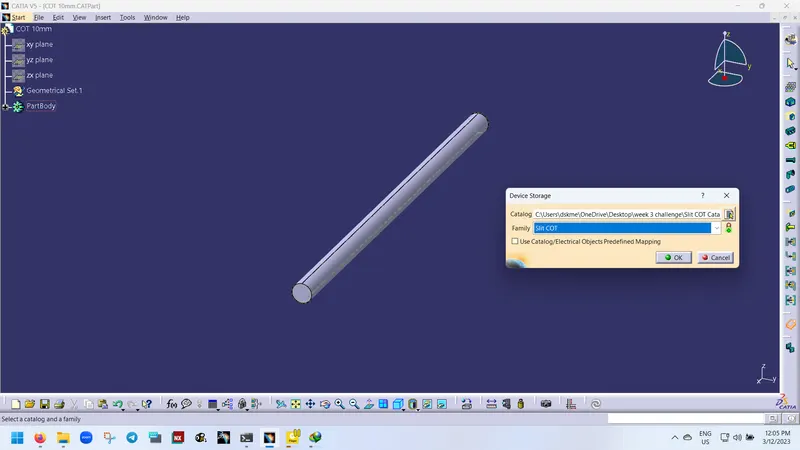

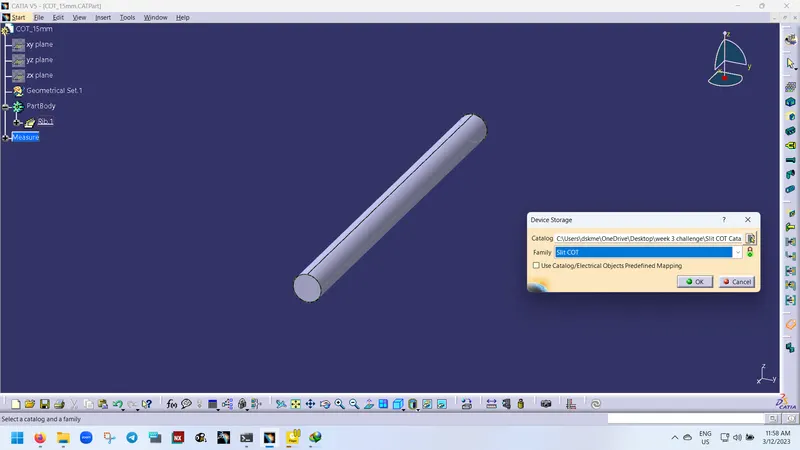

• Open part to add catalogue - store device command - select catalogue - family - Slit_cot_tube - ok
