Week 8 - Challenge 1 - Base Bracket Design

SCREENSHOTS OF BASE BRACKET DESIGN:

REPORT ON DRAFT ANALYSIS:

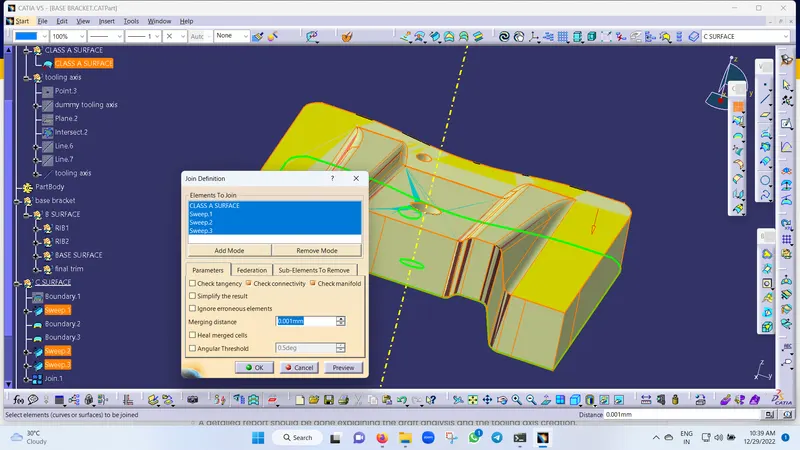

• Check the connectivity of the Class A Surface Ensure that there is no gap between the component, using the join command.

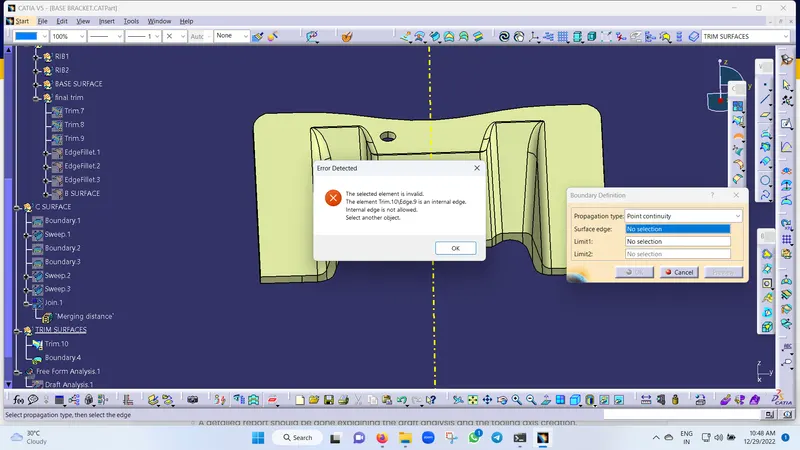

  We can visually check it or by clicking the boundary command. It has 3 boundaries one outer and two inner circle boundaries. Therefore the first check was completed.
• Find the tooling axis of the component. The tooling axis is nothing but the mould opens or the cavity opens. Check visually which is the best possible tooling axis. Check all three axis. Along x it is possible but expensive and y is not possible.
  z is the best possible tooling axis.

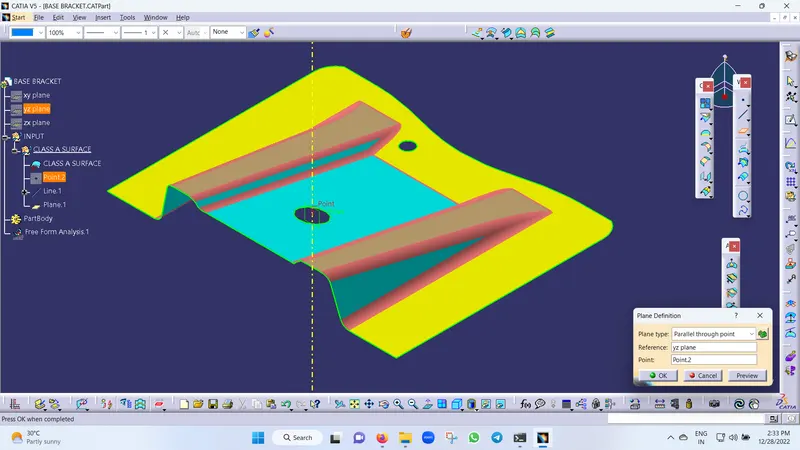

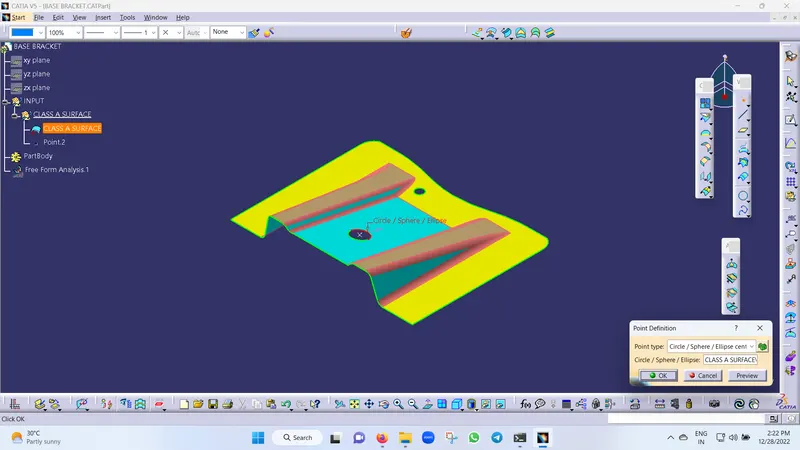

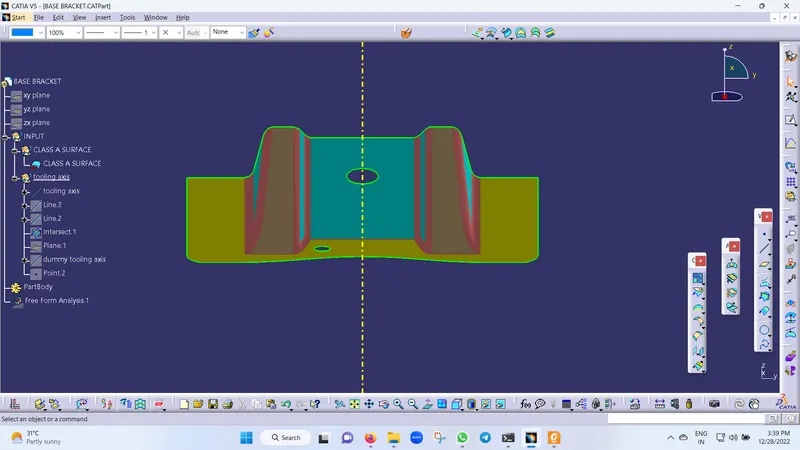

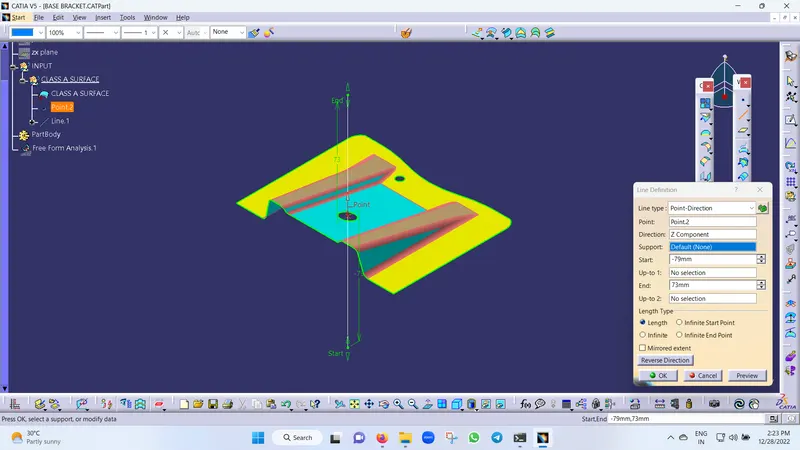

Creating a Tooling axis along z:

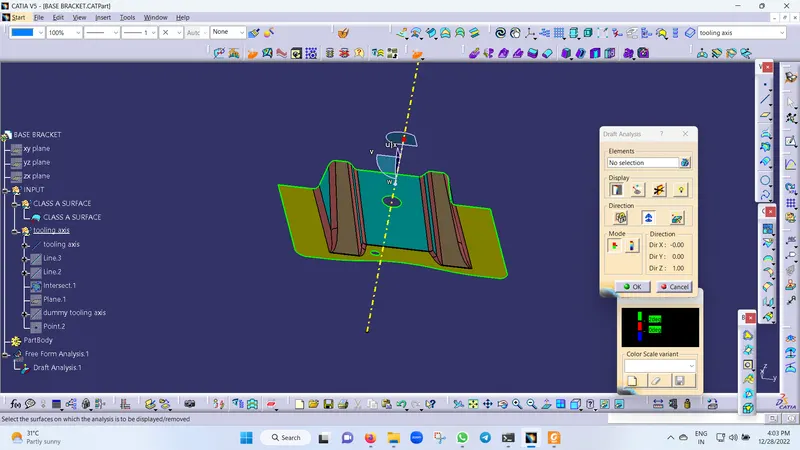

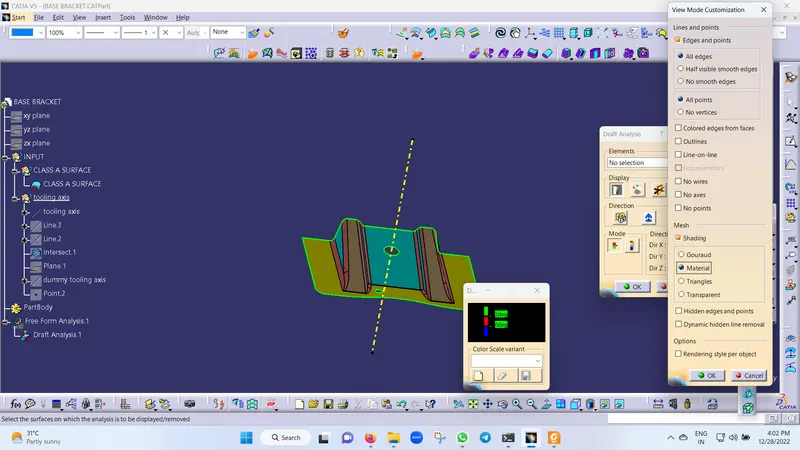

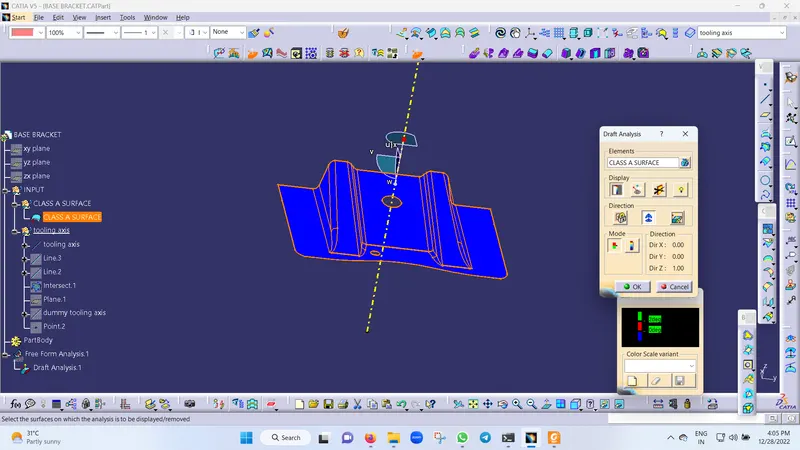

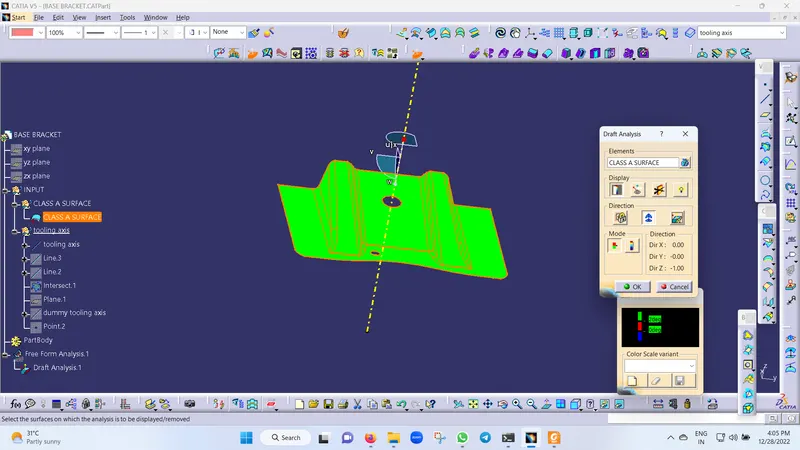

Therefore the main tooling axis is along the z-axis. Now perform the Draft analysis using the Featured Draft Analysis tool in the tools. Then after opening the draft analysis toolbox go for the compass and place the compass aligned to the tooling axis and click on the lock symbol after aligning and further click on the surface.

Creating Class B Surface:

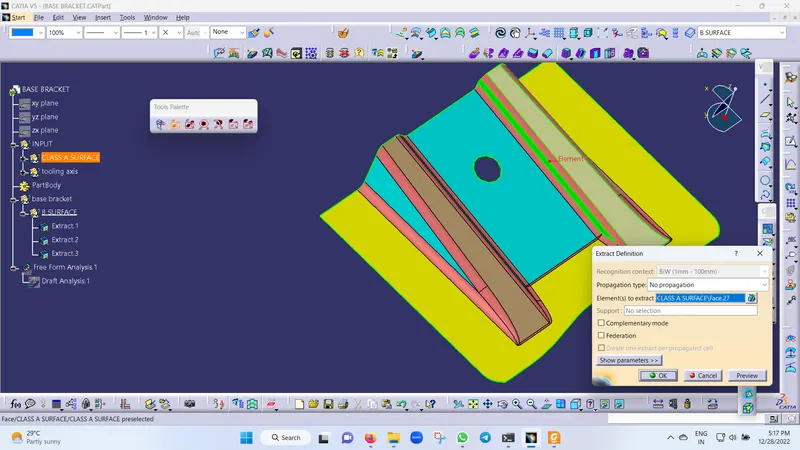

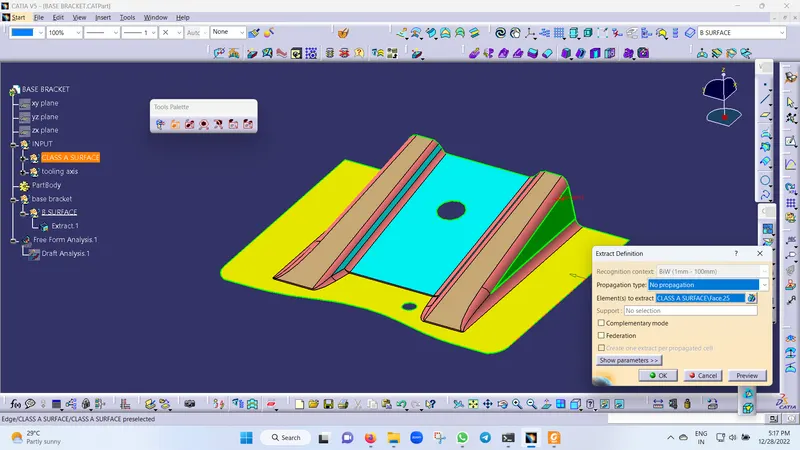

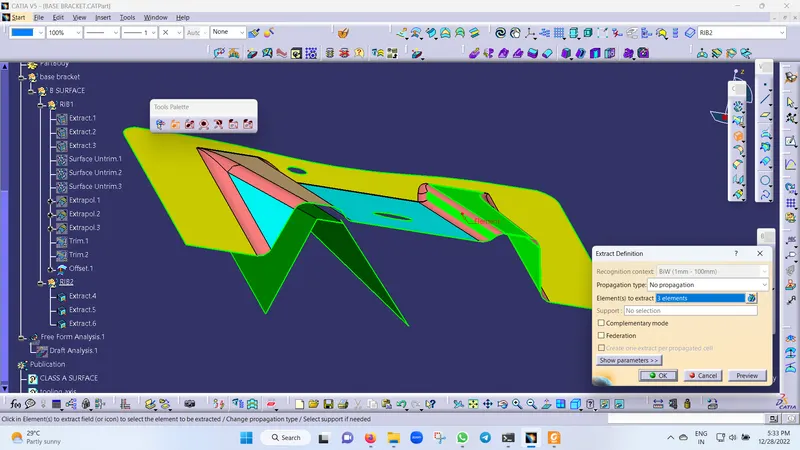

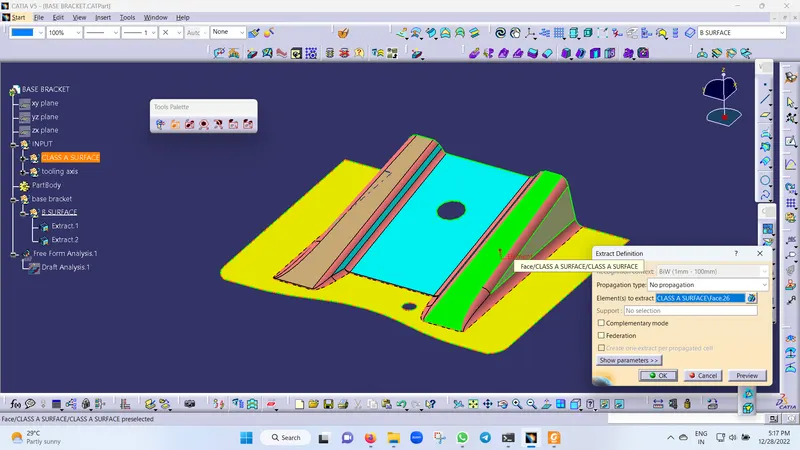

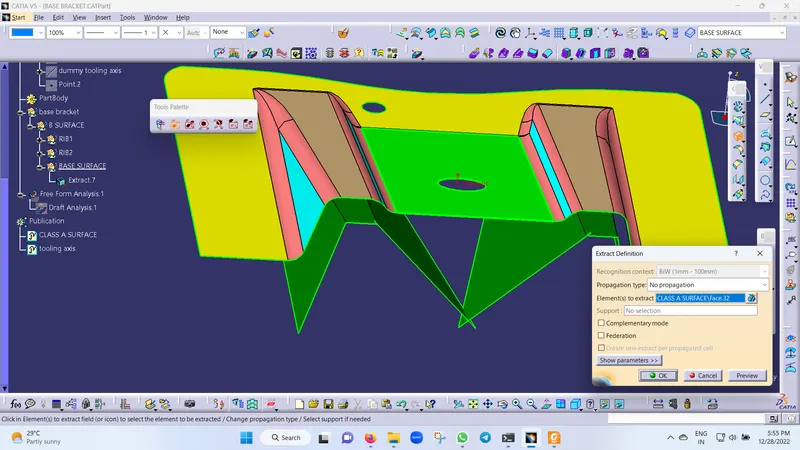

Initially extracting the right side rib using the extract option from Class A surface.

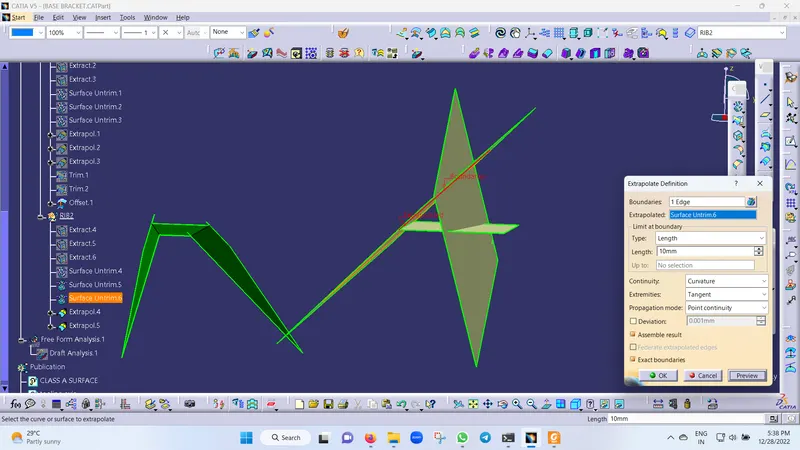

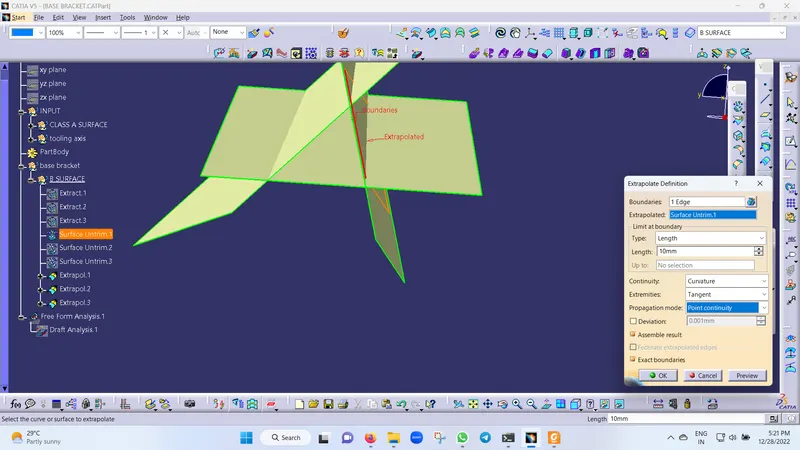

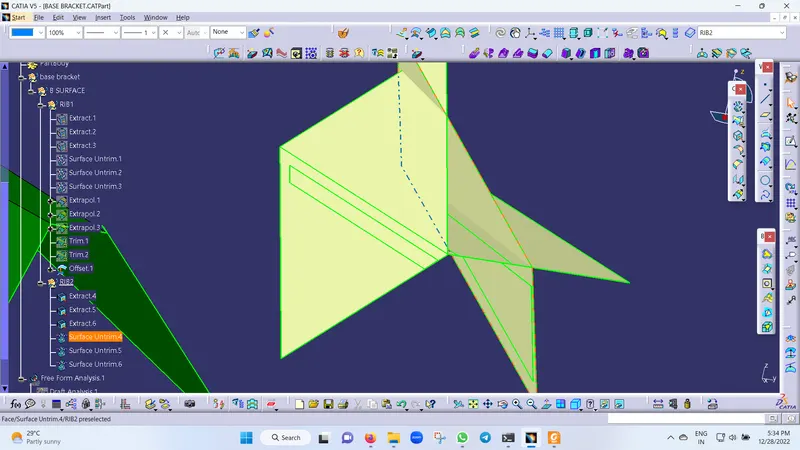

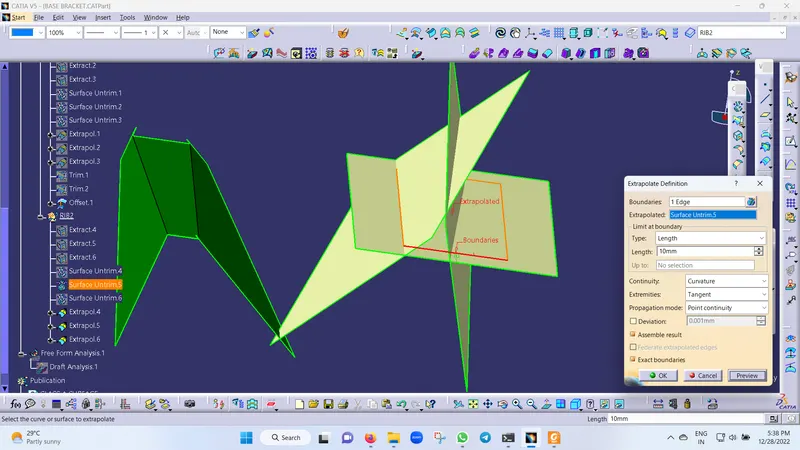

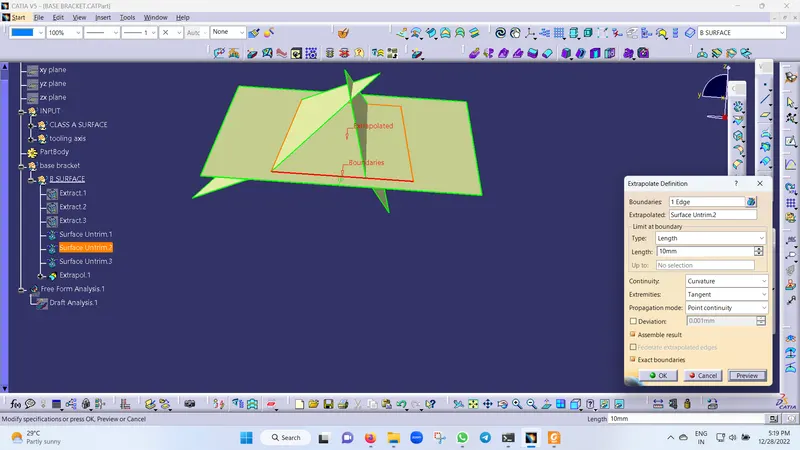

Then perform Extrapolate in order to increase the length

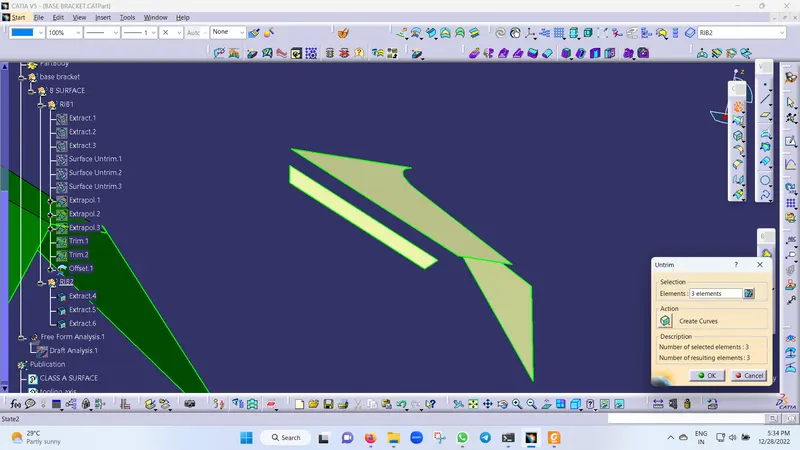

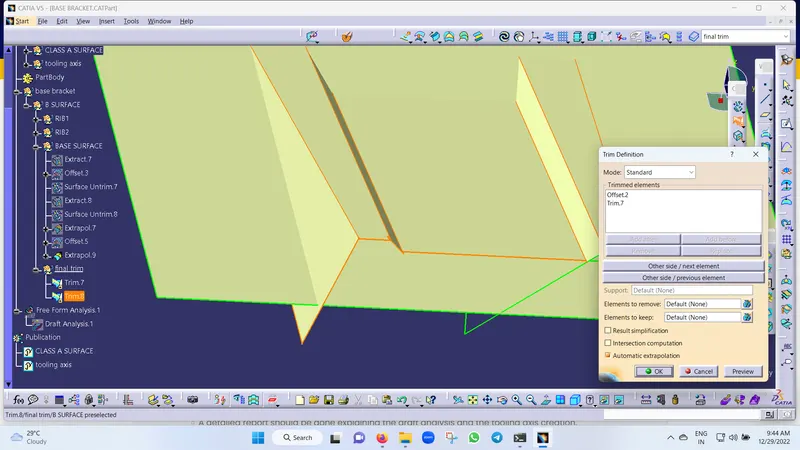

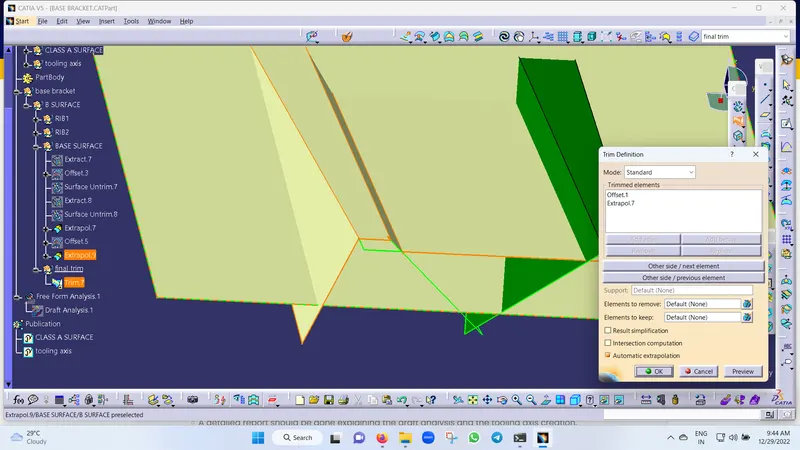

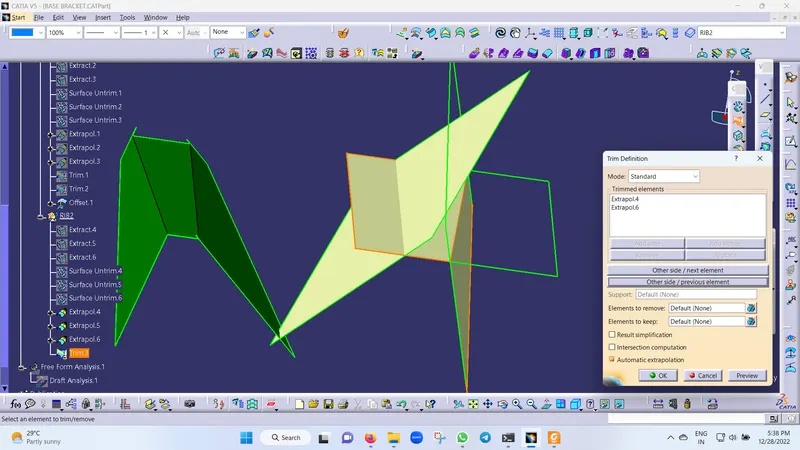

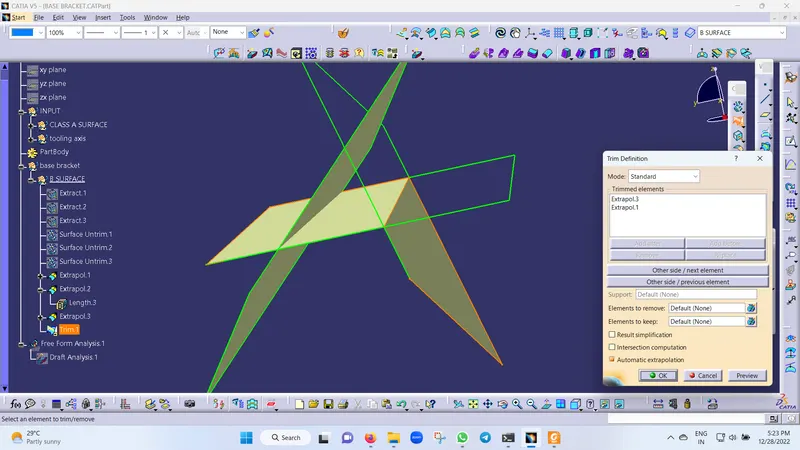

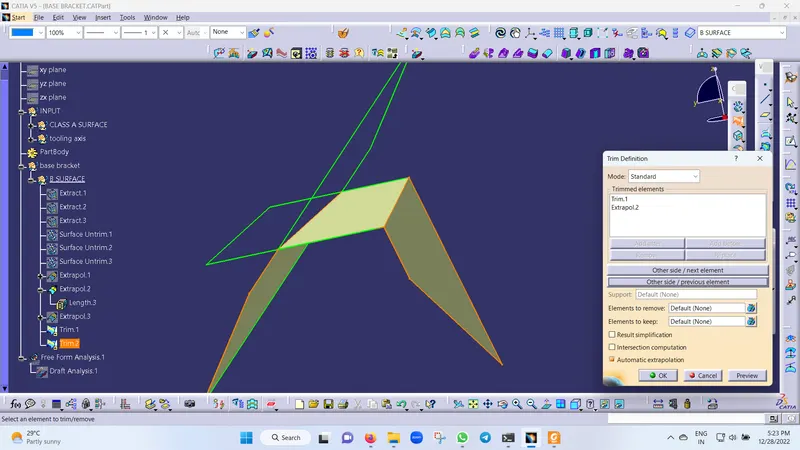

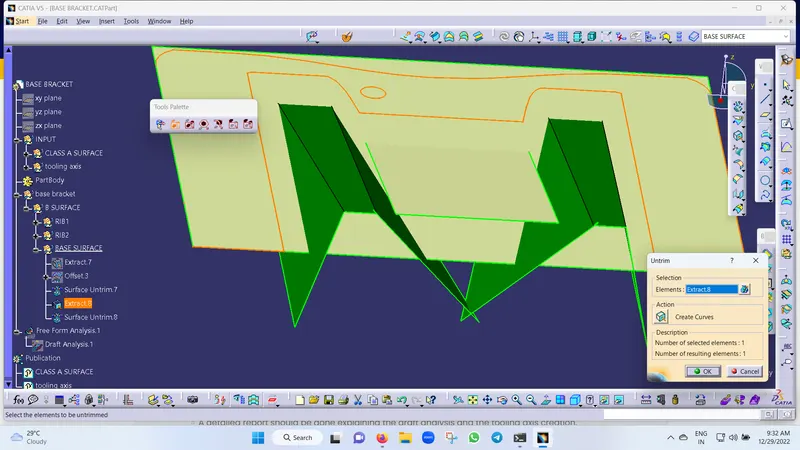

Now trim the surfaces to the required surfaces

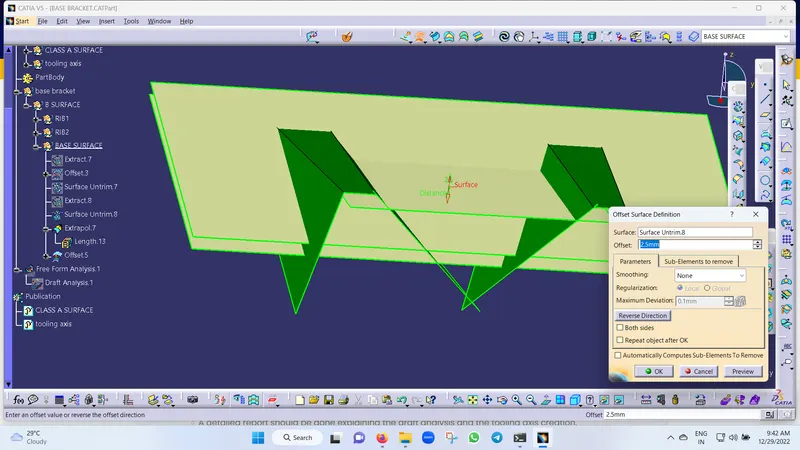

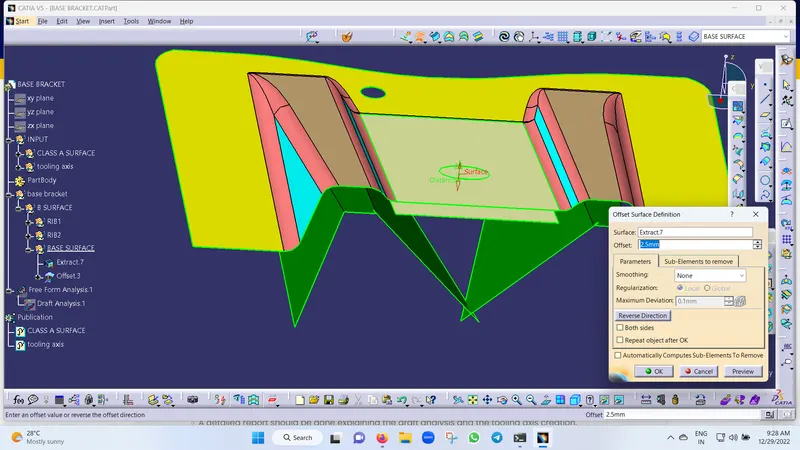

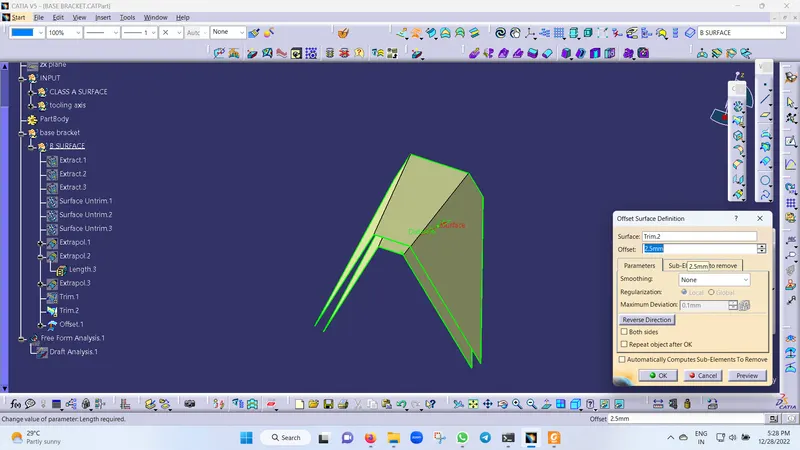

Then Offset the surface in order to get the required thickness

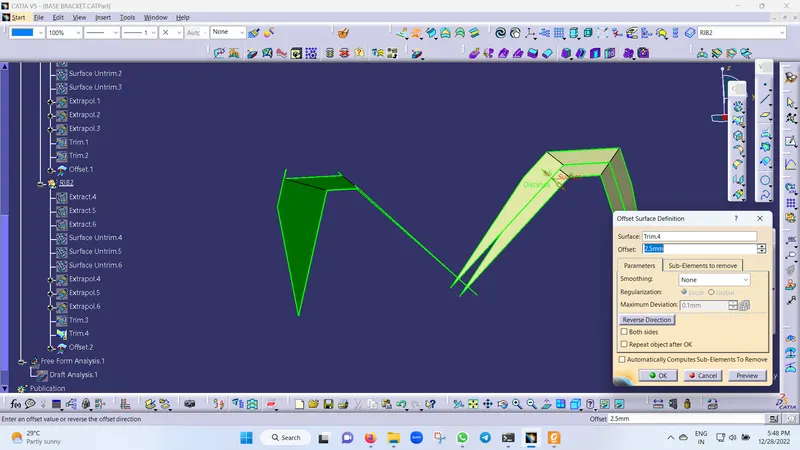

Similarly, create the left-side rib

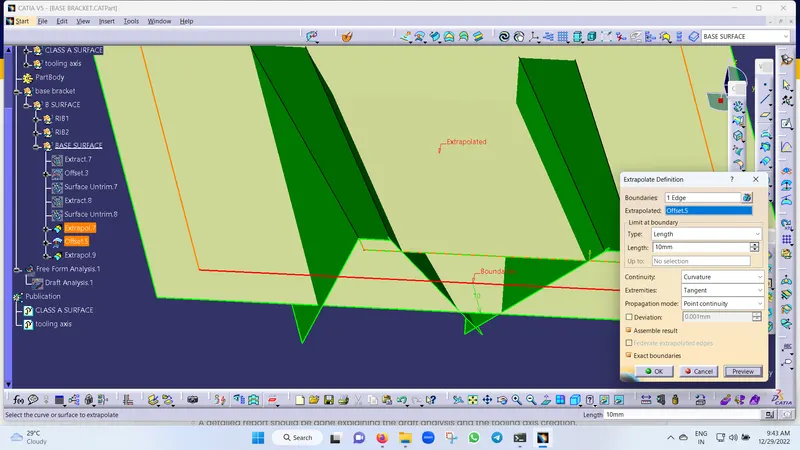

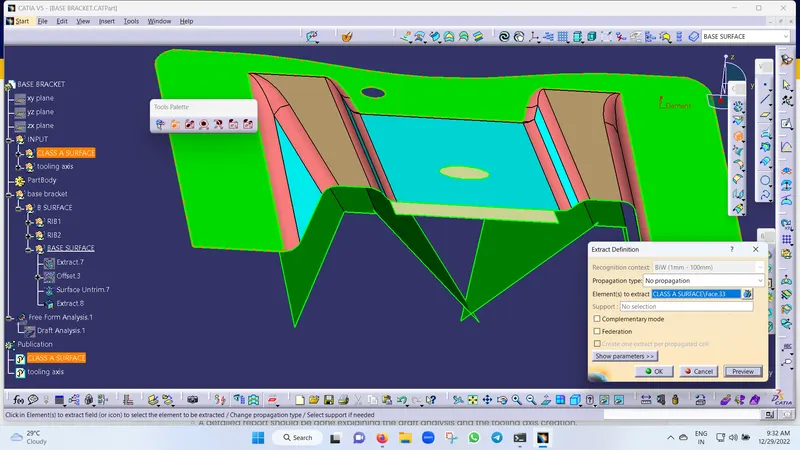

Now Similarly get the slanted as well as the flat surface and offset it to the desired value

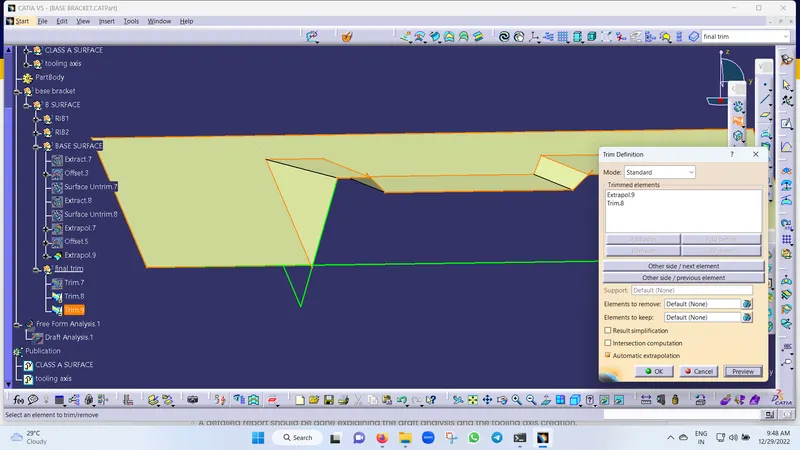

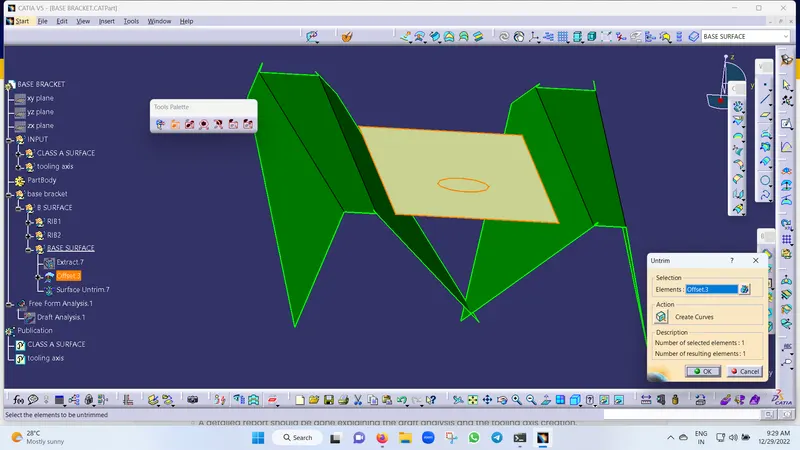

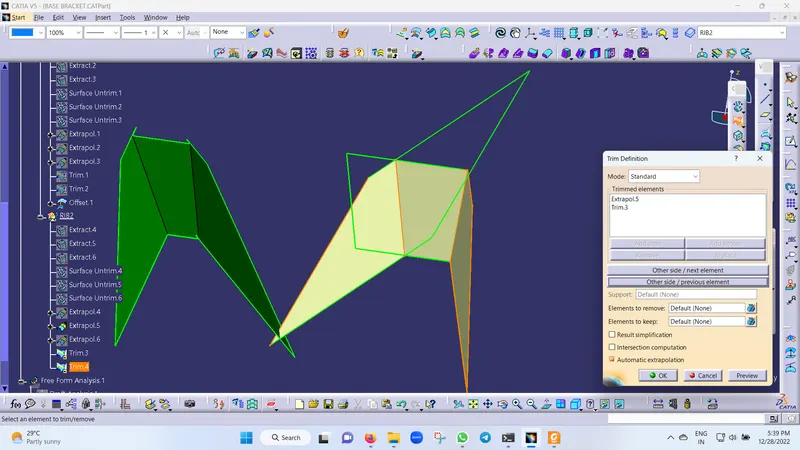

And now trim in order to get the required surface

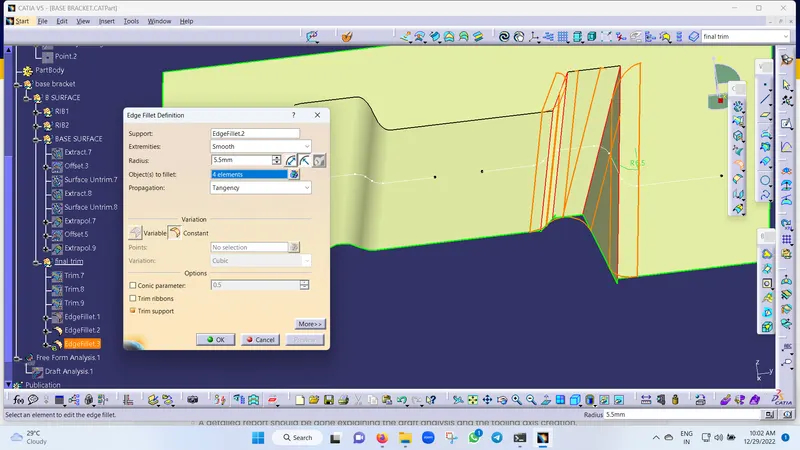

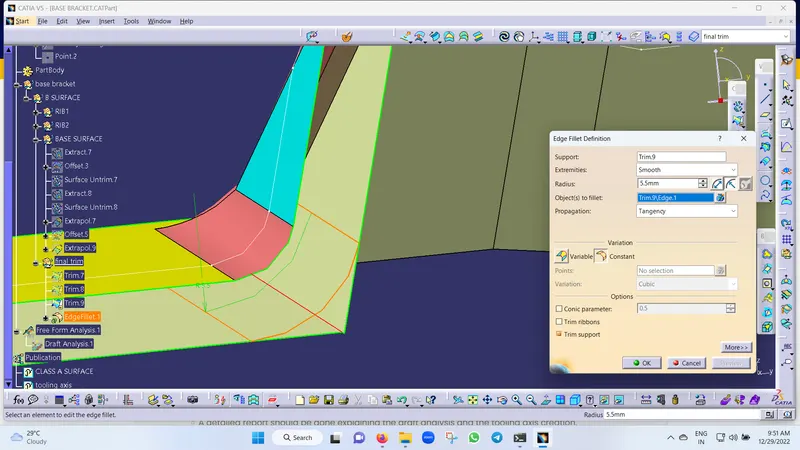

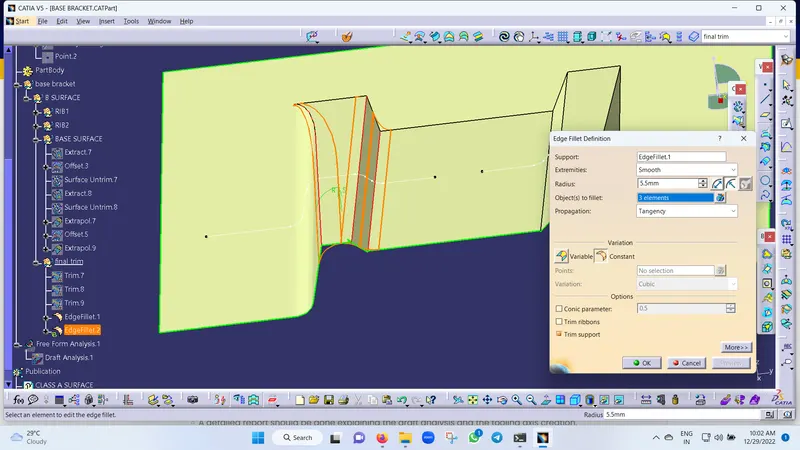

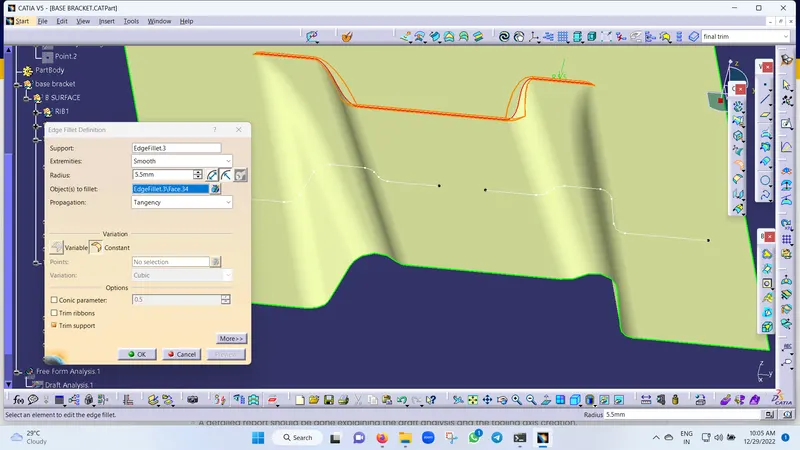

Now fillet the surface to the required amount.

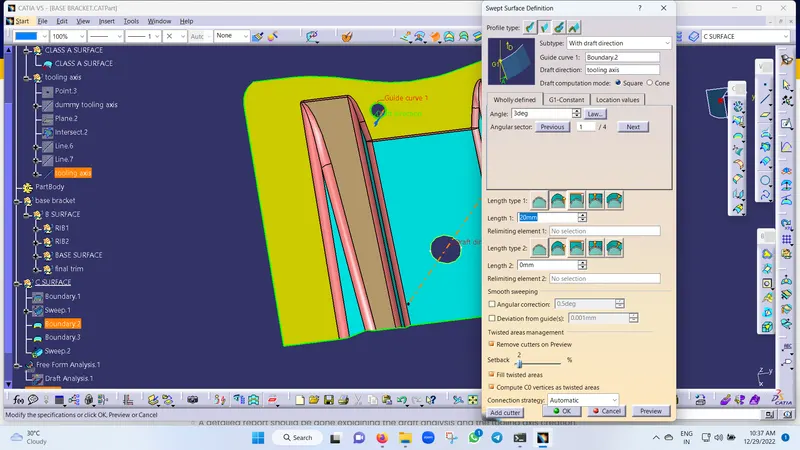

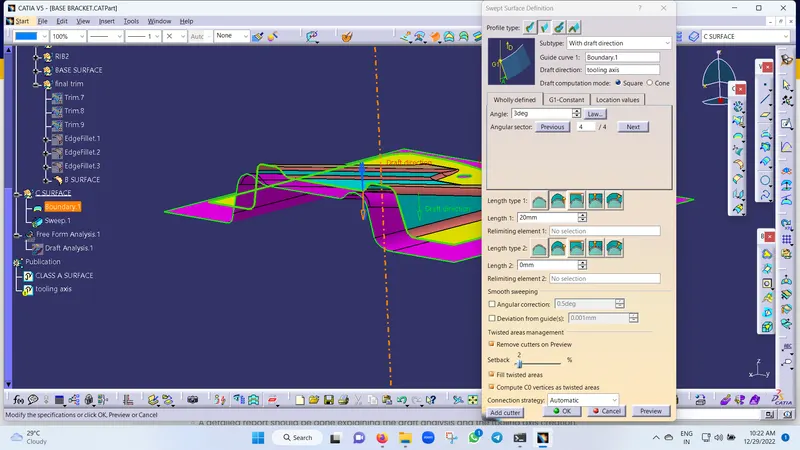

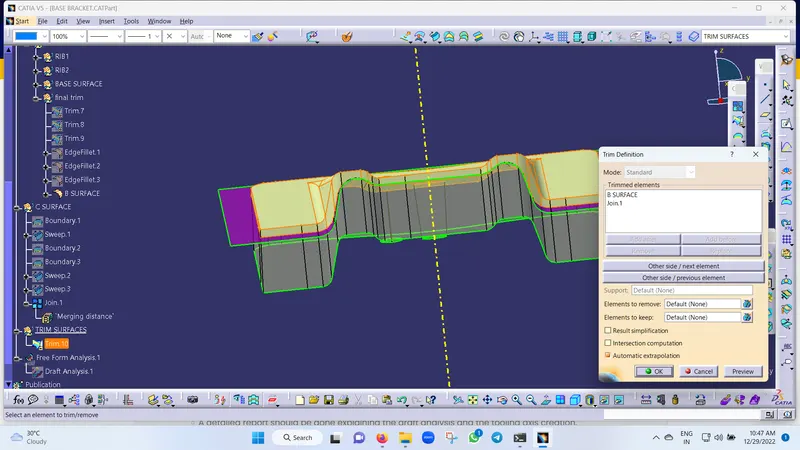

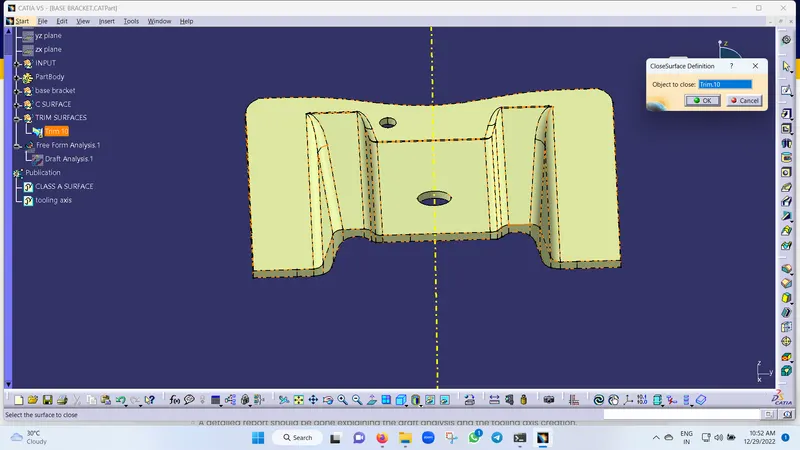

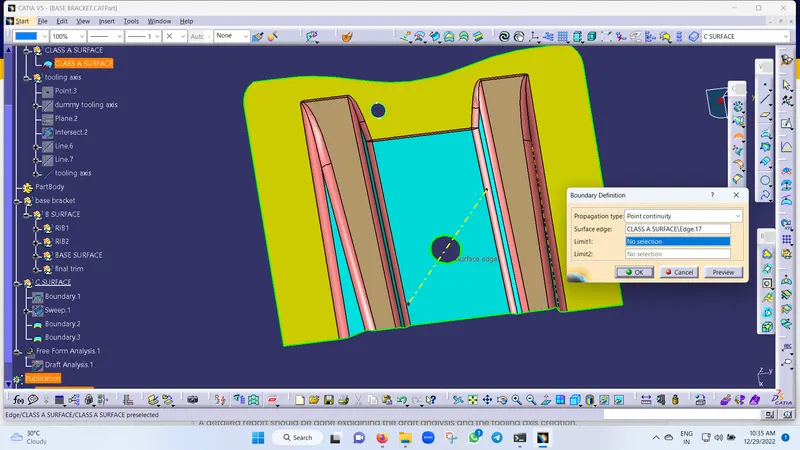

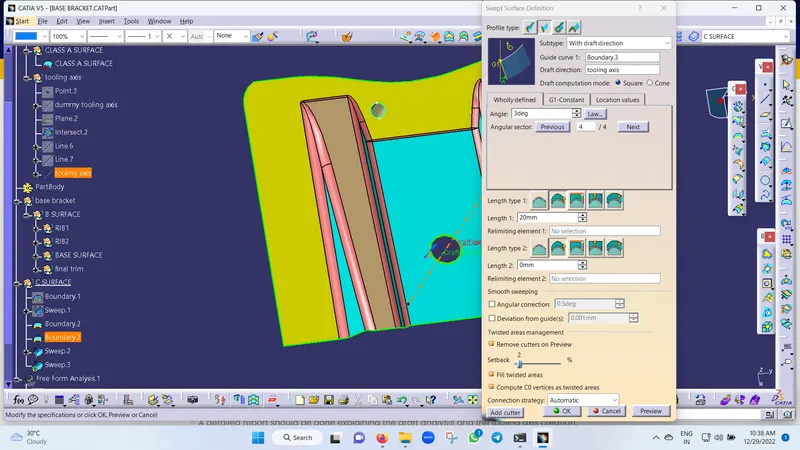

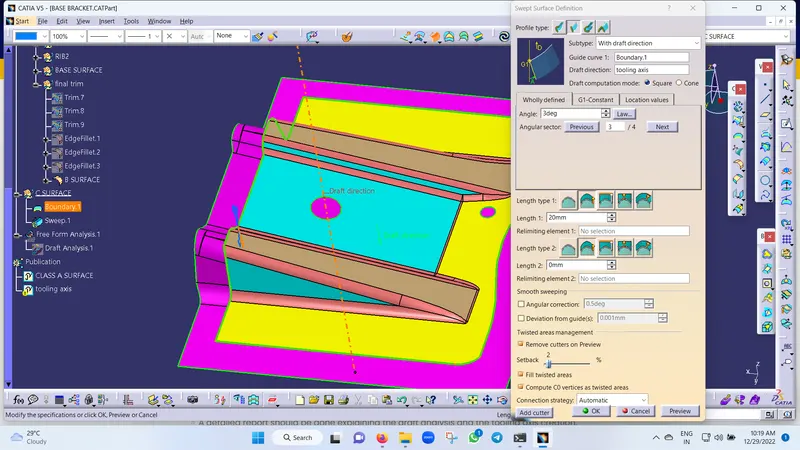

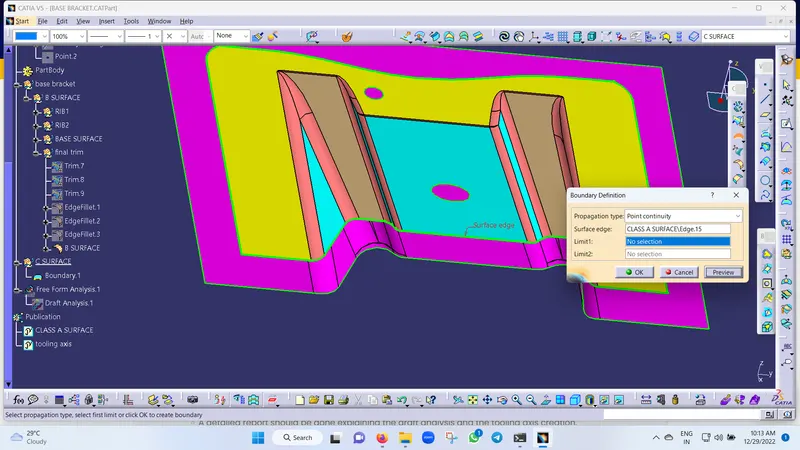

Creating Class C Surface:

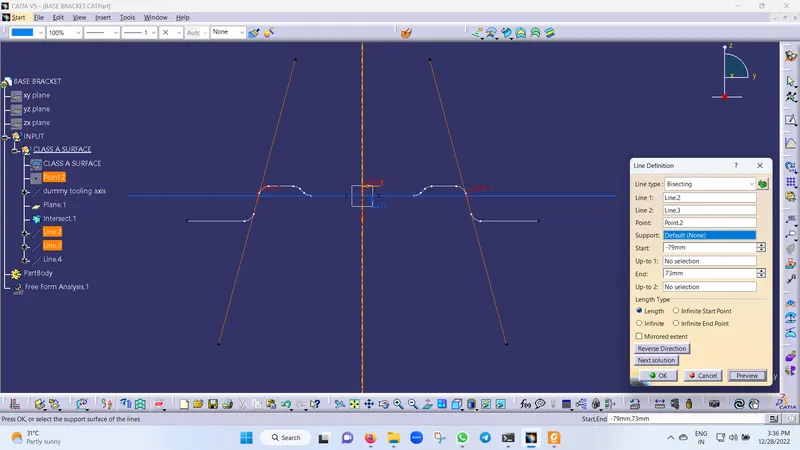

BISECTING METHOD:

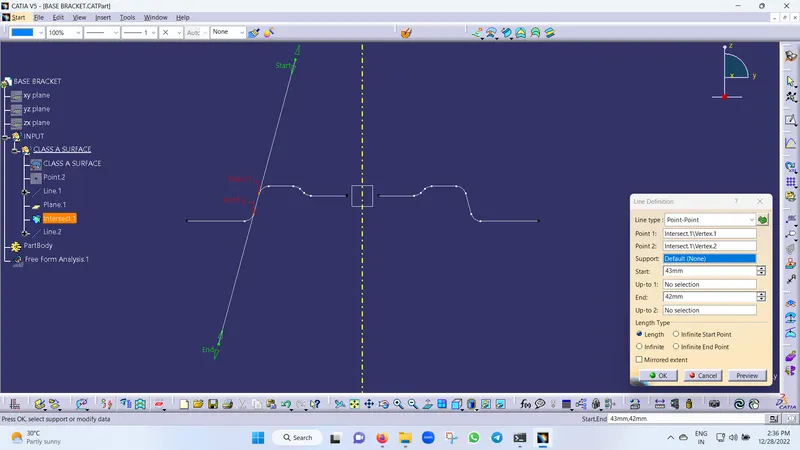

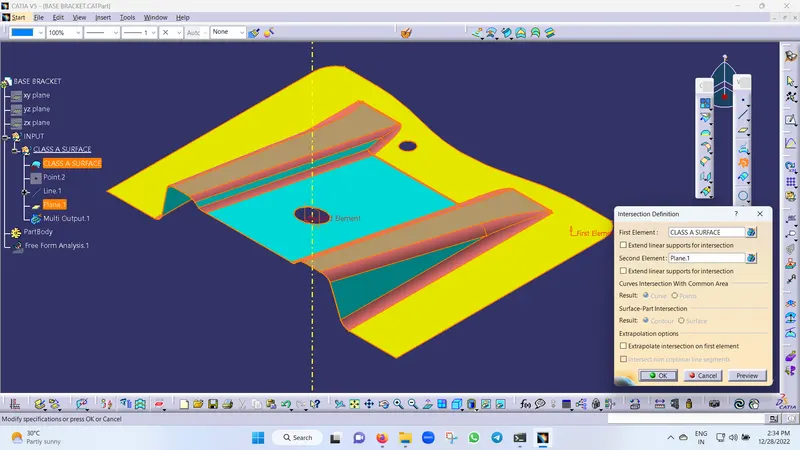

The bisecting method is basically used to find the proper tooling axis using the dummy tooling axis. In Bisecting method, bisecting line is used which either bisects the two lines or it will show an error which means the two lines are parallel to each other. In order to know whether the particular surface is tool able or not we intersect the surface with the respective plane and get a sketch that consists of two lines with the help of bisecting line option we bisect the line which creates a line at the midpoint of the two lines. Likewise, we create a tooling clearing axis for x and y which will be used to create the main tooling axis using the bisecting line option in the line command.

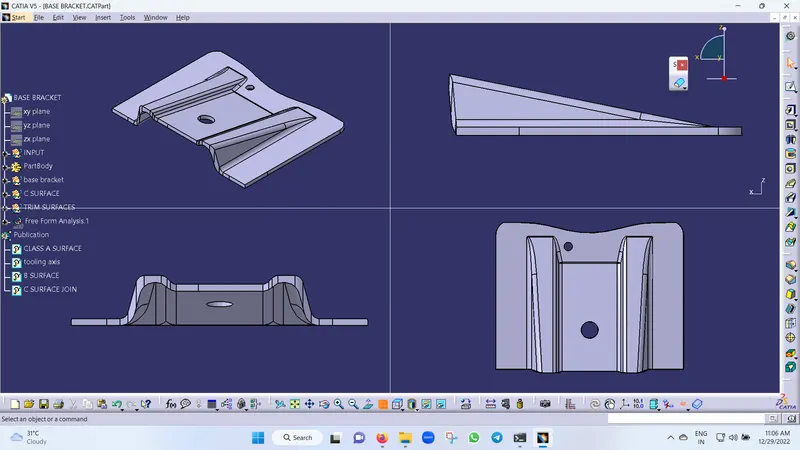

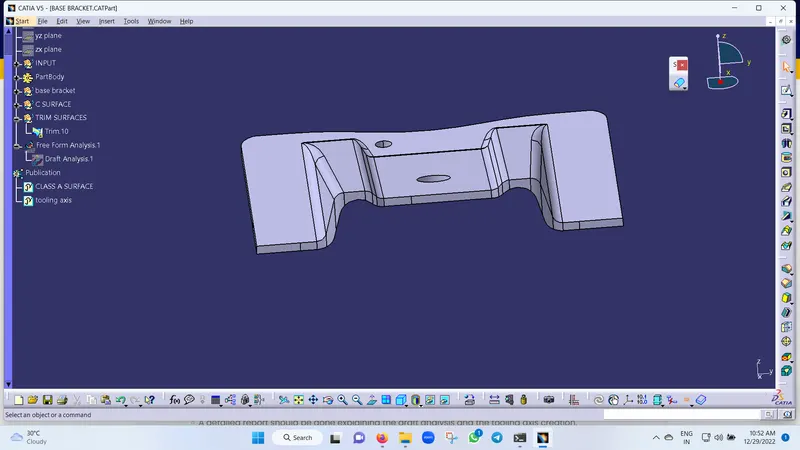

FINAL OUTPUT :
