Wiring harness routing & packaging Rules Week 3 Challenge
1. AIM : Download following cad data & define it as Electrical support using Electrical Part design Workbench. Define all the necessary properties.
2. STEP-1

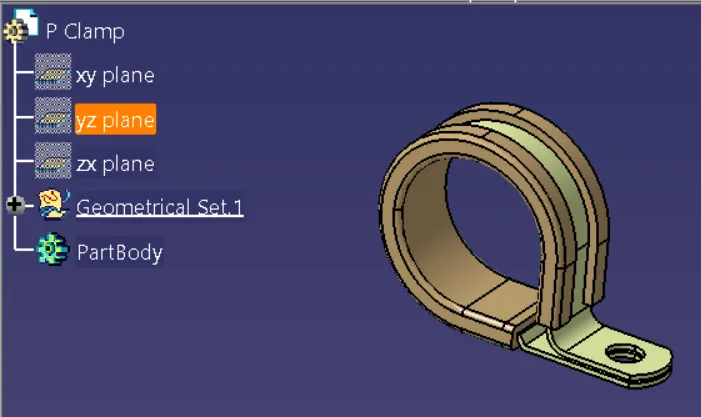

DOWNLODE THE MODEL FROM TE.COM AND IMPORT IT

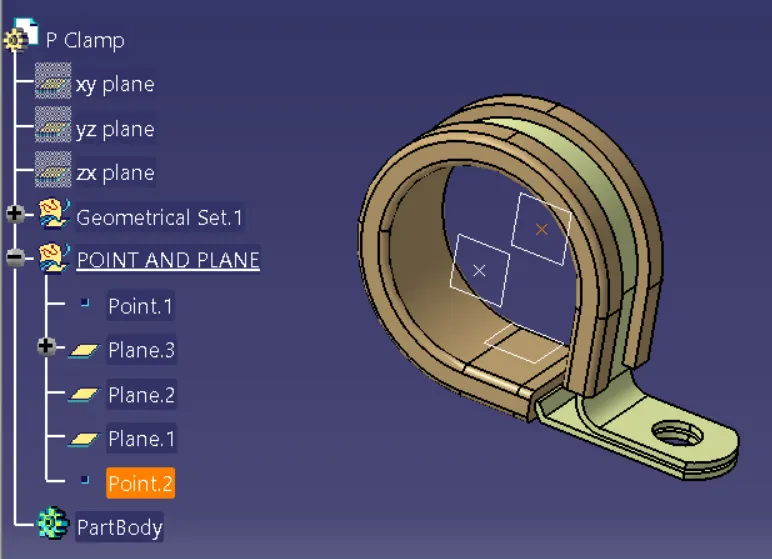

3.STEP-2
CREATING THE GEO PARAMETERS LIKE PONIT AND PLANE USING THE POINT OPTION .
CREATED ENTRY PLANE , EXIT PLANE , AND BASE PLANE.
STEP-3
1. SWITCH TO ELECTICAL PART DESIGN
2. CONVETING MECHANICAL PART TO ELECTICAL PART

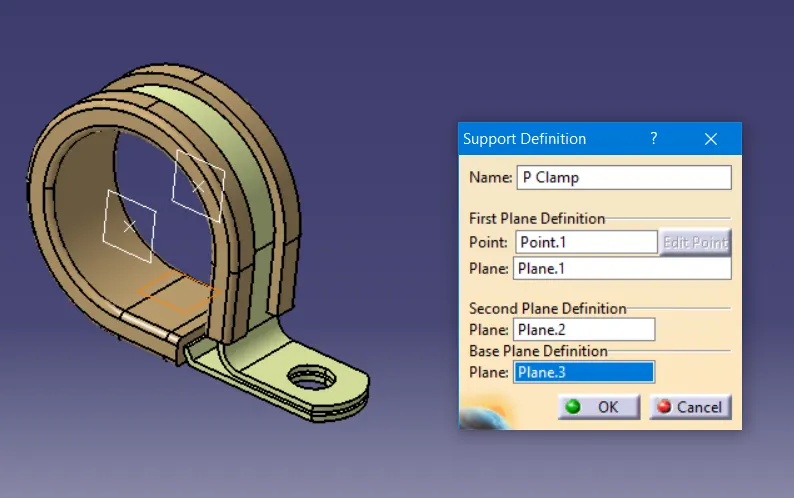

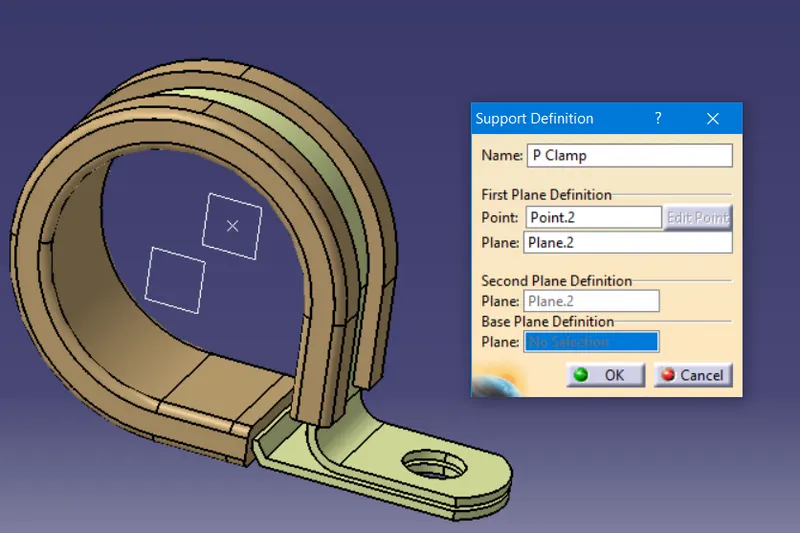

3. NOW DEFINE CLIP AS "SUPPORT PART" USING THE SUPPORT PART OPTION
4. SECLETING THE ENTRY PART
STEP-4
1. SELECT THE SAME SUPPORT PART OPTION AND GIVE EXIT OPTIONS
NOW THE CLIP IS READY TO USE FOR ELECTRICAL HARNESS

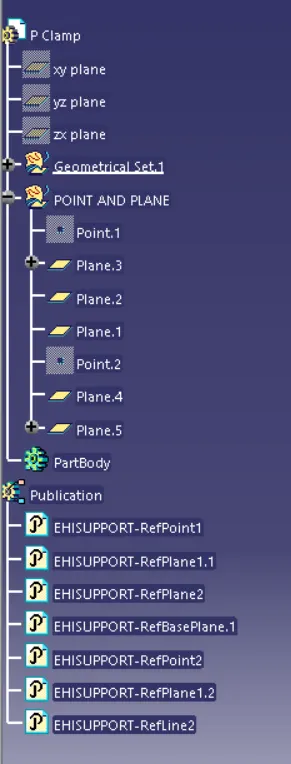

STEP-5 DESIGN TREE
2. AIM : Download following Back shell cad data & define it as Electrical back shell using Electrical Part design Workbench. Define all the necessary properties.
STEP-1

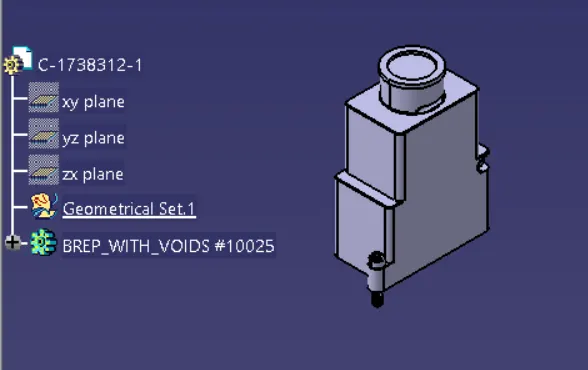

DOWNLODE CAD MODEL FROM TE.COM AND IMPORT IT.
STEP-2

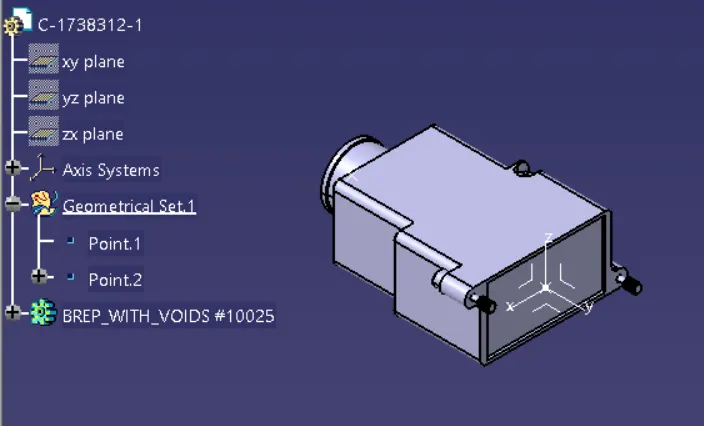

CREATE THE POINT AT THE ENTRY AND EXIT AREAS AND CREATE THE AXIS AT ENTRY POINT
STEP-3
1. NOW MOVE TO THE PART TO ELECTRICAL PART WINDOW.

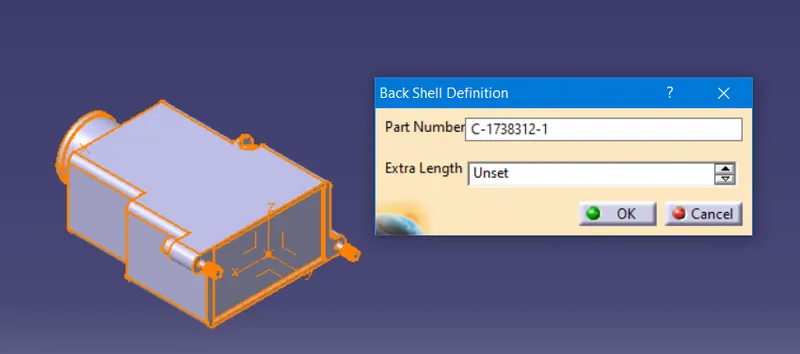

2. SELECT "DEFINE PART AS BACKSHELL" TO CONVERT MECHANICAL PART TO ELCTRICAL PART
STEP-4

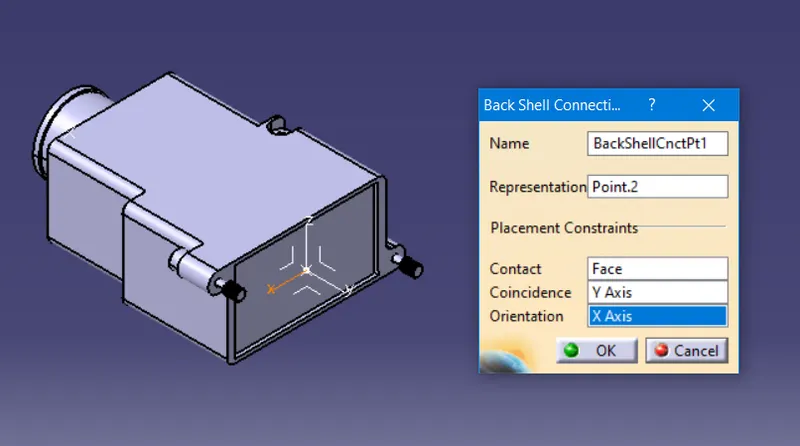

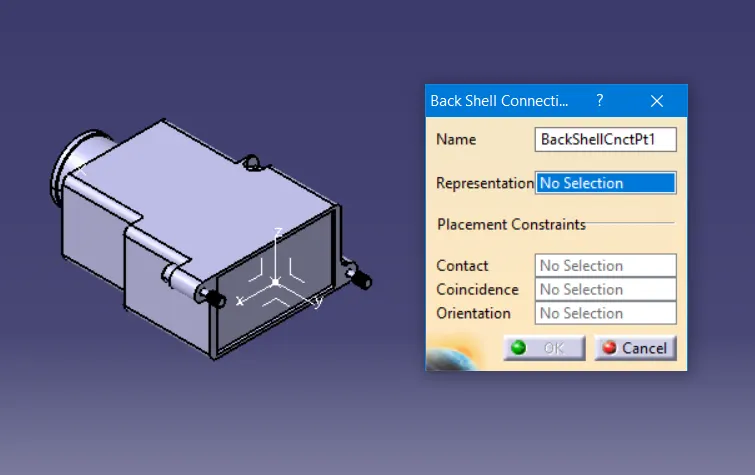

1. NOW SELECTING THE "BACKSHELL CONNECTION POINT"
SELECT ALL THE REQUIRED DATA IN PART
STEP-5

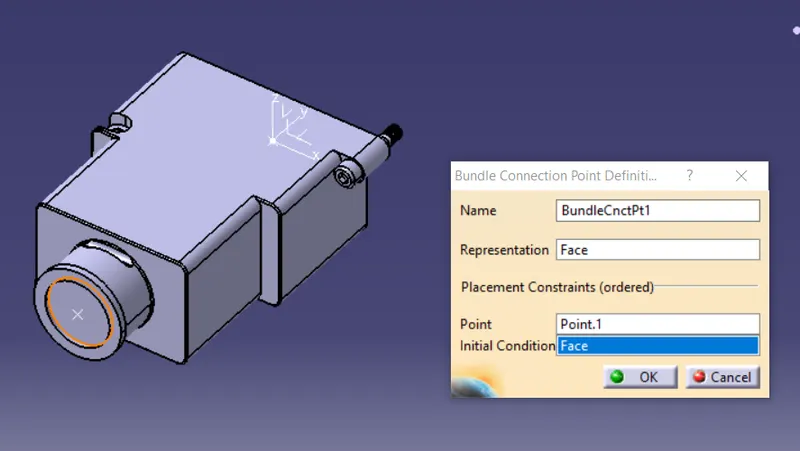

NOW SELECT THE "BUNDDLE CONNECTION POINT"

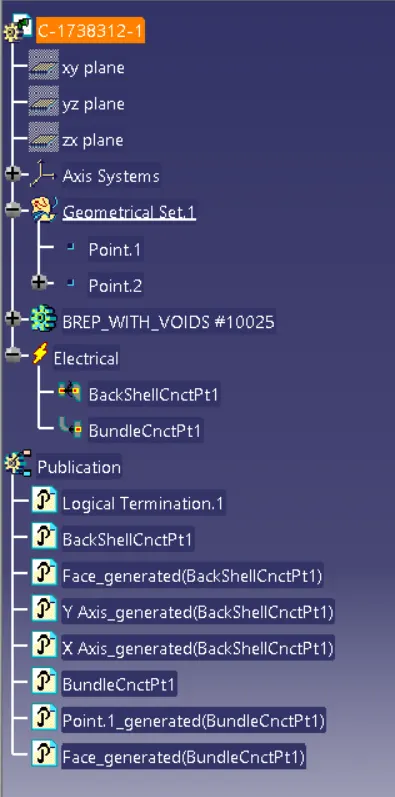

STEP-6 DESIGN TREE
3. AIM:
Create Following Corrugated tubes & Add them in Catalogue under “Slit COT” family.
|
Name |
ID (mm) |
OD (mm) |
Thickness (mm) |
|
15mm COT |
12 |
15 |
1.5 |
|
20mm COT |
17 |
20 |
1.5 |
|
35mm COT |
32 |
35 |
1.5 |
|
10mm COT |
7 |
10 |
1.5 |
|
5mm COT |
3 |
5 |
1 |
1. 15mm COT
STEP-1
DIRECTLY SWITCH TO THE ELECTRCAL PART WINDOW

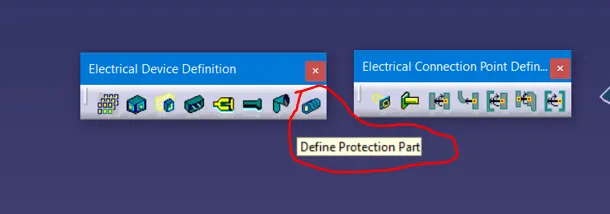

NOW SELECT THE "DEFINE PROTECTION PART" OPTION
STEP-2

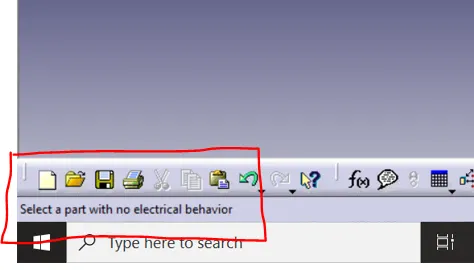

AT BOTTOM WE CAN SEE THAT NEED TO SELECT THE PART WITOUT ANY ELECTRIC BEHAVIOR,SO SLECT THE DESIGN TREE TOP PART OR THE PART BODY
STEP-3

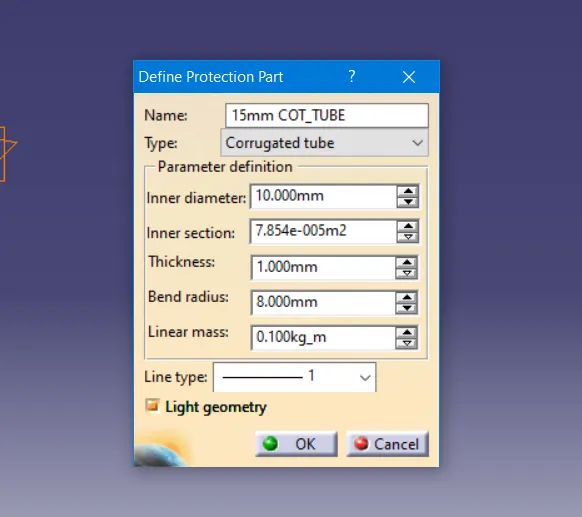

WE CAN FINE ONE WINDOW OPTION

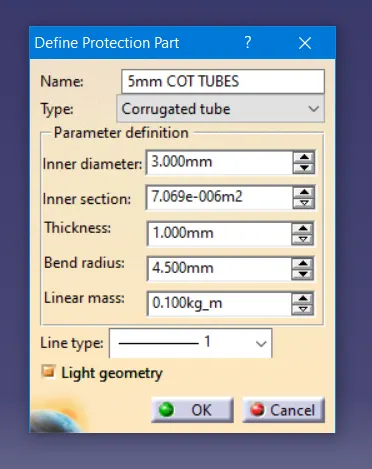

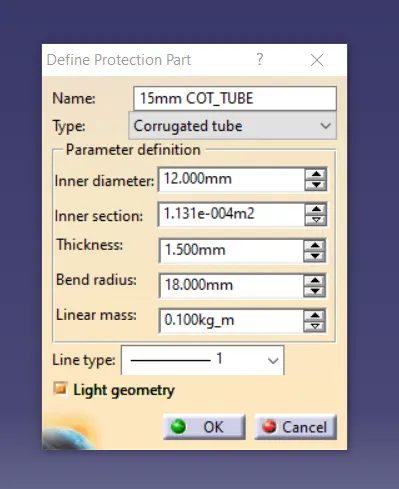

NOW ENTER THE VALUES GIVEN IN THE QUESTION TO GET REQUIRED COT TUBE
STEP-4

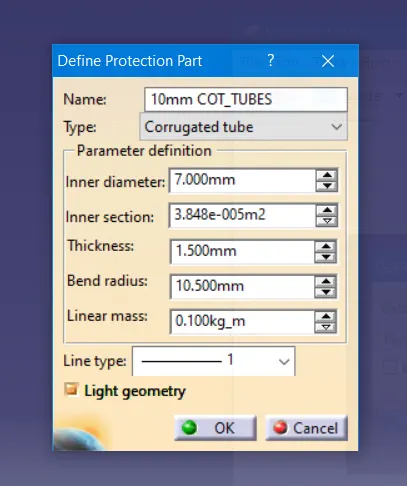

1. ENTER THE VALUES OF INNER DIA AND THICKNESS BEND RADIUS WILL BE 1.5*ID
2. OD VALUE WILL BE AUTOMATICALY GENETATED

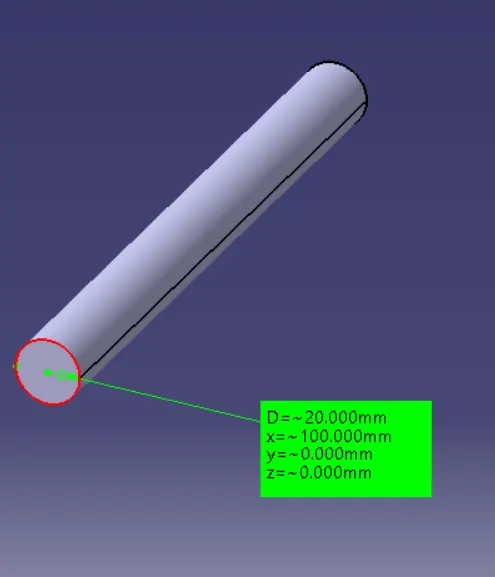

STEP-5

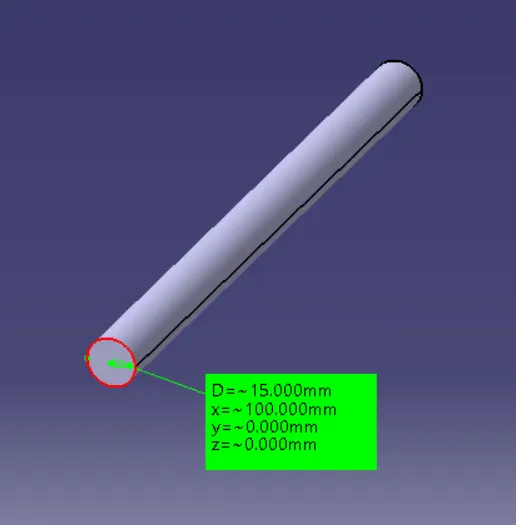

OD -15mm
STEP-6
1. ADD THE PROFILE TO THE CATALOUGE UNDER "SLIT COT"

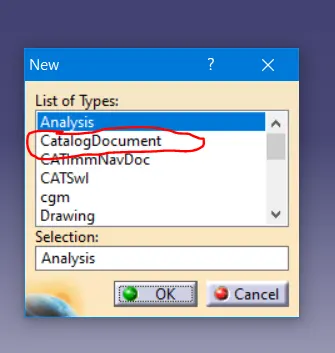

2. CREATE A NEW CATLOUGE FOLDER
STEP-7
CREATE A ADD FAMILY
STEP-8

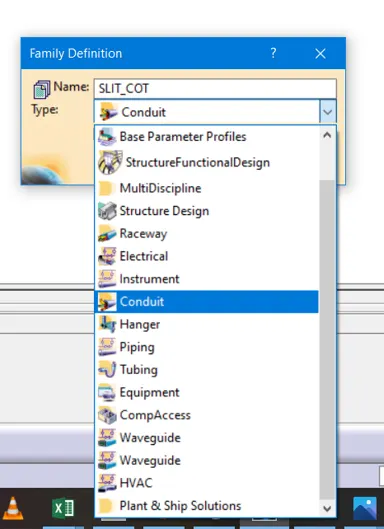

1. CREATE FOLDER "SLIT COT"
2. TYPE CONDUIT

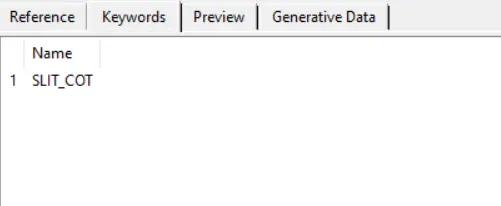

NEW FOLDER WILL CREATED

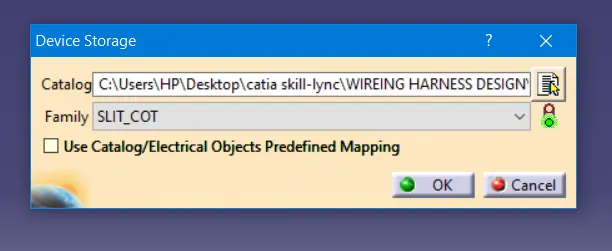

STEP-9
NOW SAVE THE CATALOUGE FILE
STEP-10

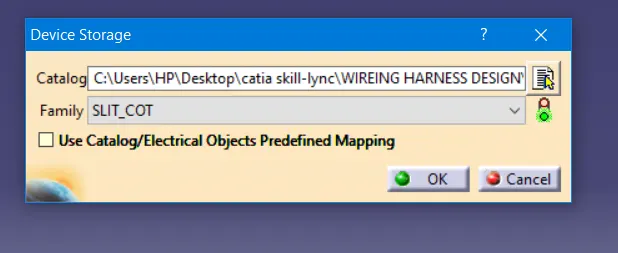

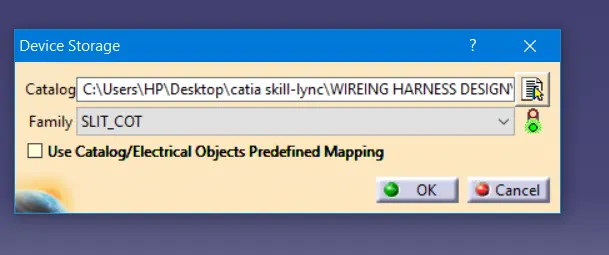

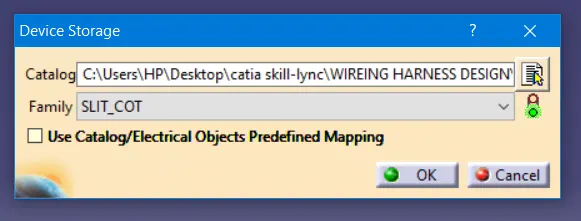

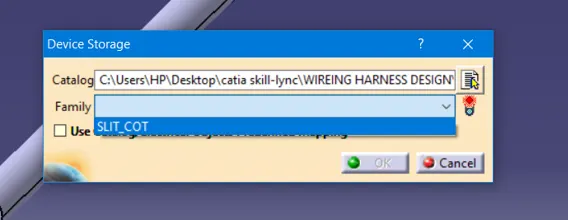

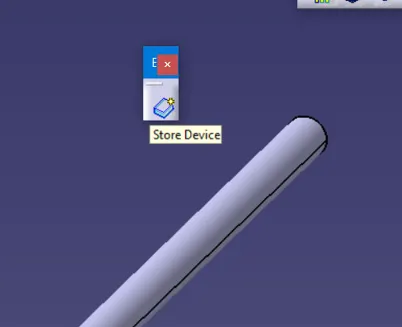

SELECT THE STORE DEVICE FILE AND ADD THE COT FILES
ADD TO THE FOLDER

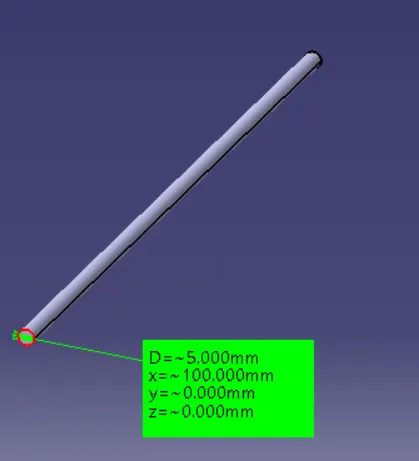

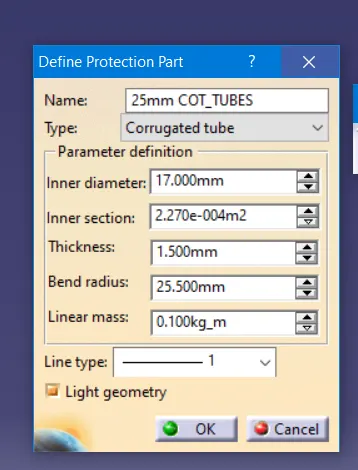

2. 25mm COT TUBES

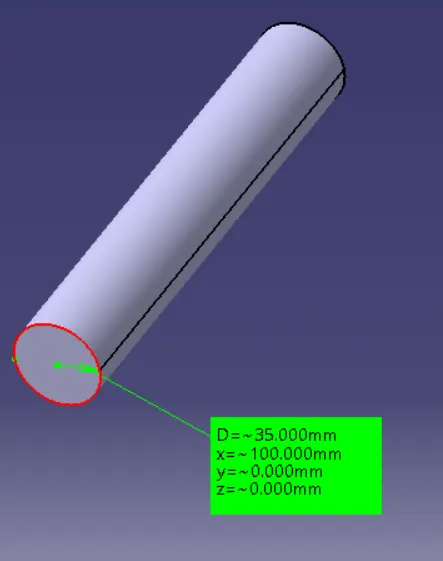

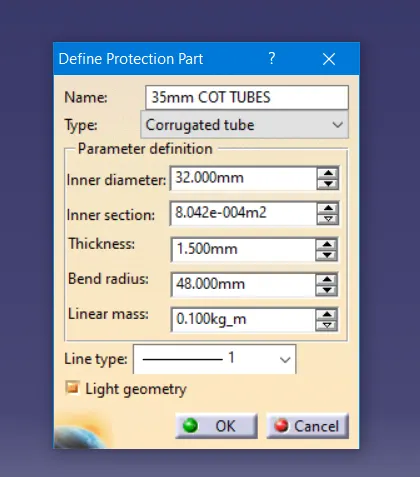

3. 35mm COT TUBES

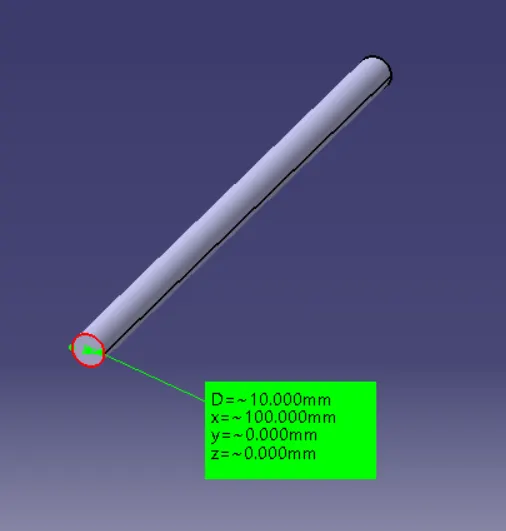

4. 10mm COT TUBES
5. 5Mmm COT TUBE
