Wiring harness routing & packaging Rules Week 3 Challenge

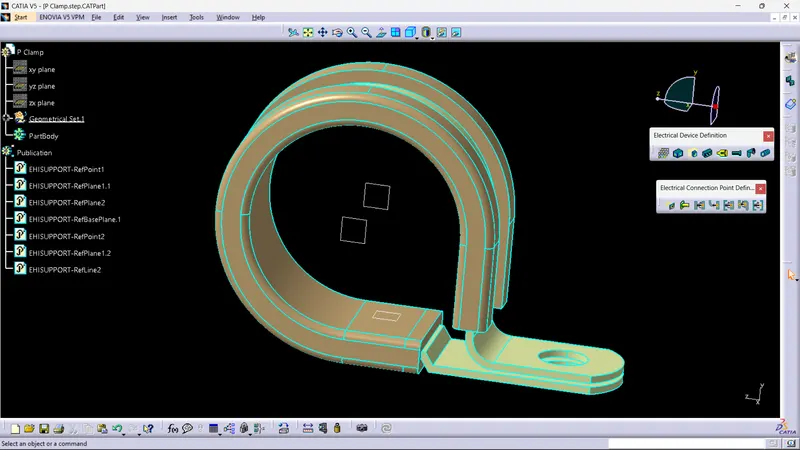

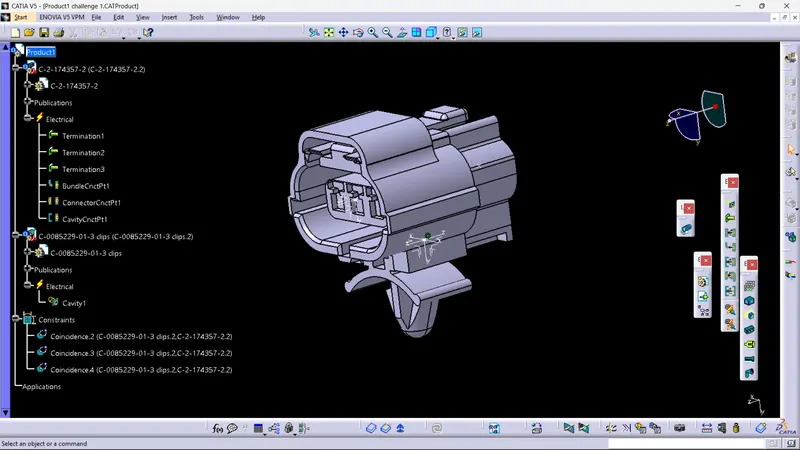

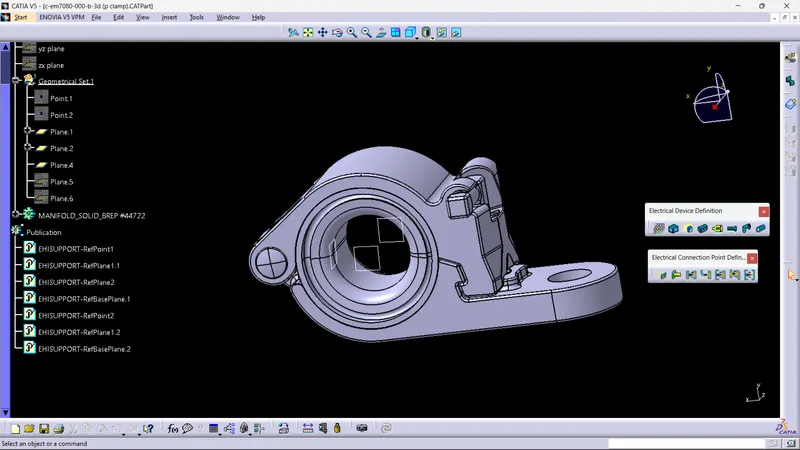

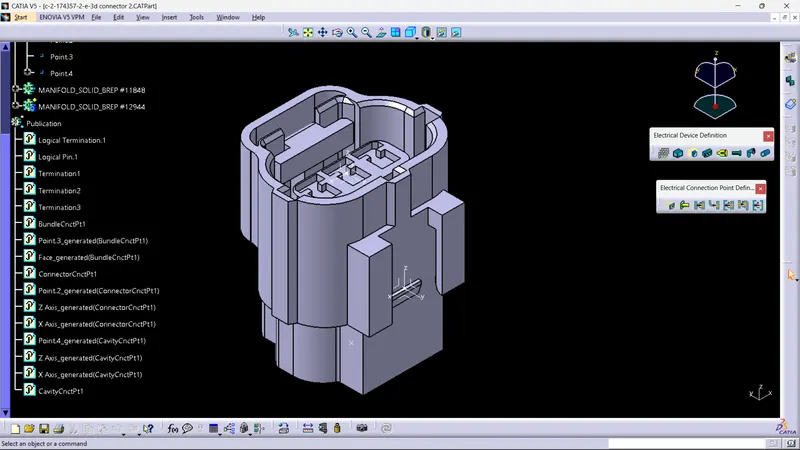

1)Download the following cad data & define it as Electrical support using the Electrical Part Design Workbench. Define all the necessary properties.
P clamp

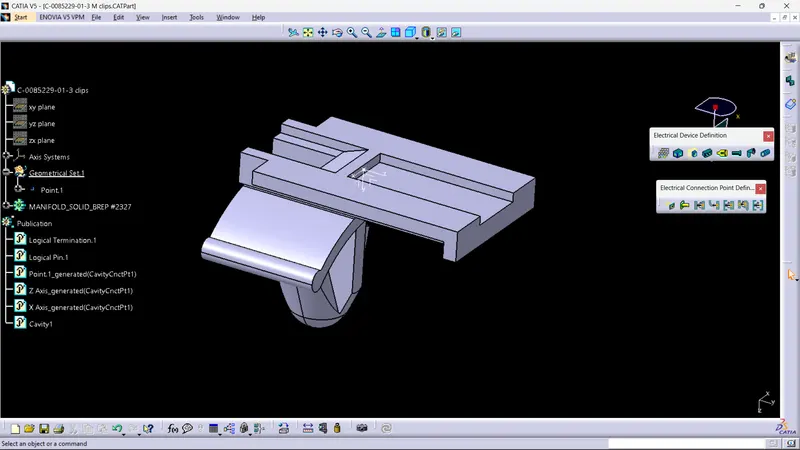

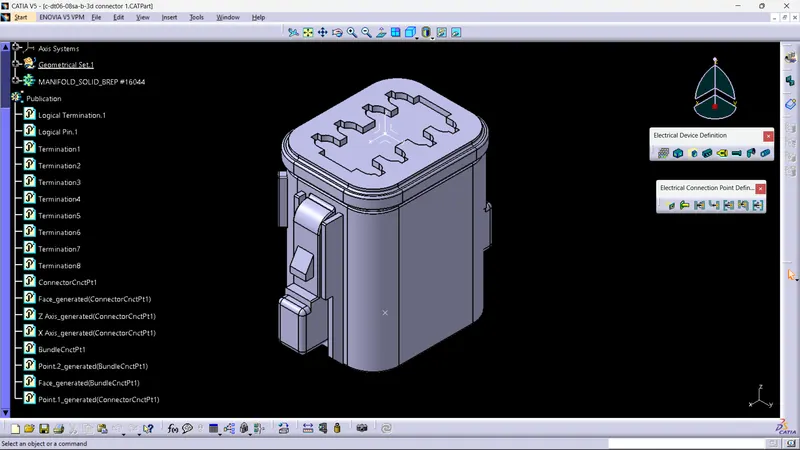

2) Download the following Back shell cad data & define it as an Electrical back shell using the Electrical Part Design Workbench. Define all the necessary properties.
3) Create the Following Corrugated tubes & Add them to the Catalogue under “Slit COT” family.
|
Name |
ID (mm) |
OD (mm) |
Thickness (mm) |
|

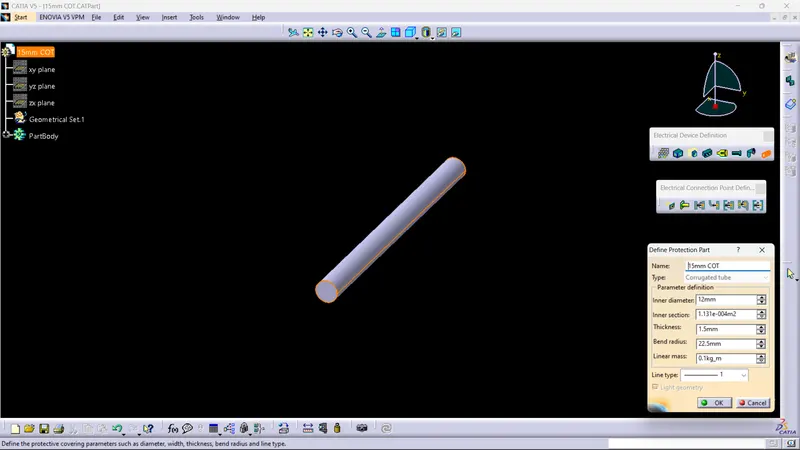

15mm COT |
12 |
15 |
1.5 |
|
20mm COT |
17 |
20 |
1.5 |
|

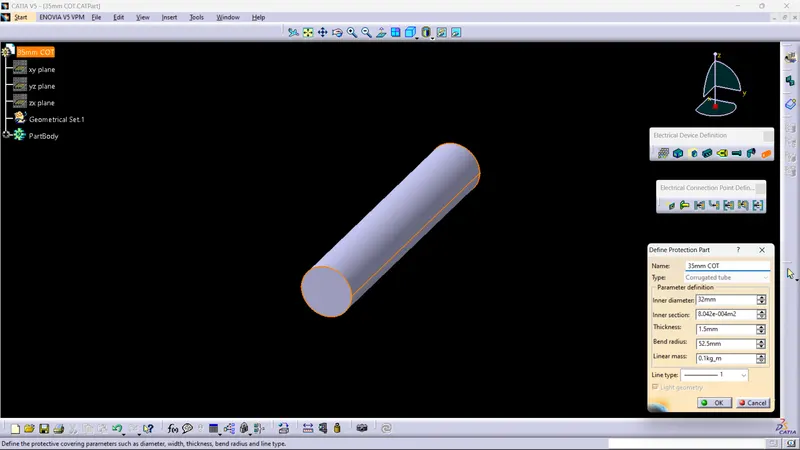

35mm COT |
32 |
35 |
1.5 |
|

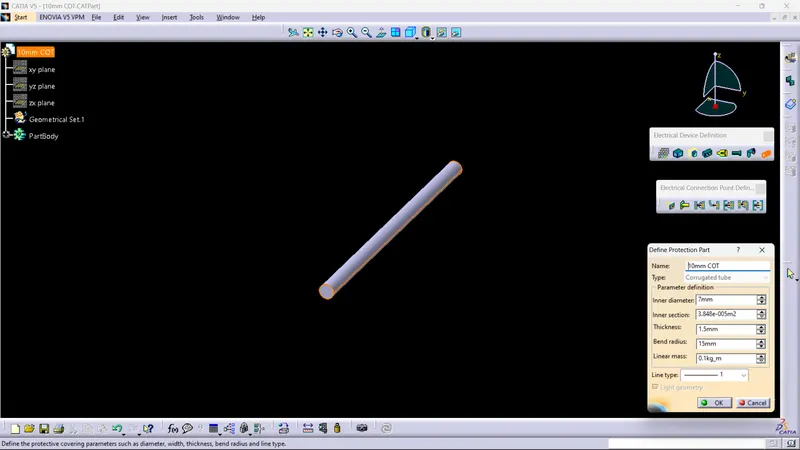

10mm COT |
7 |
10 |
1.5 |
|

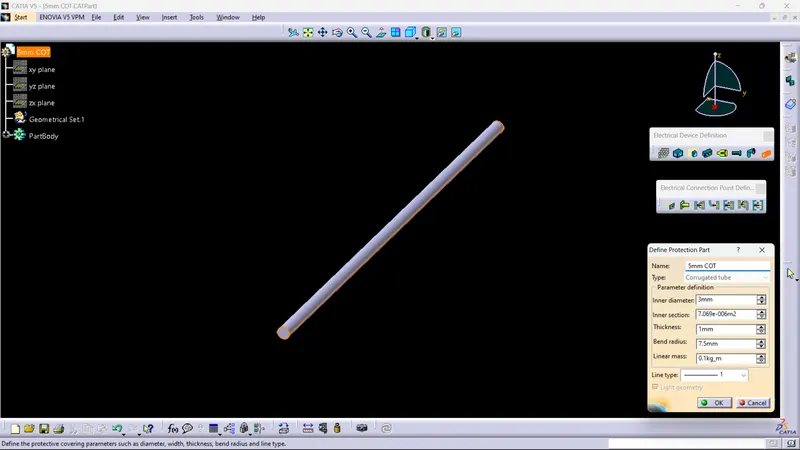

5mm COT |
3 |
5 |
1 |

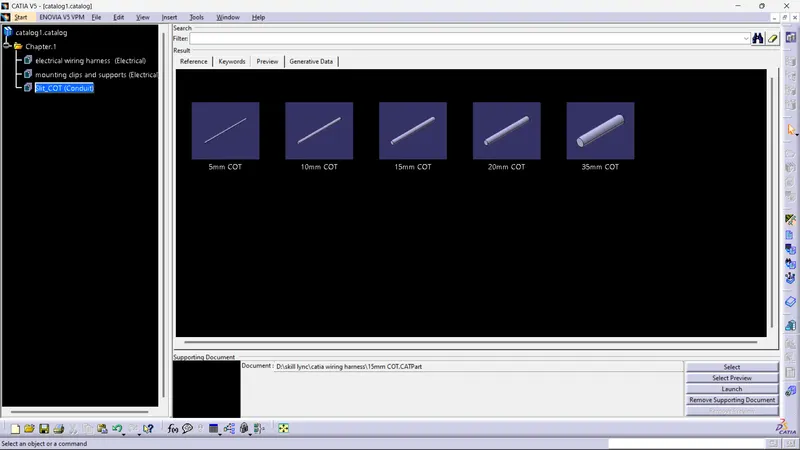

catalogue creation
