Wiring harness routing & packaging Rules Week 3 Challenge
Report on wiring harness routing & packaging Rules

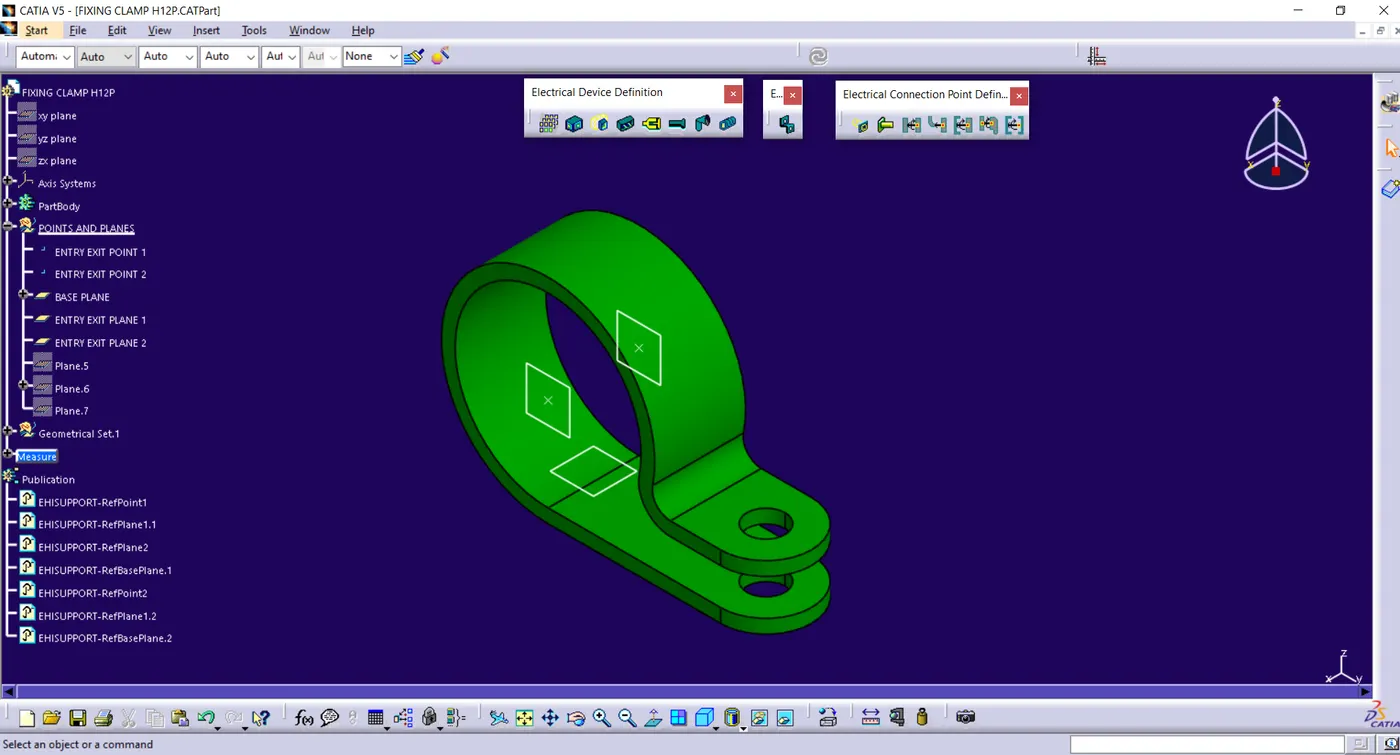

1.) Download the following clip cad data & define it as Electrical support using Electrical Part design Workbench. Define all the necessary properties.
Hellarmann Tyton – 21160129
2.) Download the following Backshell cad data & define it as an Electrical back shell using Electrical Part design Workbench. Define all the necessary properties.
3.)Create Following Corrugated tubes & add them in Catalogue under “Slit COT” family.
|
Name |
ID (mm) |
OD (mm) |
Thickness (mm) |
|
15mm COT |
12 |
15 |
1.5 |
|
20mm COT |
17 |
20 |
1.5 |
|
35mm COT |
32 |
35 |
1.5 |
|
10mm COT |
7 |
10 |
1.5 |
|
5mm COT |
3 |
5 |
1 |

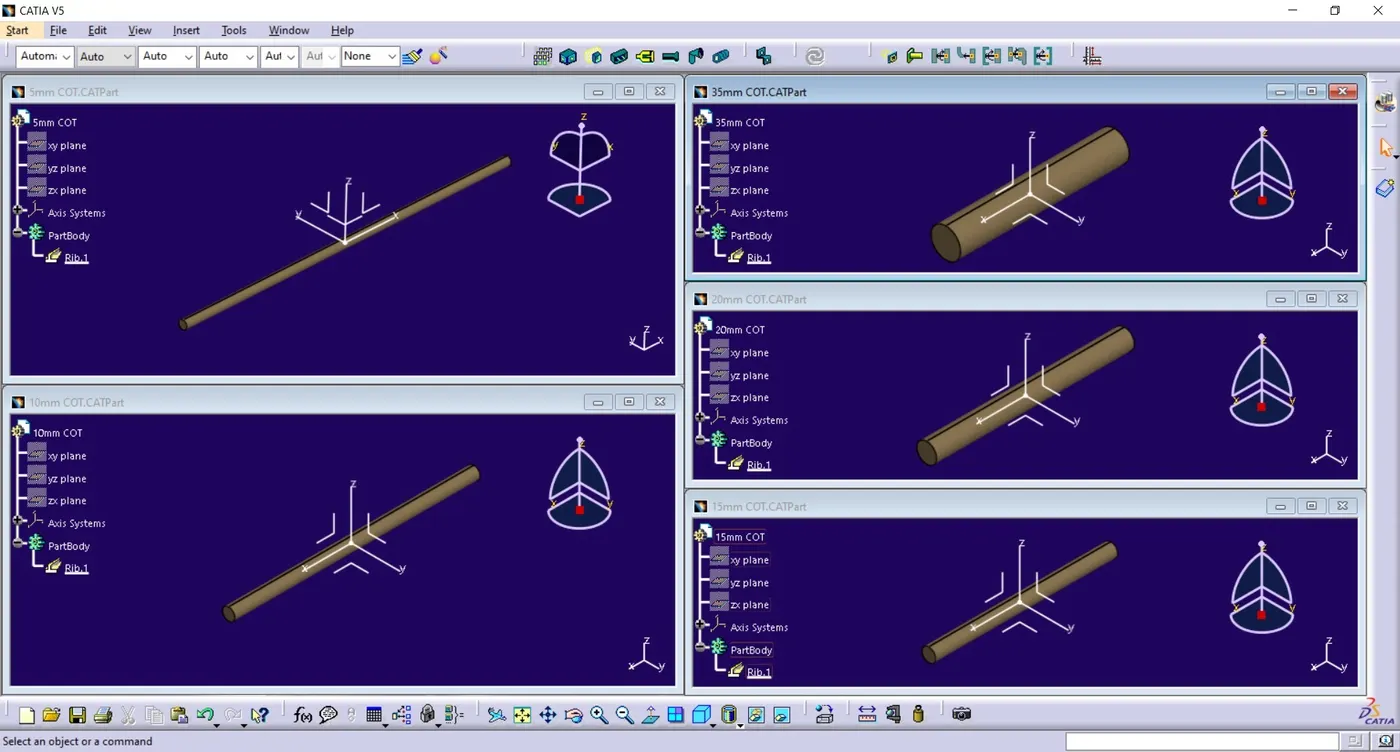

3 - a.) Part design of corrugated tubes in electrical part design workbench

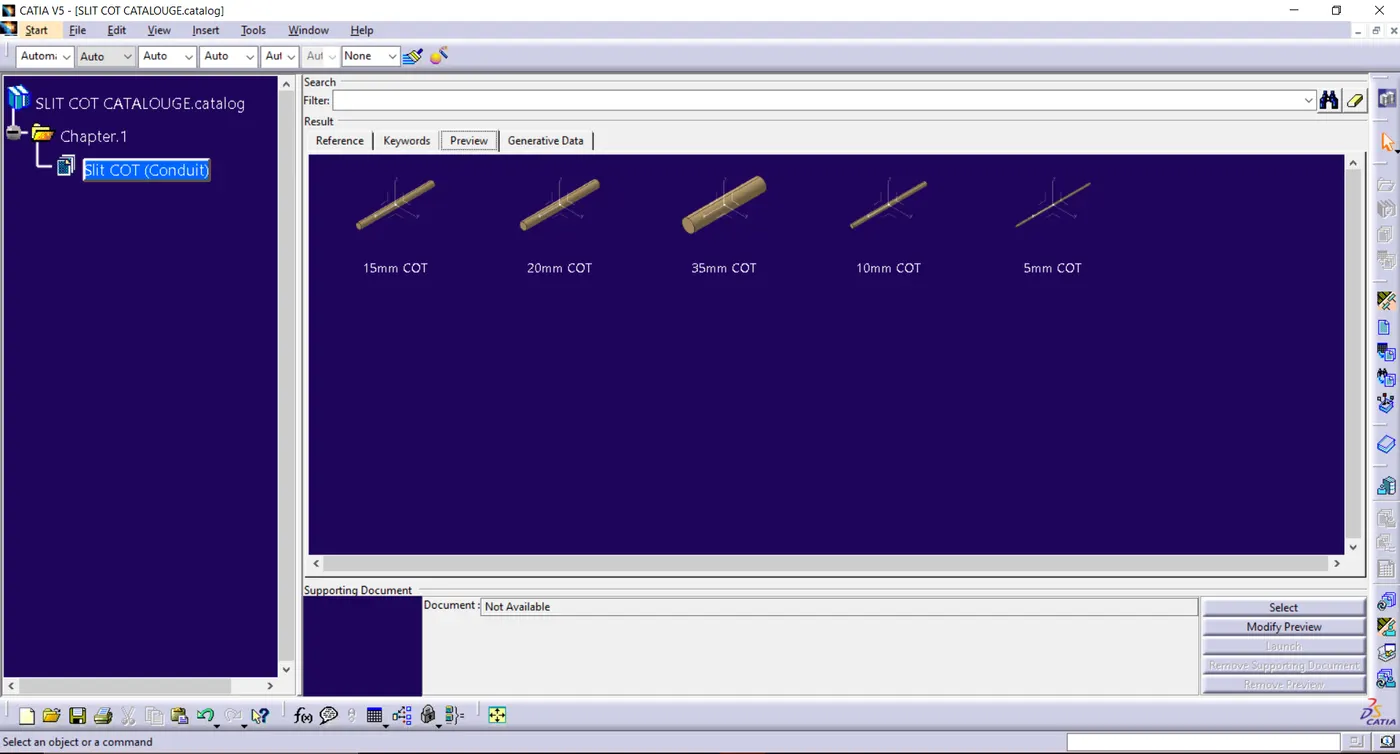

3 - b.) Catalogue creation of corrugated tubes under “Slit Cot” Family.
