Wiring harness routing & packaging Rules Week 3 Challenge

1.

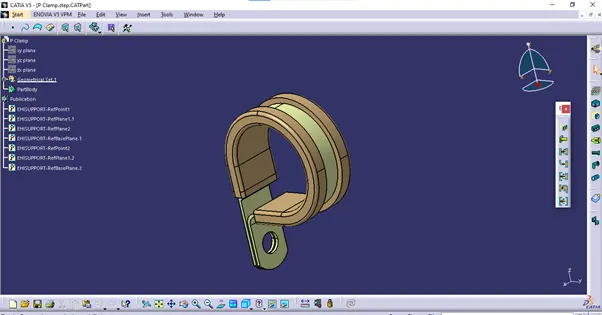

Steps in defining p clamp

• Get the 3D part
• Define the geometry parameters
• Define part as support
• Define entry point &plane
• Define base &exit plane

2.

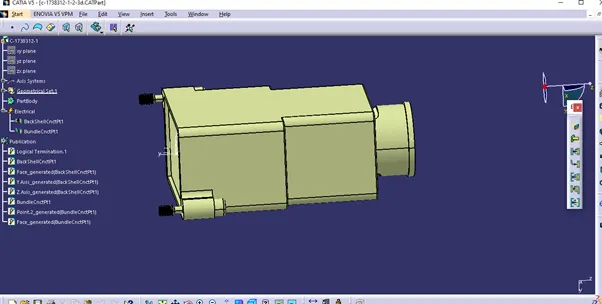

Steps in defining back shell.

• Get the 3D part
• Define the geometry parameters
• Define part as backshell
• Backshell connection point
• Define bundle connection point

3.

Steps in protection covering

• Create covering 3D part

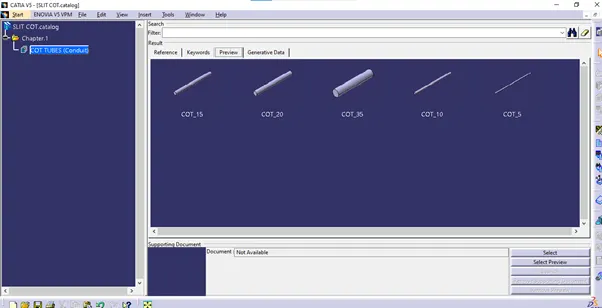

• Create catalogue for covering
• Add new part in catalogue
• Apply covering on harness bundles from cata;ogue
