Wiring harness routing & packaging Rules Week 3 Challenge

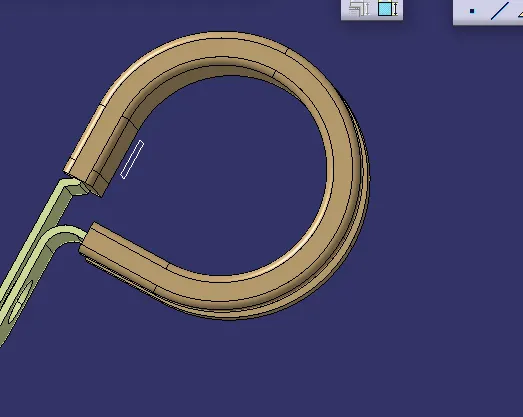

p clamp

It's the most user-friendly, versatile, and rugged p-clamp for fastening and fixing cables, Mostly we are using P clamp is for fixing the component to stop the movement and avoid the unnecessary sound produsing from the engine compartment.

Tyco 1738312-1

Corrugated tubes

Corrugation of tubes can increase both the inner and outer surface convective heat transfer coefficient without any considerable rise in pressure drop. It also results in increase in mixing of fluid, flow turbulence, unsteadiness by limiting the fluid boundary layer growth adjacent to the tube surface.
