Week 8 - Challenge 2 - Switch Bezel Design

drafting angle

it is the minimum angle that which we follow for creating the surcace for attaining proper production output

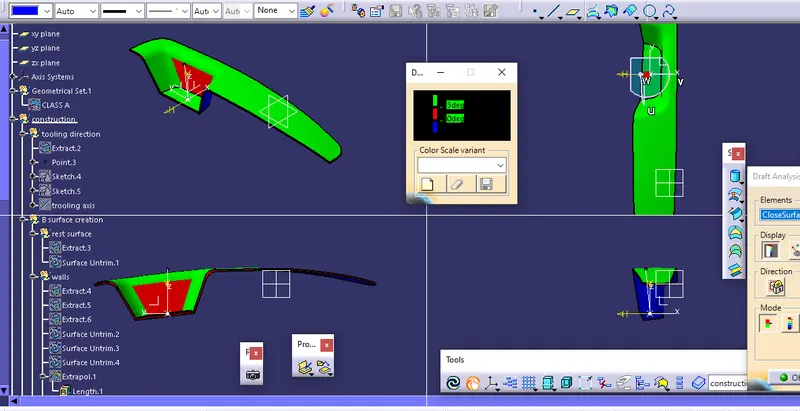

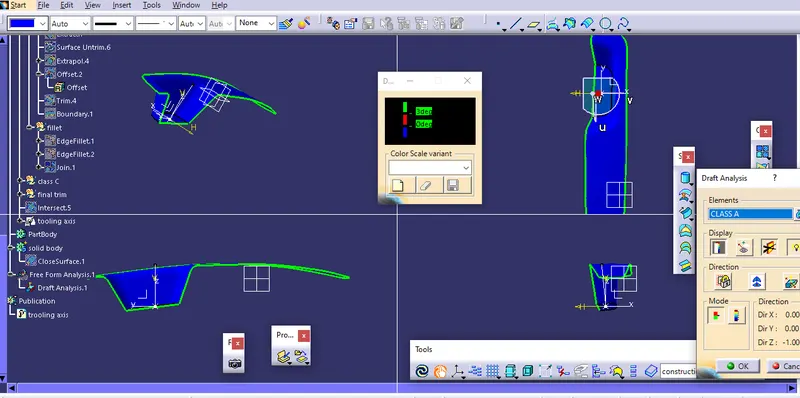

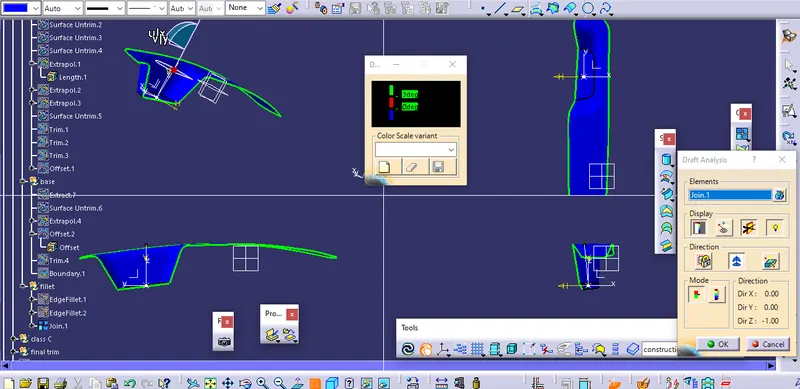

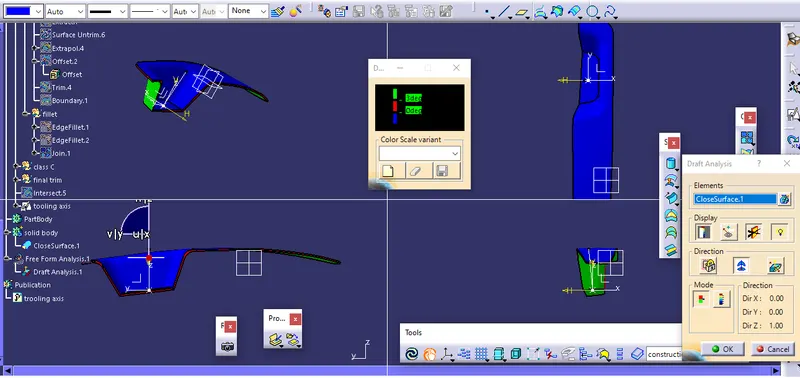

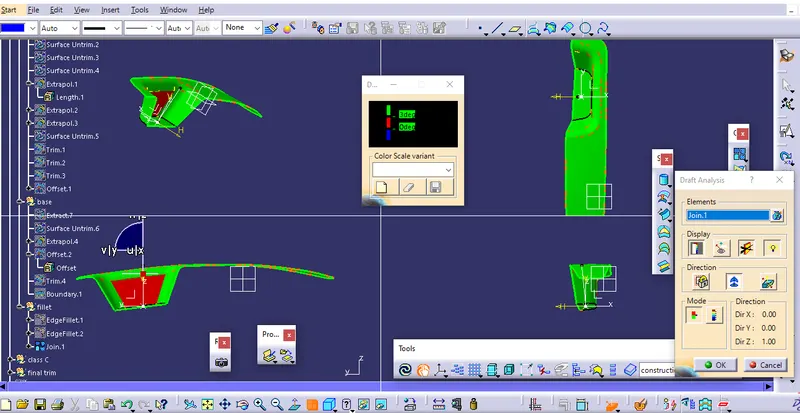

draft analysis

which allows us to easily analyze a part for proper draft angle to avoid damage for the poroduct vduring manufacturing

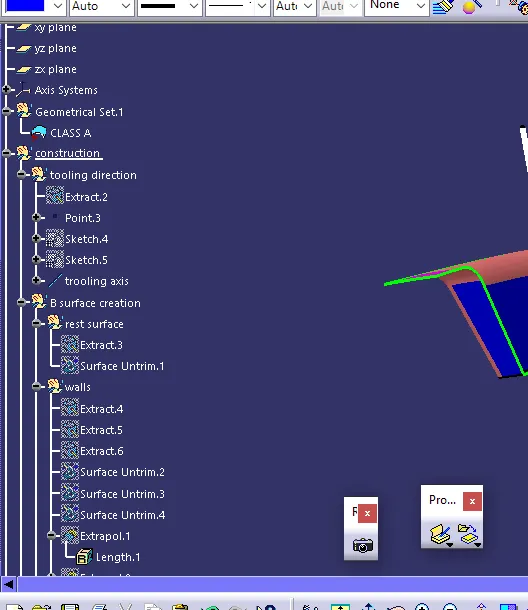

Tooliong axix

controls how we want the tool to orient itself whilst cutting a multi-axis toolpath.

selecting the face of the product that which we arer going to creat tooling

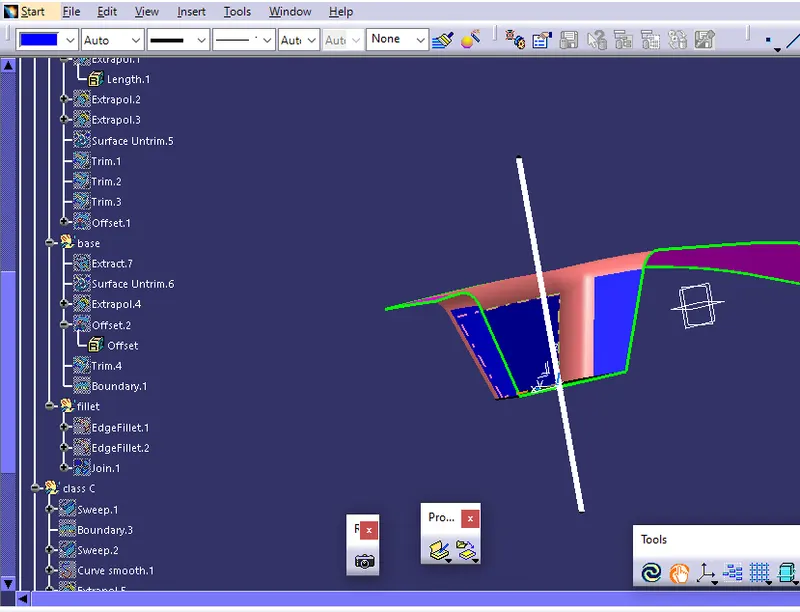

creat a point, create the dummy tooling axix with that point and the direction

create a line over the proiduct by intercection option

select the drafting portion, create thye line over this line with the two point from the line

draw the line which should bisecting the created line from the product drafting portion

repeate this for another verticle side of the product

after that bistcting that two line.
