Wiring harness routing & packaging Rules Week 3 Challenge

Wiring harness routing & packaging Rules

AIM:

• To solve the above assignment questions and define the necessary electrical properties in the respective workbench.

OBJECTIVE:

• To download the P-Clamp CAD data and define it as Electrical Support in the Electrical Part design workbench and also define the necessary electrical properties.
• To download the Backshell CAD data and define it as Electrical Back shell in the Electrical Part design workbench and also define the necessary electrical properties.
• To create Following Corrugated tubes and add them in Catalogue under “Slit COT” family.

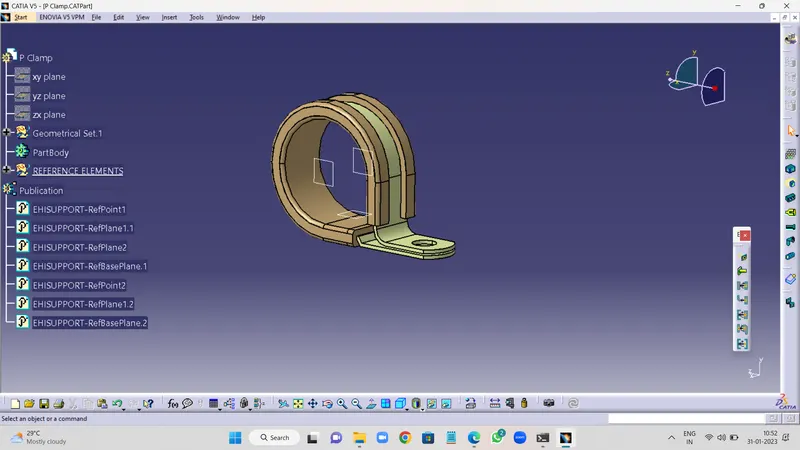

P - CLAMP:

• P-Clamp is an Electrical Support equipment which provides support to the wire bundle to remain fixed to the automobile or any components or parts.
• The wire bundle can enter and exit from any side as it is a bi-directional equipment.
• So, we need to specify the Entry and Exit points from both the sides.
• Then we need to create points and plains at the entry and exit points.
• Now using the 'Define support part' option we can define the P-Clamp Entry and Exit points.

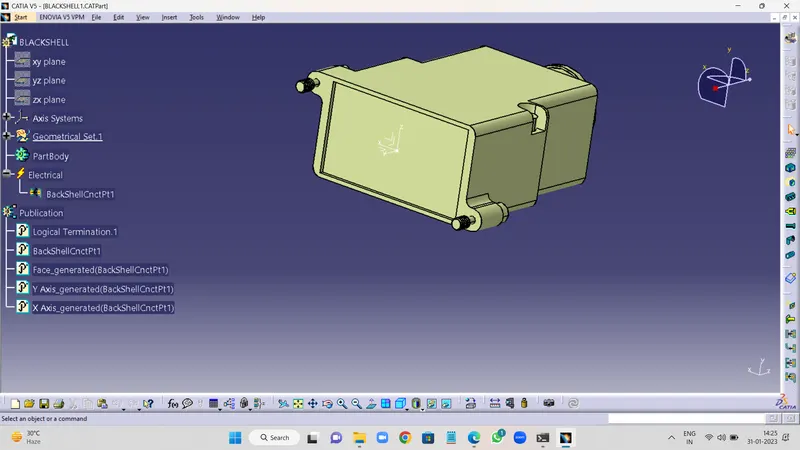

BACKSHELL:

• Create an Axis system at the Connector mating side.
• The axis system should be created at the center of the mating surface.
• The axis must be defined as defined for the connectors show that it will connect easily.
  • Y- axis: Normal to the mating surface
  • X-axis: Normal to the lockin

CORRUGATED TUBES:

• Corrugated Tubes are used as protection coverings for the wire bundle from any type of damages.

• Name	ID (mm)	OD (mm)	Thickness (mm)
  15mm COT	12	15	1.5

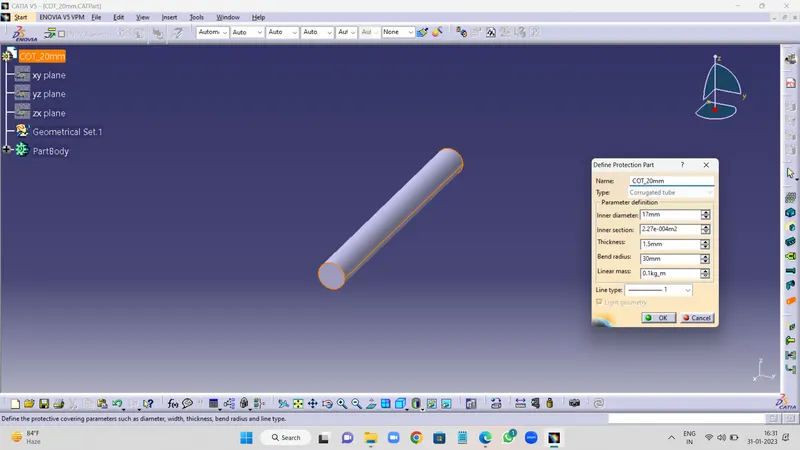

  20mm COT	17	20	1.5

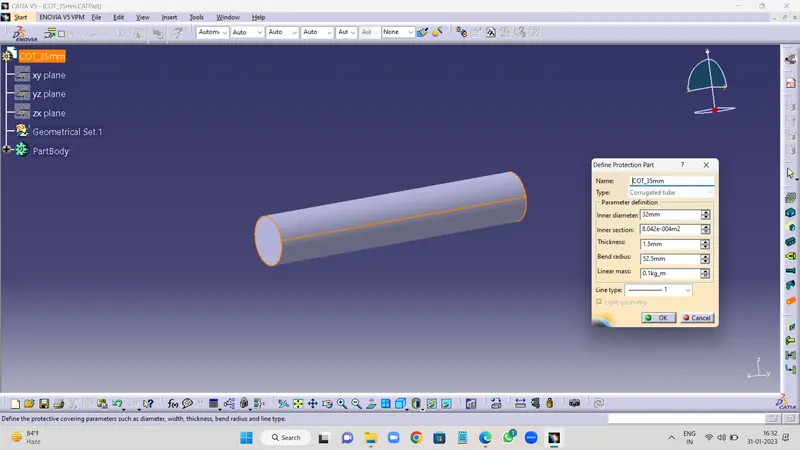

  35mm COT	32	35	1.5

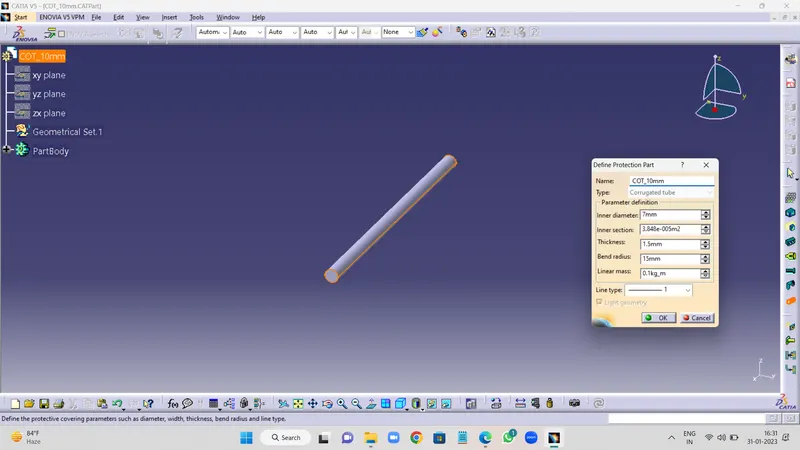

  10mm COT	7	10	1.5

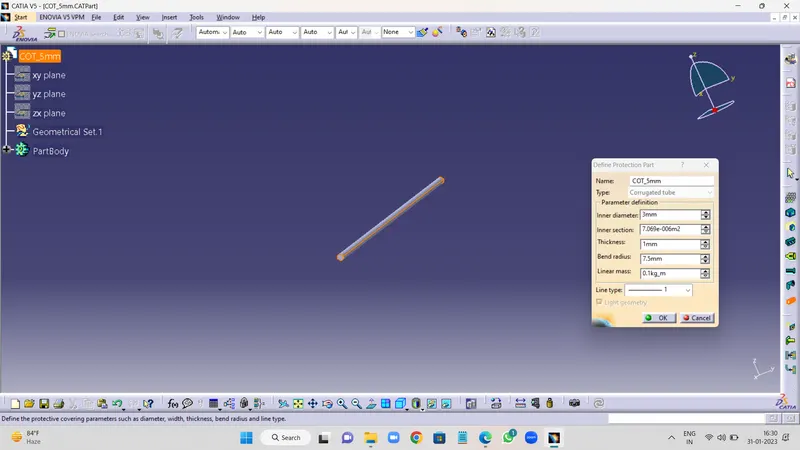

  5mm COT	3	5	1
