Week 8 - Challenge 2 - Switch Bezel Design

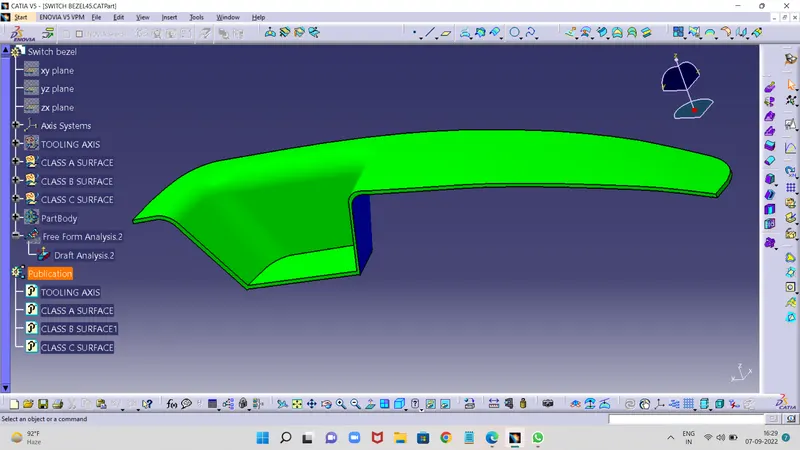

DRAFT ANALYSIS;

GO TO INSERT TOOLBAR THEN ANALYSIS AND THEN SELECT THE FEATURE DRAFT ANALYSIS OPTION
TO ENSURE THE SURFACE IS MATERIAL MODE
TO USES THE COMPASS TO DEFINE THE NEW CURRENT DRAFT DIRECTION
TO ENSURE THE COMPASS IS POSITIONING THE TOOLING AXIS
TO ANALYSIS UNDER THE RUNNING POINT AND ENSURE THE DIMENSIONS
TO ENSURE THE DRAFT ANGLE 3 DEGREE
TO ENSURE THE SURFACE THE DRAFT ANALYSIS COLOUR GIVEN ANALYSIS REPORT
IF GREEN COLOUR MEANS DRAFT ANGLE IS ABOVE 3 DEGREE
IF RED COLOUR MEANS DRAFT ANGLE IS BELOW 0 DEGREE
IT BLUE COLOUR MEANS DRAFT ANGLE IS 0

TOOLING AXIS;

TO CREATE THE POINT AND CREATE THE LINE FOR DUMMY TOOLING AXIS.
TO CREATE AXIS SYSTEM AND SELECT FIRST INTERSECT YZ PLANE TO CREATE THE DUMMY LINE
TO INRESECT ZX PLANE THEN CREATE ANOTHER DUMMY LINE
TO CREATE BISECTING LINE BETWEEN TWO DUMMY LINE AND SET TOOLING AXIS
