Week 8 - Challenge 1 - Base Bracket Design

DRAFT ANALYSIS;

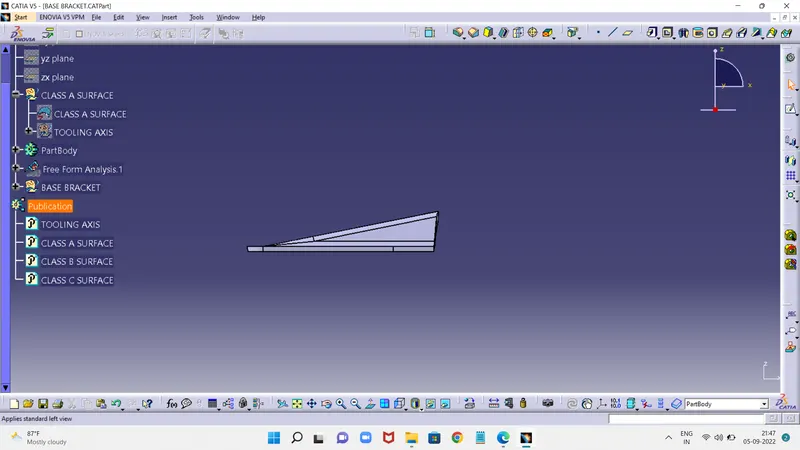

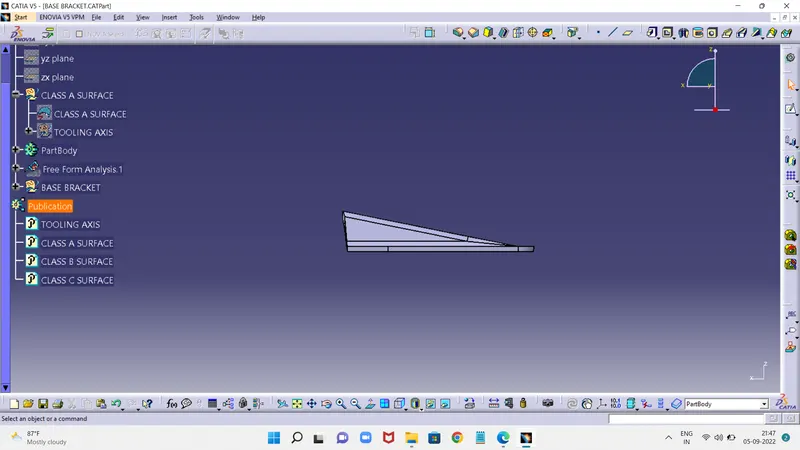

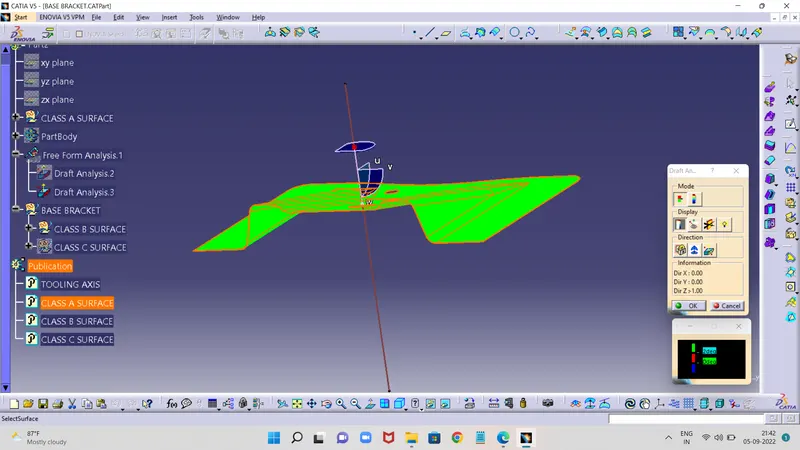

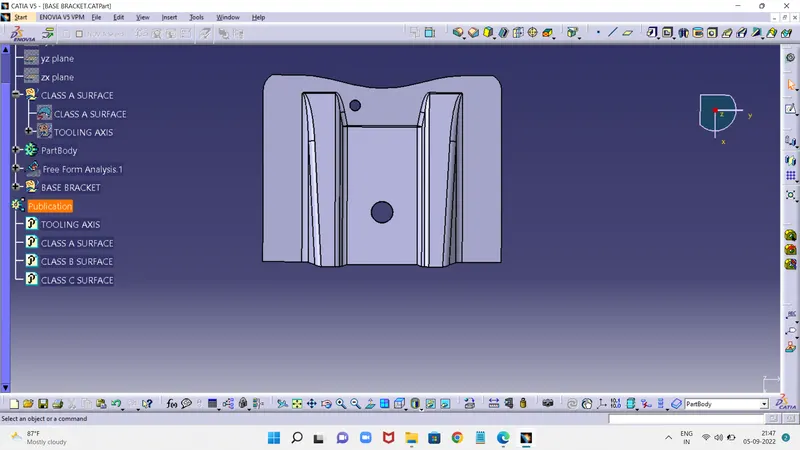

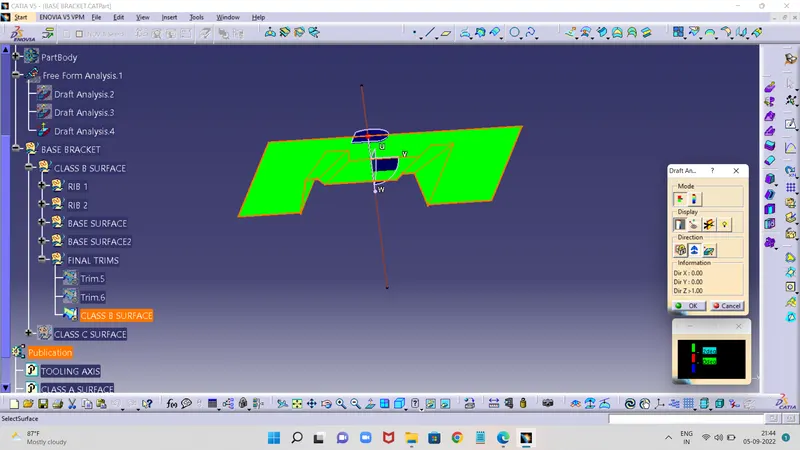

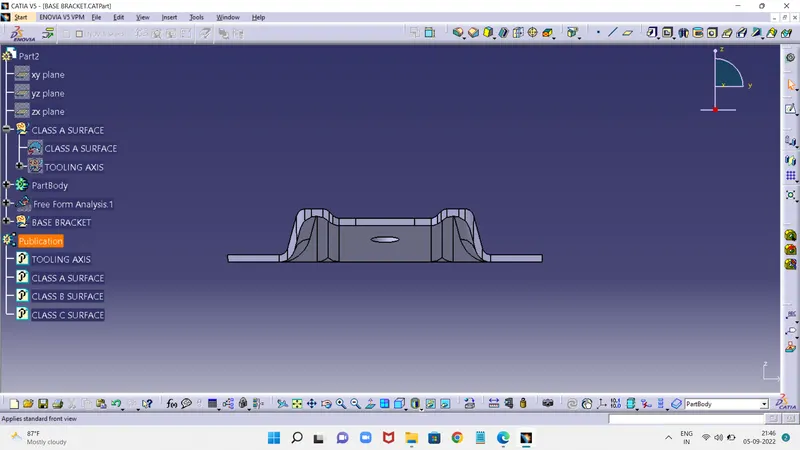

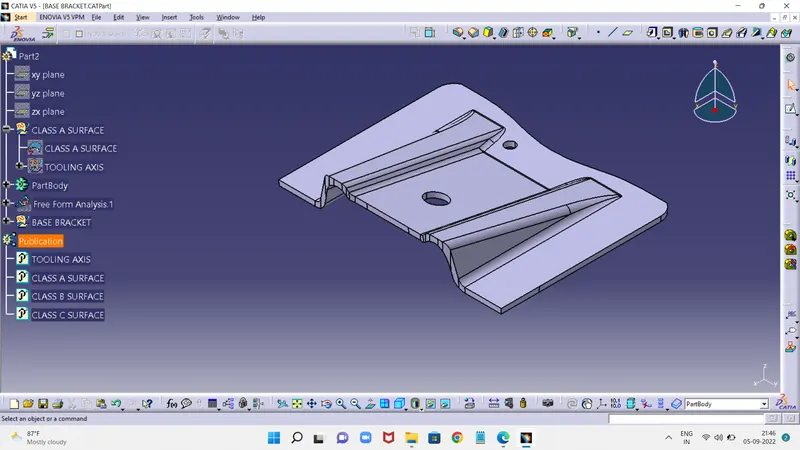

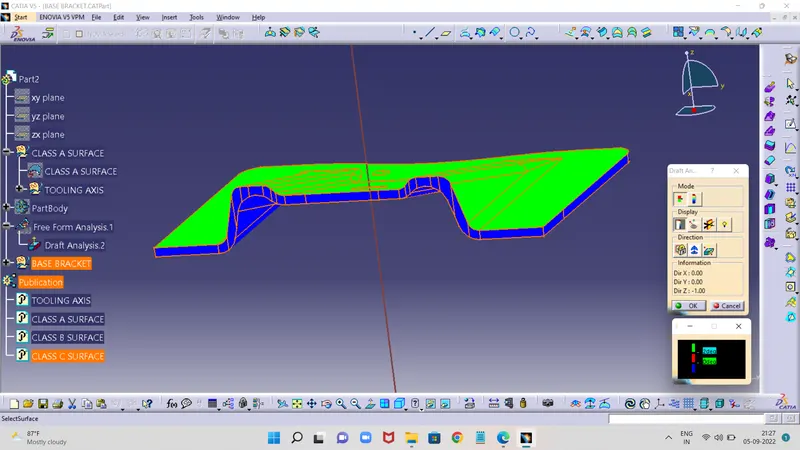

• GO TO INSERT TOOLBAR THEN ANALYSIS AND THEN SELECT THE FEATURE DRAFT ANALYSIS OPTION
• TO ENSURE THE SURFACE IS MATERIAL MODE
• TO USES THE COMPASS TO DEFINE THE NEW CURRENT DRAFT DIRECTION
• TO ENSURE THE COMPASS IS POSITIONING THE TOOLING AXIS
• TO ANALYSIS UNDER THE RUNNING POINT AND ENSURE THE DIMENSIONS
• TO ENSURE THE DRAFT ANGLE 3 DEGREE
• TO ENSURE THE SURFACE THE DRAFT ANALYSIS COLOUR GIVEN ANALYSIS REPORT

TOOLING AXIS;

• TO CREATE THE POINT AND CREATE THE LINE FOR DUMMY TOOLING AXIS.
• TO CREATE PLANE YZ AXIS
• TO INTERSACT THE BASE BRACKET AND CREATE TWO LINES POINT TO POINT DIRECTION
• TO CREATE BISECTING LINE BETWEEN TWO LINES AND IT CREATES THE TOOLING AXIS
•
