Wiring harness routing & packaging Rules Week 3 Challenge

Wiring harness routing & packaging Rules Week 3 Challenge:-

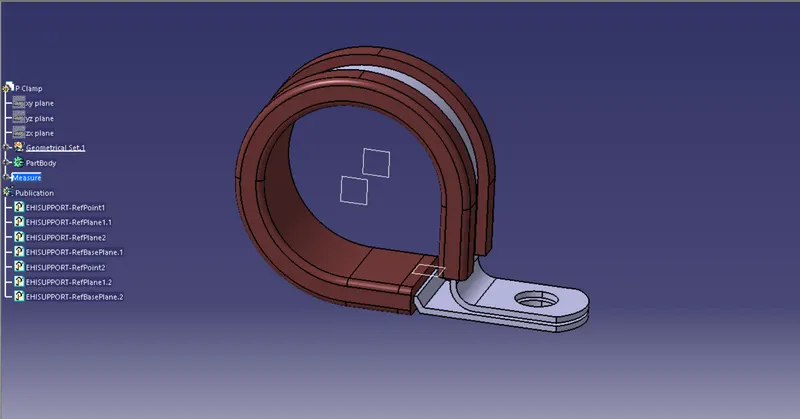

Q1):-Download following cad data & define it as Electrical support using Electrical Part design Workbench. Define all the necessary properties.

1. The given clip was downloaded and opened as a part file.
2. I have to define two points that will be used as entry and exit points.
3. Then a plane has to be defined at the points.
4. A base plane has to be defined at a distance of 2 to 3 mm from the clip.
5. again we define the exit point at the first definition as the entry point.
6. hence I have two entry and two exit points.

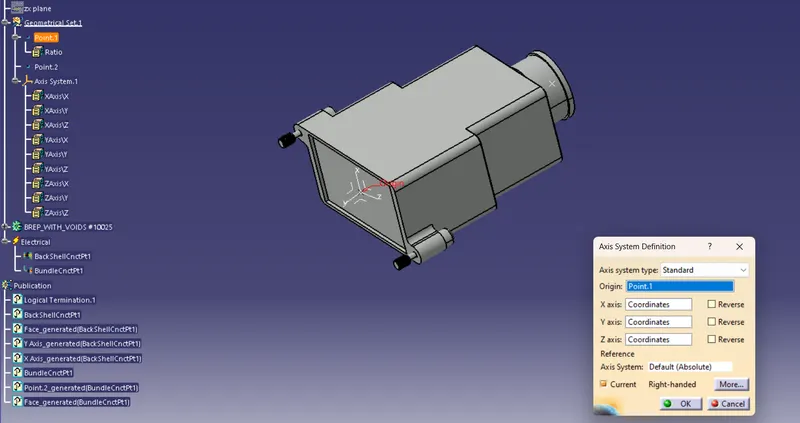

Q2. Download following Back shell cad data & define it as Electrical back shell using Electrical Part design Workbench. Define all the necessary properties.

Tyco 1738312-1 https://www.te.com/usa-en/product-1738312-1.html

1. we need to download to open sources file of backshell
2. creat the point on the backside shell inbetween point to 0.5mm
3. Creat the axis at origin point to X,Y,Z axis rotating and 90 degree all direction easily mating. other component
4. The points have to be defined as the backshell connection and bundle connection points.

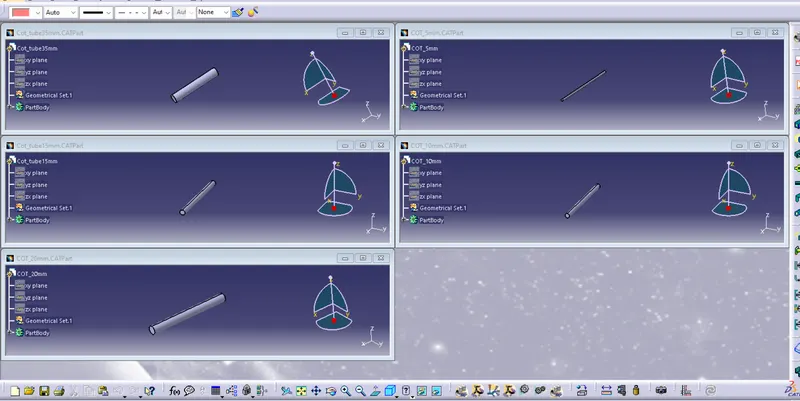

Q3. Create Following Corrugated tubes & Add them in Catalogue under “Slit COT” family.

1. we define the cot tubes in the electrical part workbench.
2. the inner dia & thickness are given as the inputs.
3. a catalog was created for the cot tubes.
4. all the cot tubes were saved in the catalog.
