Wiring harness routing & packaging Rules Week 3 Challenge

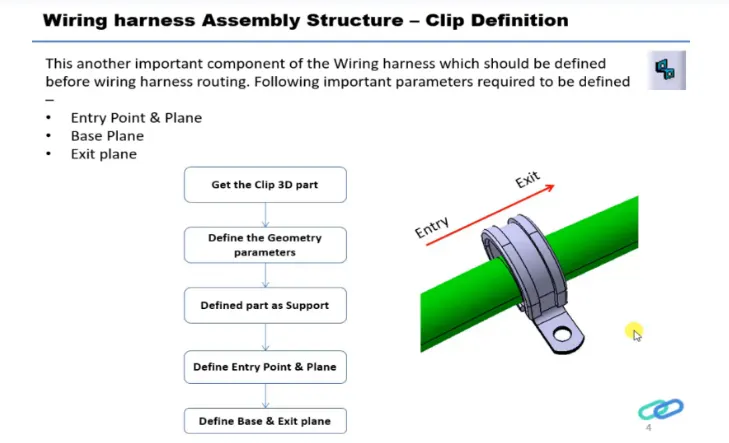

Q1. Download following cad data & define it as Electrical support using Electrical Part design Workbench. Define all the necessary properties.
PROCEDURE:
- The given clip was downloaded and opened as a part file.

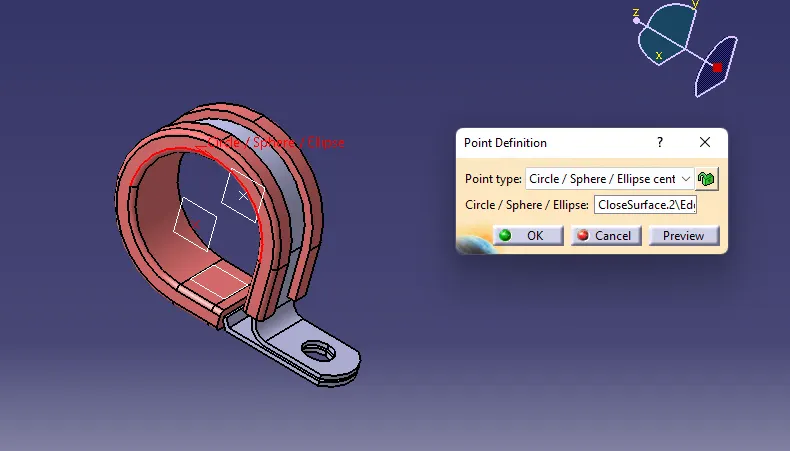

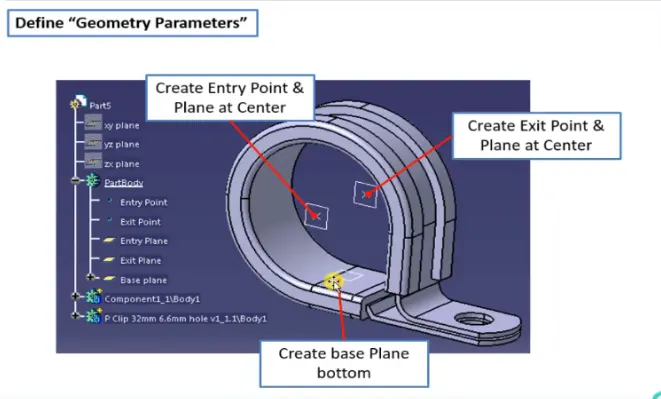

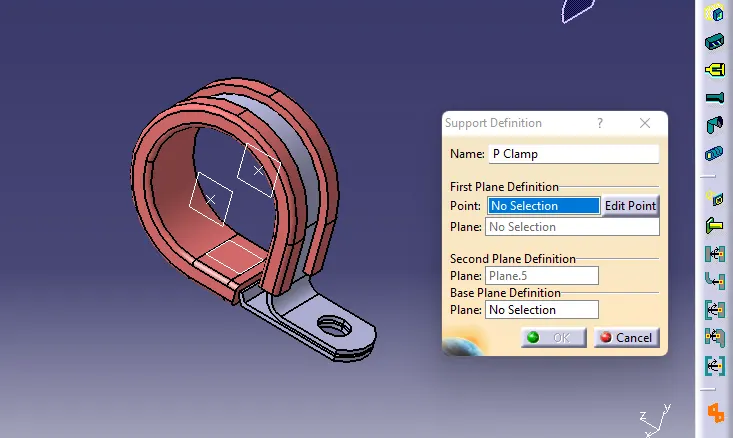

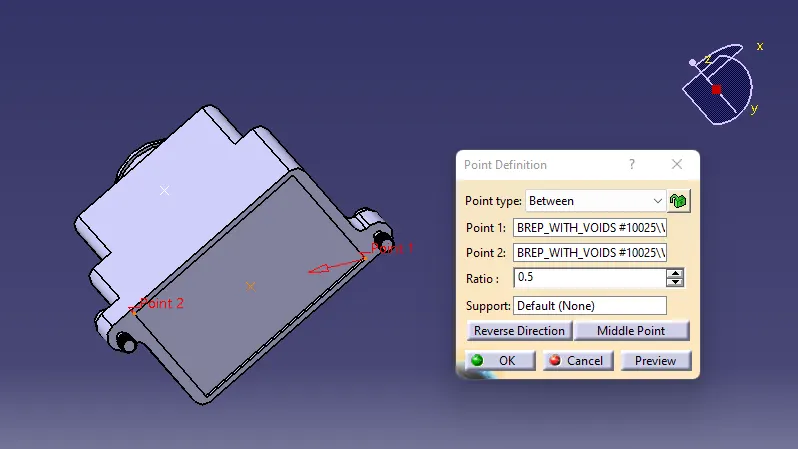

- I have to define two points that will be used as entry and exit points.
- Then a plane has to be defined at the points.
- A base plane has to be defined.
- again, we define the exit point at the first definition as the entry point.
- hence, I have two entry and two exit points.

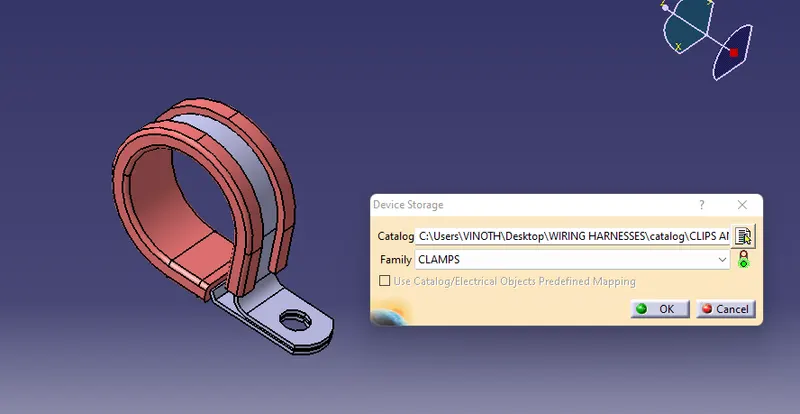

- Part added into catalog.

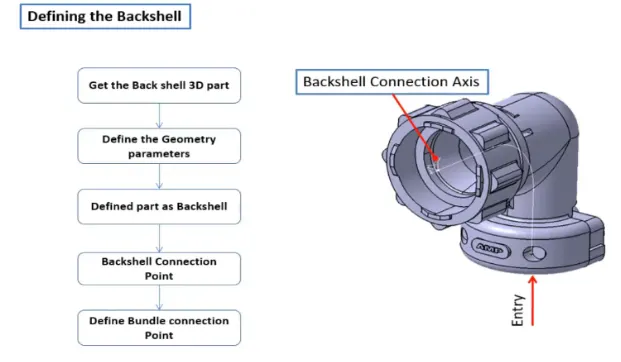

Q2. Download following Back shell cad data & define it as Electrical back shell using Electrical Part design Workbench. Define all the necessary properties.
Tyco 1738312-1 https://www.te.com/usa-en/product-1738312-1.html
PROCEDURE:

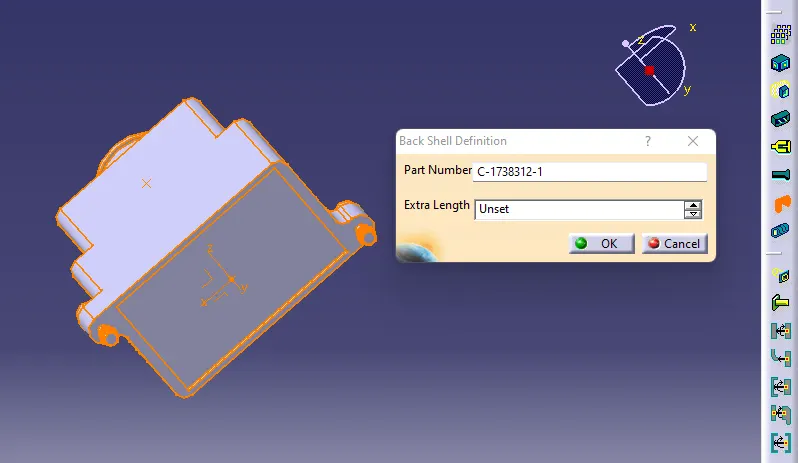

- The backshell data was downloaded from the website.

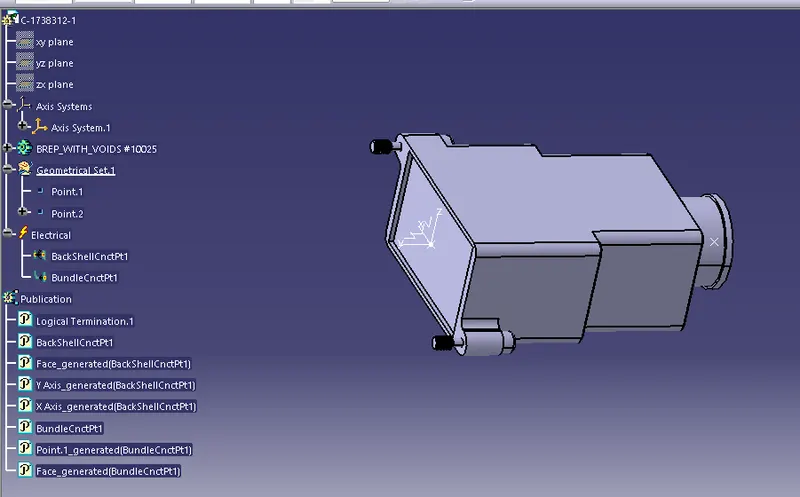

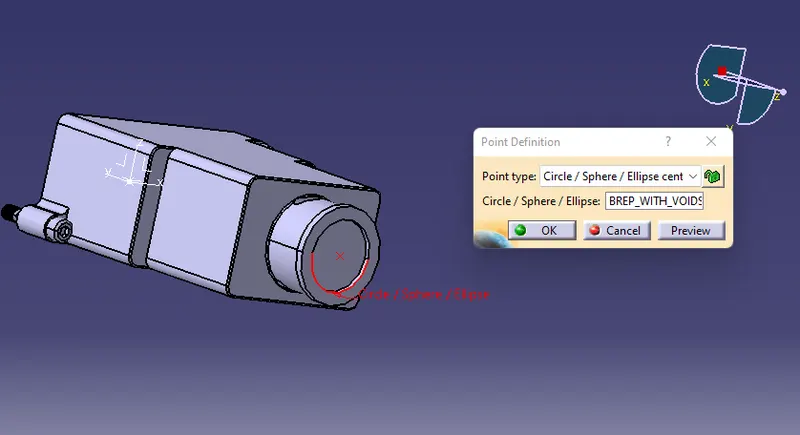

- We define the points in the part workbench.

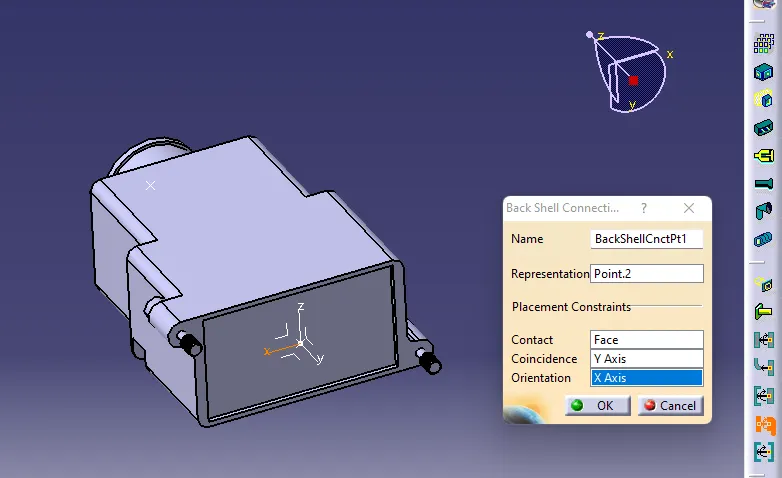

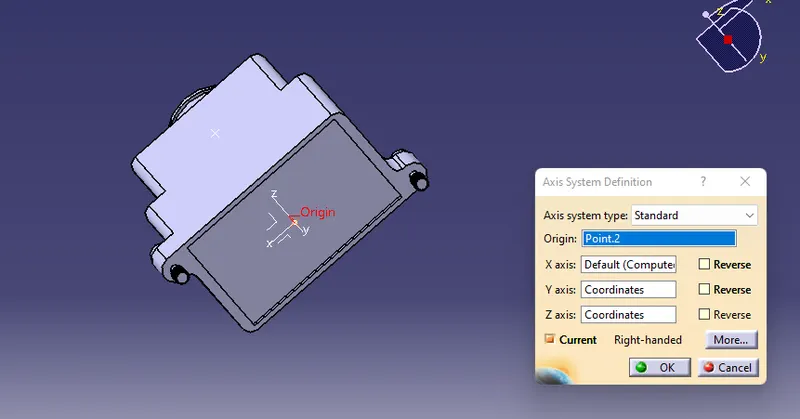

- An Axis system with the correct axis orientation is placed at the backshell connection point.

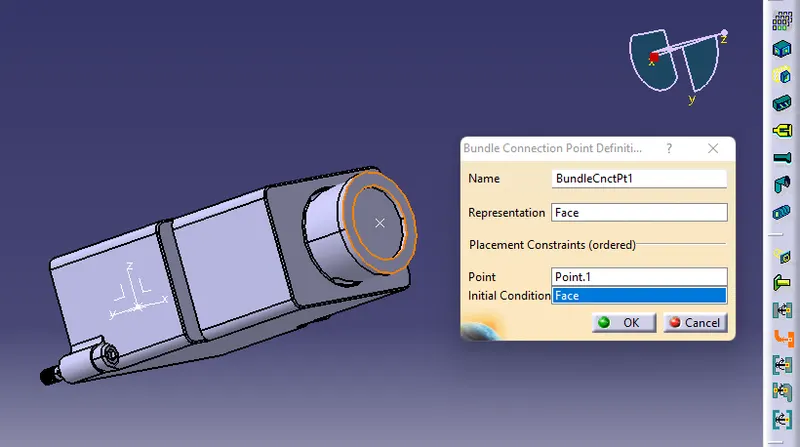

- The points have to be defined as the backshell connection and bundle connection points.

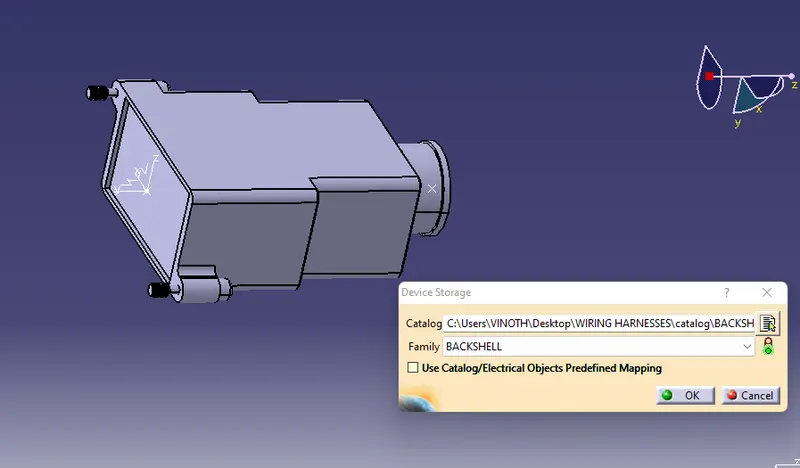

- Part added into catalog.
Q3. Create Following Corrugated tubes & Add them in Catalogue under “Slit COT” family.
|
Name |
ID (mm) |
OD (mm) |
Thickness (mm) |
|
15mm COT |
12 |
15 |
1.5 |
|
20mm COT |
17 |
20 |
1.5 |
|
35mm COT |
32 |
35 |
1.5 |
|
10mm COT |
7 |
10 |
1.5 |
|
5mm COT |
3 |
5 |
1 |

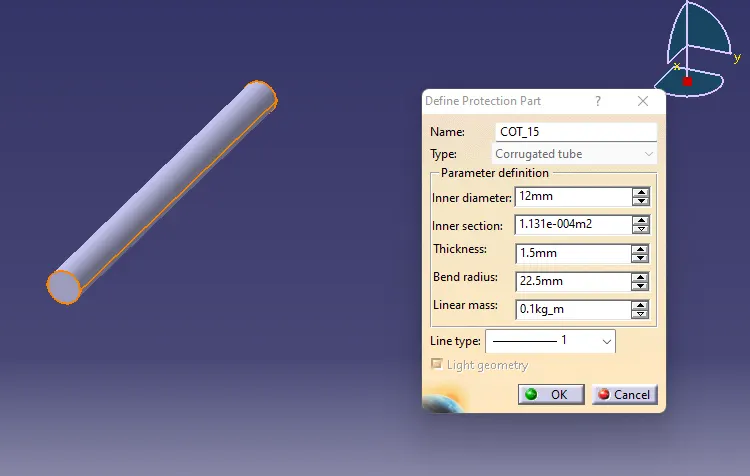

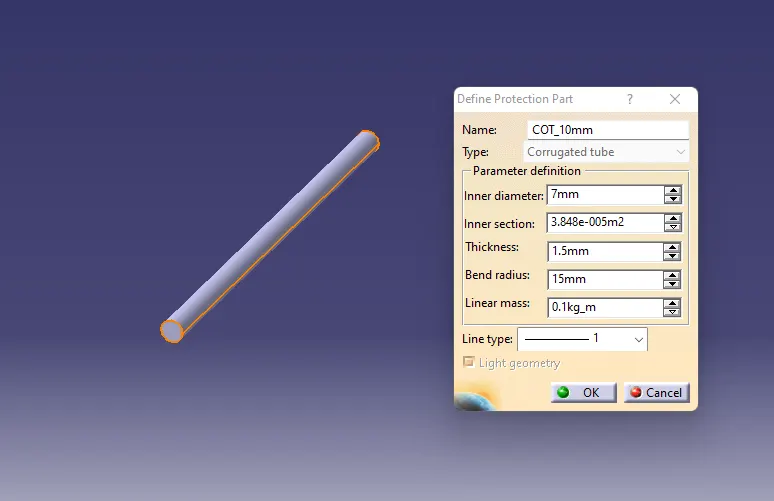

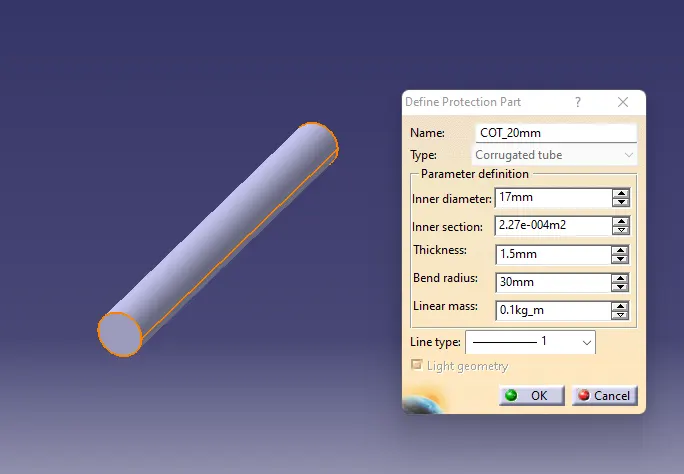

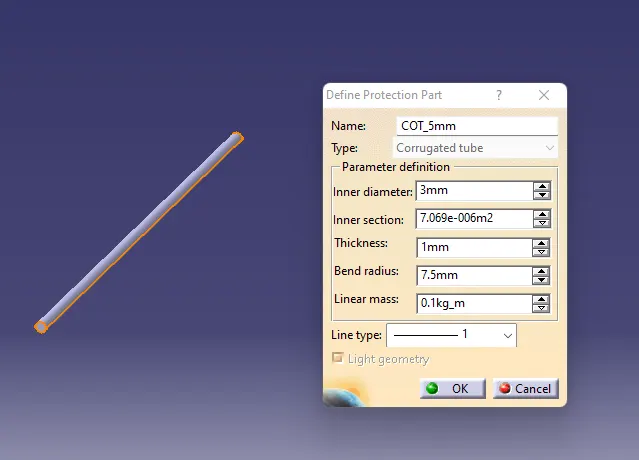

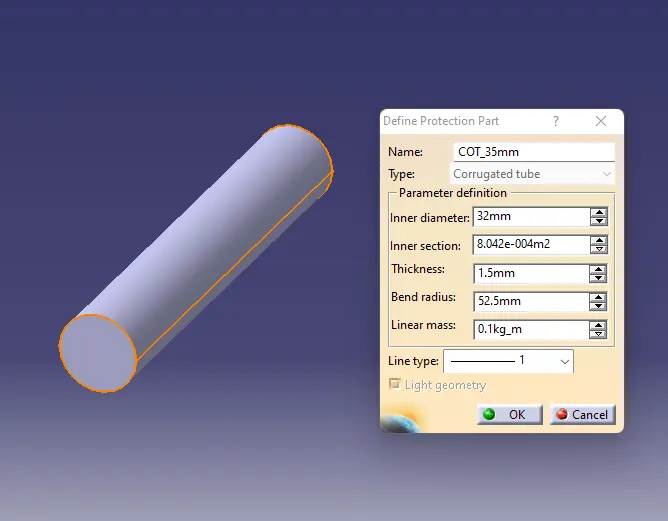

PROCEDURE:
- Switch to Electrical part design
- Select Define protection Part
- Click on part (on file name in specification tree)
- Provide given parameters and bend radius as '1.5 x Outer Dia'.
Catalogue Certation:
- new part - catalogue document - add family - give name - type - select Conduit - save.

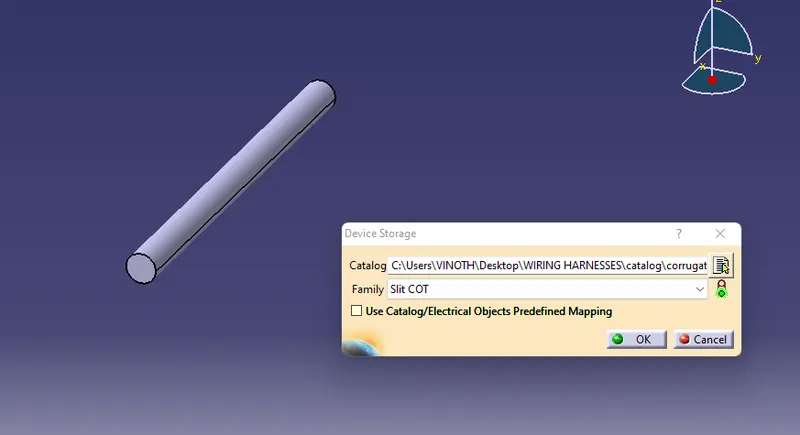

- Open part to add catalogue - store device command - select catalogue - family - Slit cot- ok
