Wiring harness routing & packaging Rules Week 3 Challenge

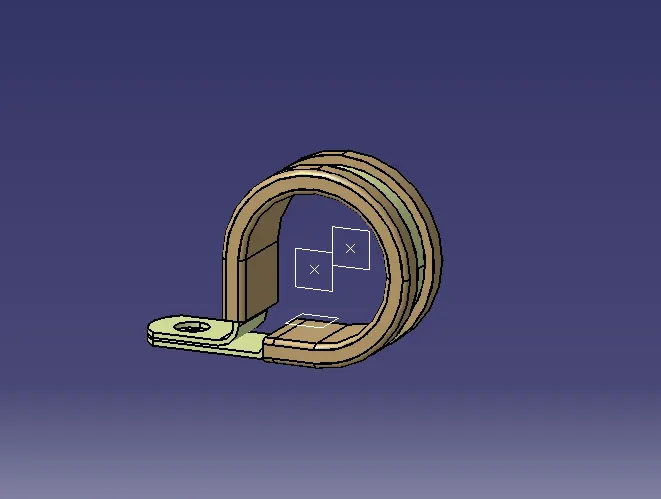

Q1: P Clamp
Creation of the Entry planes and points using part workbench

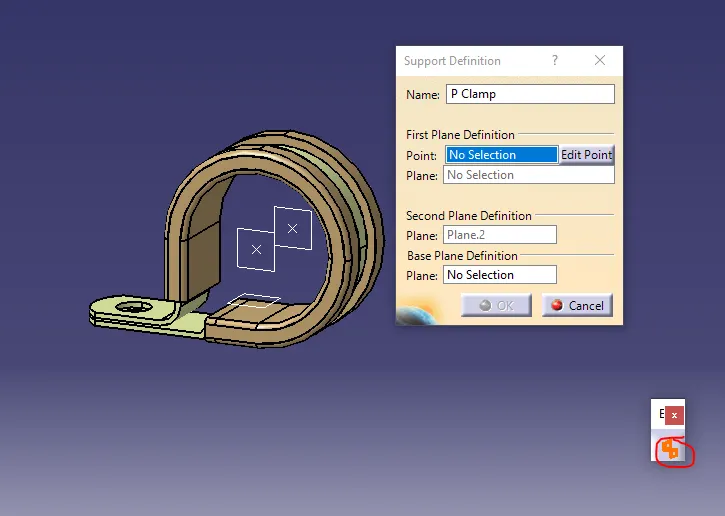

Defining the support definition
Q2: Back shell

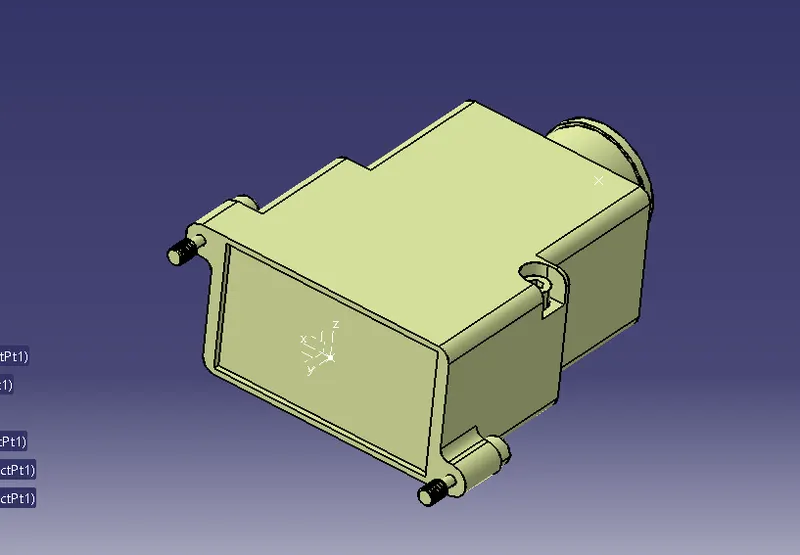

Backshell added with points and axis in part workbench

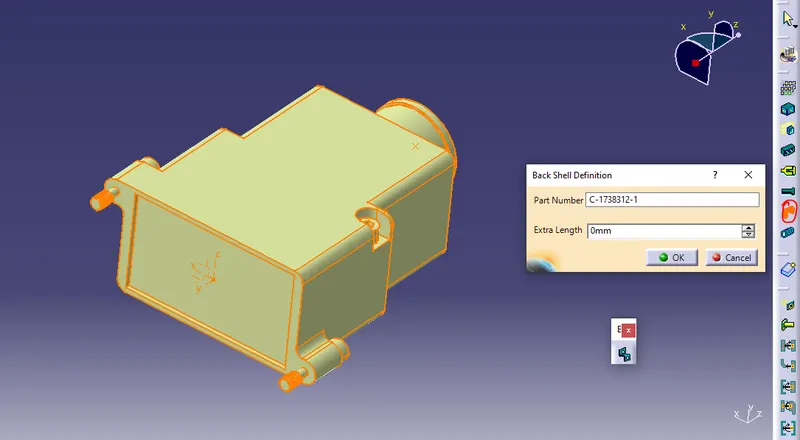

Defining the backshell

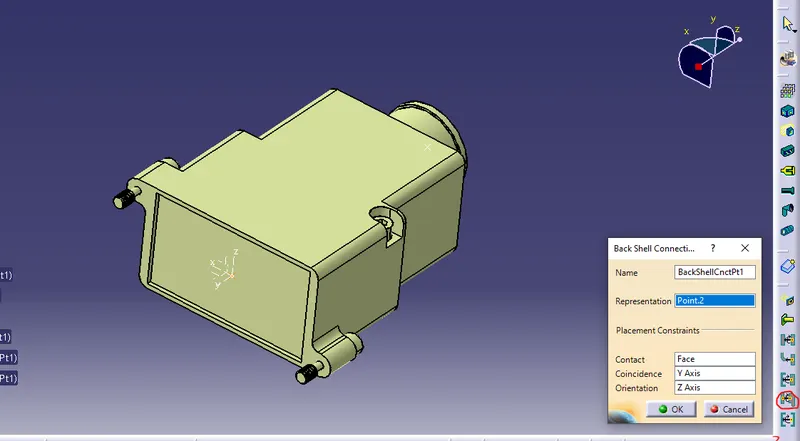

Defining back shell connection point

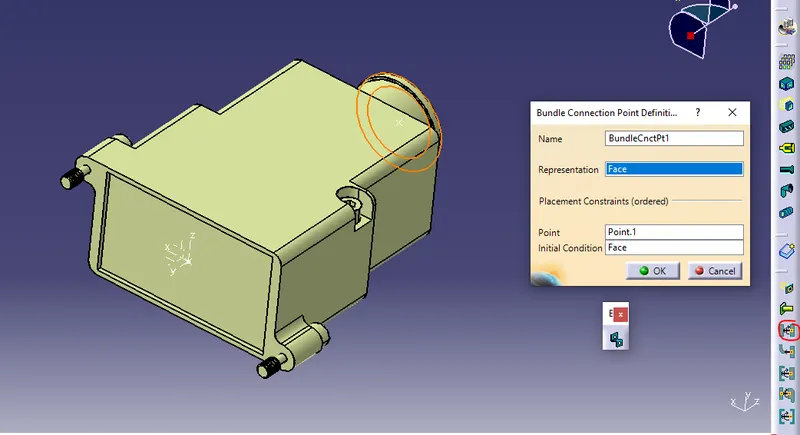

Defining bundle connection point
Q3:
|
Name |
ID (mm) |
OD (mm) |
Thickness (mm) |
|

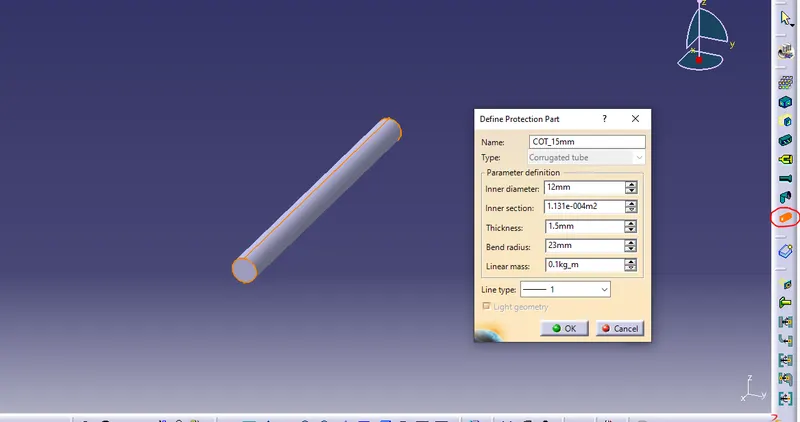

15mm COT |
12 |
15 |
1.5 |
|

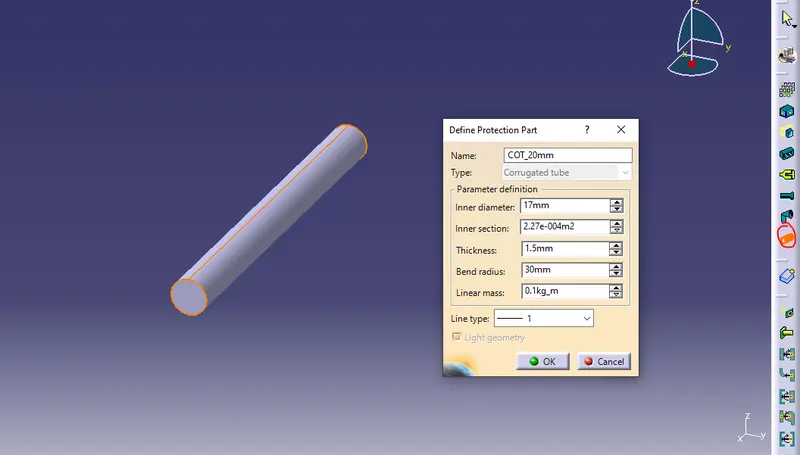

20mm COT |
17 |
20 |
1.5 |
|

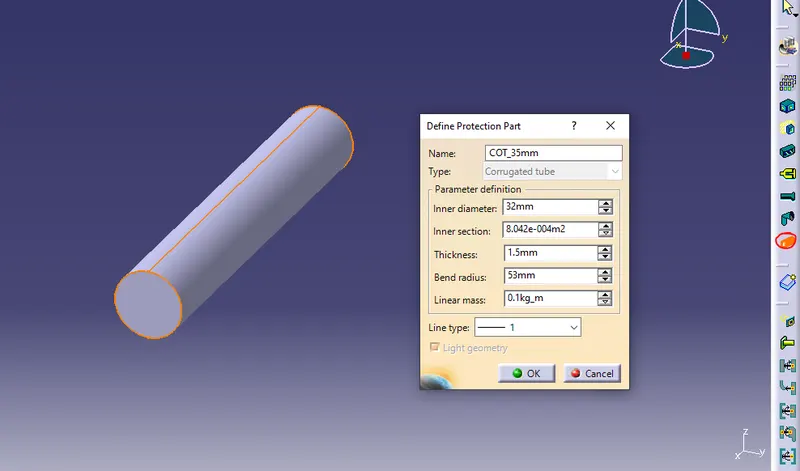

35mm COT |
32 |
35 |
1.5 |
|

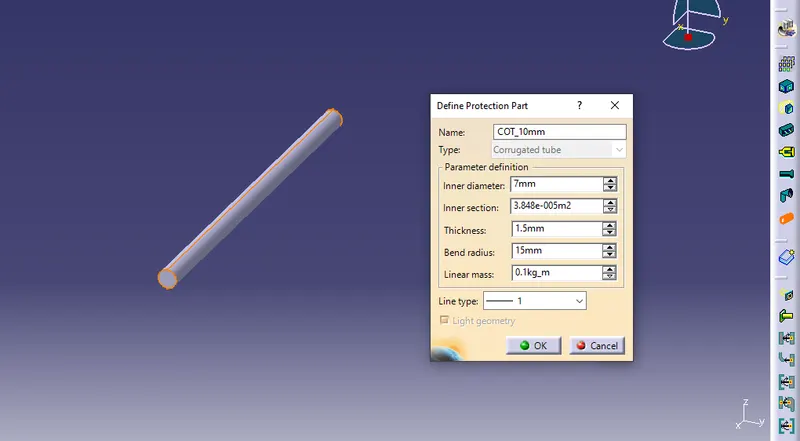

10mm COT |
7 |
10 |
1.5 |
|

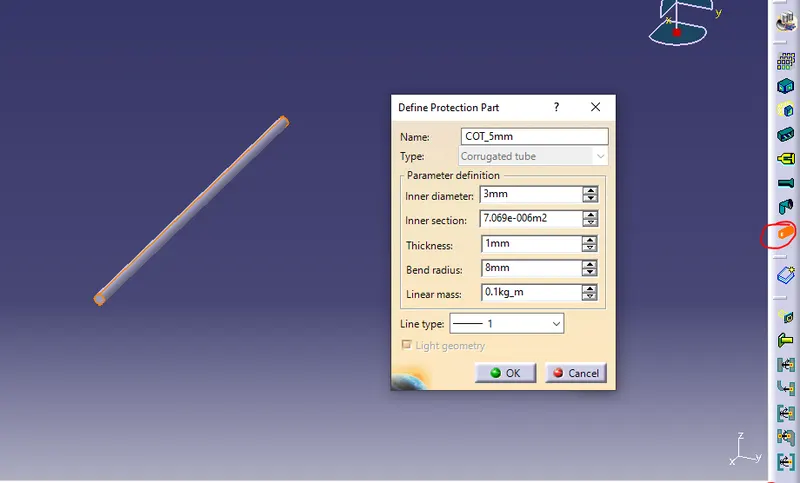

5mm COT |
3 |
5 |
1 |
15mm
20mm
35mm
10mm
5mm

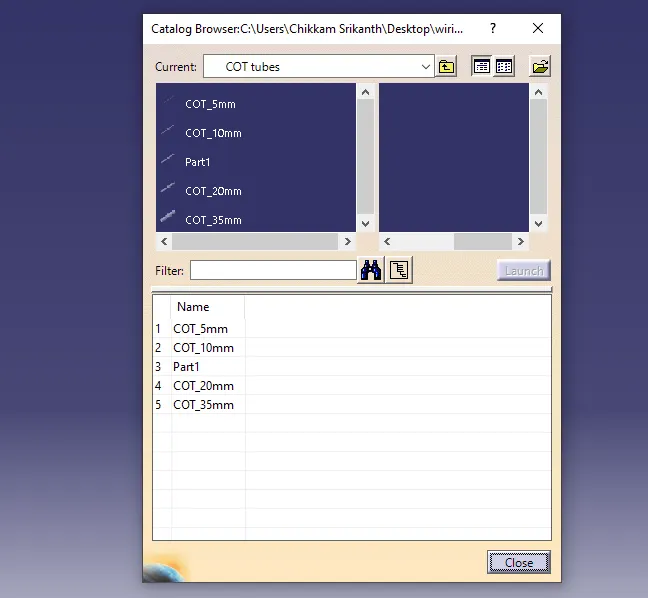

CATALOGUE
