Wiring harness routing & packaging Rules Week 3 Challenge

.ANS 1 :

STEPS:

PART DESIGN-> OPEN FILE -> DEFINE POINT FOR ENTRY & EXIT OF CLIP -> DEFINE PLANE FOR ENTRY ,EXIT & BASE.

DEFINING PLANE AS BELOW :

ENTRY & EXIT:

BASE:

GOTO ELECTRICAL PART DESIGN -> DEINE AS A SUPPORT PART ->CLICK ON DEFINE SUPPORT-> CLICK ON OBJECT/PART->

FOR BOTH ENTRY & EXIT NEED TO DEFINE SUPPORT DEFINITION

FOR FIRST POINT CONSIDERING IT AS ENTRY SIDE

FOR SECOND POINT CONSIDERING IT AS EXIT SIDE

SAVE IT.

ANS 2:

STEPS

PART DESIGN

OPEN PART -> DEFINE POINTS FOR BUNDLE ENTRY POINT AND BACKSHELL CONNECTION POINT ->

DEFINE AXIS SYSTEM FOR FOR BACKSHELL CONNECTION POINT-> Y AXIS TOWARDS MATING X & Z SHOULD BE SAME AS CONNECTOR

->ELECTRICAL PART DESIGN

-> DEFINE AS A BACKSHELL

KEEP EXTRA LENGTH AS UNSET

->DEFINE BACKSHELL CONNECTION POINT ->

->DEFINE BUNDLE ENTRY CONNECTION POINT

.SAVE IT

ANS 3 :

steps:

SWITCH TO ELECTRICAL PART DESIGN

1.GOTO FILE -> NEW -> SELECT PART -> ENTER PART NAME -> GIVE COT NAME -> OK

2. SELECT DEFINE PROTECTION PART

DEFINE BELOW INPUTS

INNER DIAMETER

THICKNESS

BEND RADIUS IS 1.5 TIMES OF EXT DIAMETER.

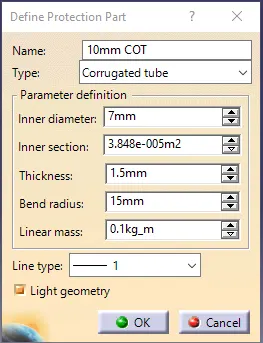

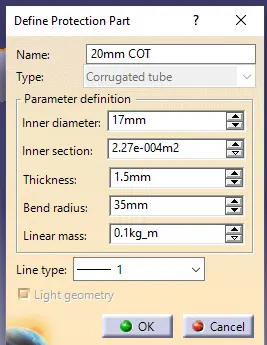

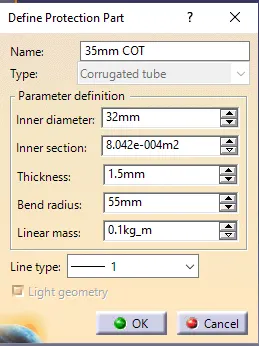

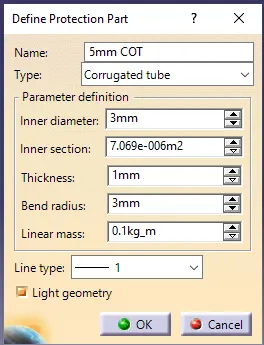

BELOW ARE THE SNAPSHOTS OF DIFFERENT DIA OF COTS.
