Wiring harness routing & packaging Rules Week 3 Challenge

Wiring harness routing & packaging Rules

Objective-

1- Download following cad data & define it as Electrical support using Electrical Part design Workbench. Define all the necessary properties.

2- Download following Back shell cad data & define it as Electrical back shell using Electrical Part design Workbench. Define all the necessary properties.

3- Create Following Corrugated tubes & Add them in Catalogue under “Slit COT” family.

Name	ID (mm)	OD (mm)	Thickness (mm)
15mm COT	12	15	1.5
20mm COT	17	20	1.5
35mm COT	32	35	1.5
10mm COT	7	10	1.5
5mm COT	3	5	1

1-

steps

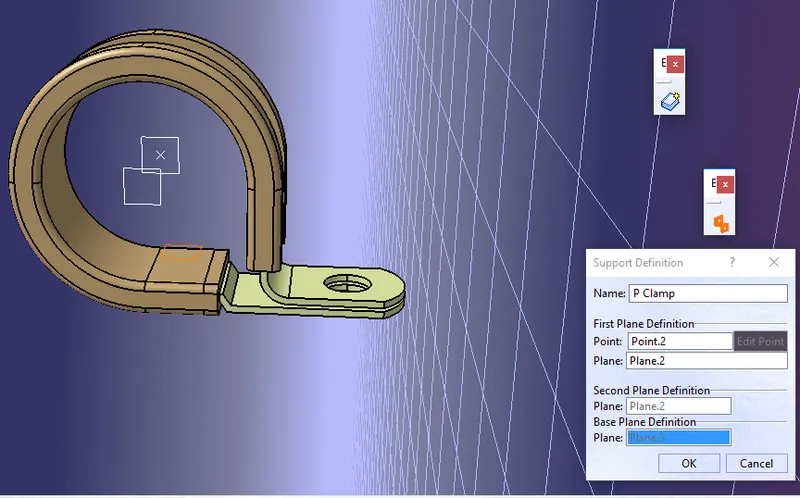

1. define entry and exit points.
2. plane defined at points.
3. define the exit point at the first definition as the entry point.
4. two entry and two exit points are made.

2-

steps

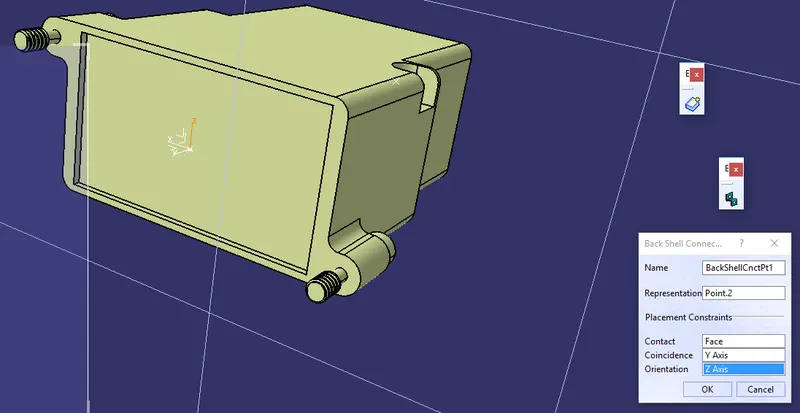

1-Backshell downloaded

2-points defined at part workbench

3-axis system at connection point

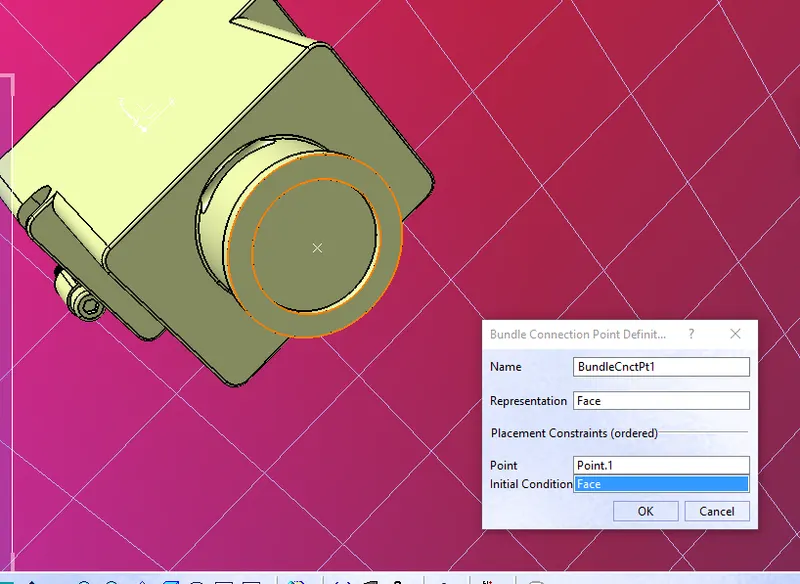

4-points defined as backshell connection and bundle connection points.

3-

steps

1-define the cot tubes in the electrical part workbench.

2-the inner dia & thickness are given as the inputs.

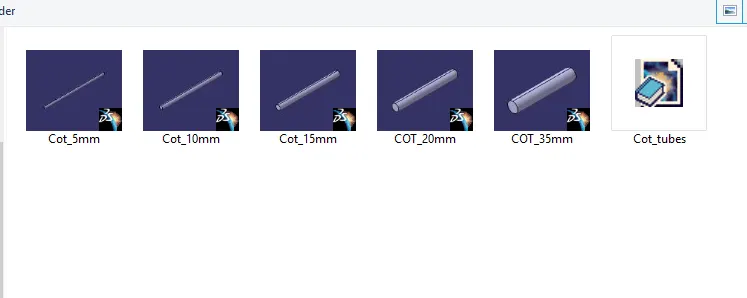

3-catalog created for the cot tubes.

4-cot tubes saved in the catalog.

Conclusion- The model is succesfully done as per the design requirement.
