Wiring harness routing & packaging Rules Week 3 Challenge

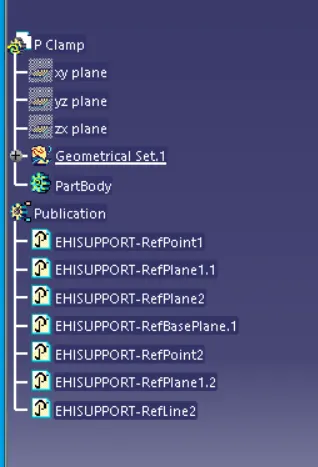

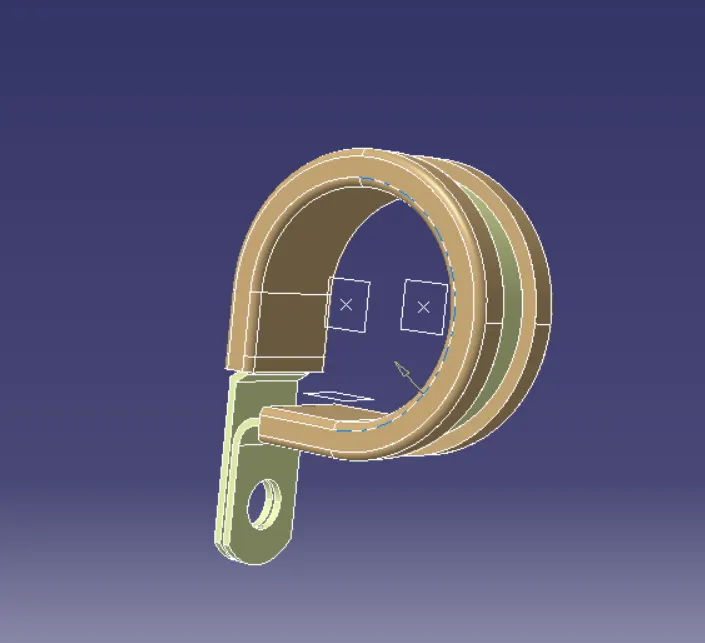

Q. 1. For Defining the P clamp as electric support-

1. In mechanical part design create the required geometry like 2 points and 3 planes.
2. Go to electrical part design and select the define support command click on the clamp.
3. Define the entry and exit for clamp by selecting the respective points and plane for 1st entry and exit .Again do the same to define the 2nd entry and exit

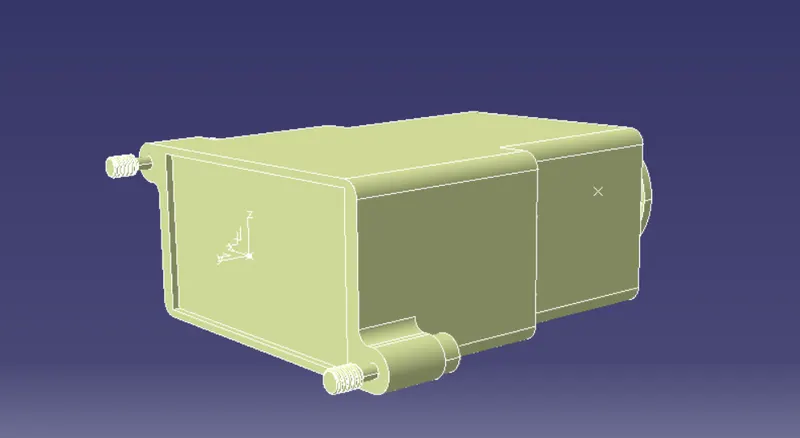

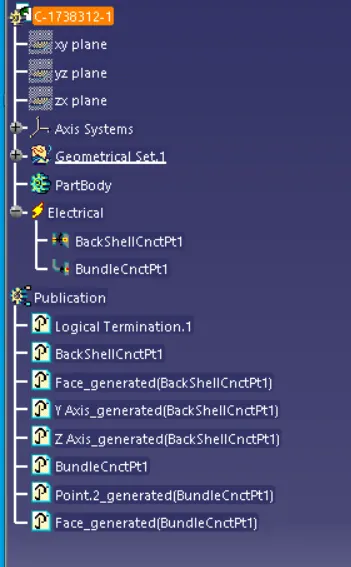

Q. 2. For defining the given paet as Backshell -

1. In mechanical part design create the required geometry like points and axis system.
2. Go to electrical part design and select the define Back shell and select the part.
3. For defining connection select Back shell connection select the point and orientation on the axis system.

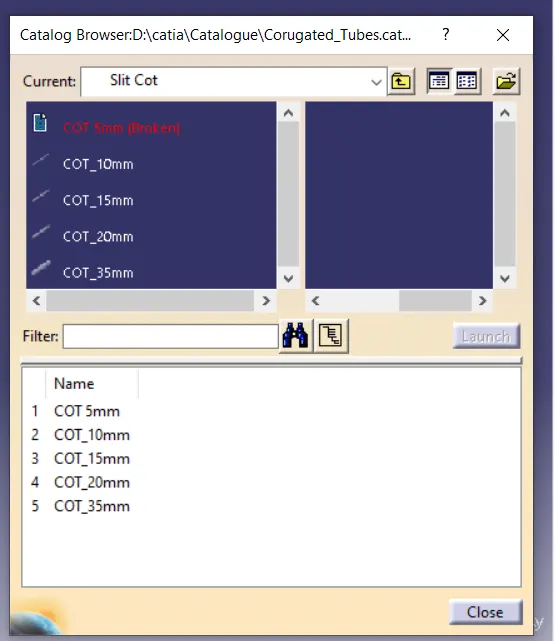

Q. 3. For making the corugatted tubes -

1. In electric part design create a new part select the protective covering command and click on the part name in tree,then in pop up box fill the requred details for cot tube diameters and click ok to save the part
2. click on new catalogue and create a new catalogue.Name Slit Catlogue and select conduits in family and click on save.
3. Add the corugatted part in the catlogue by selecting the proprt catalogue.
