Wiring harness design in CATIA V5 - 3D modeling Week 7 Challenge

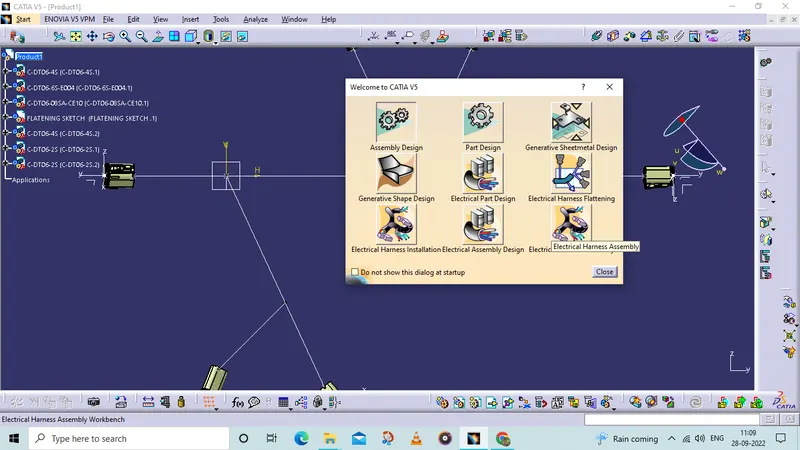

DEFINE THE CONNECTORS IN ELECTRICA PART DESIGN.

THEY CONNECTED EACH OTHER OR NOT

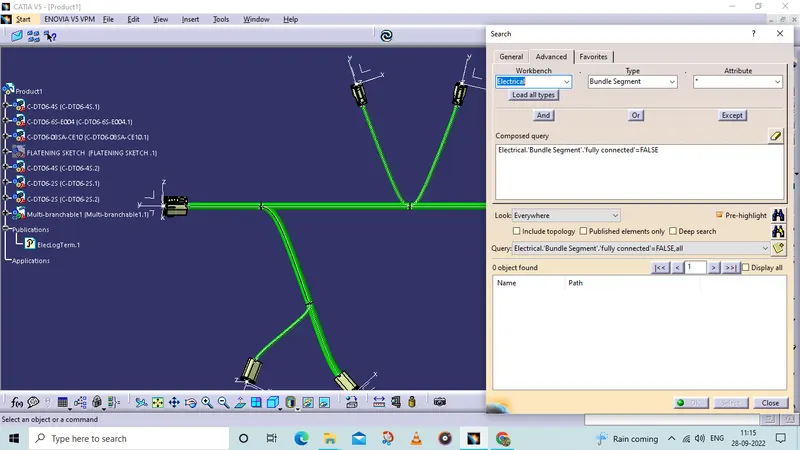

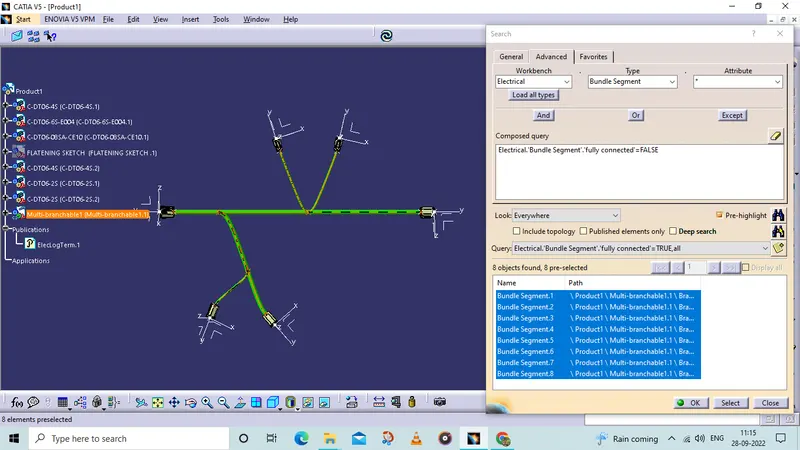

CONTINUITY CHECK FOR THE BUNDELS

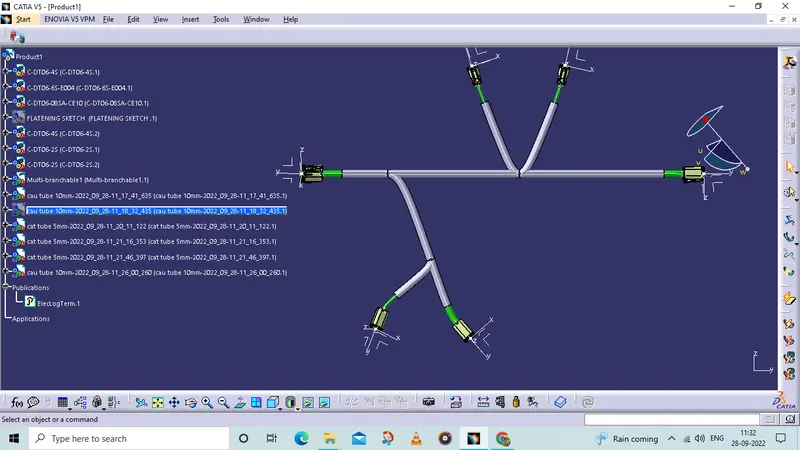

CREATION OF THE HARNESS

WITH THE MULI BRANCHES AND CONNECTOR, PROTECTION COVERING

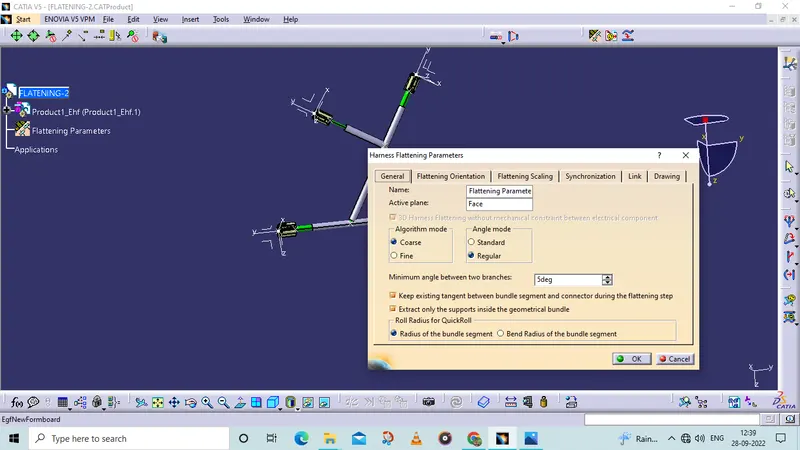

FLATTENING PARAMETERS ADDED

TO THE HARNESS ASSEMBLY

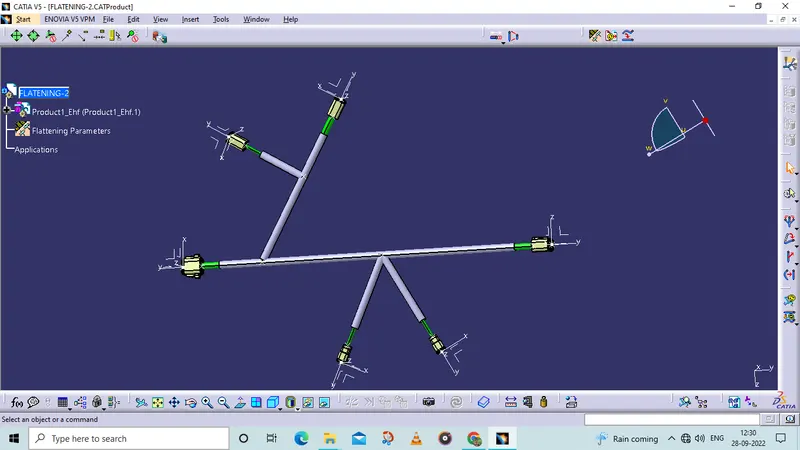

AFTER FLATTENING THE HARNESS
