Wiring harness design in CATIA V5 - 3D modeling Week 7 Challenge

ANS NO.-01:-

AIM:

TO FLATTEN THE WIRING HARNESS AND DRAFT THE WIRING HARNESS ASSEMBLY.

GIVEN:

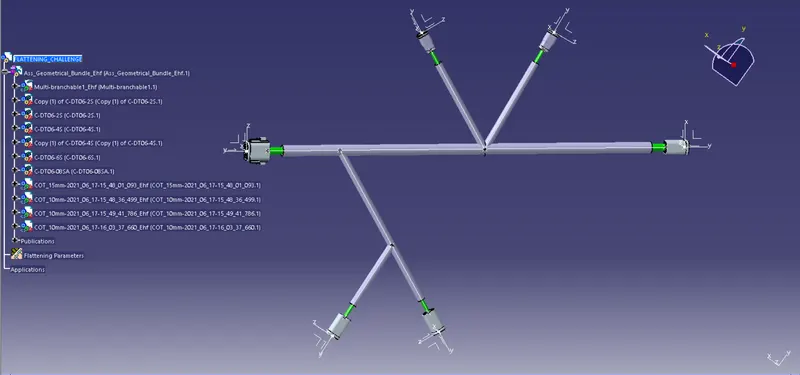

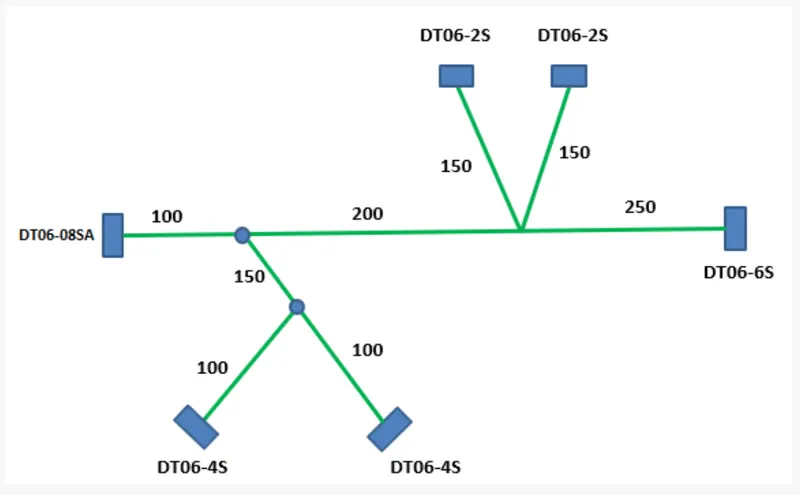

HARNESS ASSEMBLY:

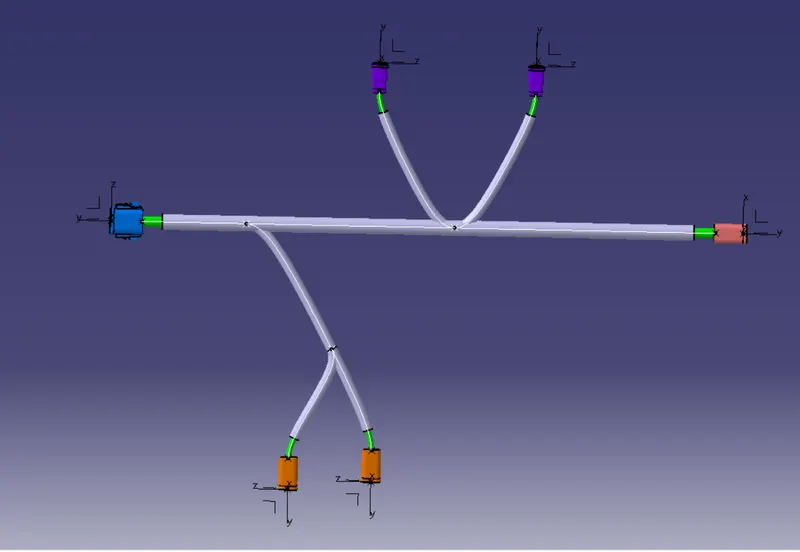

HARNESS FLATTENING:

• WE GO TO THE HARNESS FLATTENING WORKBENCH AND DEFINE THE FLATTENING PARAMETERS.
• WE USE THE EXTRACT COMMAND TO BRING THE HARNESS ASSEMBLY TO THE FLATTENING WORKBENCH HERE.
• CHOOSING A SUITABLE PLANE WE FLATTEN THE HARNESS ASSEMBLY.
• BUNDLE SEGMENTS ARE ROTATED AT THE REQUIRED ANGLES. THE HARNESS ASSEMBLY IS THEN DRAFTED.
• FLATTENING PARAMETERS ARE DEFINED IN ORDER TO MAKE THE BUNDLE AND THE CORRUGATED TUBES VISIBLE IN THE 3D DRAWINGS.

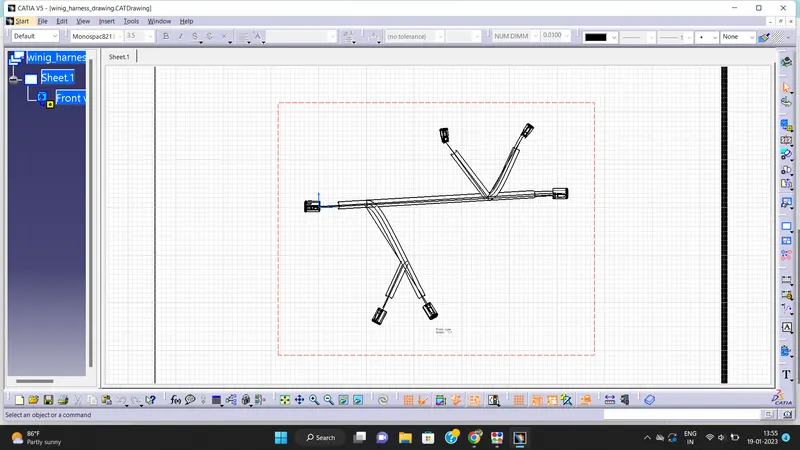

DRAFTING REPRESENTATION:-
