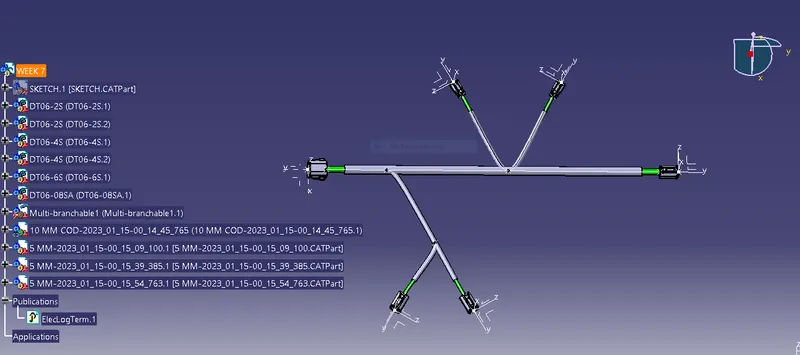

Wiring harness design in CATIA V5 - 3D modeling Week 7 Challenge

flattling of the wire

first use harness flattning parameter for defining the flattning

then click extract and the filw which is to be extracted .

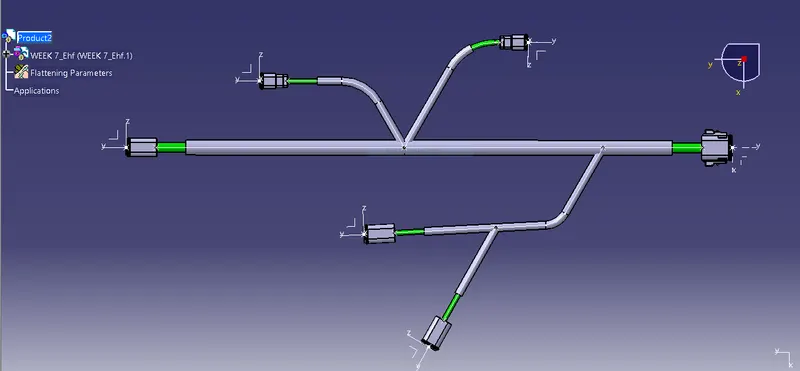

use flatten command to flatten the wire harness model.

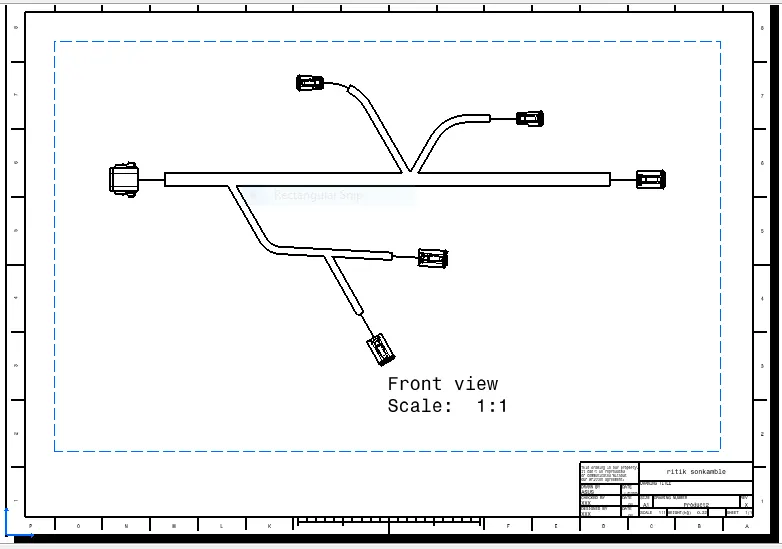

drafting
