Aim:-
- Route two electrical harnesses per the given layout and interconnect them as a single harness assembly.
- check for bundle continuity, and bundle warnings, and then provide annotations for the final harness assembly.
Objective:
The objective of this project is to first route the two Harness A and Harness B as per the given harness layout.

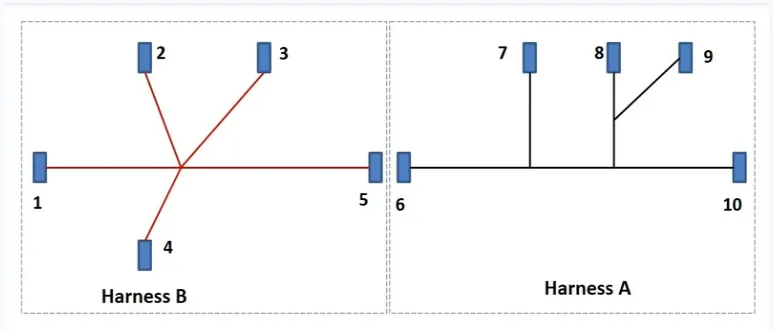

The electrical connectors are represented by numbers in the above figure. There are 8 different types of connectors at 10 different locations.
- Bundle continuity has to be checked for the two created harnesses.
- After the two Harnesses are created, the next objective is to have them interconnected electrically.
- Check for bundle warnings in Harness A and Harness B.
- Add annotations to all the connectors in Harness A and Harness B.

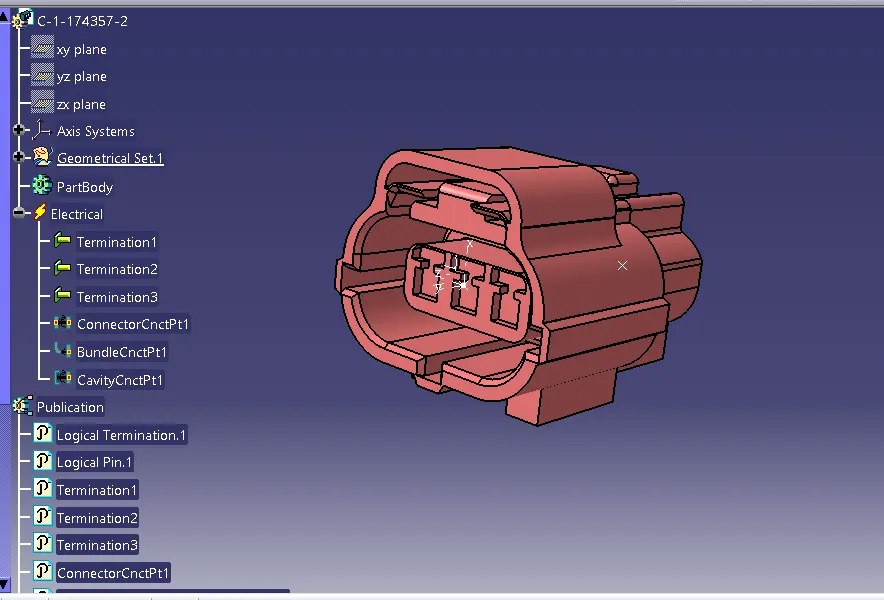

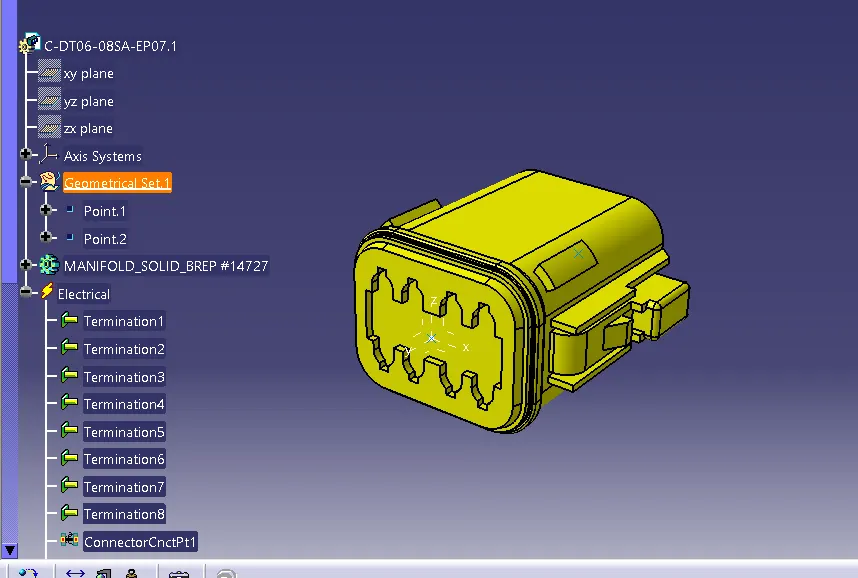

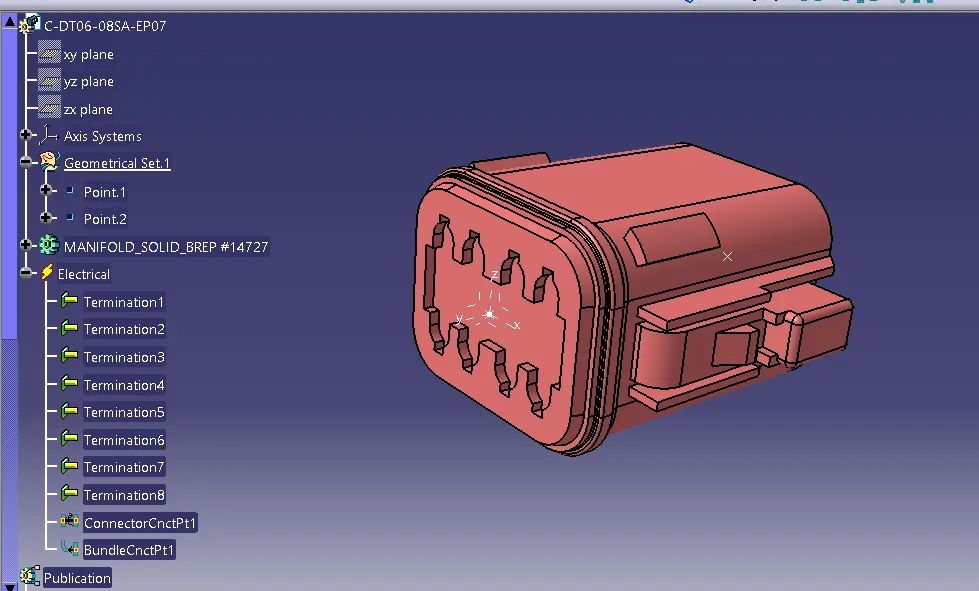

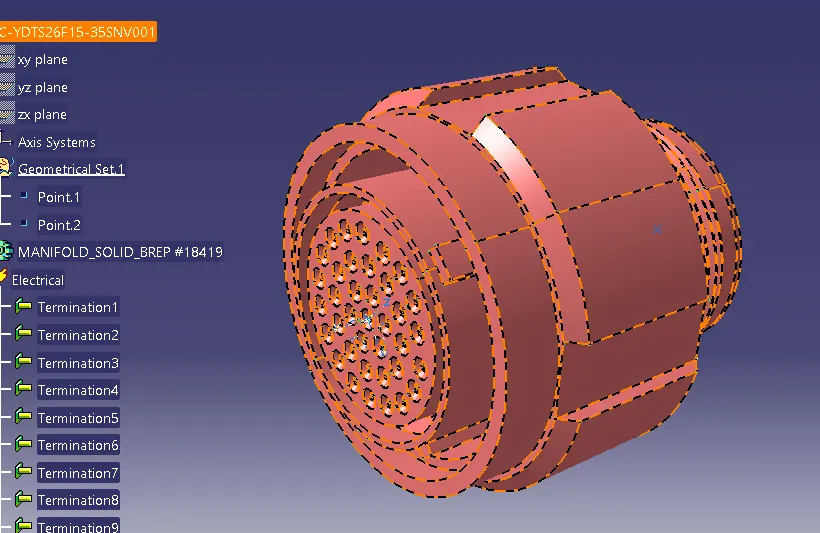

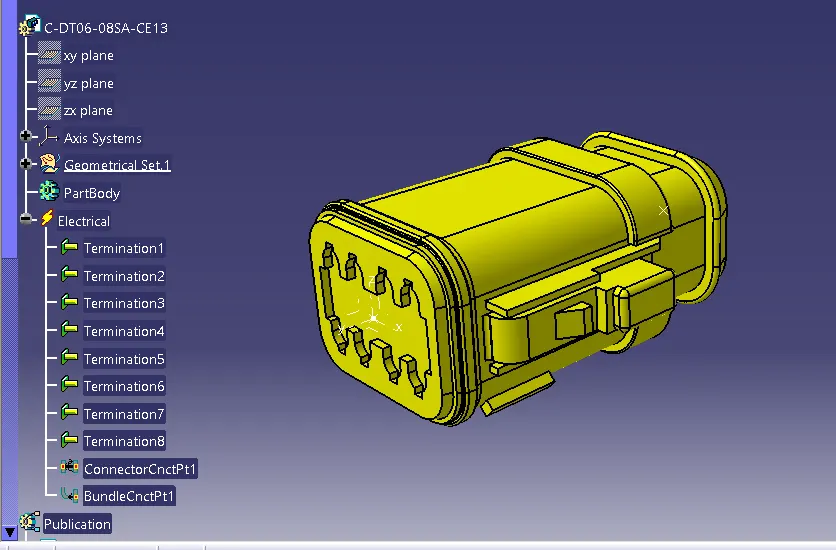

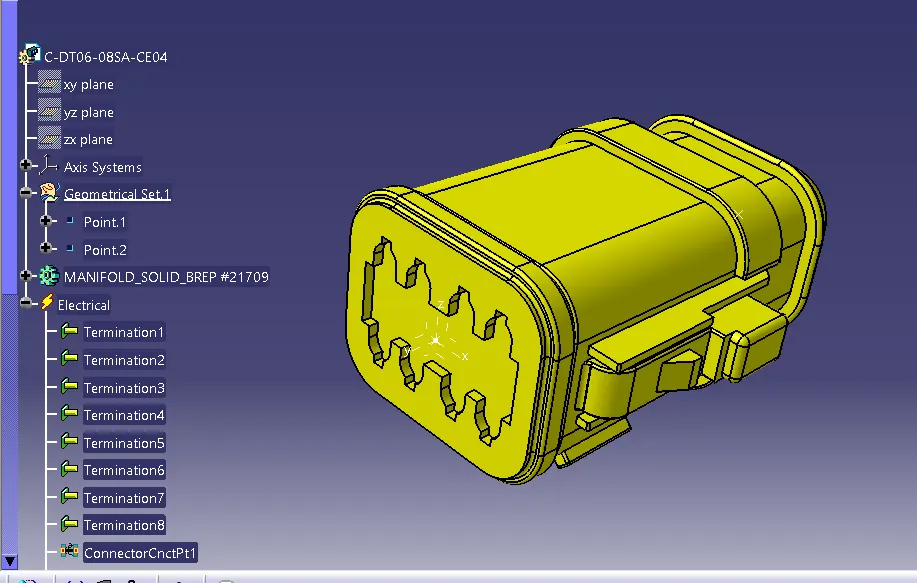

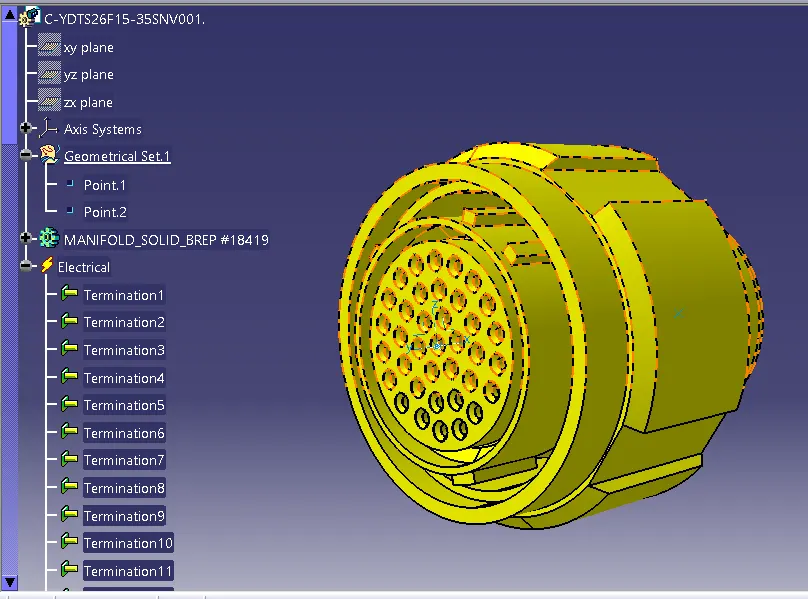

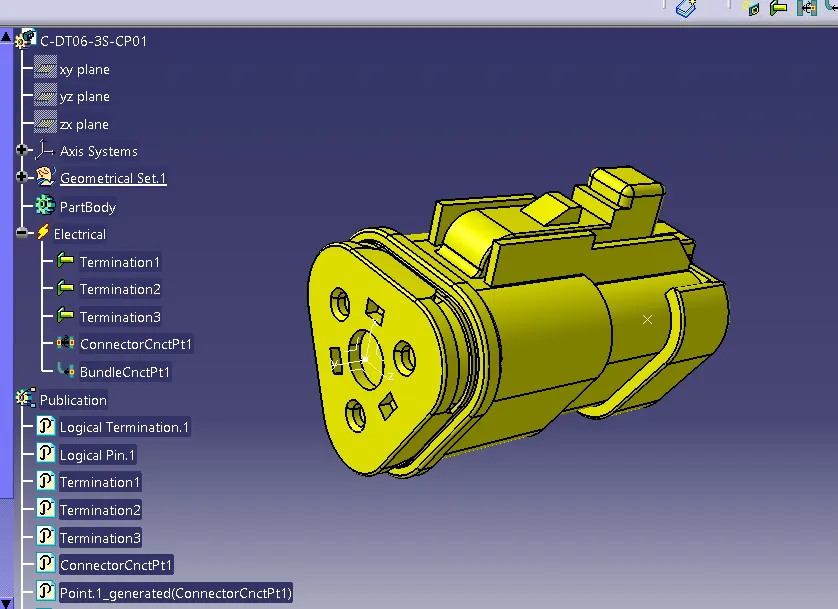

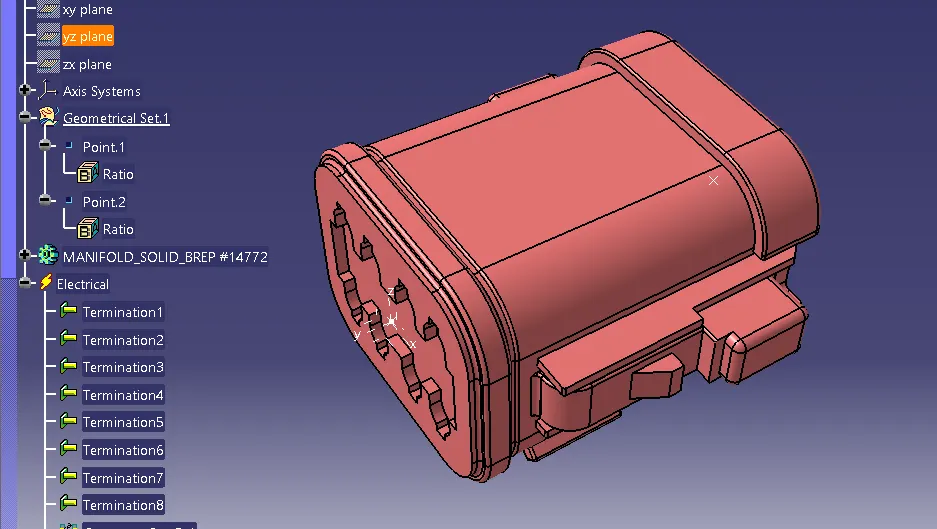

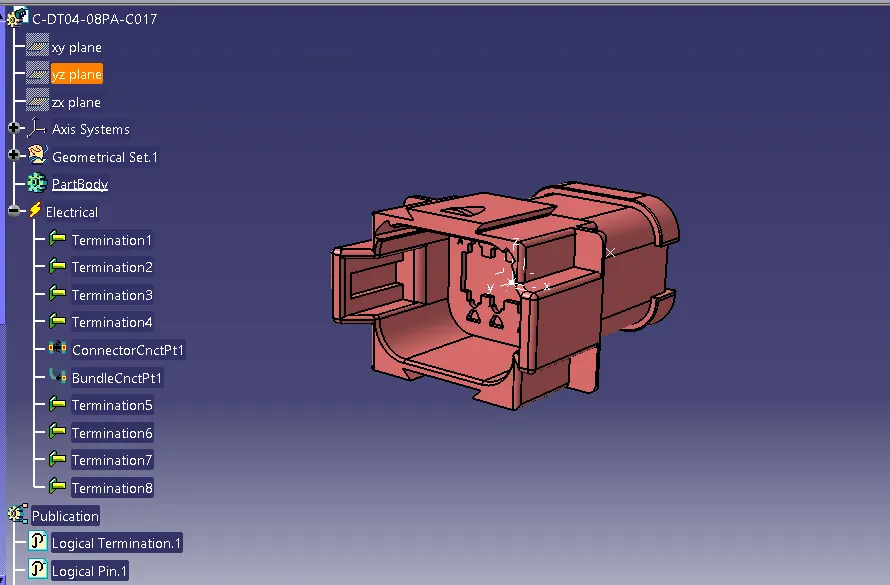

- Define all the electrical connectors geometrically and electrically so that they can be used in the wiring harness.
Harness A Components
Harness B Components:-
HARNESS A

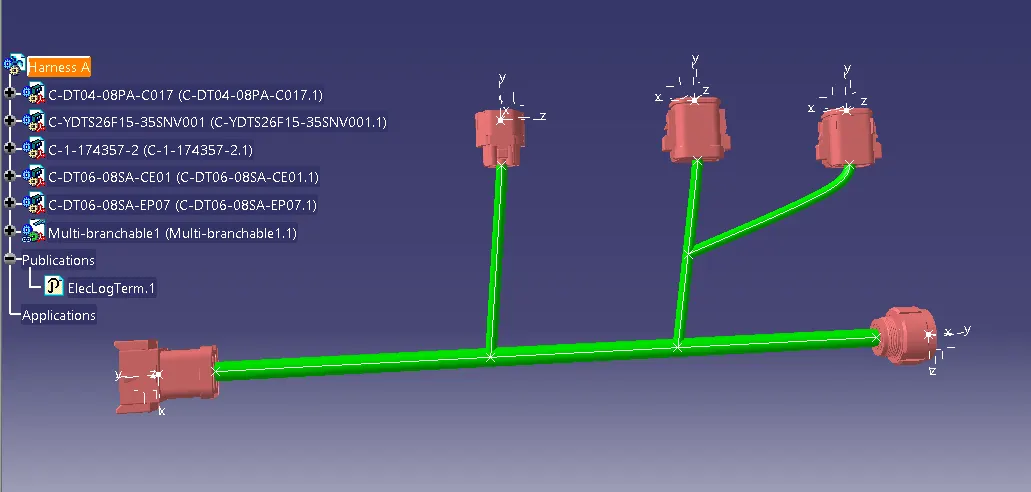

After all the connectors are defined, the workbench was switched to Electrical Harness Assembly where Geometrical Bundle was activated. All the connectors were routed using the Multi-Branchable Document command.
HARNESS B

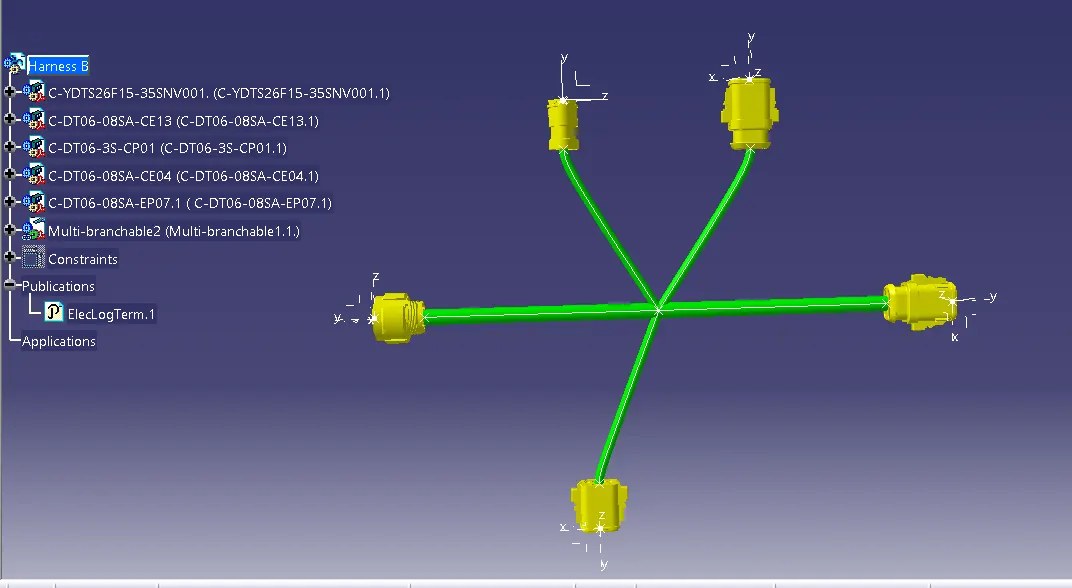

After all the connectors are defined, the workbench was switched to Electrical Harness Assembly where Geometrical Bundle was activated. All the connectors were routed using the Multi-Branchable Document command.

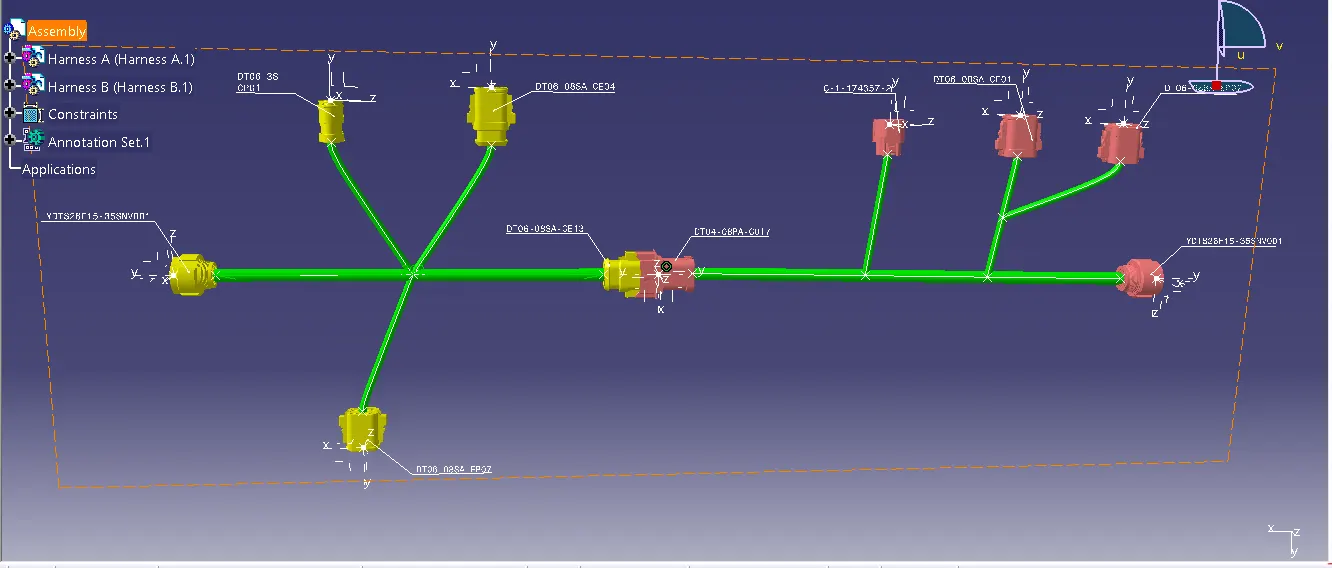

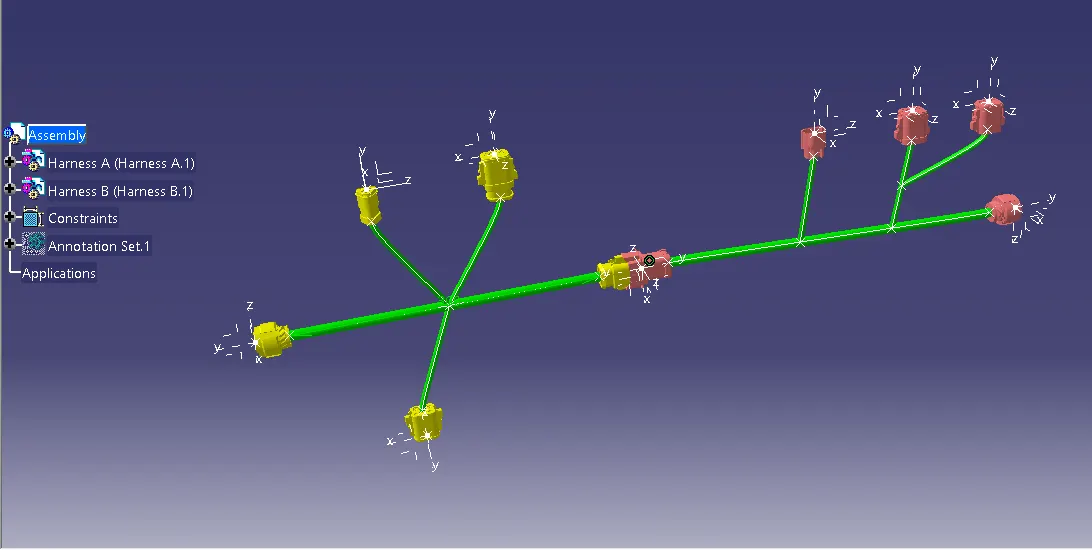

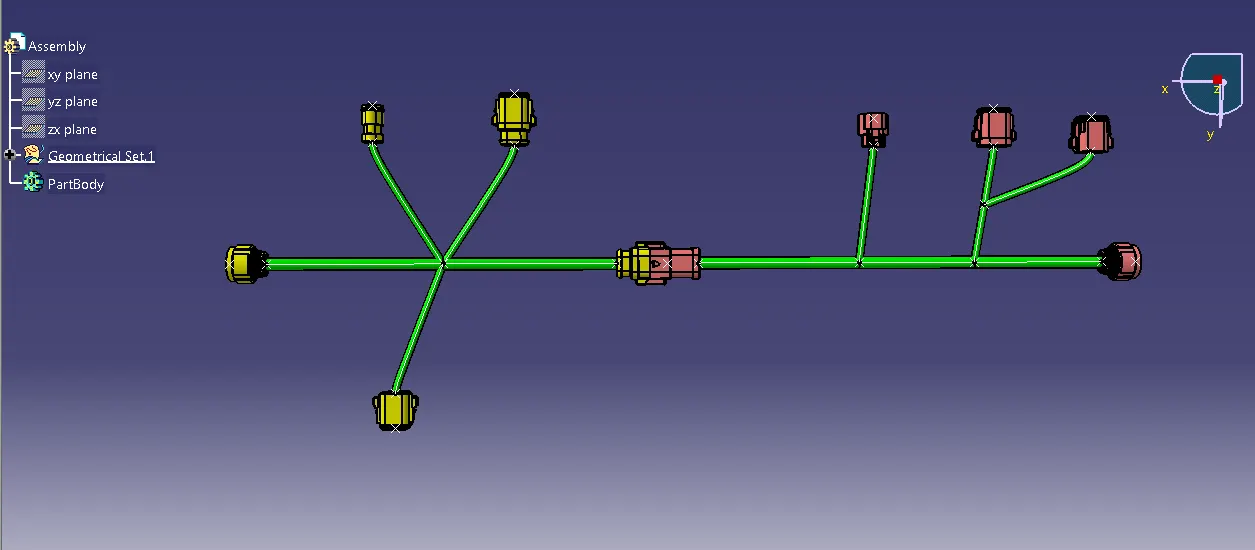

HARNESS ASSEMBLY
ANNOTATIONS
Converted as a part body and save as IGS Format:-
Conclusion:-
- Routed two electrical harnesses per the given layout and interconnect them as a single harness assembly.
- Checked for bundle continuity, and bundle warnings, and then provide annotations for the final harness assembly.
