Wiring harness design in CATIA V5 - 3D modeling Week 5 & 6 Challenge

Let, we have provided the harness layout as below and accordingly we have to route it. For that we have to make assumption for harness bundle diameters and use DT connectors.

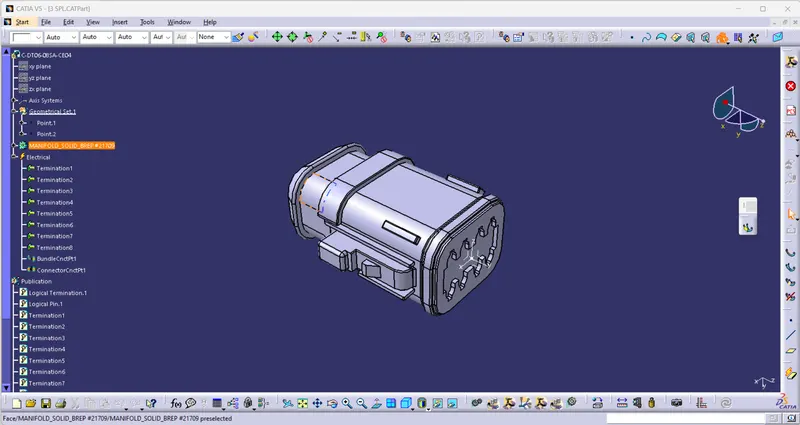

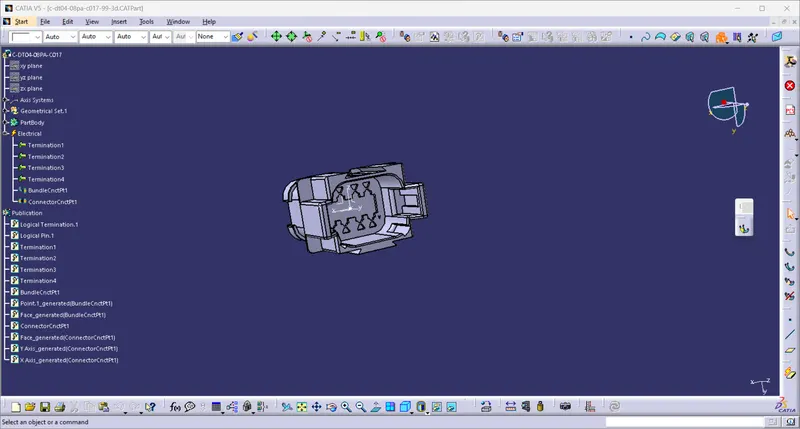

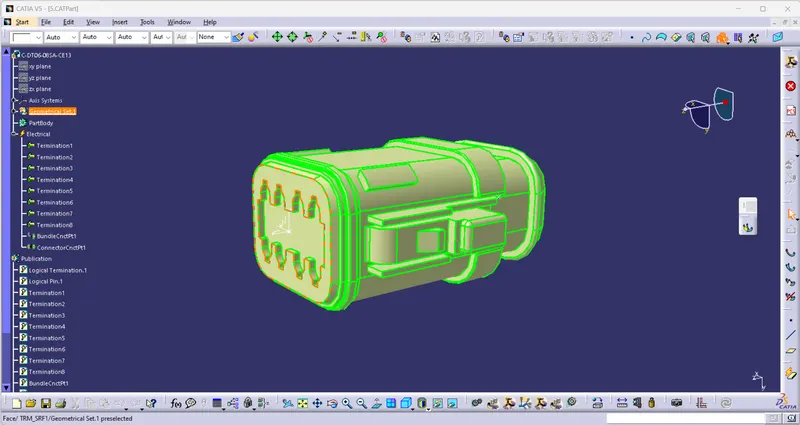

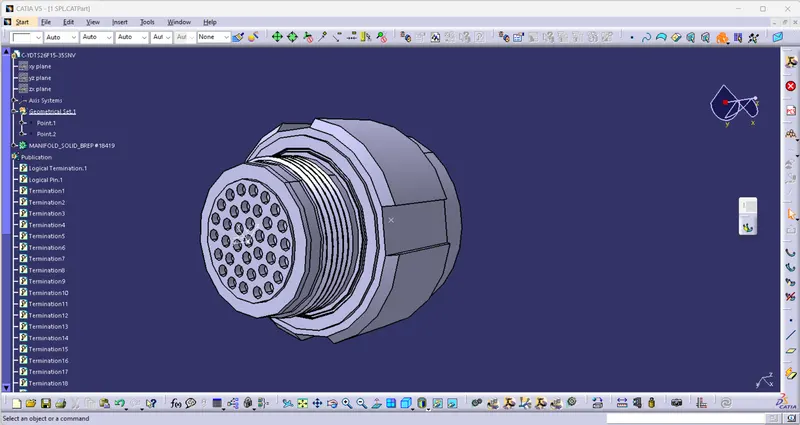

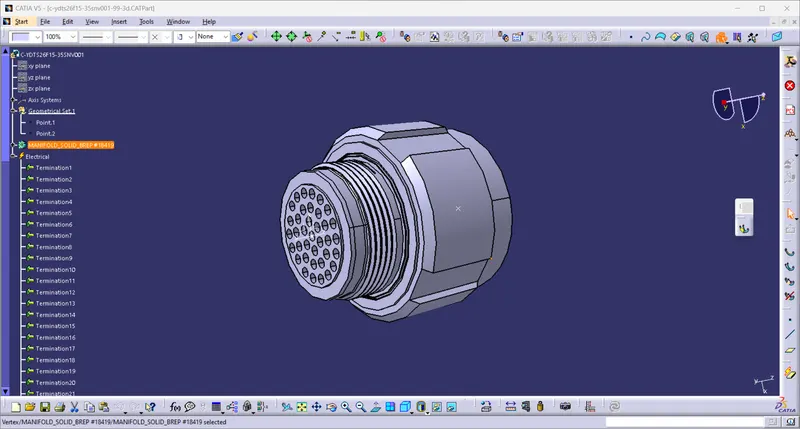

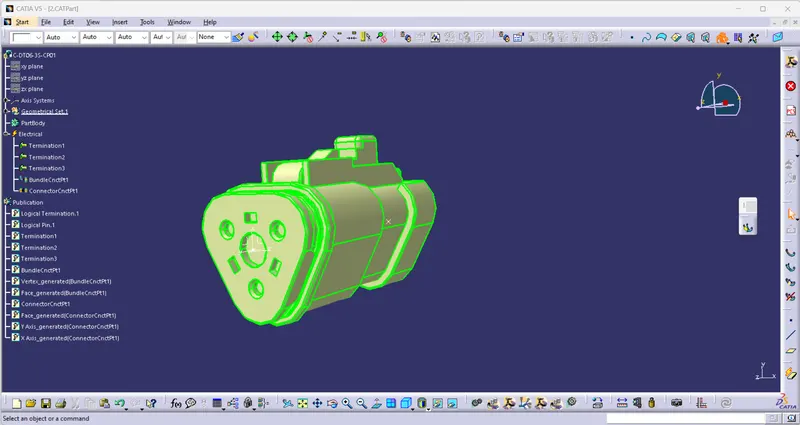

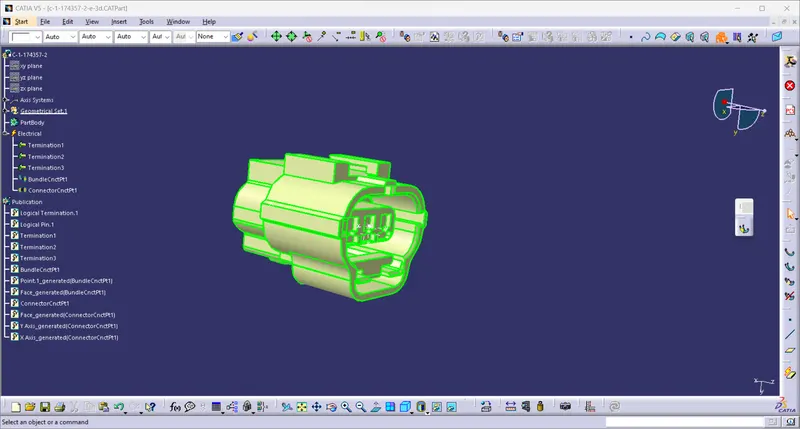

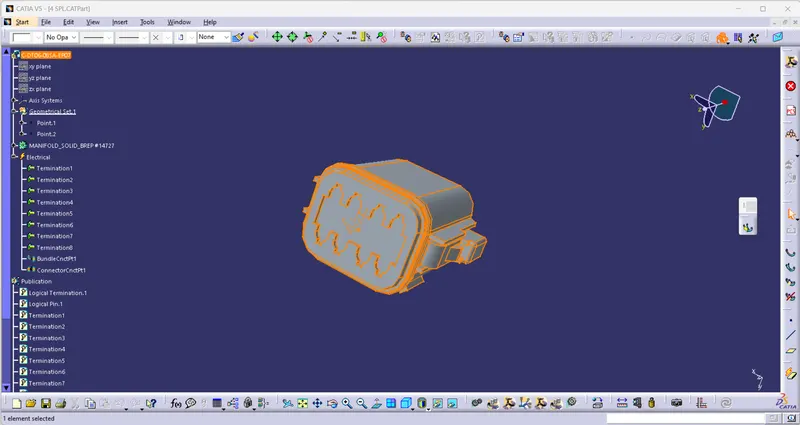

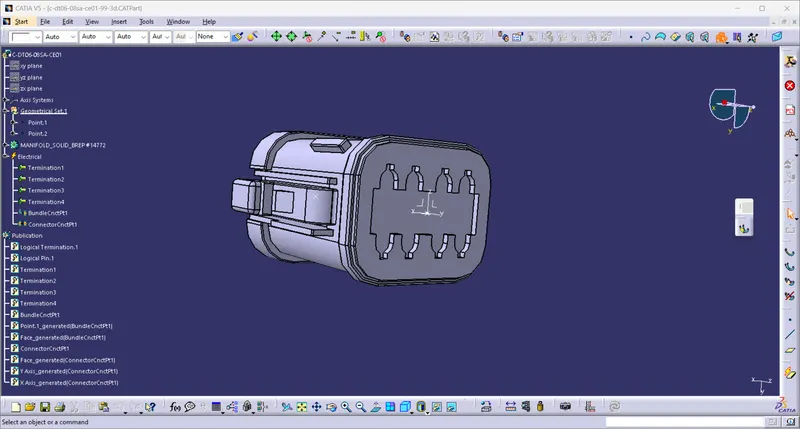

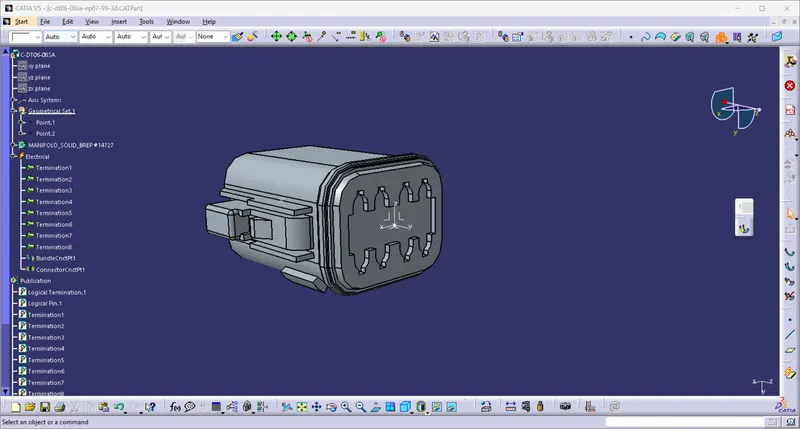

Step 1: We have to first define all the connectors geometrically and electrically as shown in below images.

Step 2:

Now, we have to create Harness A and Harness B by using electrical harness assembly as shown in below image.

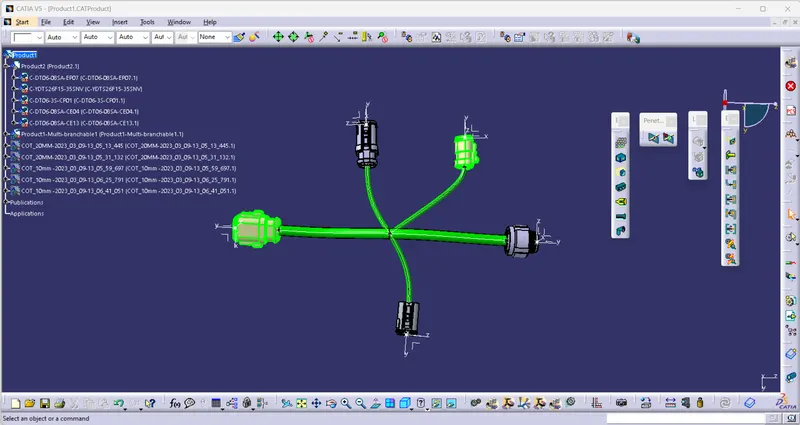

First, we will locate all the connectors at their desired position, add branch points required and create bundle segment according to the diameters assumed as 10mm and 5mm.

Harness B Routing

Harness A Routing

Step 3:

• Now in this step, we have to check bundle continuity in both Harness A and Harness B.

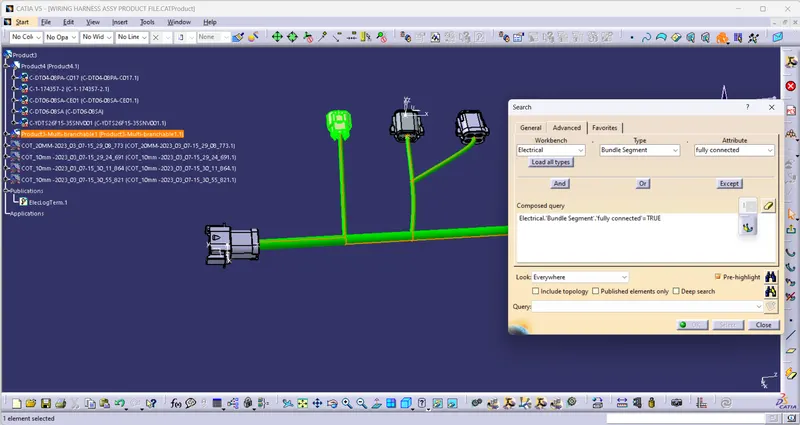

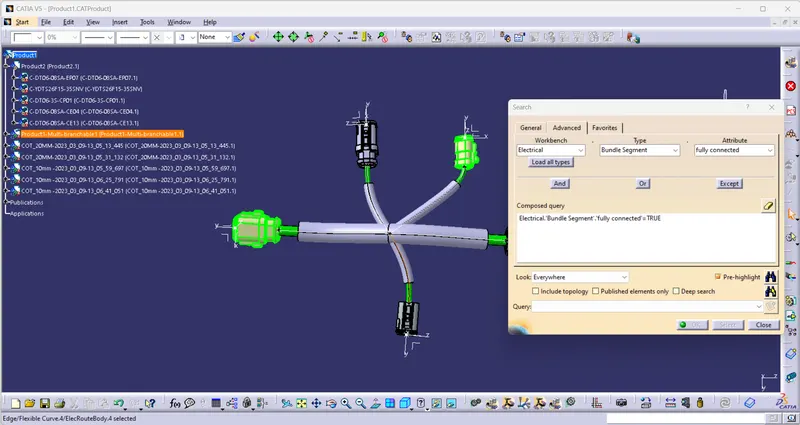

• So for that, go in Edit>Search>Workbench-Electrical>Type-Bundle segment>Attribute-fully connected.
• We will get one window, in that selecting True option will show all the connected bundle segments while selecting False option will show all the non-connected bundle segments.
• Now, we will check for True condition and search for result.

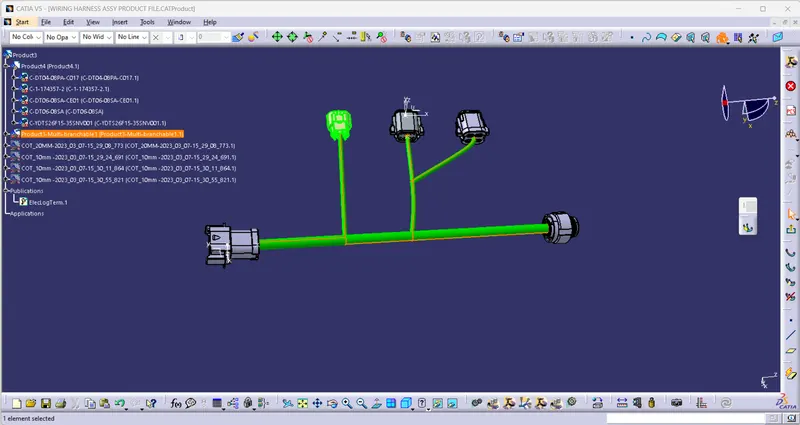

• All the bundle segments are showing connected. So there is bundle continuity in both Harness A & Harness B as shown in below images.

Step 4:

• In this step, we have to interconnect both Harness A & Harness B.
• For that, we have to create new product file and can give name as Assembly.
• Then, copy both harnesses and paste it in newly created product file or call both harnesses in mechanical assembly design.

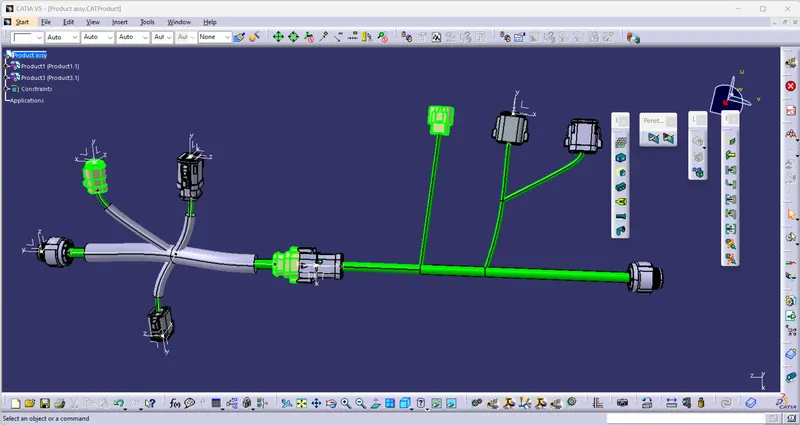

• We have to go in Electrical Assembly Design to connect both the harnesses electrically. So for that, select the option 'connect electrical devices' and both the harnesses will get connected electrically as below.

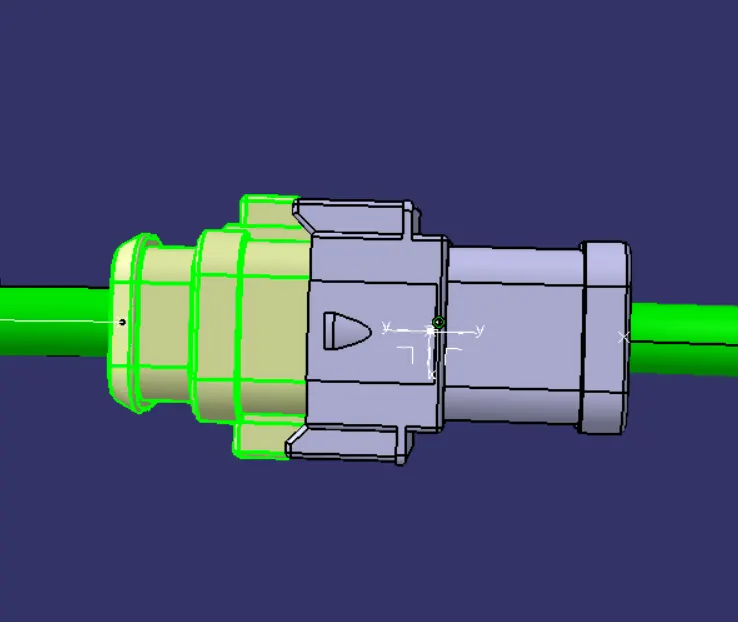

• As shown in below image, male connector should have to be inserted into the female connector.

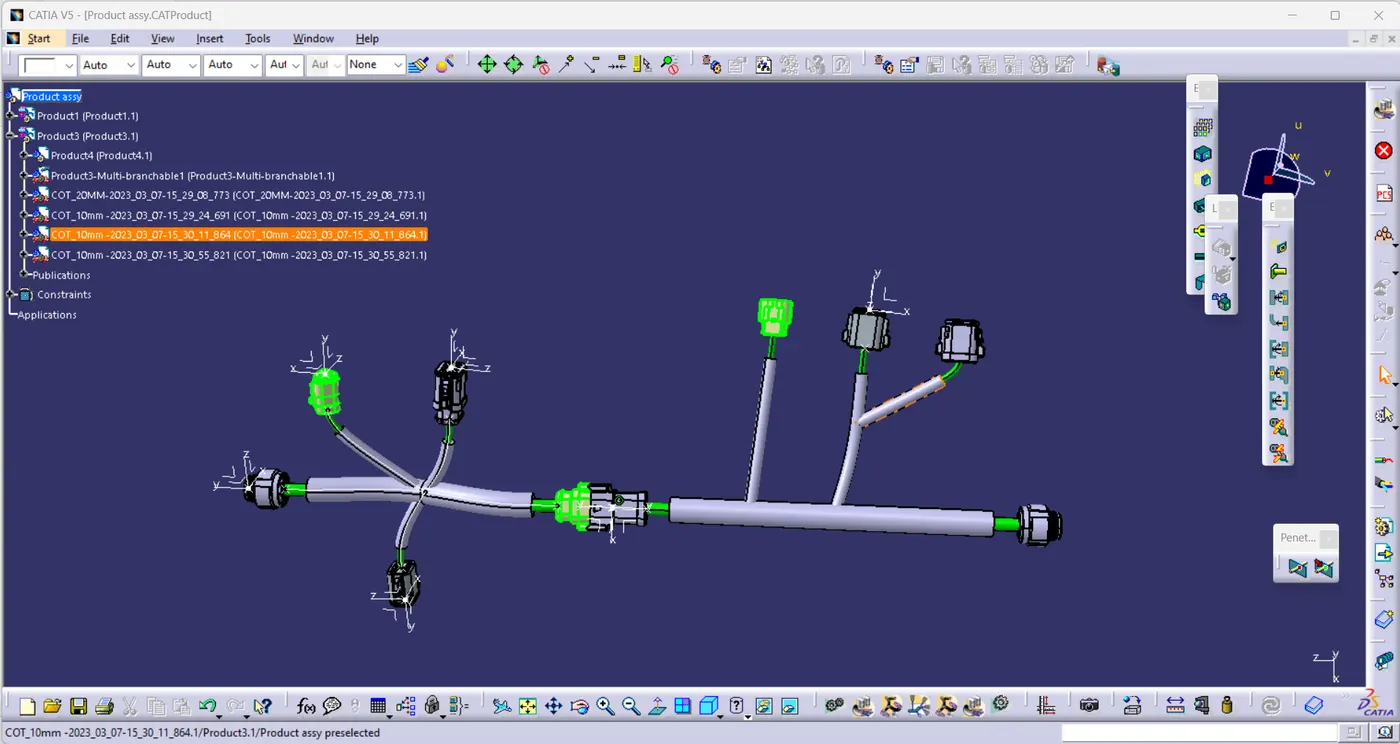

FINAL ASSEMBLY WITH PROTECTIVE SLEEVE
