Week 8 - Challenge 4 - Bumper

Aim:

To be able to model a solid from the given class a, and create tooling axis, draft analysis to it.

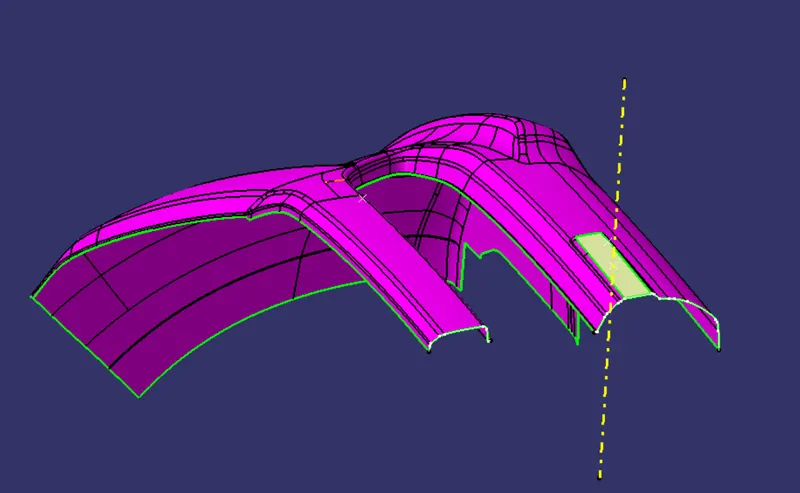

a plan surface were extracted and a center point given on it

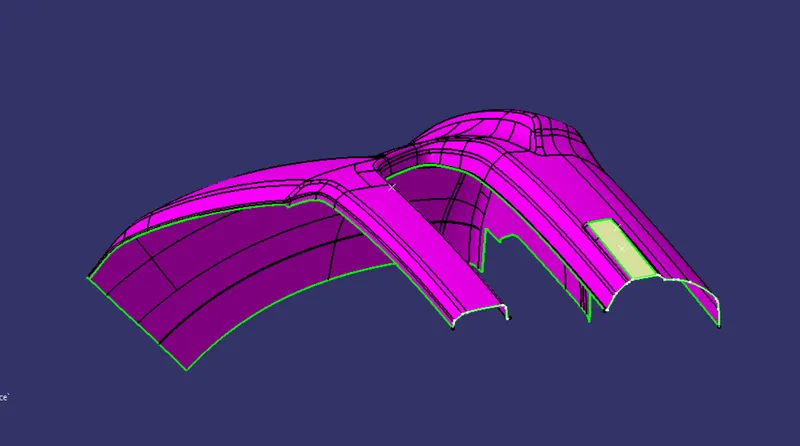

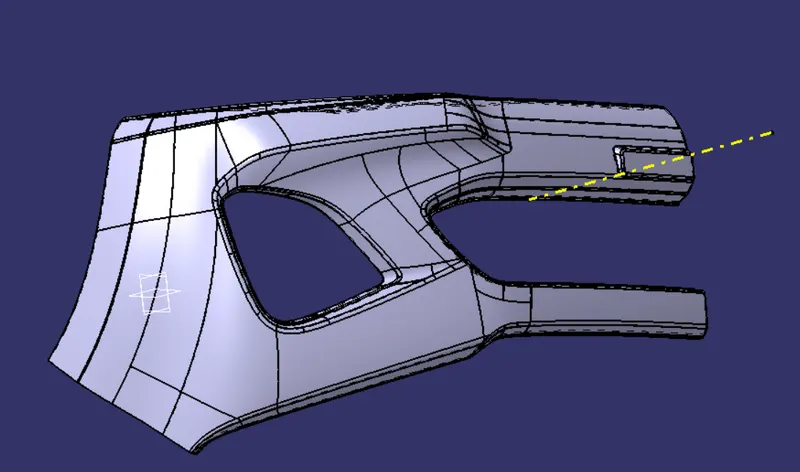

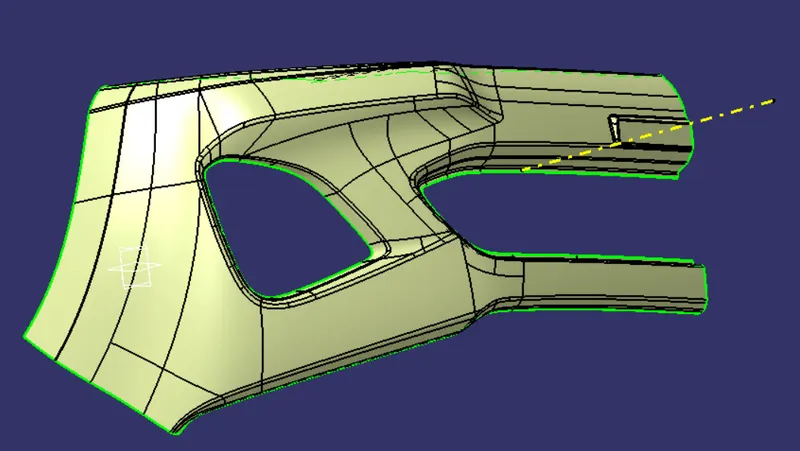

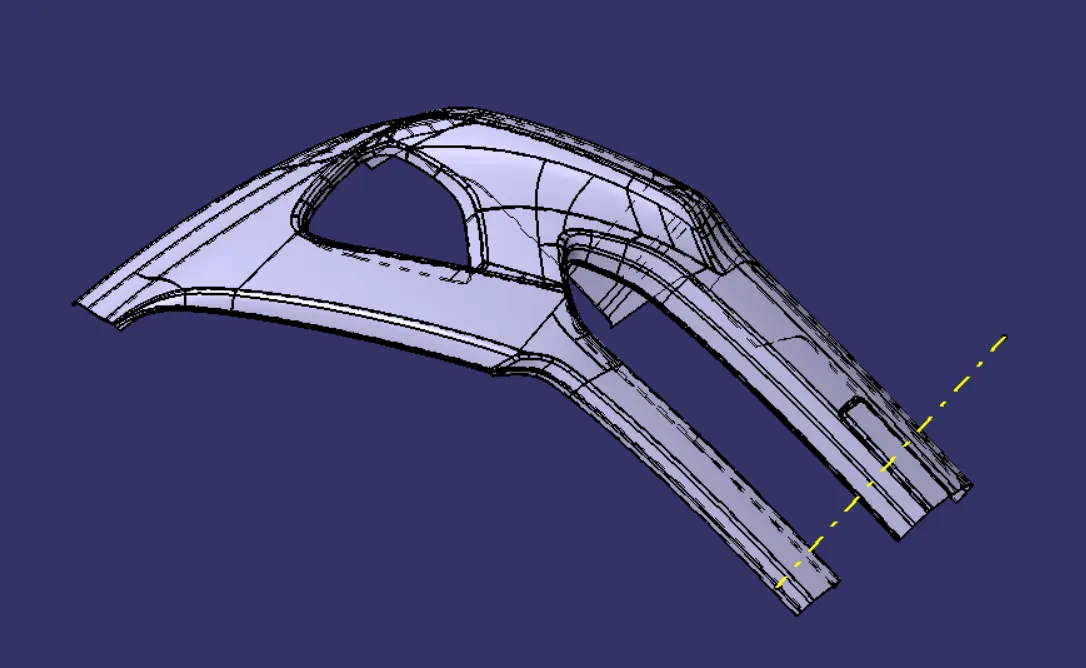

tooling axis created

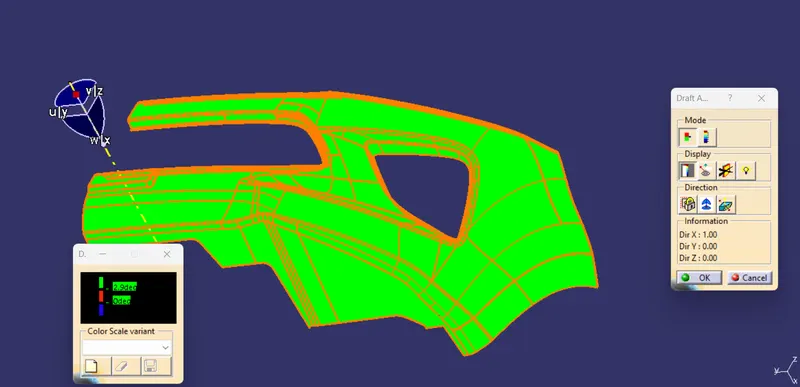

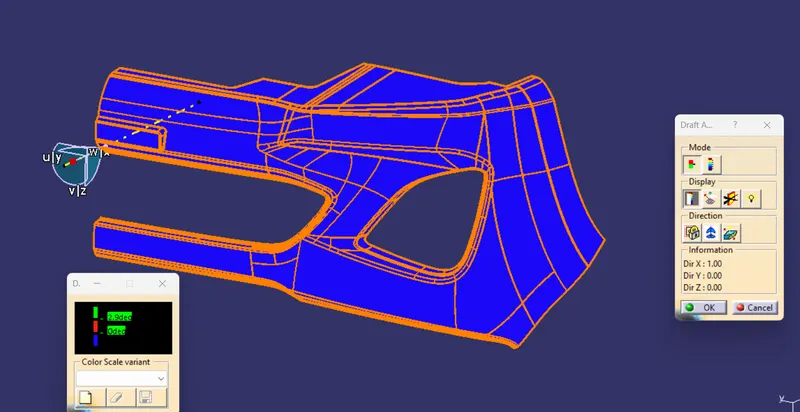

Draft analysis for both Class A and solid:

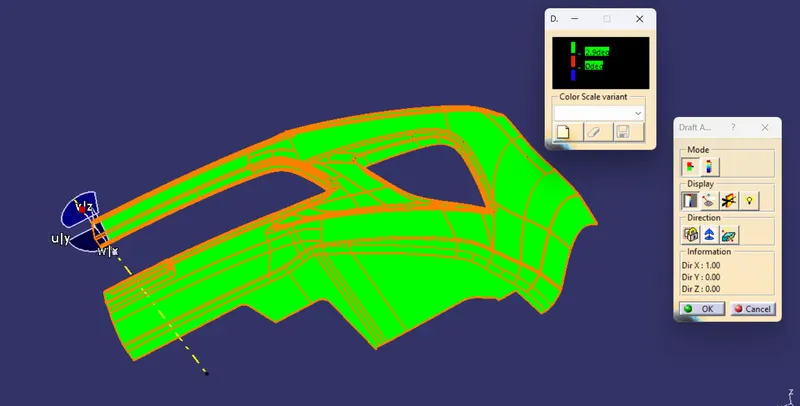

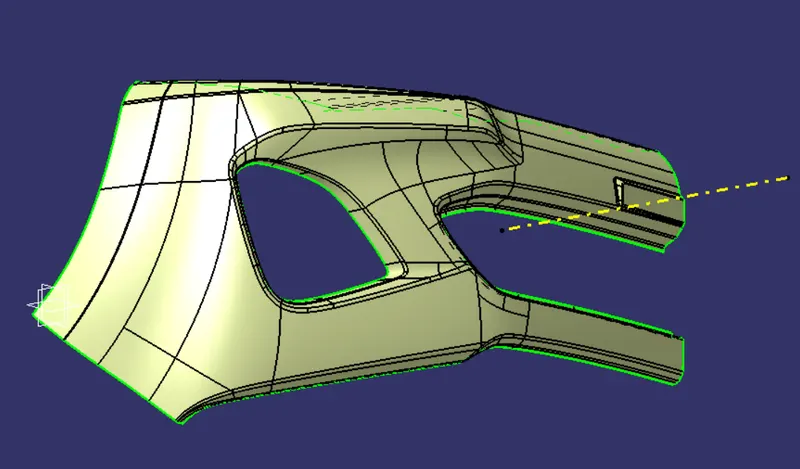

the Draft angle is considered 3 degrees, except for two surfaces all the area is green which means the surface is ok to mold.

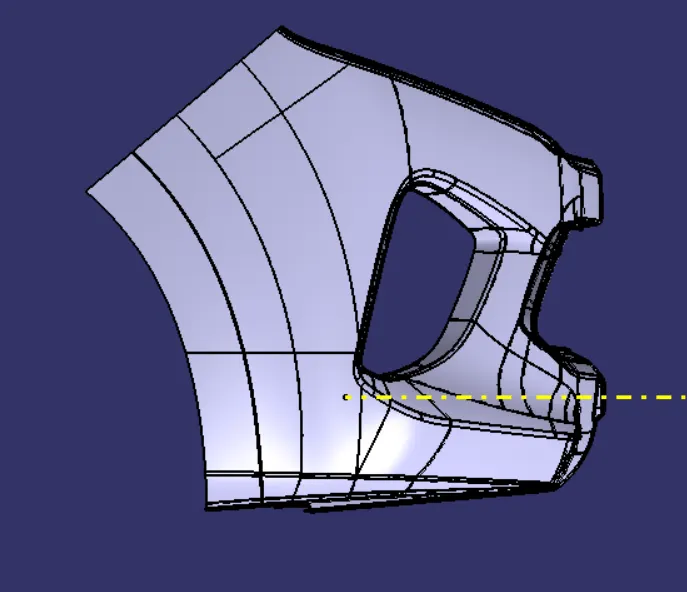

Class B

Class C

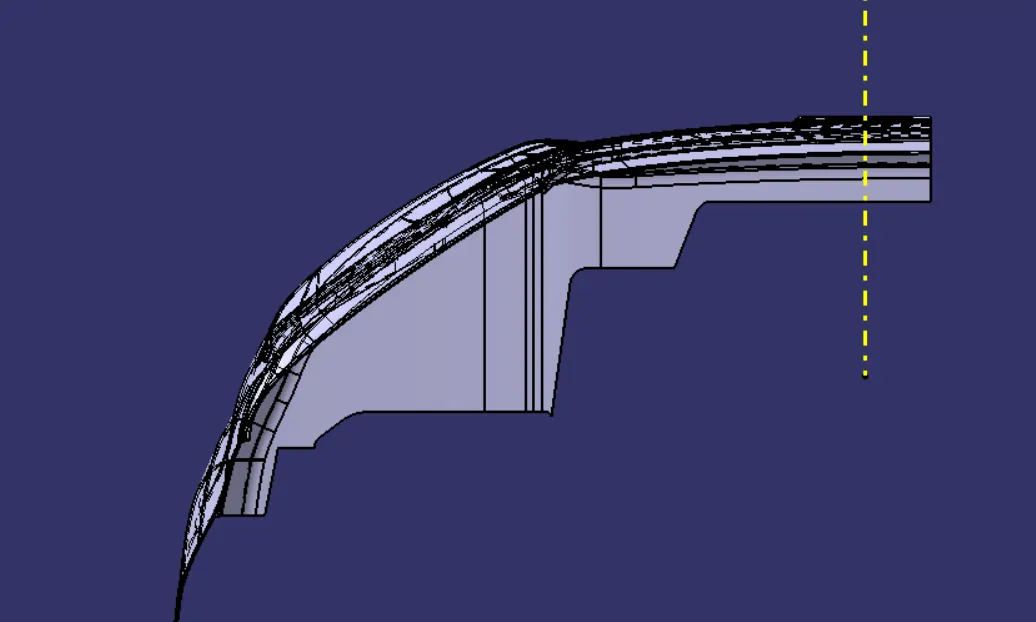

Closed surface:

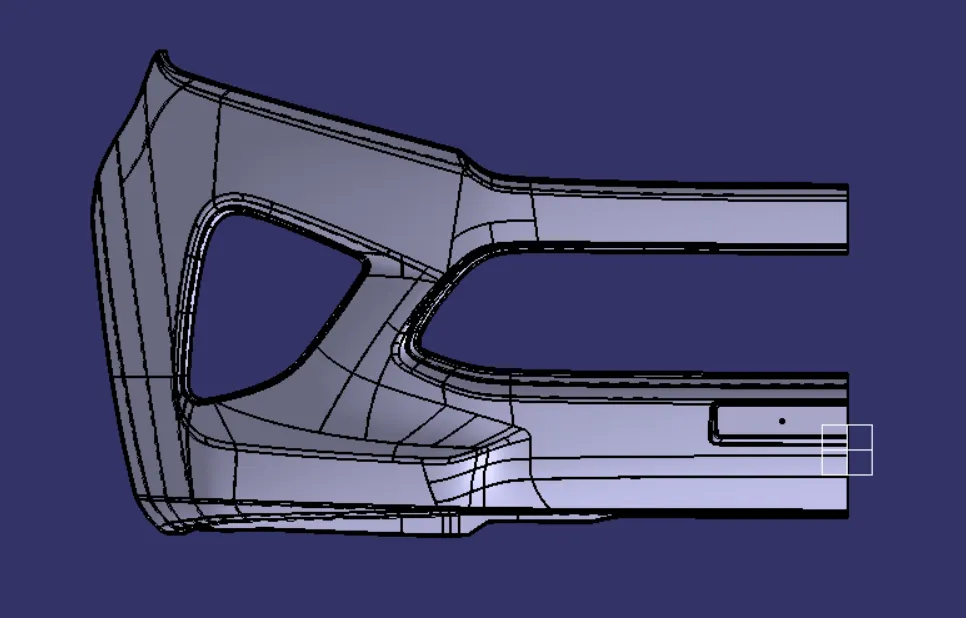

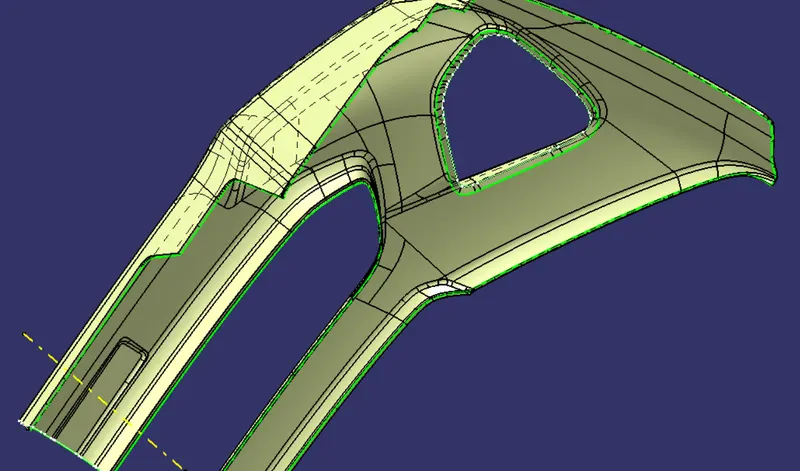

Solid model:
