Wiring harness design in CATIA V5 - 3D modeling Week 5 & 6 Challenge
Aim :
- Route two electrical harnesses per the given layout and interconnect them as a single harness assembly
- check for bundle continuity, and bundle warnings, and then provide annotations for the final harness assembly.
Objective :
- Routing of the two harness as per the given layout and with the respective connectors and by chosing the diameter
- And protecting the with requerd diameter cot tubes
- The finished harness A&B is inter linked with each ather using Electric harness assembly
Connecters used :
1) DT06-4S :
2) DT06-6S :
3) DT06-2S :
4) DT06-08SA

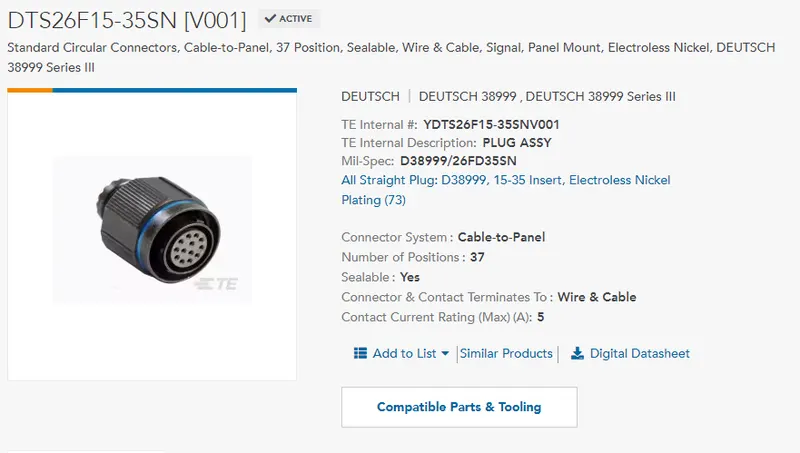

5) DTS26F15-35SN [V001]

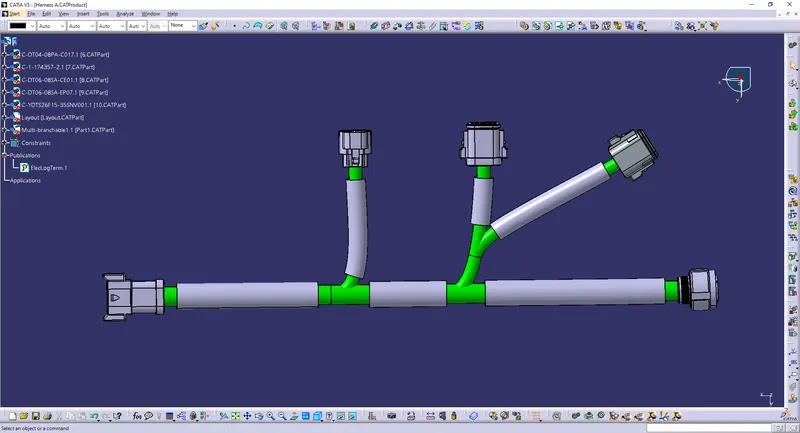

Harness A :

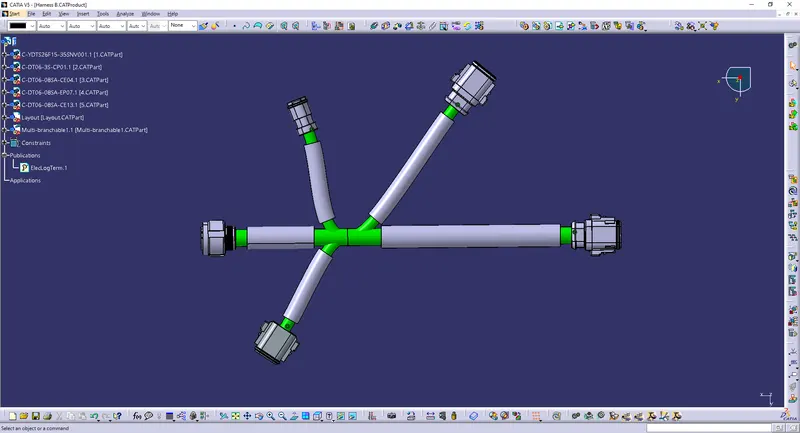

Harness B :

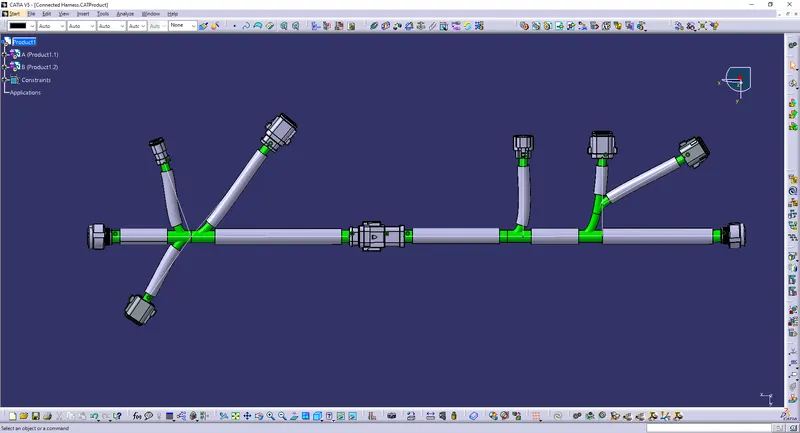

Connected harness :
